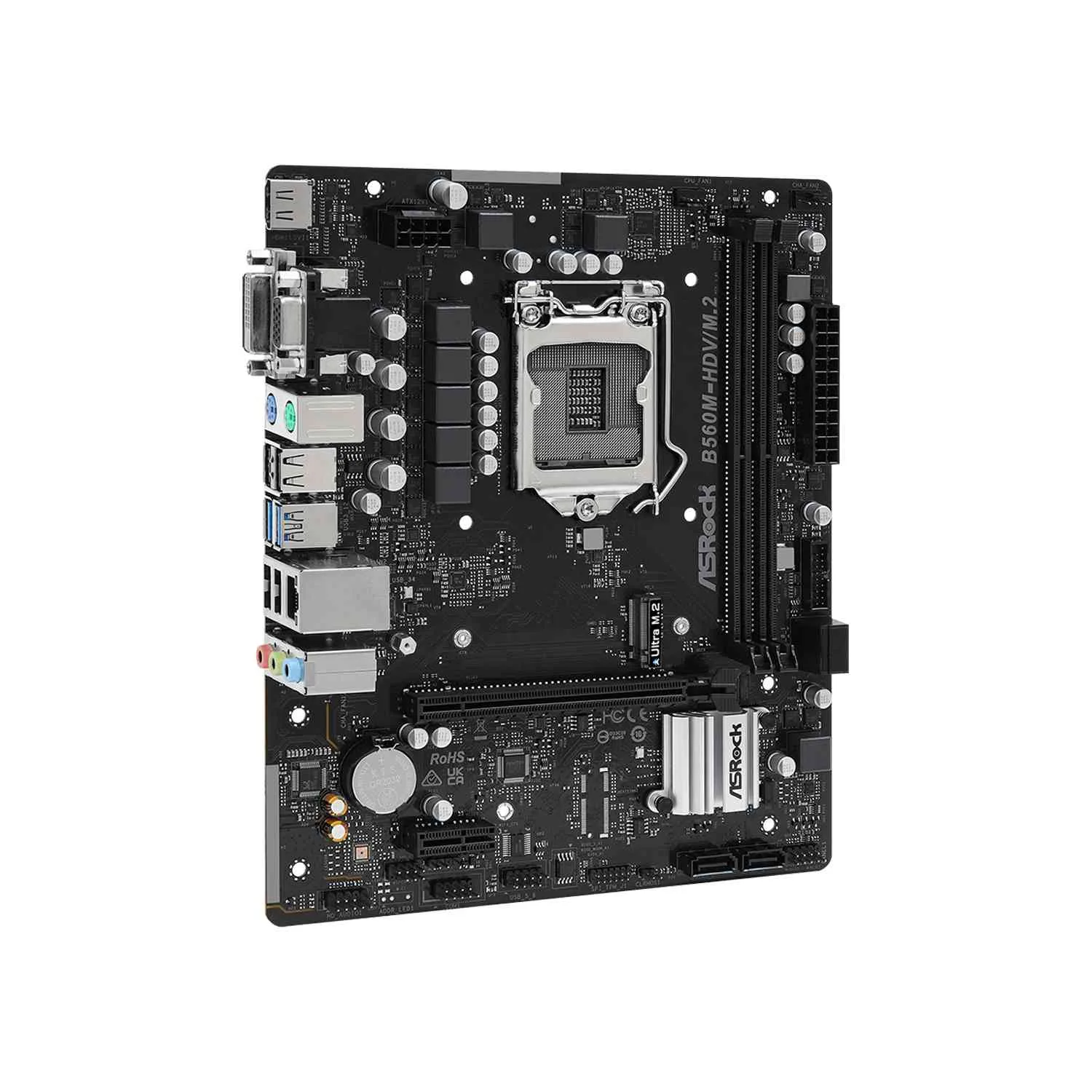

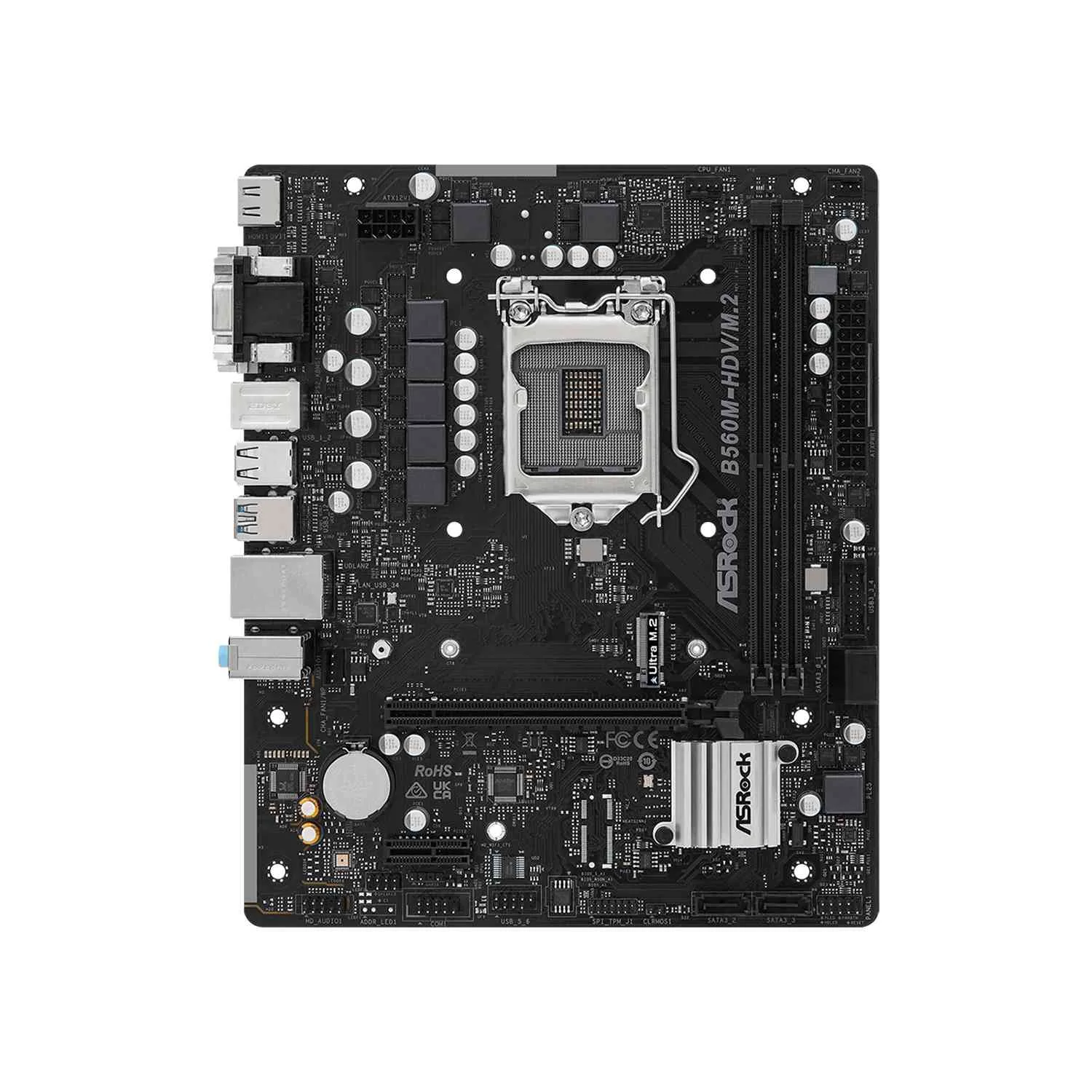

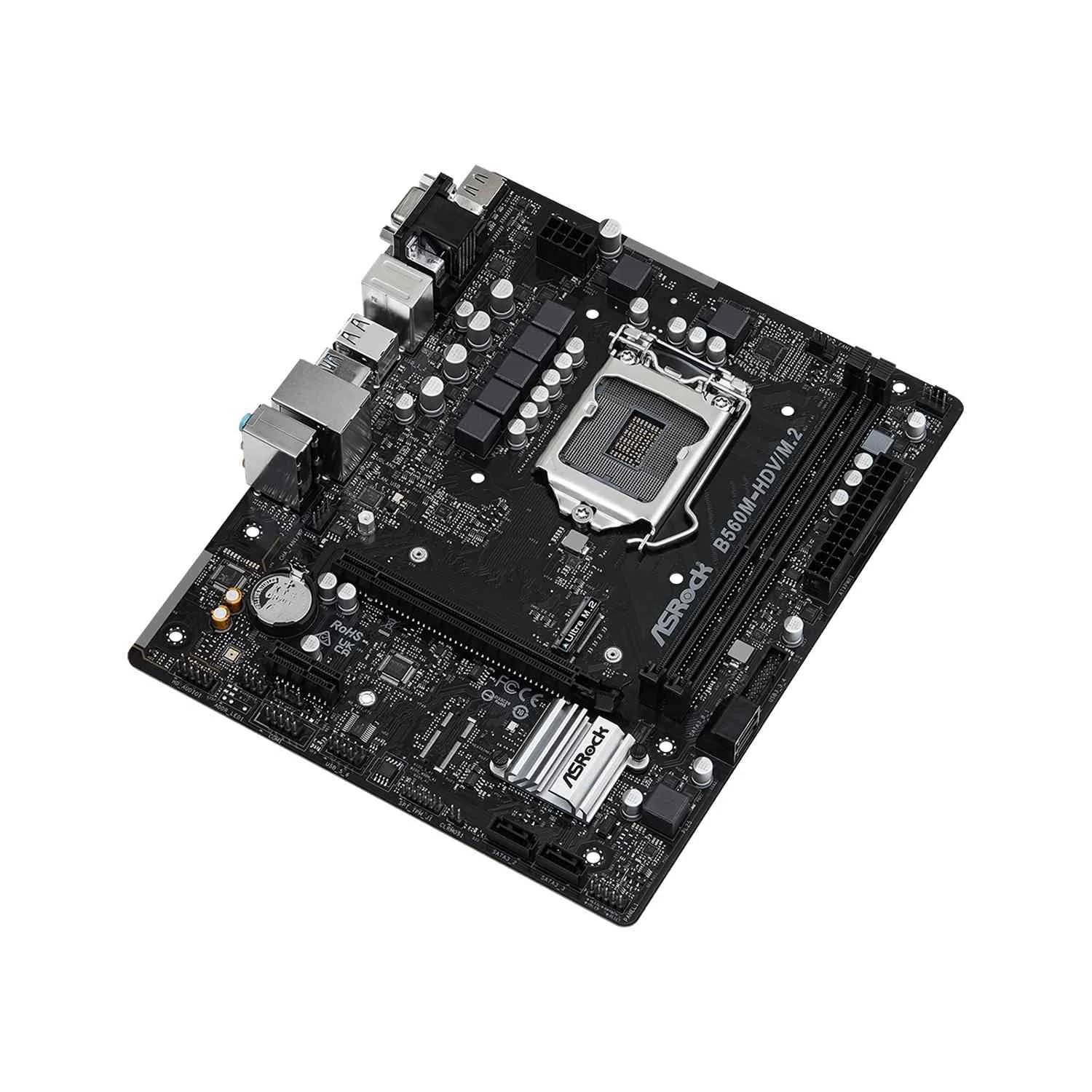

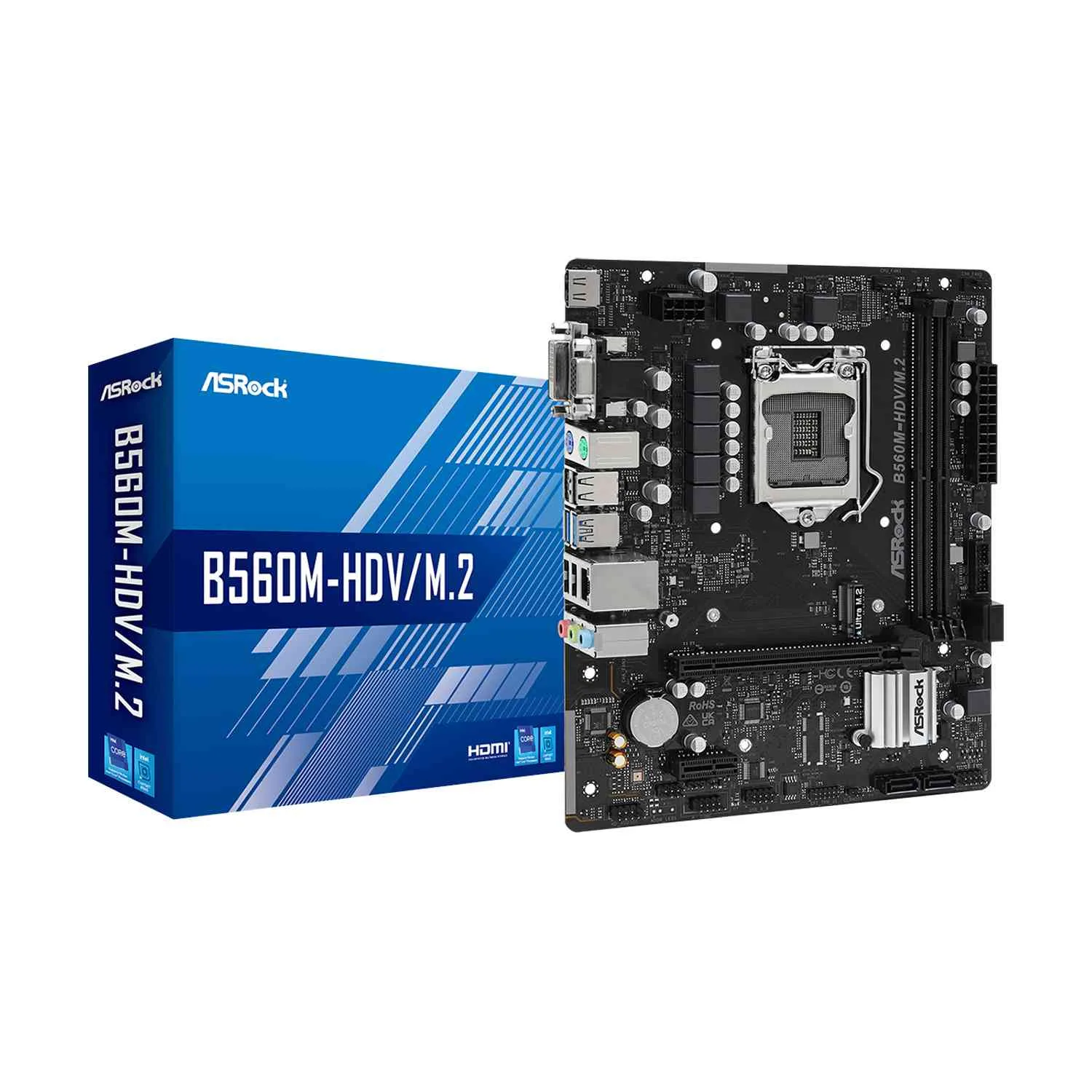

ASRock B560M-HDV/M.2, Intel B560 Chipset, Micro ATX MotherBoard

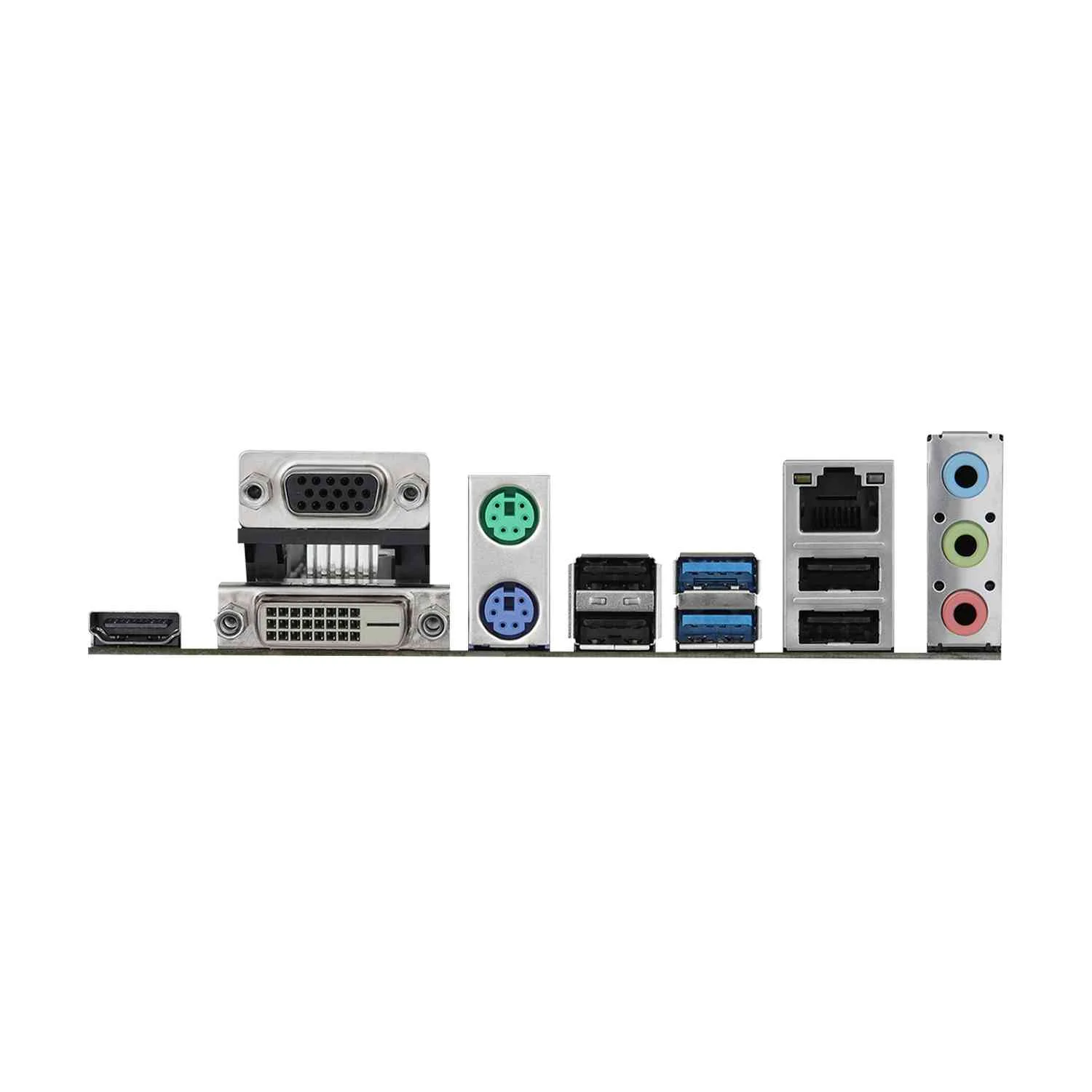

Model No : ASRock Intel H560M-HDV/M.2 MotherBoard Part No : 90-MXBLE0-A0UAYZ Chipset : Intel® B560 Form Factor : Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm- Solid Capacitor design Socket Compatibility : Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200)- 5 Power Phase design- Supports Intel® Turbo Boost Max 3.0 Technology LAN : Gigabit LAN 10/100/1000 Mb/s- Giga PHY Intel® I219V- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports PXE BIOS : 128Mb AMI UEFI Legal BIOS with multilingual GUI support- ACPI 6.0 Compliant wake up events- SMBIOS 2.7 Support- CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCST, VCCIN AUX Voltage Multi-adjustment Graphics : 11th Gen Intel® Core™ Processors support Intel® Xe Graphics Architecture (Gen 12). 10th Gen Intel® Core™ Processors support Gen 9 Graphics- Three graphics output options: D-Sub, DVI-D and HDMI**- Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz with 11th Gen Intel® Core™ Processors- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz with 10th Gen Intel® Core™ Processors- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)- Supports HDCP 2.3 with DVI-D and HDMI 2.0 Ports- Supports HDCP 2.2 with DVI-D and HDMI Ports (HDCP 2.3 ready with 11th Gen Intel® Core™ Processors)*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.* Graphics specifications may vary between CPU types.**Supports up to 2 displays simultaneously Memroy : Dual Channel DDR4 Memory Technology- 2 x DDR4 DIMM Slots- 11th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4000+(OC)*- 10th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 3600+(OC)*- Supports ECC UDIMM memory modules (operate in non-ECC mode)- Max. capacity of system memory: 64GB- Supports Intel® Extreme Memory Profile (XMP) 2.0*11th Gen Intel® Core™ (i9/i7/i5) support DDR4 3200 natively; Core™ (i3), Pentium® and Celeron® support DDR4 2666 natively.10th Gen Intel® Core™ (i9/i7) support DDR4 2933 natively; Core™ (i5/i3), Pentium® and Celeron® support DDR4 2666 natively. Storage Compatibility : 4 x SATA3 6.0 Gb/s Connectors, support Intel® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug*- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)***If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.**Supports NVMe SSD as boot disksSupports ASRock U.2 Kit Back Panel I/O Ports : 1 x PS/2 Keyboard Port- 1 x PS/2 Mouse Port- 1 x D-Sub Port- 1 x DVI-D Port- 1 x HDMI Port- 4 x USB 2.0 Ports (Supports ESD Protection)- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- HD Audio Jacks: Line in / Front Speaker / Microphone Slots : 11th Gen Intel® Core™ Processors- 1 x PCI Express 4.0 x16 Slot*10th Gen Intel® Core™ Processors- 1 x PCI Express 3.0 x16 Slot*- 1 x PCI Express 3.0 x1 Slot*Supports NVMe SSD as boot disks Audio : 7.1 CH HD Audio (Realtek ALC897 Audio Codec)- Supports Surge Protection Connectors : 1 x COM Port Header- 1 x SPI TPM Header- 1 x Chassis Intrusion and Speaker Header- 1 x CPU Fan Connector (4-pin)*- 1 x Chassis Fan Connector (4-pin)**- 1 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector- 1 x Front Panel Audio Connector- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.**The Chassis Fan supports the Chassis fan of maximum 1A (12W) fan power.***The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. Special Features : ASRock Super Alloy- Premium 50A Power Choke- Sapphire Black PCB- High Density Glass Fabric PCBASRock Auto Driver InstallerASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)ASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop Support CD : Drivers, Utilities, AntiVirus Software (Trial Version) Hardware Monitor : Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/Water Pump Fans- Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans- CASE OPEN detection- Voltage monitoring: CPU Vcore, +12V, +5V, +3.3V Package Content : 1 x User Manual- 1 x Support CD- 1 x I/O Shield- 2 x SATA Data Cables- 1 x Screw for M.2 Socket Warranty : 1 Year ( As per Manufacturer Policy )
