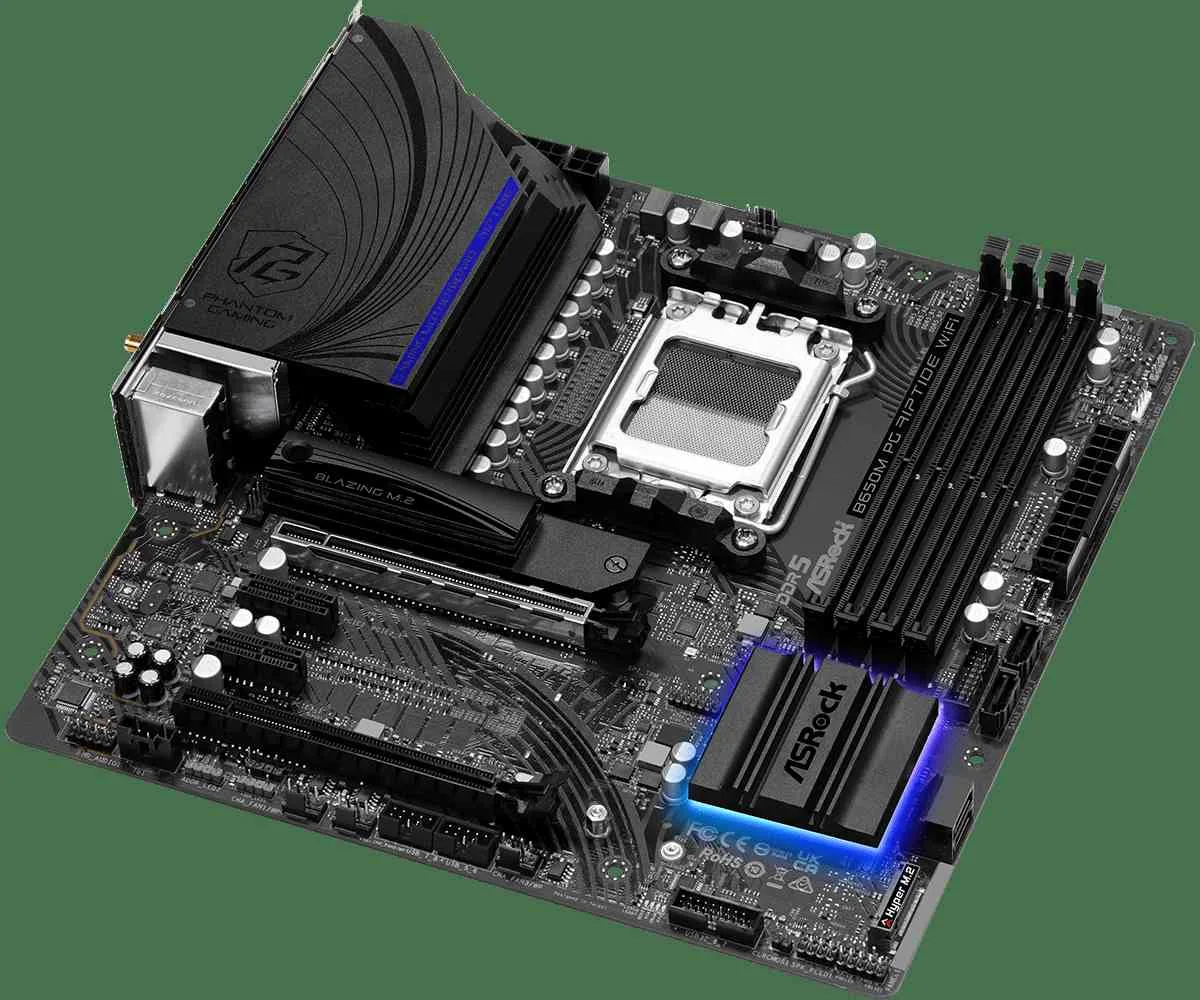

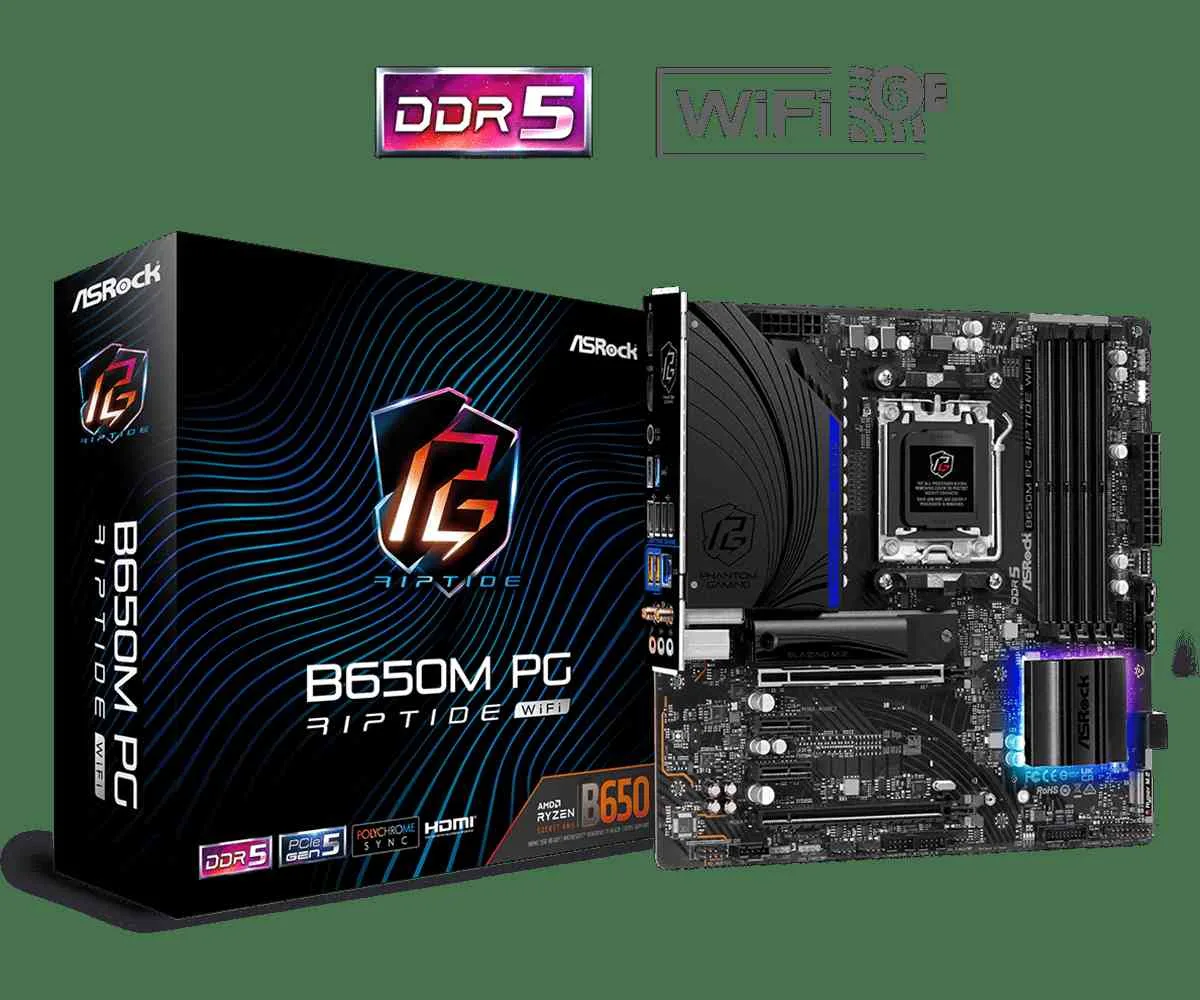

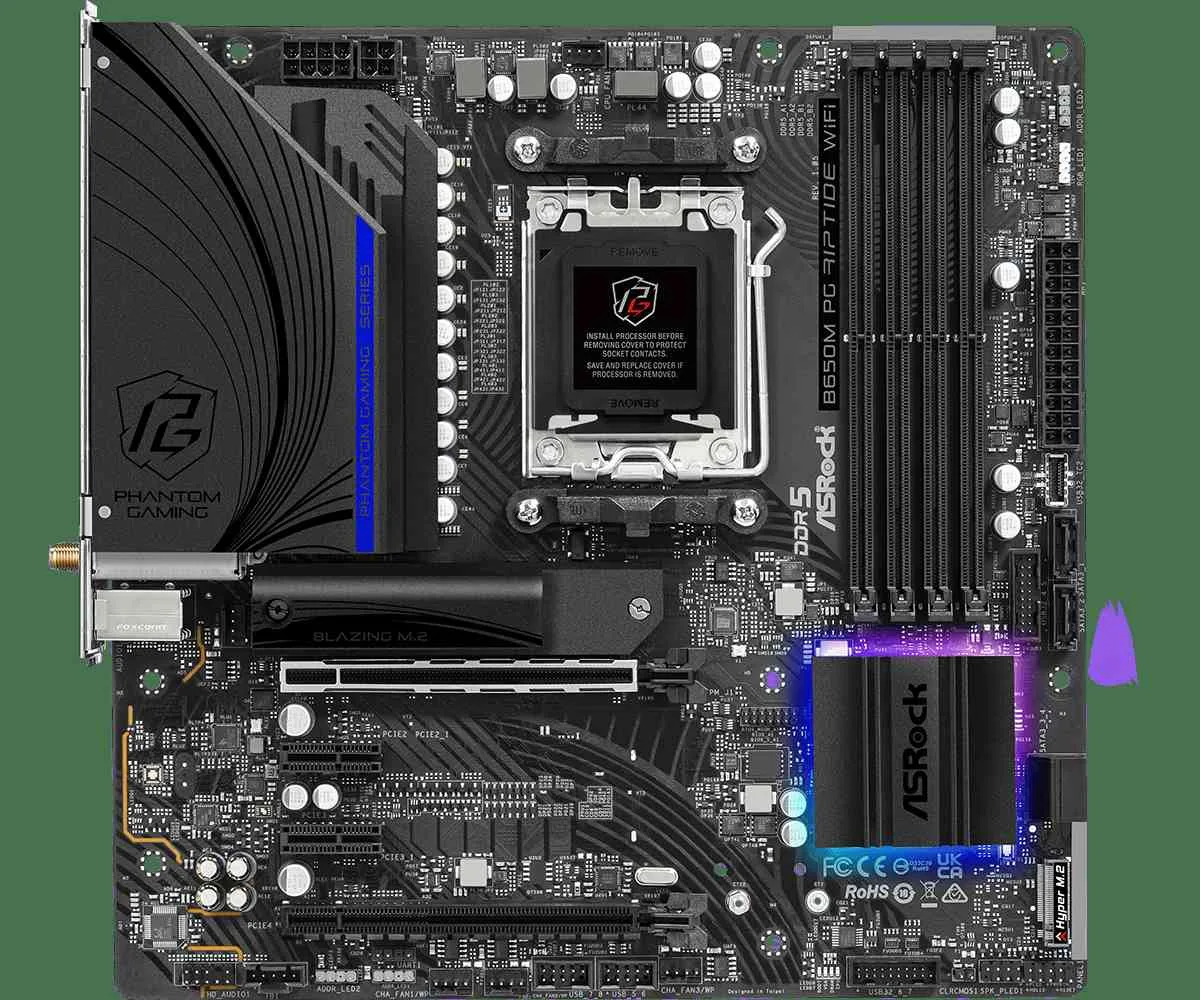

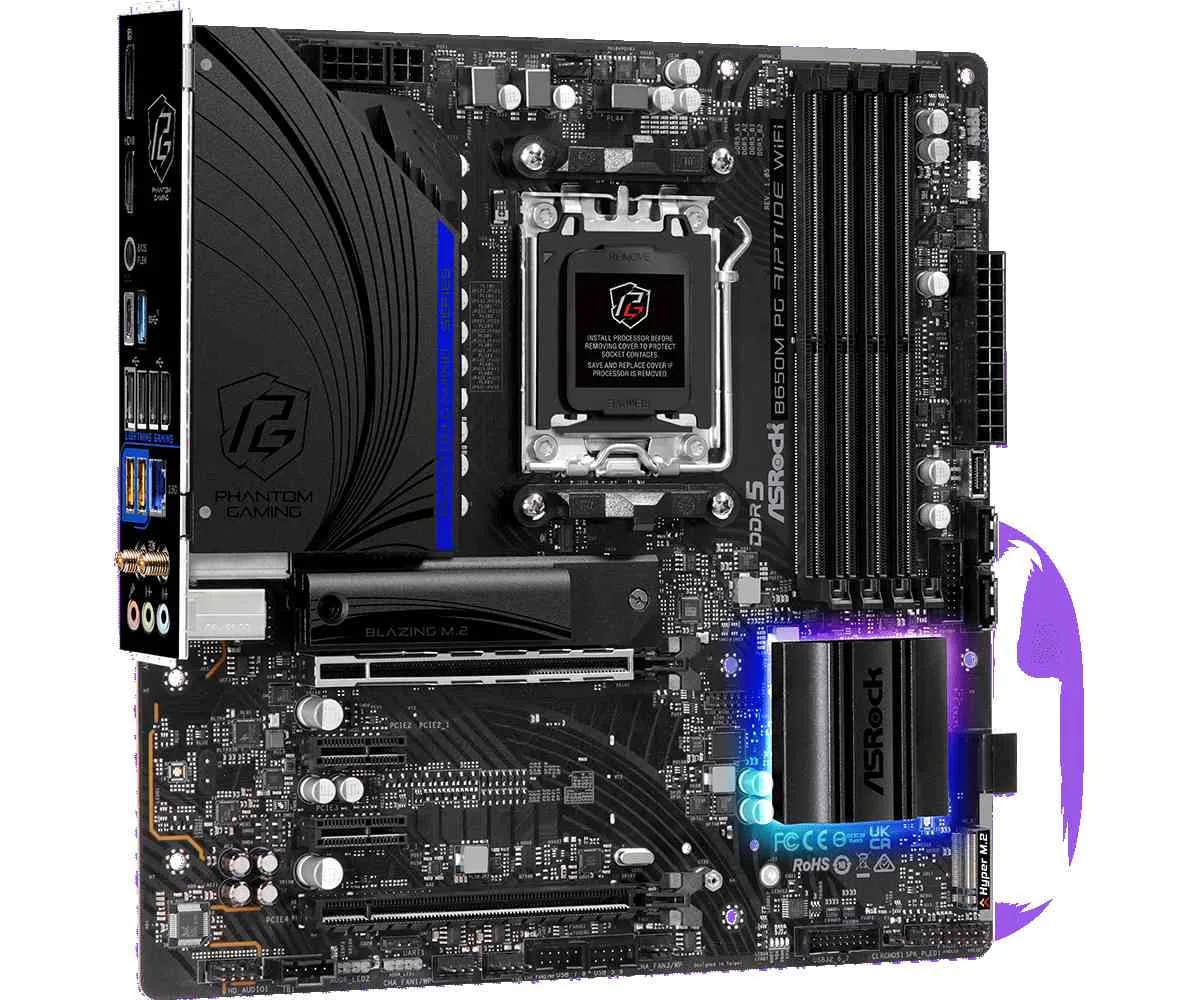

ASRock B650M PG Riptide WiFi - AMD Ryzen 7000 Series Processors - Motherboard

Model No : ASRock B650M PG Riptide WiFi - AMD Ryzen 7000 Series Processors - Motherboard Part No : 90-MXBKR0-A0UAYZ Chipset : B650M Unique Feature : Superb ProductivityPCIe Gen5 (Graphics, M.2)Dual Channel DDR5Rock-Solid DurabilityServer-Grade Low-Loss PCB14+2+1 Power Phase, 60A SPSFlexible Integrated I/O ShieldUltrafast ConnectivityKiller 2.5G LAN802.11ax Wi-Fi 6EModuleASRock Lightning Gaming PortsEZ UpdateBIOS Flashback ButtonASRock Auto Driver Installer Socket Compatibility : Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors Wireless & LAN : 802.11ax Wi-Fi 6E ModuleSupports IEEE 802.11a/b/g/n/ac/axSupports Dual-Band 2x2 with extended 6GHz band support*2 antennas to support 2 (Transmit) x 2 (Receive) diversity technologySupports Bluetooth 5.2 + High speed class IISupports MU-MIMO2.5 Gigabit LAN 10/100/1000/2500 Mb/sKiller E3100GSupports Killer LAN Software Memroy Type : DDR5 Memory Compatibility : Dual Channel DDR5 Memory Technology4 x DDR5 DIMM SlotsSupports DDR5 ECC/non-ECC, un-buffered memory up to 7600+(OC)*Max. capacity of system memory: 256GBSupports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules Storage Compatibility : CPU:1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*Chipset:1 x M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) -modes*1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*2 x SATA3 6.0 Gb/s ConnectorsASMedia ASM1061:2 x SATA3 6.0 Gb/s Connectors Back Panel I/O Ports : 2 x Antenna Ports1 x HDMI Port1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver)1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver)2- x USB 3.2 Gen1 Ports (USB32_23 are Lightning Gaming Ports)6 x USB 2.0 Ports1 x RJ-45 LAN Port1 x BIOS Flashback ButtonHD Audio Jacks: Line in / Front Speaker / Microphone Connector : 1 x SPI TPM Header1 x Power LED and Speaker Header1 x RGB LED Header*3 x Addressable LED Headers**1 x CPU Fan Connector (4-pin)***1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****1 x 24 pin ATX Power Connector1 x 8 pin 12V Power Connector1 x 4 pin 12V Power Connector1 x Front Panel Audio Connector1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)2 x USB 2.0 Headers (Support 3 USB 2.0 ports)1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver Warranty : 1 Year ( As per Manufacturer Policy )
