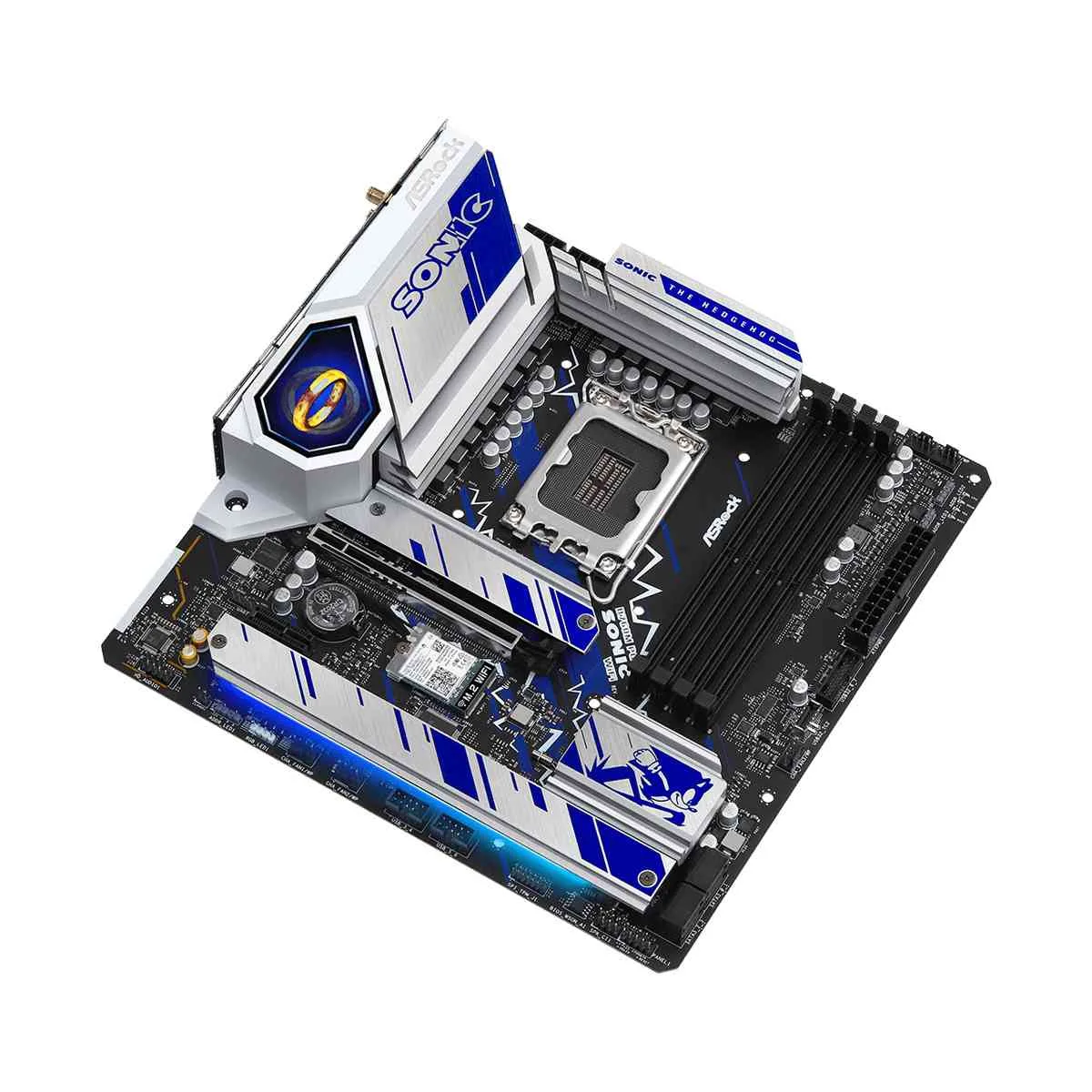

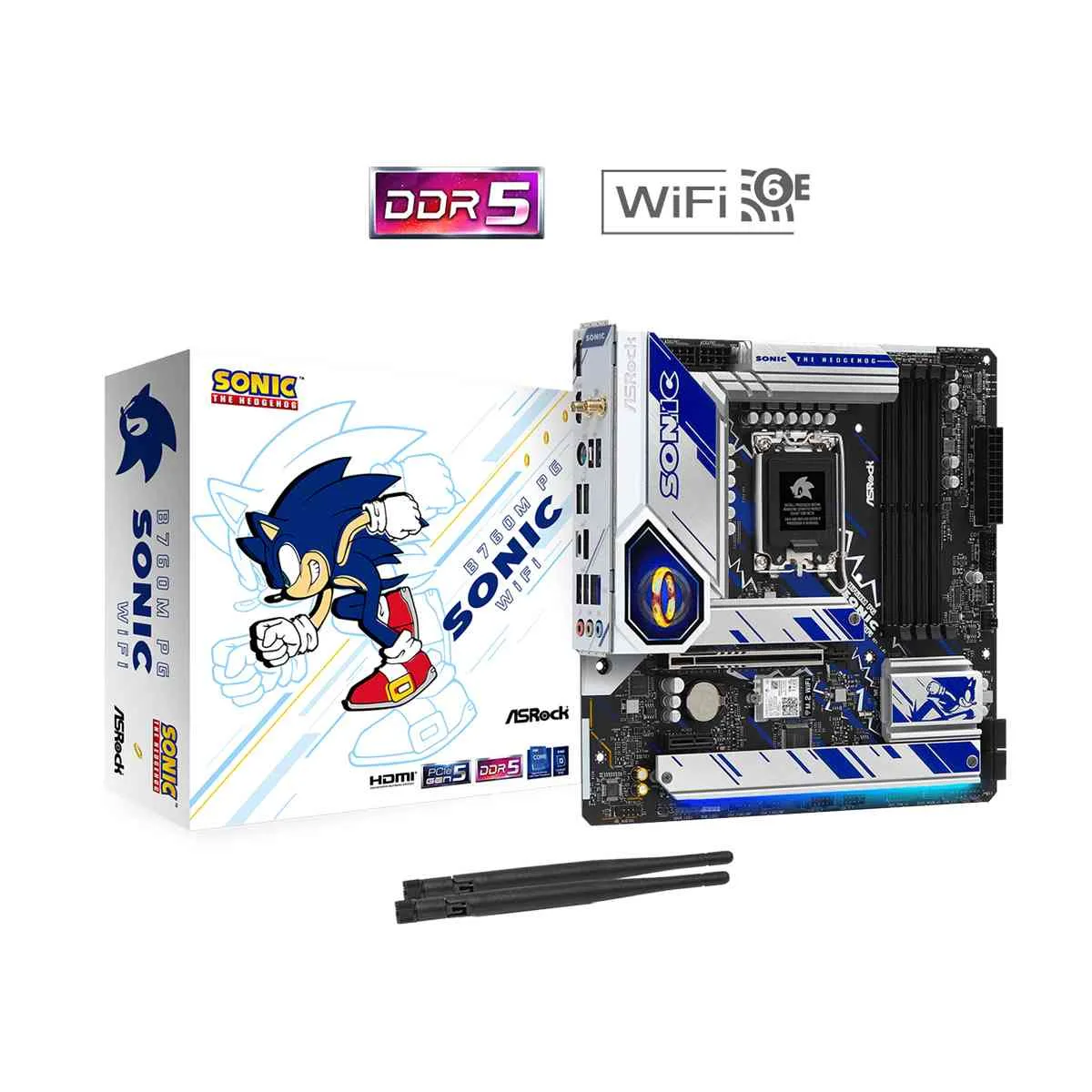

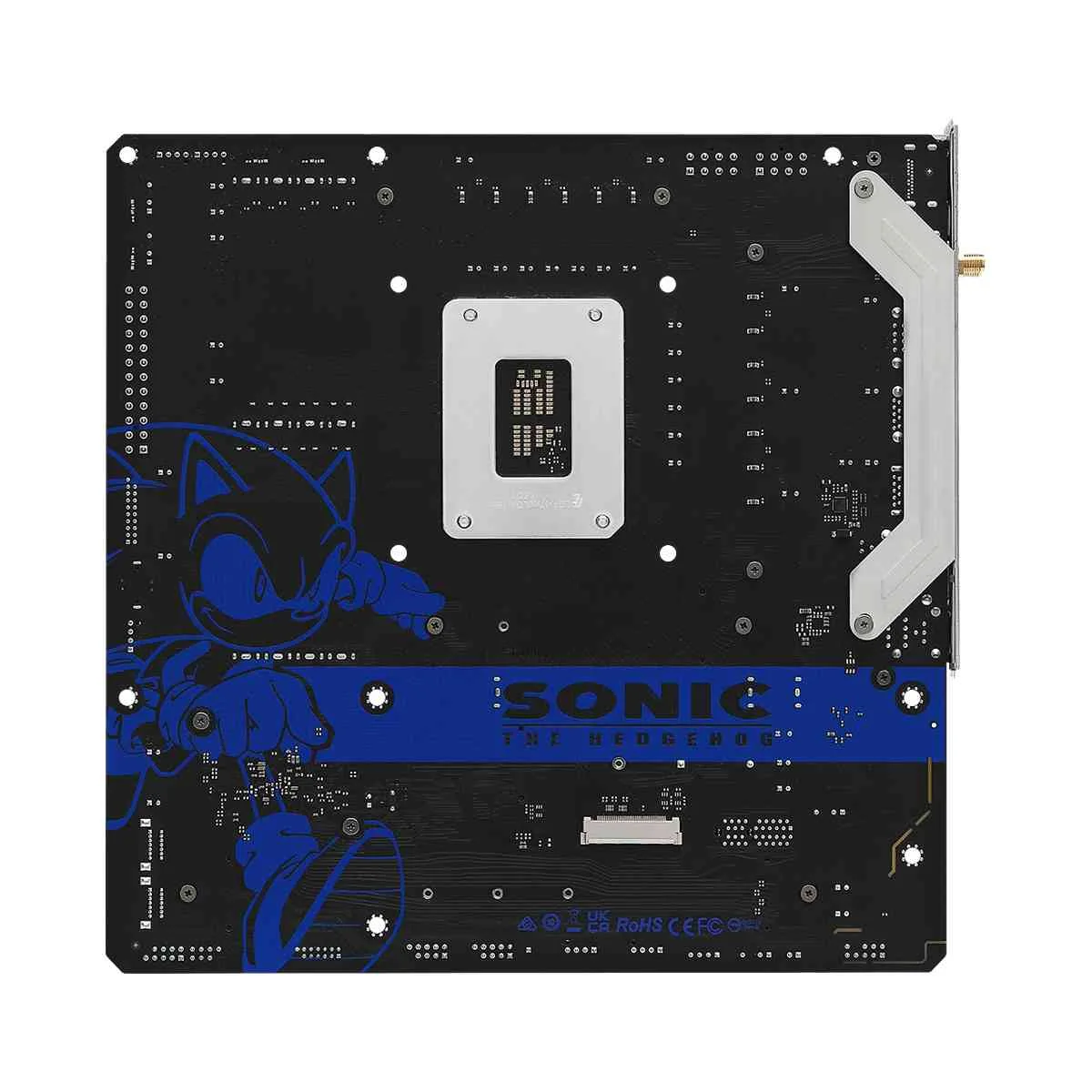

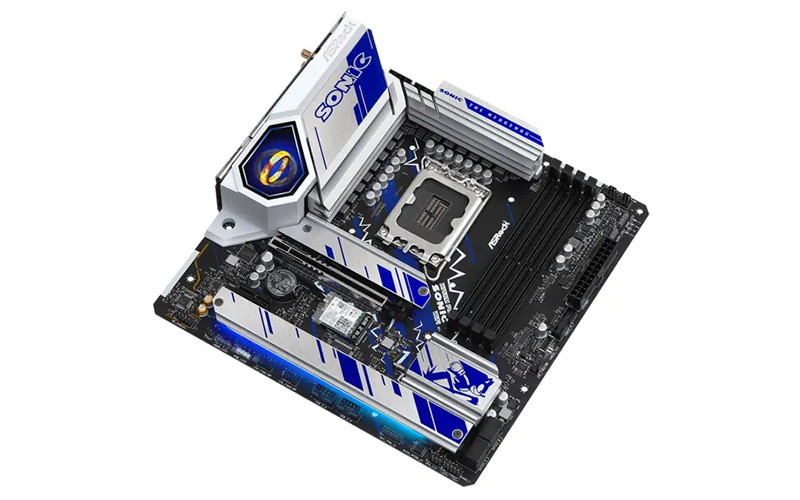

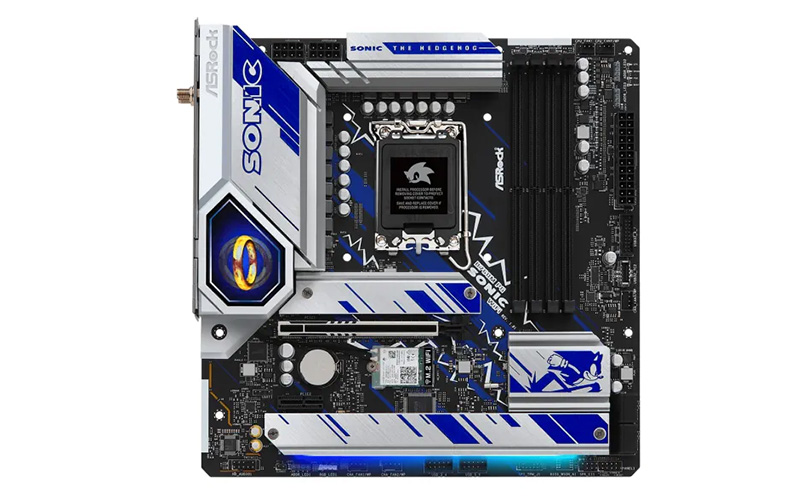

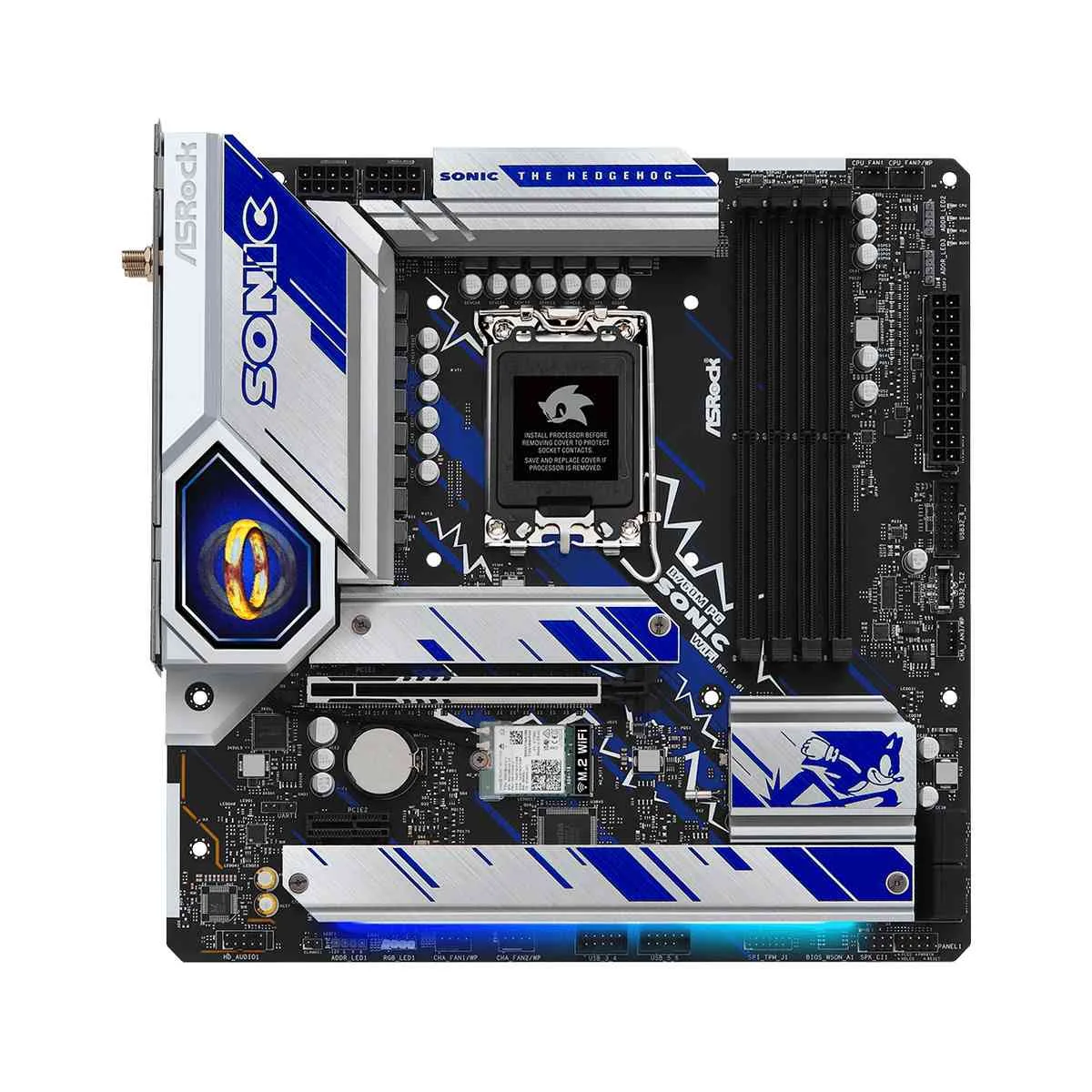

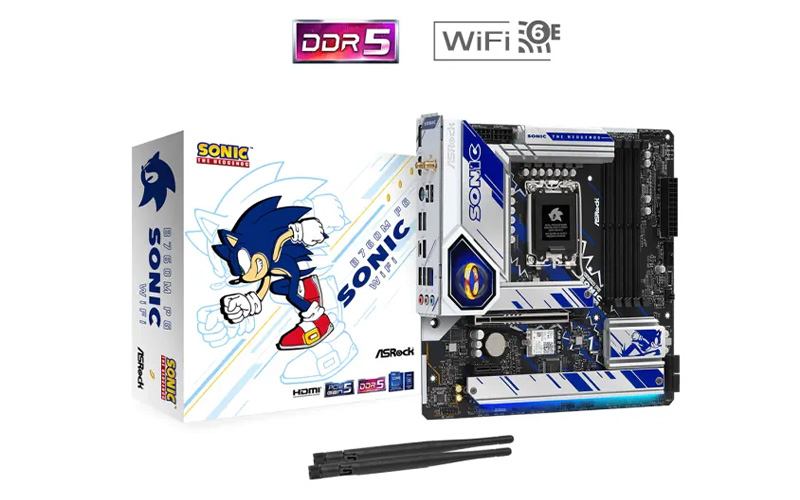

ASRock B760M PG Sonic WiFi 6E DDR5 - LGA 1700 - DDR5 Micro ATX Motherboard

Model No : ASRock B760M PG Sonic WiFi 6E Part No : 90-MXBKM0-A0UAYZ Chipset : B760M Form Factor : Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm Socket Compatibility : Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)Supports Intel® Hybrid TechnologySupports Intel® Turbo Boost Max 3.0 TechnologySupports Intel® Thermal Velocity Boost (TVB)Supports Intel® Adaptive Boost Technology (ABT) Wireless & Bluetooth : 802.11ax Wi-Fi 6E ModuleSupports IEEE 802.11a/b/g/n/ac/axSupports Dual-Band 2x2 with extended 6GHz band support*2 antennas to support 2 (Transmit) x 2 (Receive) diversity technologySupports Bluetooth + High-speed class IISupports MU-MIMO Memory Type : DDR5 Memory Compatibility : Dual Channel DDR5 Memory Technology4 x DDR5 DIMM SlotsSupports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*Max. capacity of system memory: 256GBSupports Intel® Extreme Memory Profile (XMP) 3.0 Storage Compatibility : CPU:1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*Chipset:1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*4 x SATA3 6.0 Gb/s Connectors Back Panel I/O Ports : 2 x Antenna Ports1 x PS/2 Mouse/Keyboard Port1 x HDMI Port1 x DisplayPort 1.41 x USB 3.2 Gen2 Type-A Port (10 Gb/s)1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)4 x USB 3.2 Gen1 Ports2 x USB 2.0 Ports1 x RJ-45 LAN PortHD Audio Jacks: Line in / Front Speaker / Microphone USB Ports : 2 x USB 3.2 Gen2 Type-C (1 Rear, 1 Front)1 x USB 3.2 Gen2 Type-A (Rear)6 x USB 3.2 Gen1 (4 Rear, 2 Front)6 x USB 2.0 (2 Rear, 4 Front) Expansion Slots : CPU:1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*Chipset:1 x PCIe 4.0 x1 Slot (PCIE2)*1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)15μ Gold Contact in VGA PCIe Slot (PCIE1) Audio : 7.1 CH HD Audio (Realtek ALC897 Audio Codec)Nahimic Audio Internal I/O Connectors : 1 x eDP Signal Connector1 x SPI TPM Header1 x Chassis Intrusion and Speaker Header1 x RGB LED Header*3 x Addressable LED Headers**1 x CPU Fan Connector (4-pin)***1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****1 x 24 pin ATX Power Connector (Hi-Density Power Connector)2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)1 x Front Panel Audio Connector2 x USB 2.0 Headers (Support 4 USB 2.0 ports)1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s) Special Features : Superb Productivity- PCIe Gen5 (Graphics)- Dual Channel DDR5Rock-Solid Durability- 12+1+1 Power Phase, 50A Dr.MOS for VCore+GT- Flexible Integrated I/O ShieldUltrafast Connectivity- 2.5G LAN,802.11ax Wi-Fi 6EModuleEZ Update- ASRock Auto Driver InstallerEZ Troubleshooter Package Content : 1 x User Manual2 x SATA Data Cables2 x ASRock WiFi 2.4/5/6 GHz Antennas3 x Screws for M.2 Sockets2 x Standoffs for M.2 Sockets Warranty : 1 Year ( As per Manufacturer Policy )
