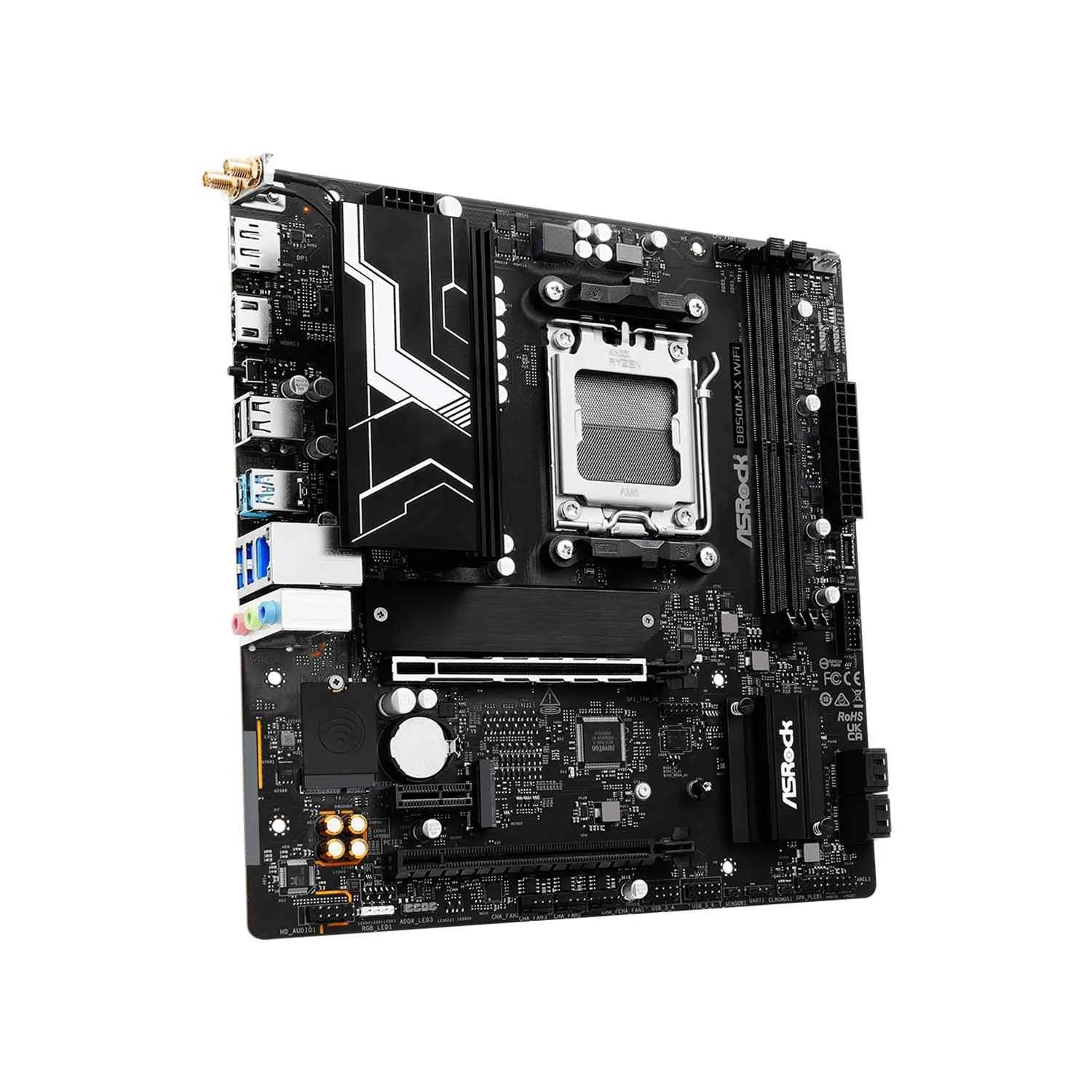

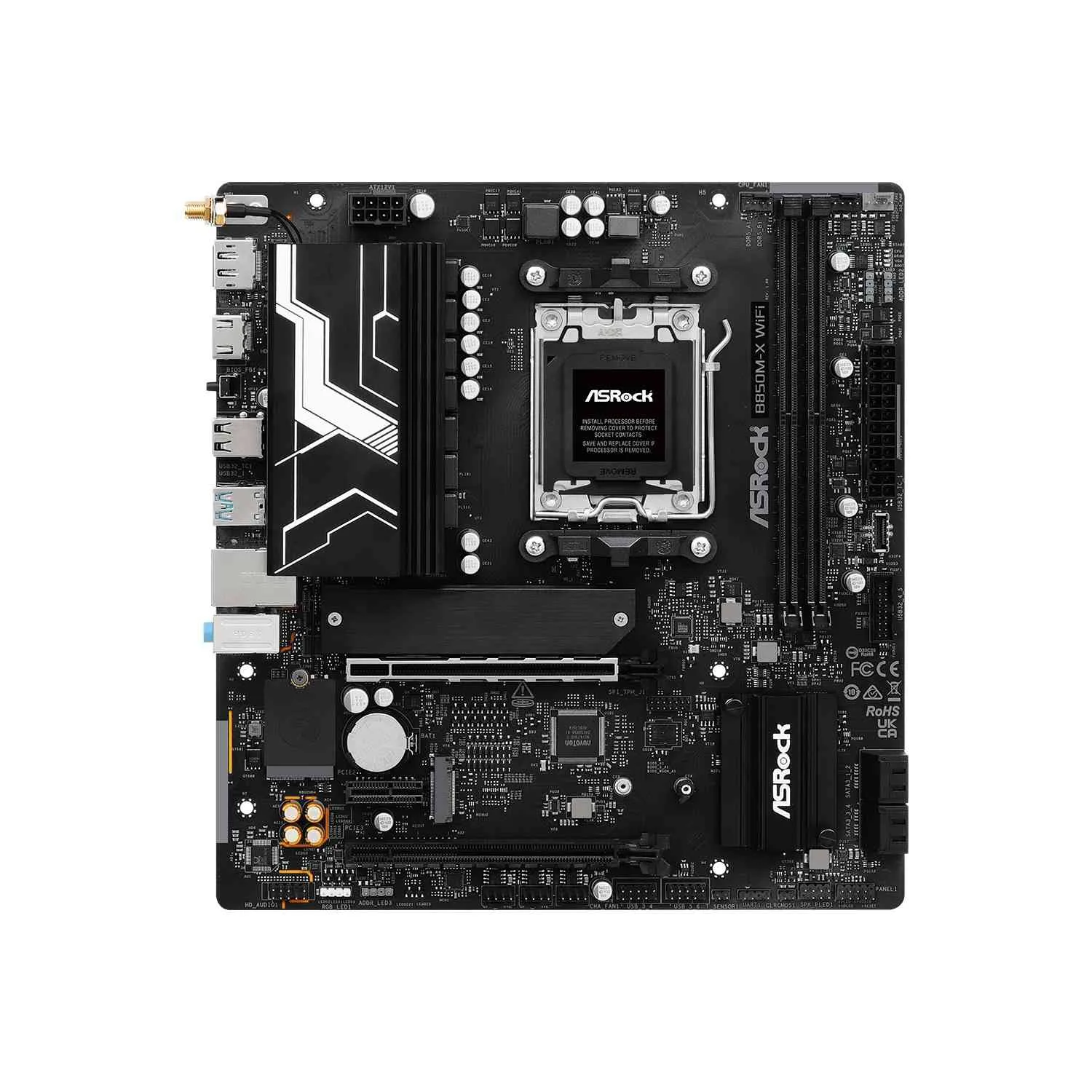

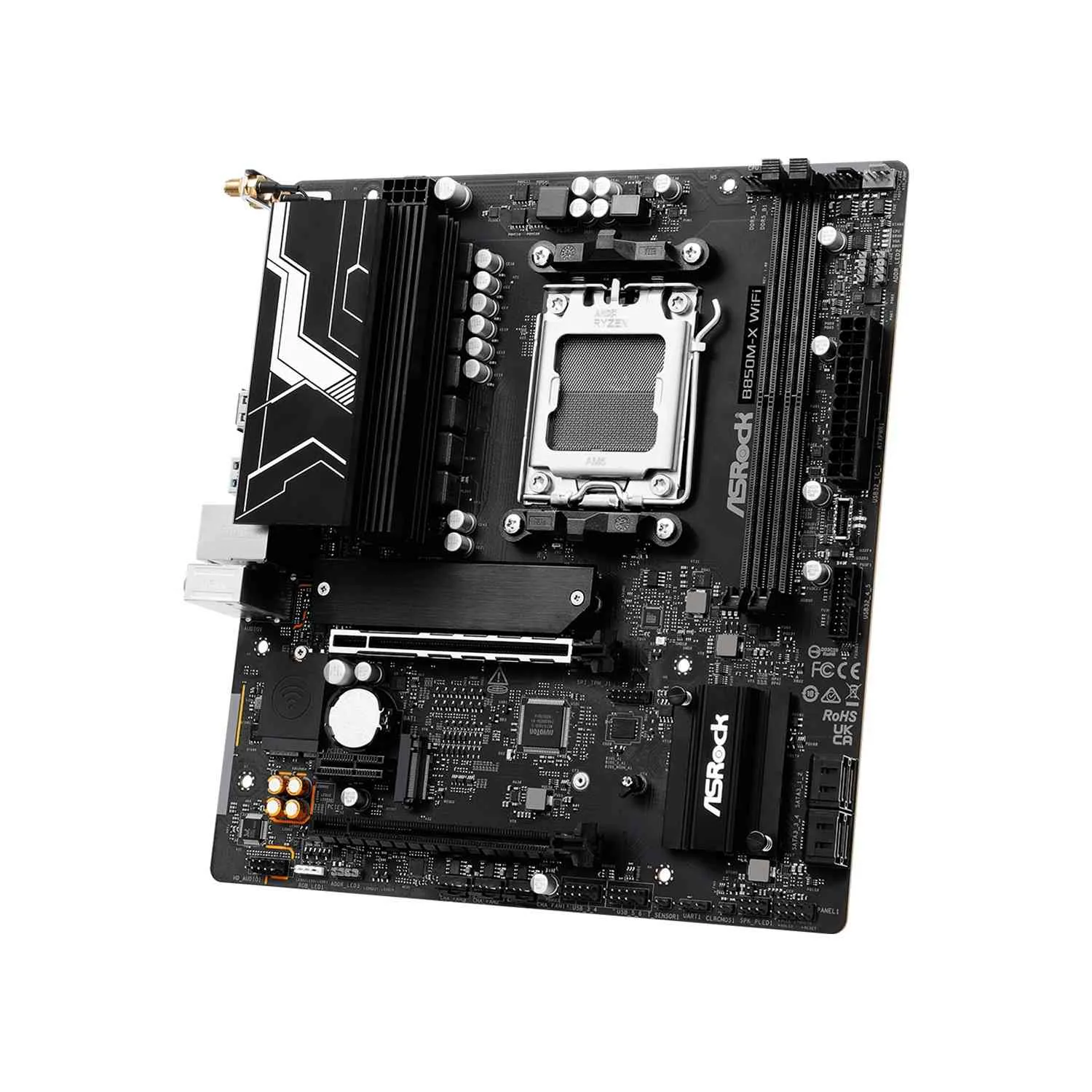

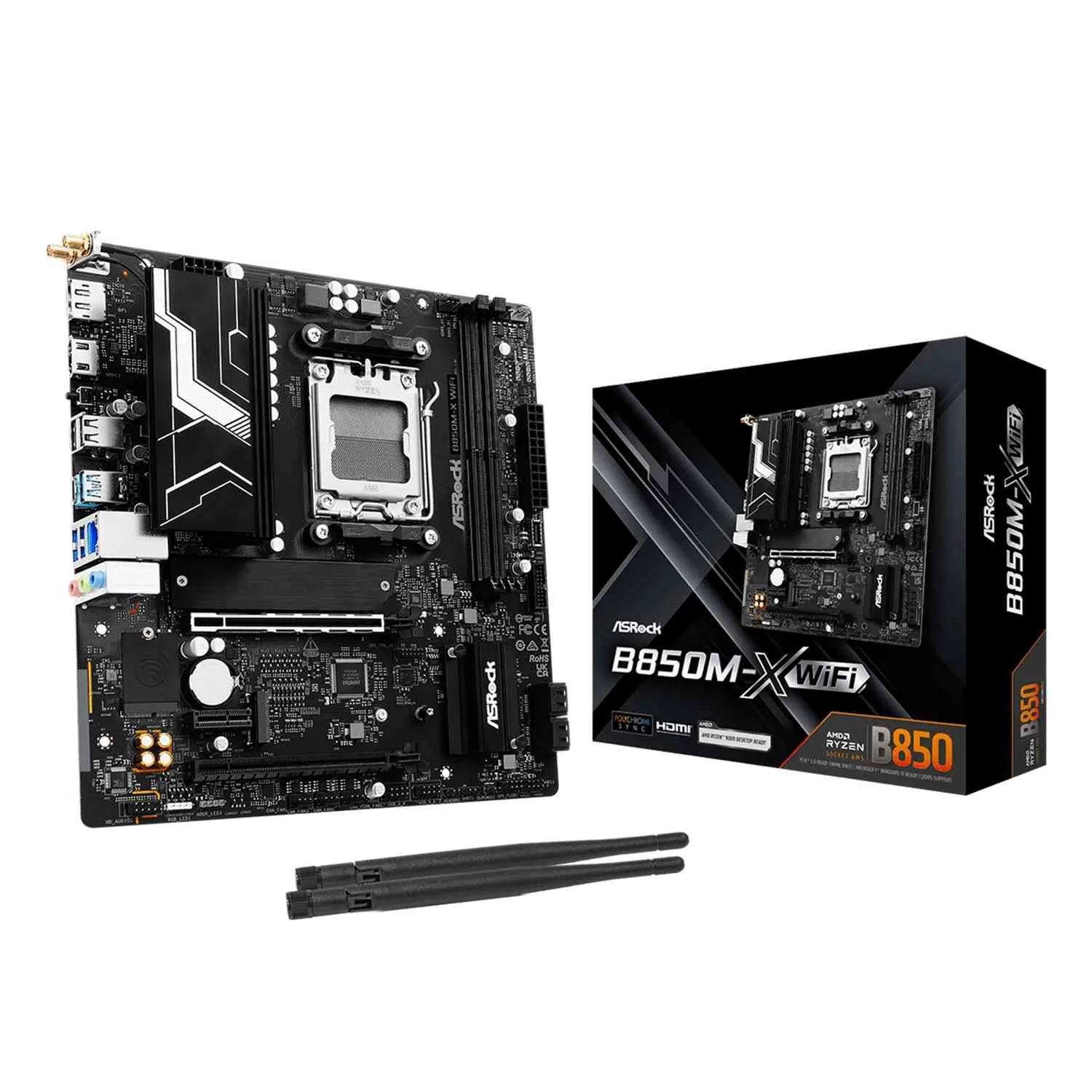

Asrock B850M-X WiFi AM5 for AMD Ryzen, DDR5 PCIe 5.0 Gaming Motherboard

Key Specifications

• Model NoAsrock B850M-X WiFi AM5 for AMD Ryzen, DDR5 PCIe 5.0 Gaming Motherboard
• Part No90-MXBSH0-A0UAYZChipsetAMD B850Form FactorMicro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cmMemroyDual Channel DDR5
• Memory Technology- 2 x DDR5 DIMM Slots- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC)*- Max. capacity of system memory: 128GB- Supports Extreme
• Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modulesCPUSupports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series
• Processors*
• GraphicsIntegrated AMD RDNA™ graphics (Actual support may vary by CPU)- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

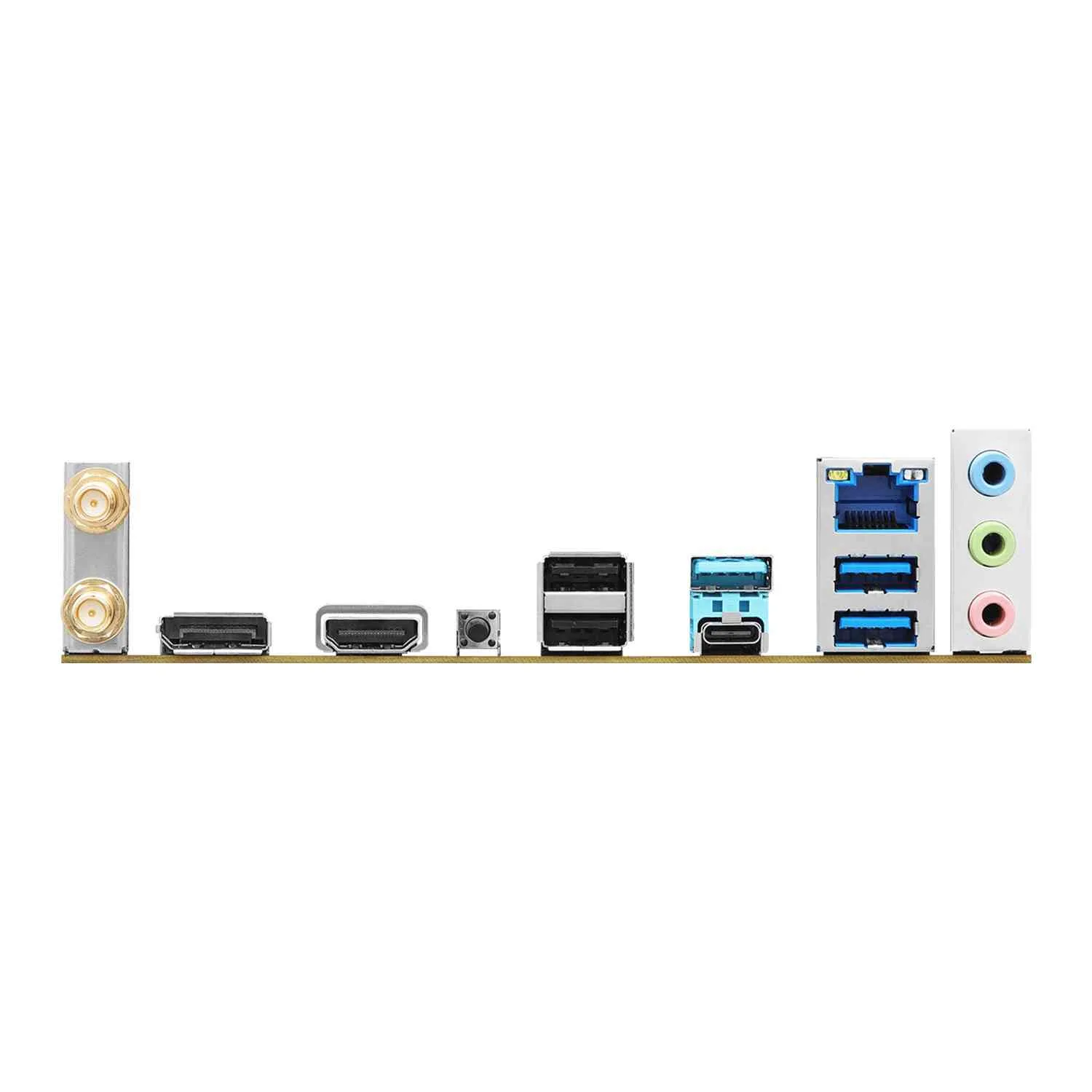

• StorageCPU:- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*Chipset:- 4 x SATA3 6.0 Gb/s ConnectorsSlotsCPU:- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*Chipset:- 1 x PCIe 4.0 x1 Slot (PCIE2)*- 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi moduleUSBCPU:- 3 x USB 3.2 Gen1 Type-A (Rear)- 1 x USB 2.0 (Rear (USB_2))Chipset:- 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)- 2 x USB 3.2 Gen1 Type-A (Front)- 5 x USB 2.0 (1 Rear (USB_1), 4 Front)Rear Panel I/O2 x Antenna Ports- 1 x HDMI Port- 1 x DisplayPort 1.4- 1 x USB 3.2 Gen1 Type-C Port- 3 x USB 3.2 Gen1 Type-A Ports- 2 x USB 2.0 Ports- 1 x RJ-45 LAN Port- 1 x BIOS Flashback Button- HD Audio Jacks: Line in / Front Speaker /
• MicrophoneConnector1 x Thermistor Cable Header- 1 x SPI TPM Header- 1 x
• Power LED and Speaker Header- 1 x RGB LED Header*- 3 x Addressable LED Headers**- 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***- 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***- 1 x 24 pin ATX
• Power Connector- 1 x 8 pin 12V
• Power Connector (Hi-Density
• Power Connector)- 1 x Front Panel Audio Connector- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)- 1 x Front Panel Type C USB 3.2 Gen1 HeaderAudio7.1 CH HD Audio (Realtek ALC897 Audio Codec)- Nahimic AudioLAN2.5 Gigabit LAN 10/100/1000/2500 Mb/s- Dragon RTL8125BG- Supports Dragon 2.5G LAN Software- Smart Auto Adjust Bandwidth Control- Visual User Friendly UI- Visual Network Usage Statistics- Optimized Default Setting for Game, Browser, and Streaming Modes- User Customized Priority ControlWireless LAN802.11axe Wi-Fi 6E Module- Supports IEEE 802.11a/b/g/n/ac/ax/axe- Supports Dual-Band 2x2 with extended 6GHz band support*- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology- Supports Bluetooth 5.2- Supports MU-MIMORAIDSupports RAID 0, RAID 1 and RAID 10 for SATA storage devices- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*OSMicrosoft Windows® 10 64-bit / 11 64-bitAccessories1 x I/O Shield- 2 x SATA Data Cables- 2 x ASRock WiFi 2.4/5/6 GHz AntennasBIOS256Mb AMI UEFI Legal BIOS with GUI supportSpecial FeaturesSuperb Productivity- PCIe Gen5 (M.2)- Dual Channel DDR5Rock-Solid Durability- 6+1+1
• Power Phase, Dr.MOS for VCoreUltrafast
• Connectivity- 2.5G LAN, 802.11axe Wi-Fi 6E ModuleEZ Update- BIOS Flashback Button- ASRock Auto Driver InstallerEZ Troubleshooter- ASRock Post Status Checker
