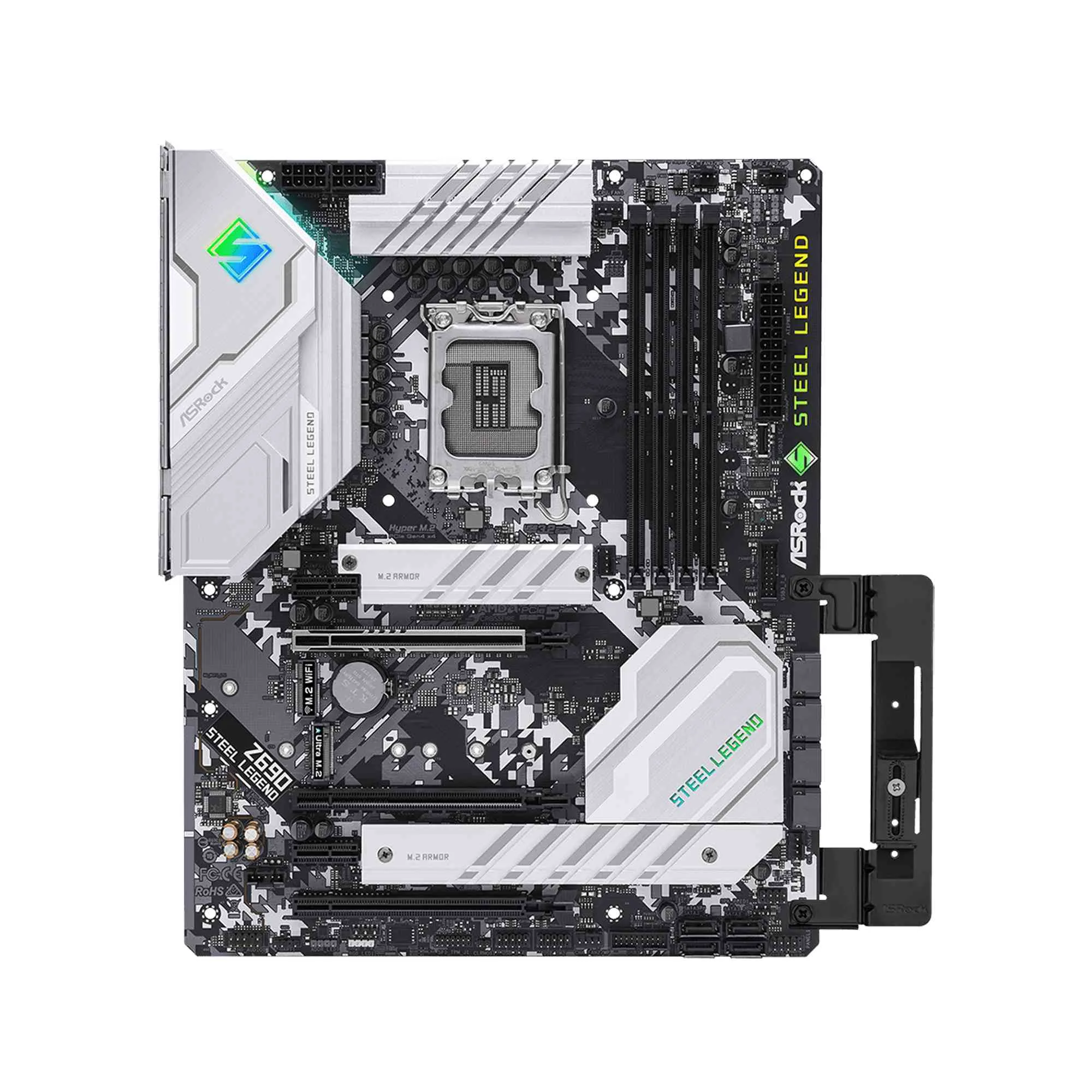

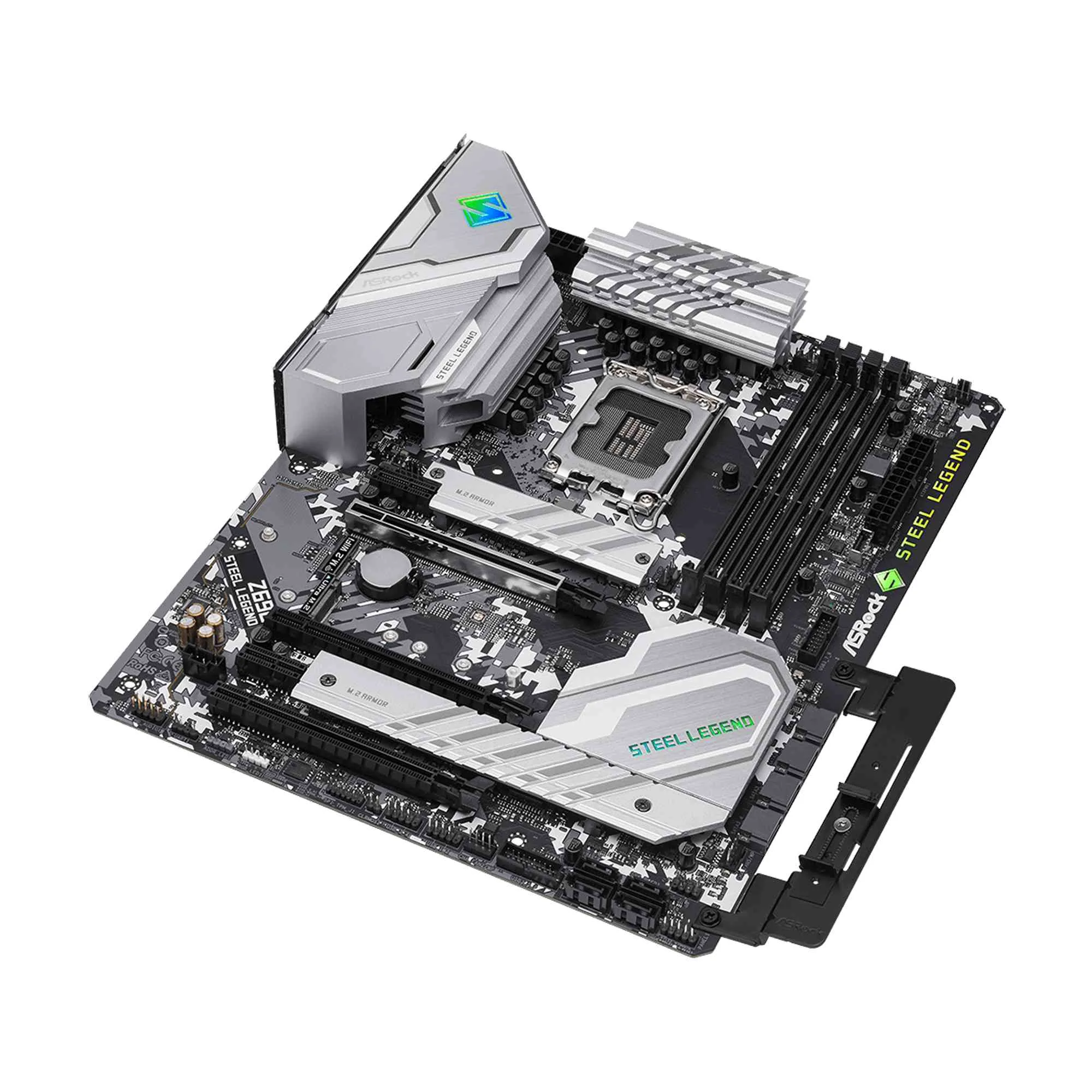

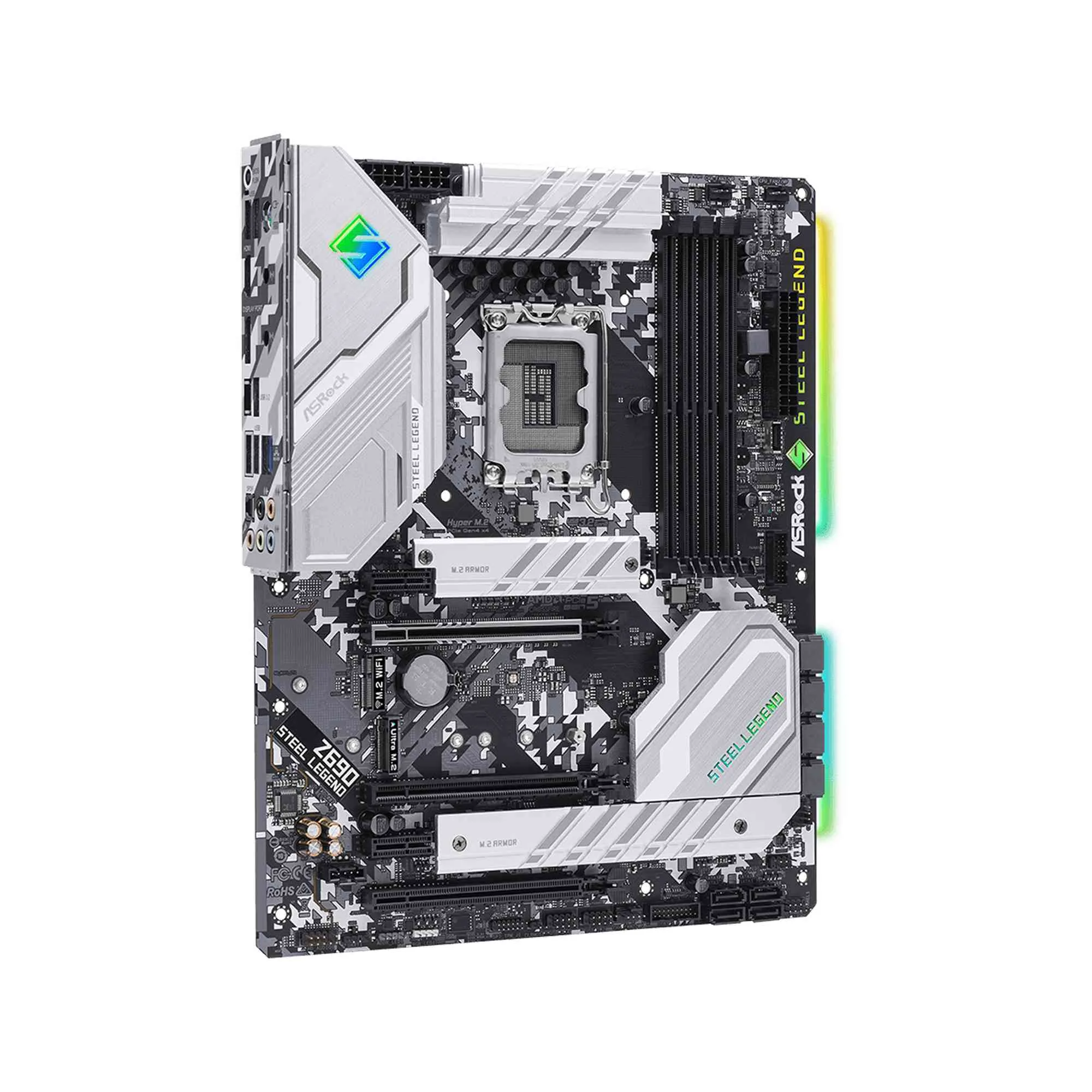

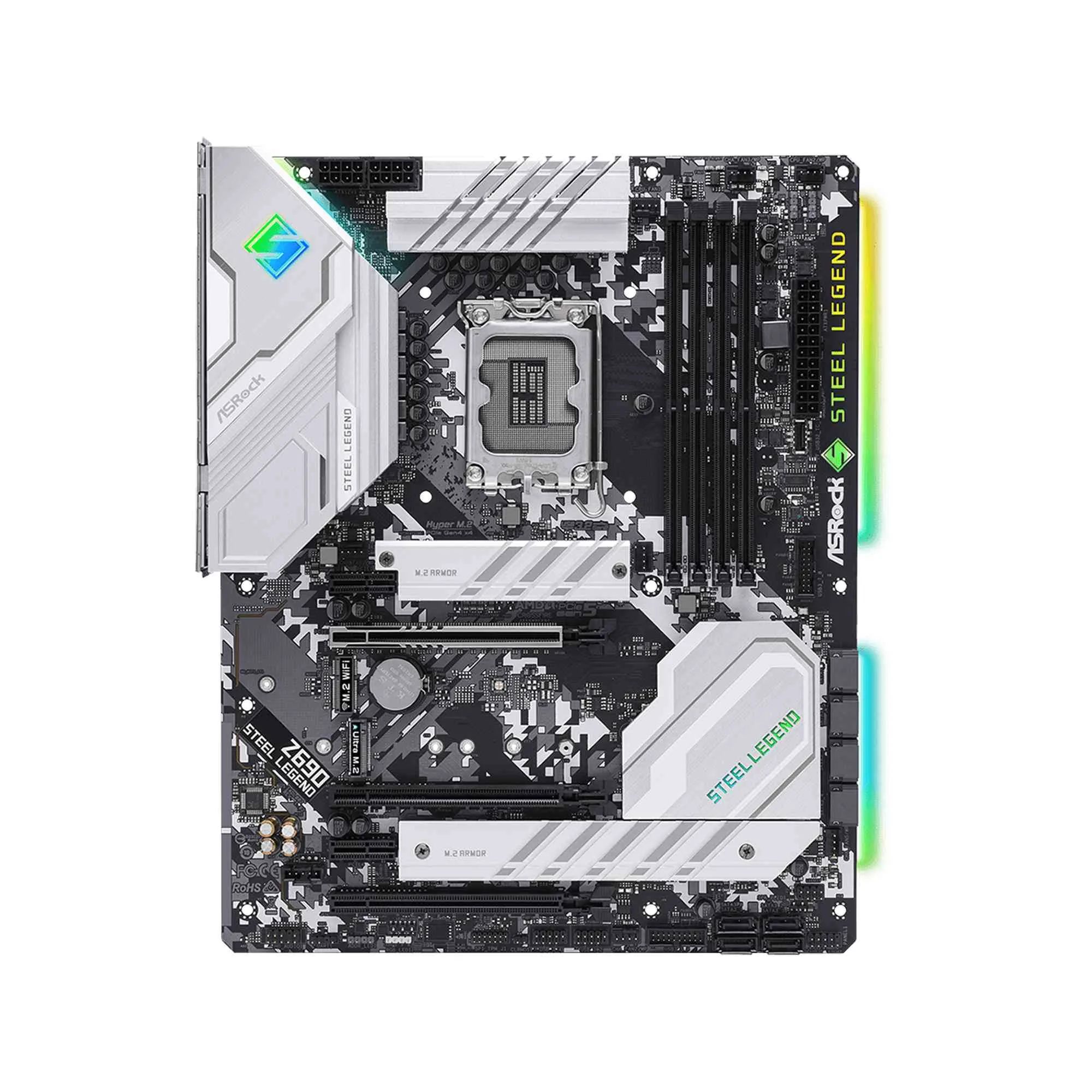

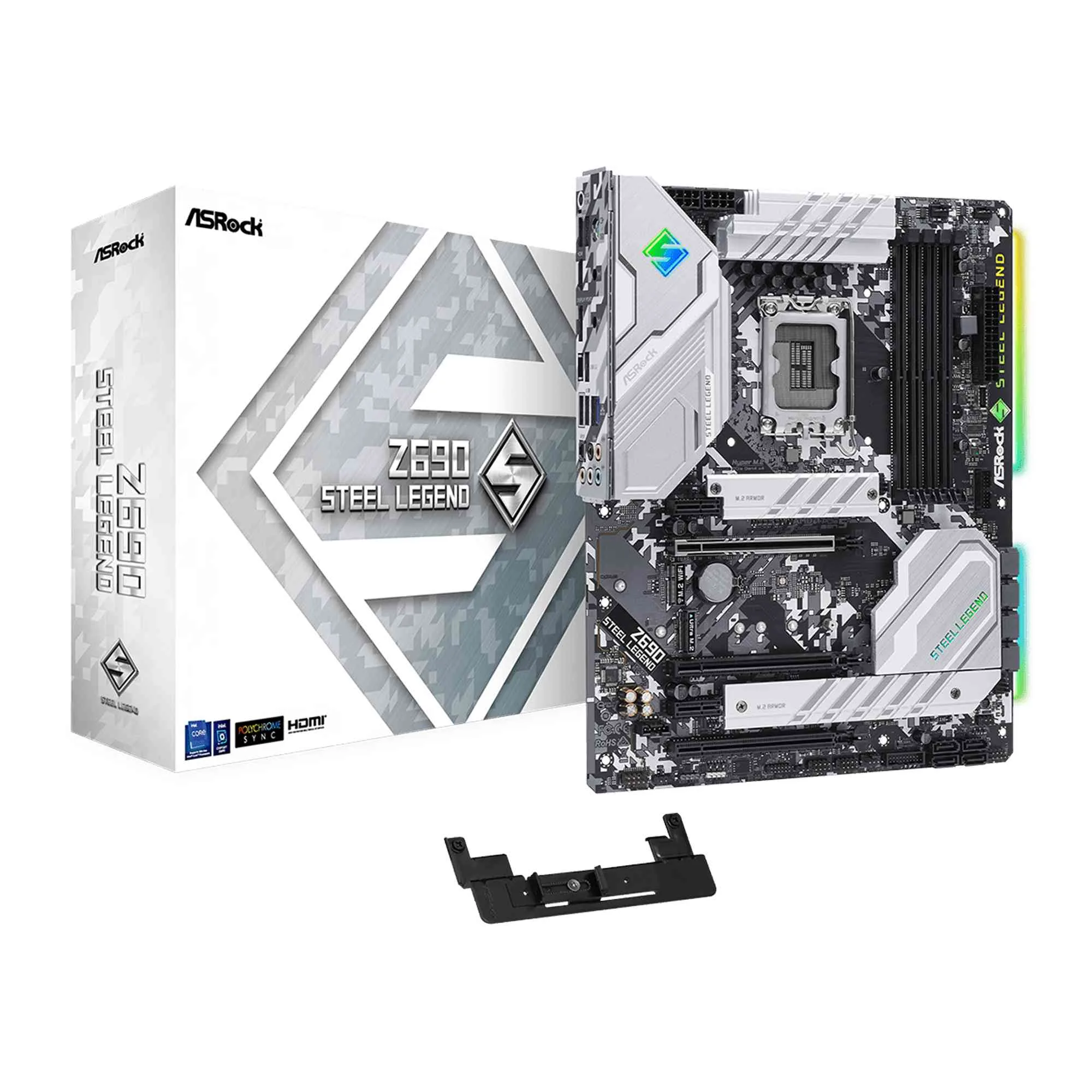

ASRock Intel Z690 Steel Legend DDR4 Gaming Motherboard

3.71
★★★★★★★★★★
Ratings7
The ASRock Intel Z690 Steel Legend DDR4 Gaming Motherboard features an Intel® Z690 chipset and supports 14th, 13th, and 12th Gen Intel® Core™ processors. It includes four DDR4 DIMM slots for up to 128GB memory and multiple Hyper M.2 sockets for extensive storage options
KWD 37.620
KWD 40.255
SKU :
90-MXBH00-A0UAYZ
4 interest-free payments of KWD 10.063Learn more
Split into 4 payments of KWD 10.063 interest-free.Learn more
Taly
Estimated delivery:1 work day
Free return within: 14 days of purchase
Secure shopping your data is always safe
Overview

Model Overview

The ASRock Intel Z690 Steel Legend DDR4 Gaming Motherboard is designed for high-performance gaming. It features an ATX form factor measuring 12.0-in x 9.6-in, providing ample space for advanced components and cooling solutions.

Model Overview
Chipset and Socket Compatibility

Chipset and Socket Compatibility

This motherboard utilizes the Intel® Z690 chipset and supports 14th, 13th, and 12th Gen Intel® Core™ processors with the LGA1700 socket. It includes a Digi Power design with a 13 Power Phase configuration, ensuring stable power delivery for demanding applications. RAM

Networking Features

Equipped with a 2.5 Gigabit LAN port, the motherboard supports high-speed networking with the Dragon RTL8125BG chipset. Features like Smart Auto Adjust Bandwidth Control and user-customized priority control enhance network performance for gaming and streaming. Memory

Networking Features
Memory Support

Memory Support

The motherboard supports dual-channel DDR4 memory technology with four DIMM slots, accommodating up to 128GB of memory. It is compatible with DDR4 non-ECC and ECC UDIMM memory modules, and supports Intel® Extreme Memory Profile (XMP) 2.0 for optimized performance. RAM

Storage Options

This model provides extensive storage options, including three Hyper M.2 sockets for PCIe Gen4x4 and SATA3 connections, as well as eight SATA3 connectors. This versatility allows for high-speed storage configurations to meet various user needs. RAM

Storage Options
Audio and I/O Connectivity

Audio and I/O Connectivity

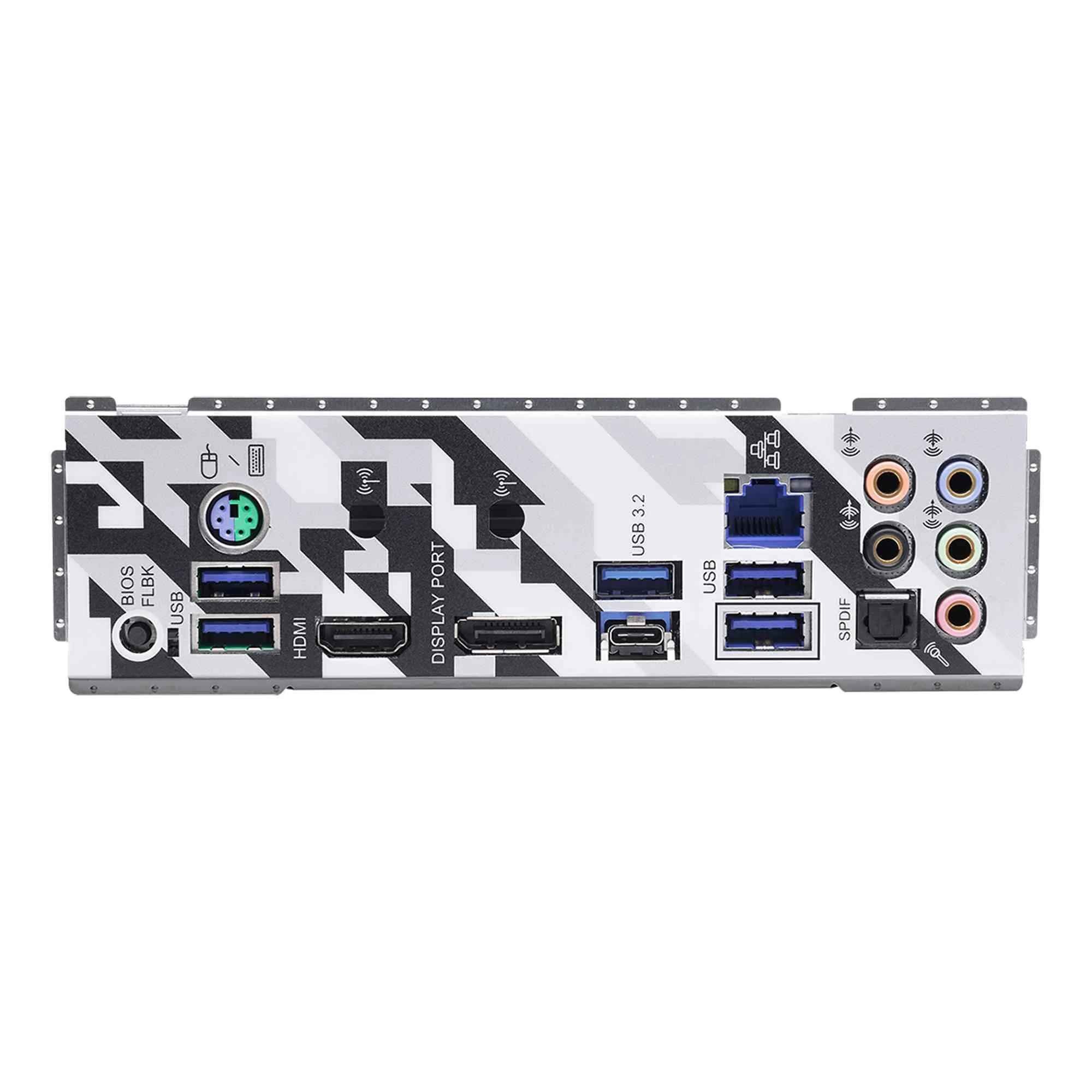

The ASRock Z690 Steel Legend features 7.1 CH HD audio powered by the Realtek ALC897 codec, ensuring high-quality sound output. The back panel includes multiple USB ports, HDMI, DisplayPort, and audio jacks, offering comprehensive connectivity for peripherals. RAM

Key Specifications

  • Model NoASRock Intel Z690 Steel Legend DDR4 Gaming Motherboard
  • Part No90-MXBH00-A0UAYZChipsetIntel® Z690Form FactorATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cmSocket
  • CompatibilitySupports 14th, 13th & 12th Gen Intel® Core™
  • Processors (LGA1700)- Digi
  • Power design- 13
  • Power Phase design- Supports Intel® Hybrid Technology- Supports Intel® Turbo Boost Max 3.0 TechnologyLAN2.5 Gigabit LAN 10/100/1000/2500 Mb/s- Dragon RTL8125BG- Supports Dragon 2.5G LAN Software- Smart Auto Adjust Bandwidth Control- Visual User Friendly UI- Visual Network Usage Statistics- Optimized Default Setting for Game, Browser, and Streaming Modes- User Customized Priority Control- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports PXEMemroyDual Channel DDR4
  • Memory Technology- 4 x DDR4 DIMM Slots- Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*- Supports ECC UDIMM memory modules (operate in non-ECC mode)- Max. capacity of system memory: 128GB- Supports Intel® Extreme
  • Memory Profile (XMP) 2.0- 15μ Gold Contact in DIMM Slots
  • CompatibilityCPU:- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*Chipset:- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2242/2260/2280/22110 PCIe Gen4x4 (64 Gb/s) mode*- 8 x SATA3 6.0 Gb/s ConnectorsBack Panel I/O Ports2 x Antenna Ports- 1 x PS/2 Mouse/Keyboard Port- 1 x HDMI Port- 1 x DisplayPort 1.4- 1 x Optical SPDIF Out Port- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)- 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- 1 x BIOS Flashback Button- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker /
  • Microphone (Gold Audio Jacks)Audio7.1 CH HD Audio (Realtek ALC897 Audio Codec)- Supports Surge Protection- Gold Audio Jacks- 15μ Gold Audio Connector- Nahimic AudioInternal I/O Connectors1 x SPI TPM Header- 1 x
  • Power LED and Speaker Header- 1 x RGB LED Header*- 3 x Addressable LED Headers**- 1 x CPU Fan Connector (4-pin)***- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****- 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****- 1 x 24 pin ATX
  • Power Connector (Hi-Density
  • Power Connector)- 2 x 8 pin 12V
  • Power Connectors (Hi-Density
