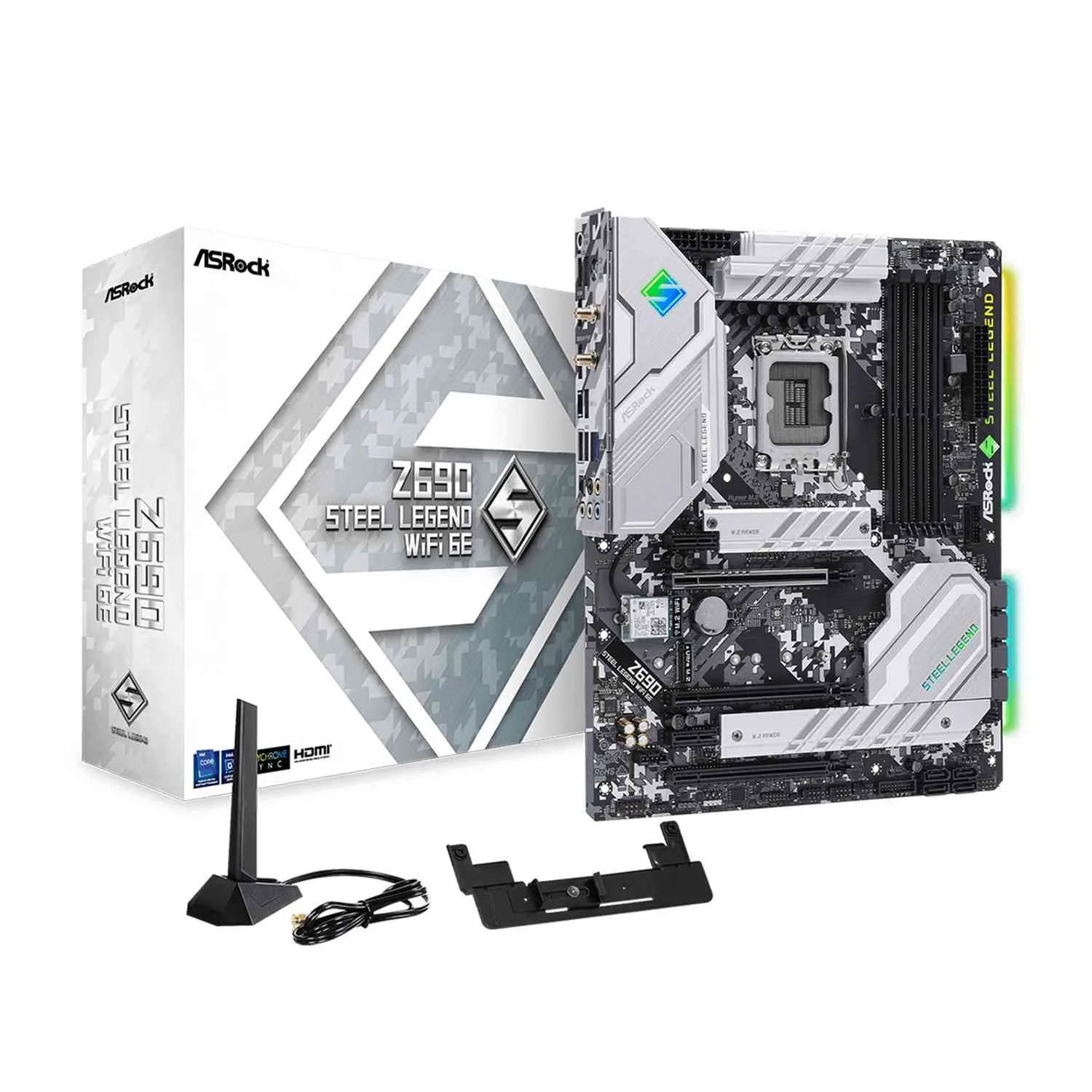

ASRock Intel Z690 Steel Legend WIFI-6E DDR4 ATX Motherboard

Model No : ASRock Intel Z690 Steel Legend Part No : 90-MXBH10-A0UAYZ Chipset : Z690 Form Factor : ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm Socket Compatibility : Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)Digi Power design13 Power Phase designSupports Intel® Hybrid TechnologySupports Intel® Turbo Boost Max 3.0 Technology Wireless & Bluetooth : 802.11ax Wi-Fi 6E ModuleSupports IEEE 802.11a/b/g/n/axSupports Dual-Band 2x2 160MHz with extended 6GHz band support*2 antennas to support 2 (Transmit) x 2 (Receive) diversity technologySupports Bluetooth 5.3 + High-speed class IISupports MU-MIMO Memory Type : DDR4 Memory Compatibility : Dual Channel DDR4 Memory Technology4 x DDR4 DIMM SlotsSupports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*Supports ECC UDIMM memory modules (operate in non-ECC mode)Max. capacity of system memory: 128GBSupports Intel® Extreme Memory Profile (XMP) 2.015μ Gold Contact in DIMM Slots Storage Compatibility : CPU:- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*Chipset:- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2242/2260/2280/22110 PCIe Gen4x4 (64 Gb/s) mode*- 8 x SATA3 6.0 Gb/s Connectors Back Panel I/O Ports : 2 x Antenna Ports1 x PS/2 Mouse/Keyboard Port1 x HDMI Port1 x DisplayPort 1.41 x Optical SPDIF OutPort1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)4 x USB 3.2 Gen1 Ports (Supports ESD Protection)1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)1 x BIOS Flashback ButtonHD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) Expansion Slots : CPU:1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode*Chipset:1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*1 x PCIe 3.0 x16 Slot (PCIE5), supports x4 mode*2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4)*1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)Supports AMD CrossFire™15μ Gold Contact in VGA PCIe Slot (PCIE2) Audio : 7.1 CH HD Audio (Realtek ALC897 Audio Codec)Supports Surge ProtectionGold Audio Jacks15μ Gold Audio ConnectorNahimic Audio Internal I/O Connectors : 1 x SPI TPM Header1 x Power LED and Speaker Header1 x RGB LED Header*3 x Addressable LED Headers**1 x CPU Fan Connector (4-pin)***1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****1 x 24-pin ATX Power Connector (Hi-Density Power Connector)2 x 8-pin 12V Power Connectors (Hi-Density Power Connector)1 x Front Panel Audio Connector (15μ Gold Audio Connector)1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection) Special Features : ASRock USB 3.2 Gen2ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)ASRock Super AlloyXXL Aluminum Alloy HeatsinkPremium Power Choke50A Dr.MOSNichicon 12K Black Caps (100% Japan-made high-quality conductive polymer capacitors)I/O ArmorMatte Black PCBHigh-Density Glass Fabric PCB2oz Copper PCB2.5G LAN 802.11ax Wi-Fi 6EASRock Auto Driver InstallerASRock Steel SlotASRock Full Coverage M.2 HeatsinkASRock Hyper M.2 (PCIe Gen4x4)ASRock Ultra USB PowerASRock POST Status Checker (PSC)ASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop Package Content : Quick Installation Guide, Support CD2 x SATA Data Cables1 x ASRock WiFi 2.4/5/6 GHz Antenna3 x Screws for M.2 Sockets2 x Standoffs for M.2 Sockets1 x Graphics Card Holder Warranty : 1 Year ( As per Manufacturer Policy )
