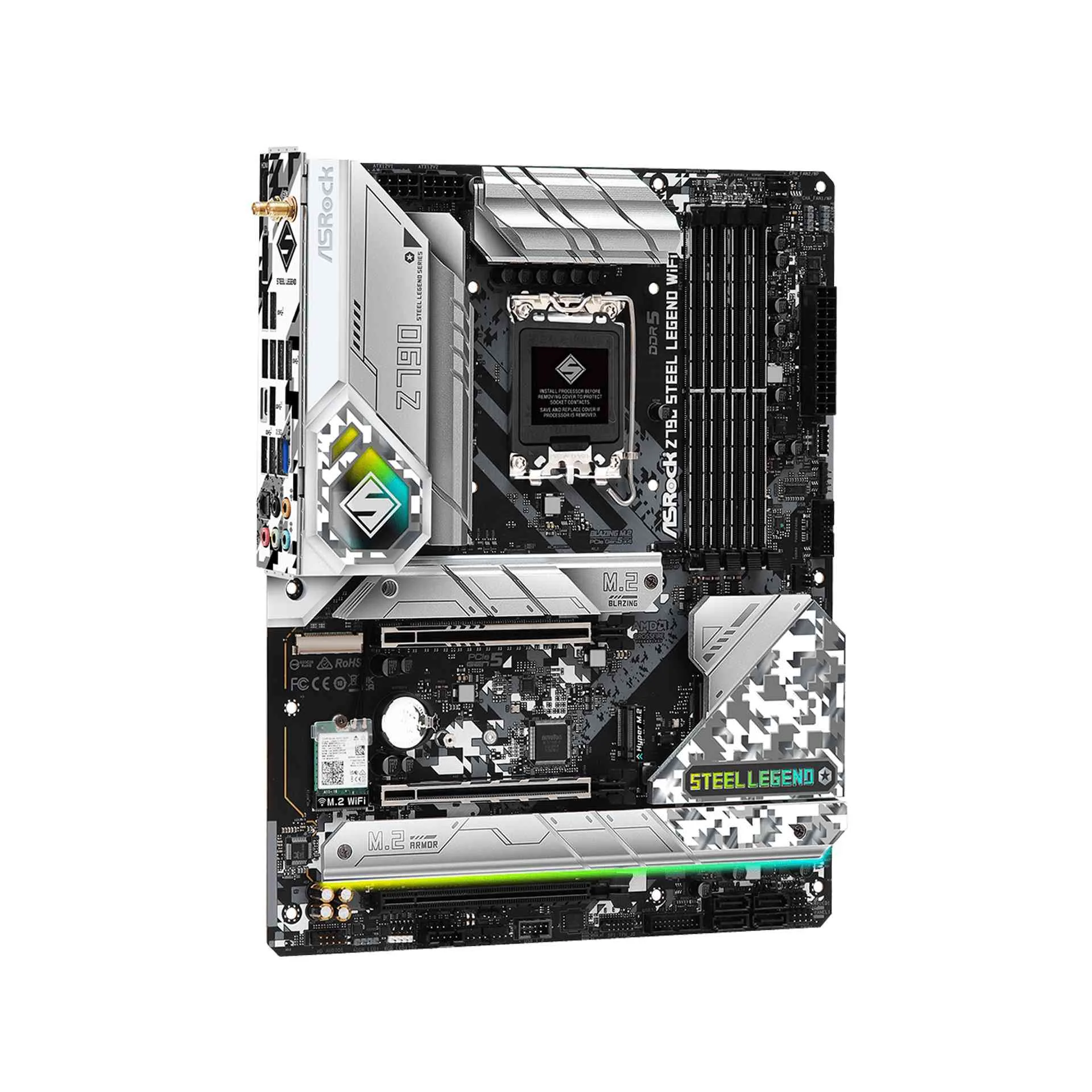

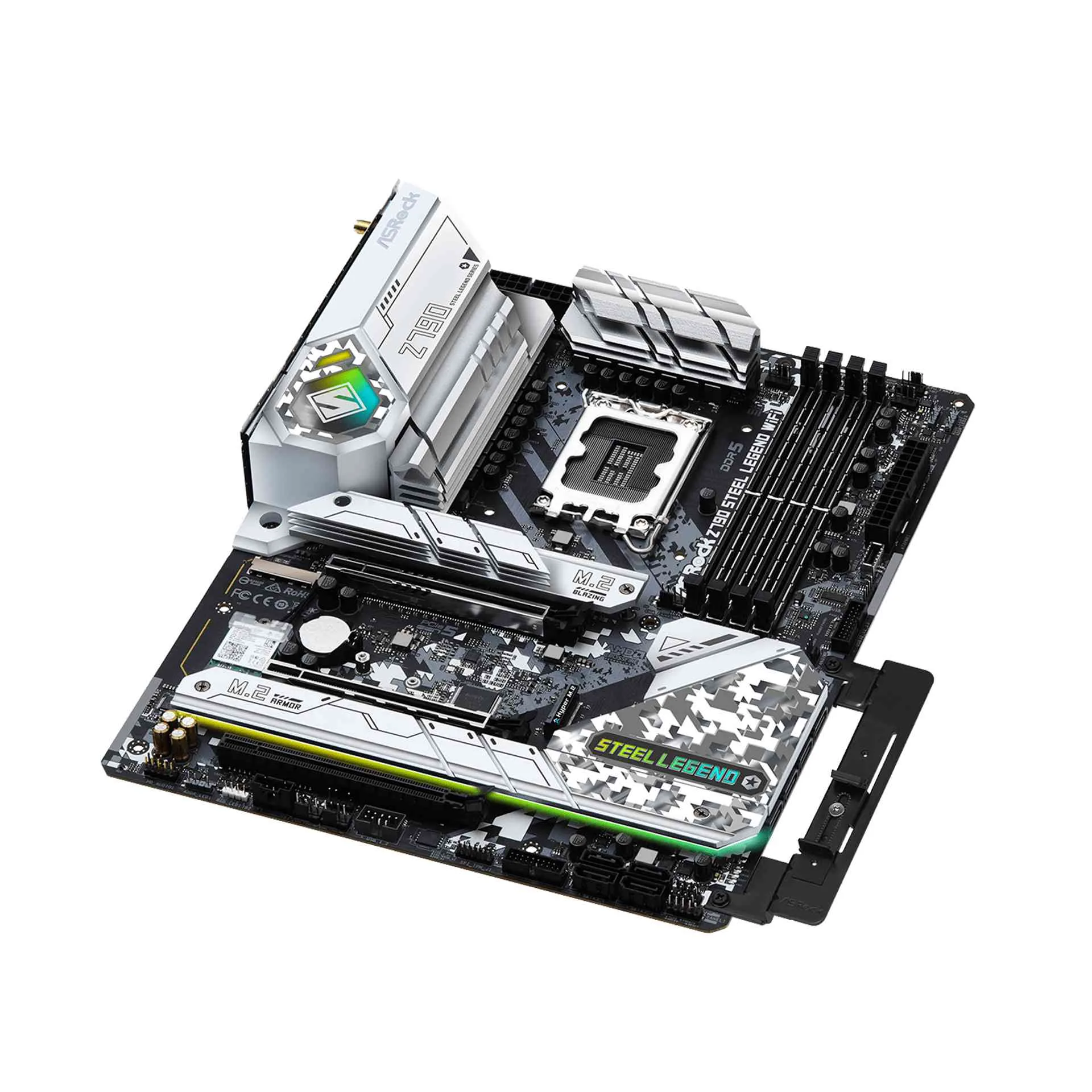

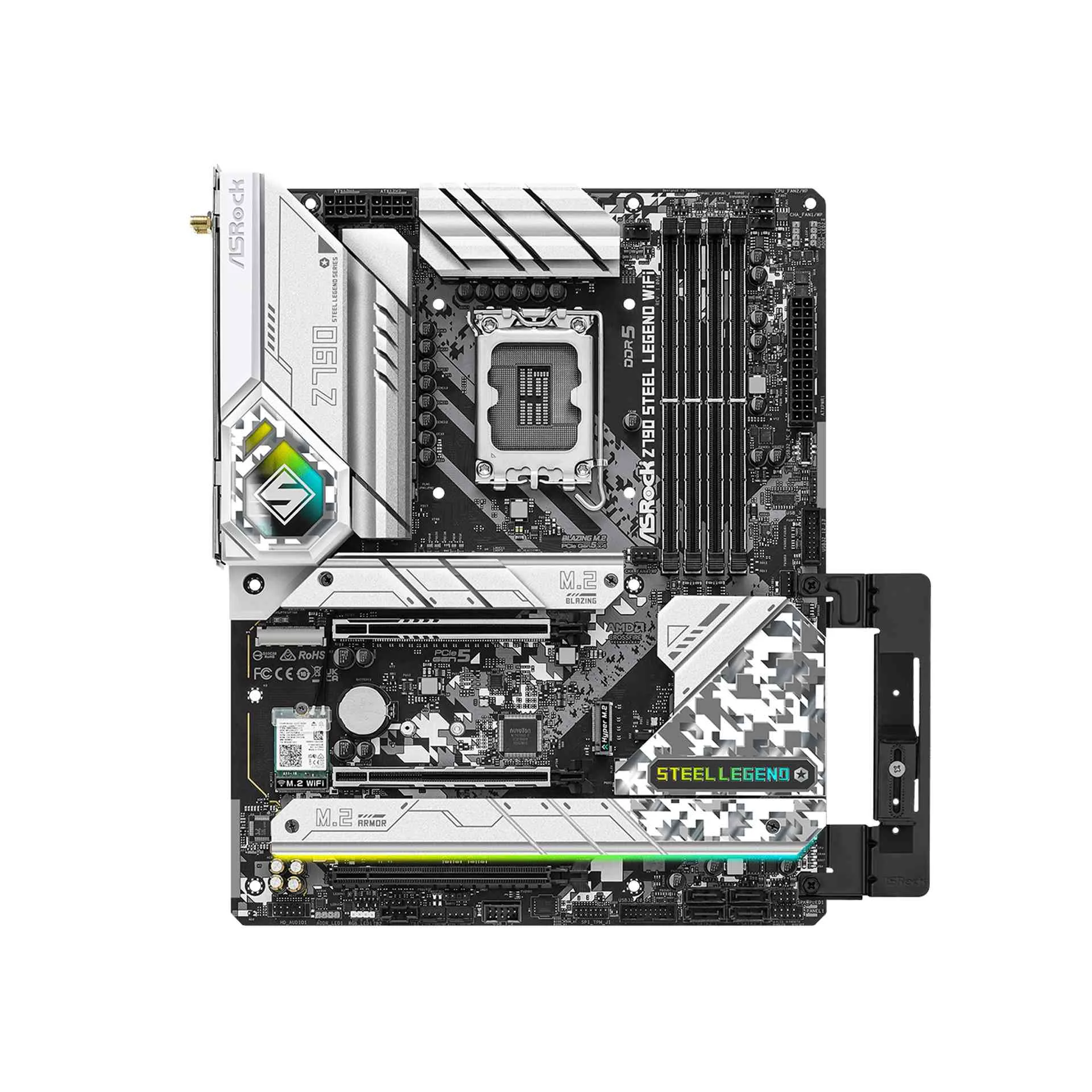

ASRock Intel Z790 Steel Legend DDR5 WIFI MotherBoard

Model No : ASRock Intel Z790 Steel Legend DDR5 WIFI MotherBoard Part No : 90-MXBKD0-A0UAY1Z Chipset : Intel® Z790 Form Factor : ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm2oz Copper PCB Socket Compatibility : Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)- Supports Intel® Hybrid Technology- Supports Intel® Turbo Boost Max 3.0 Technology- Supports Intel® Thermal Velocity Boost (TVB)- Supports Intel® Adaptive Boost Technology (ABT) LAN : 2.5 Gigabit LAN 10/100/1000/2500 Mb/s- Dragon RTL8125BG- Supports Dragon 2.5G LAN Software- Smart Auto Adjust Bandwidth Control- Visual User Friendly UI- Visual Network Usage Statistics- Optimized Default Setting for Game, Browser, and Streaming Modes- User Customized Priority Control Wireless LAN : 802.11ax Wi-Fi 6E Module- Supports IEEE 802.11a/b/g/n/ac/ax- Supports Dual-Band 2x2 with extended 6GHz band support*- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology- Supports Bluetooth + High speed class II- Supports MU-MIMO*Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.A 6GHz compatible router is required for 6E functionality. BIOS : 256Mb AMI UEFI Legal BIOS with GUI support Graphics : Intel® Xe Graphics Architecture (Gen 12)- 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. Memroy : Dual Channel DDR5 Memory Technology- 4 x DDR5 DIMM Slots- Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)- Max. capacity of system memory: 192GB- Supports Intel® Extreme Memory Profile (XMP) 3.0*1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively.1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively.2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively. Storage Compatibility : CPU:- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*- 1 x Blazing M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*Chipset:- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*- 8 x SATA3 6.0 Gb/s Connectors*Supports Intel® Volume Management Device (VMD)Supports NVMe SSD as boot disksIf M2_2 is occupied, PCIE1 will downgrade to x8 mode.M2_1 and M2_2 cannot be populated simultaneously. Back Panel I/O Ports : 2 x Antenna Ports- 1 x HDMI Port- 1 x DisplayPort 1.4- 1 x Optical SPDIF Out Port- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)- 8 x USB 3.2 Gen1 Ports- 1 x RJ-45 LAN Port- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) Slots : CPU:- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*Chipset:- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*- 1 x PCIe 3.0 x16 Slot (PCIE3), supports x2 mode*- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)- Supports AMD CrossFire™- 15μ Gold Contact in VGA PCIe Slot (PCIE1)*If M2_2 is occupied, PCIE1 will downgrade to x8 mode.Supports NVMe SSD as boot disks Audio : 7.1 CH HD Audio (Realtek ALC897 Audio Codec)- Nahimic Audio USB : 1 x USB 3.2 Gen2x2 Type-C (Front)- 1 x USB 3.2 Gen2 Type-C (Rear)- 1 x USB 3.2 Gen2 Type-A (Rear)- 12 x USB 3.2 Gen1 (8 Rear, 4 Front)- 3 x USB 2.0 (3 Front)*All USB ports support ESD Protection Internal I/O Connectors : 1 x eDP Signal Connector- 1 x SPI TPM Header- 1 x Power LED and Speaker Header- 1 x RGB LED Header*- 3 x Addressable LED Headers**- 1 x CPU Fan Connector (4-pin)***- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****- 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)- 2 x USB 2.0 Headers (Support 3 USB 2.0 ports)- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)*Supports in total up to 12V/3A, 36W LED Strip**Support in total up to 5V/3A, 15W LED Strip***CPU_FAN1 supports the fan power up to 1A (12W).****CPU_FAN2/WP supports the fan power up to 2A (24W).*****CHA_FAN1~5/WP support the fan power up to 2A (24W).*****CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use. Special Features : Superb Productivity- PCIe Gen5 (Graphics, M.2)- Dual Channel DDR5Rock-Solid Durability- 16+1+1 Power Phase, 60A SPS for VCore+GT- Flexible Integrated I/O Shield- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) Ultrafast Connectivity- 2.5G LAN, 802.11ax Wi-Fi 6E ModuleEZ Update- ASRock Auto Driver Installer EZ Troubleshooter- ASRock Post Status Checker RAID : Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices- Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices Package Content : 1 x User Manual- 2 x SATA Data Cables- 1 x ASRock WiFi 2.4/5/6 GHz Antenna- 4 x Screws for M.2 Sockets- 1 x Graphics Card Holder Warranty : 1 Year ( As per Manufacturer Policy )
