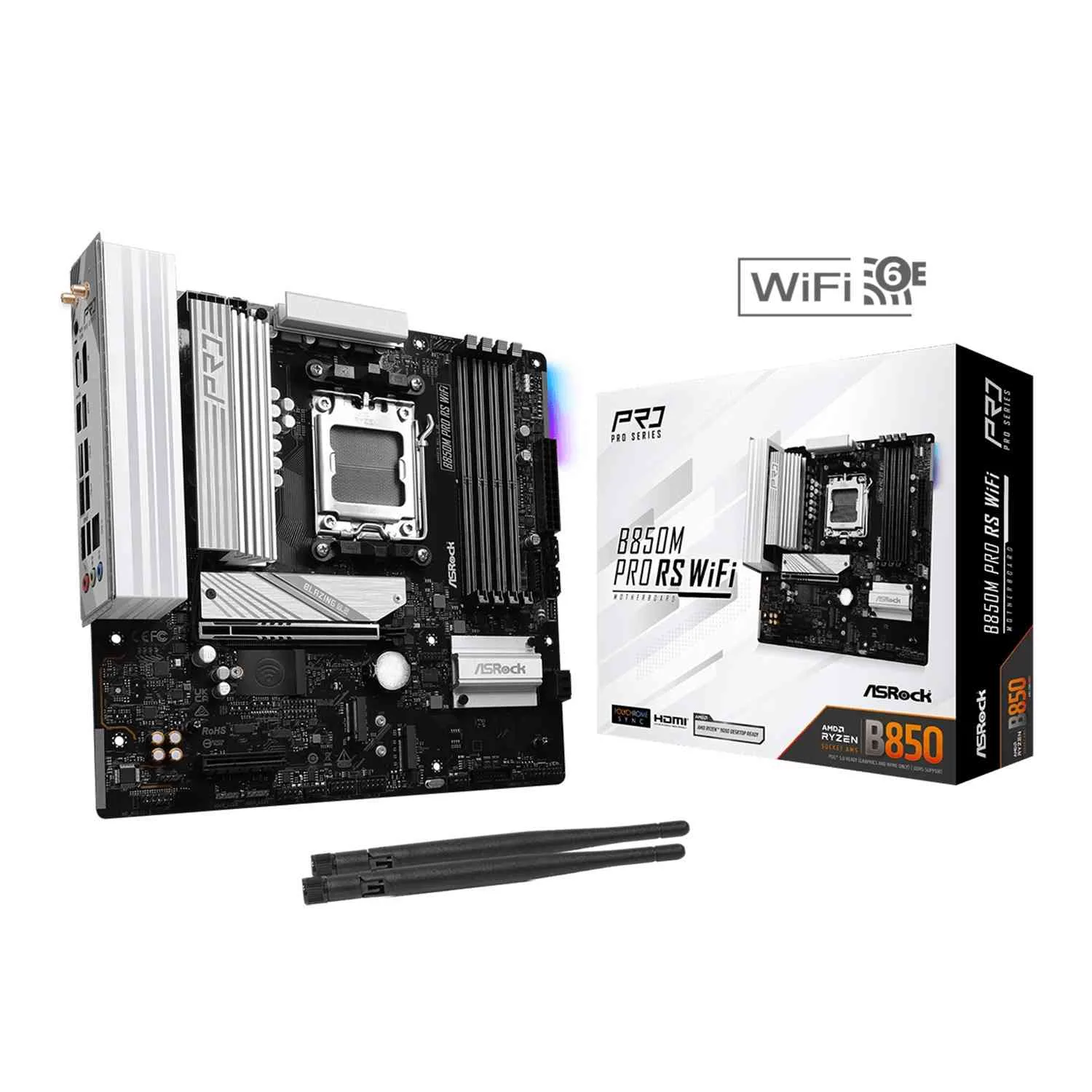

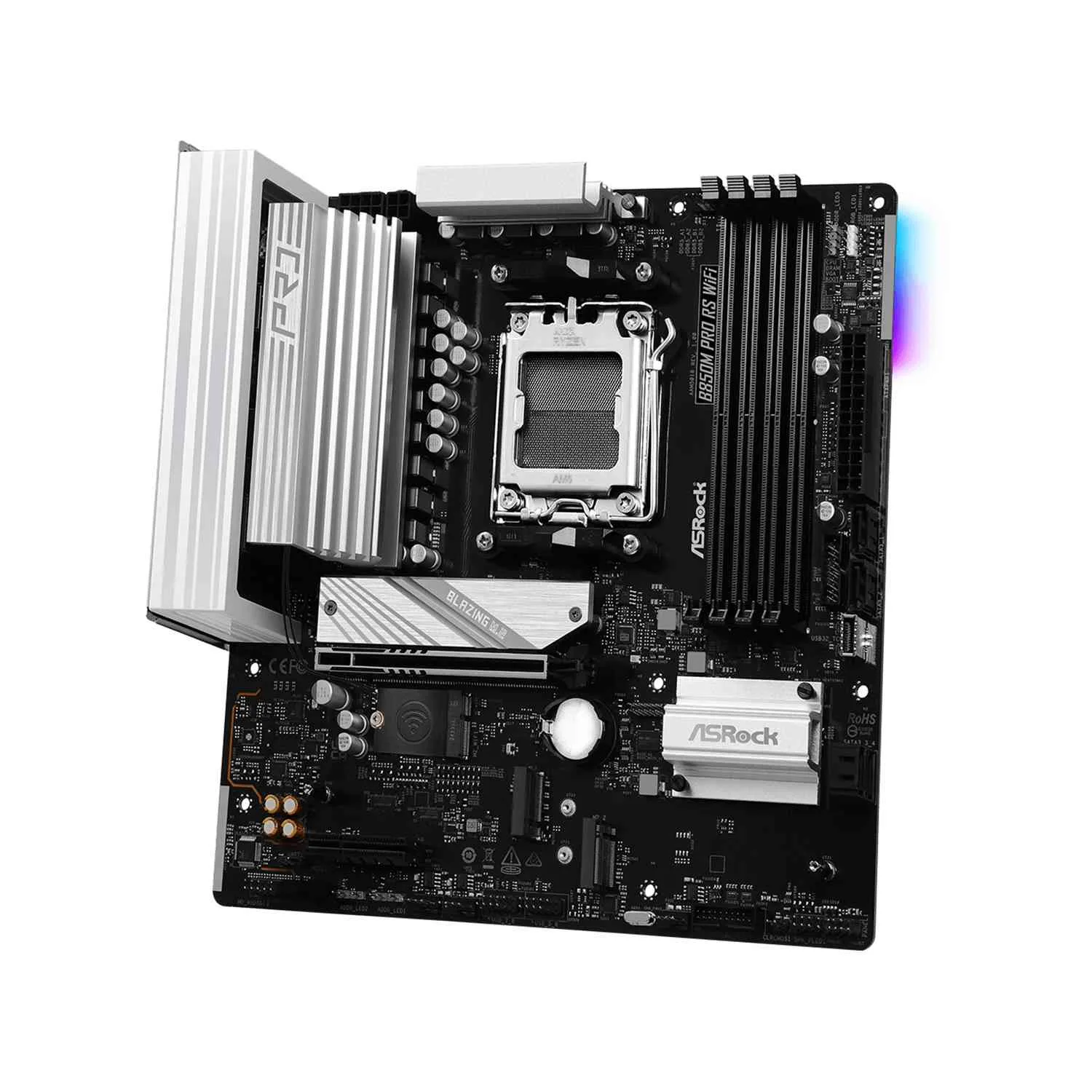

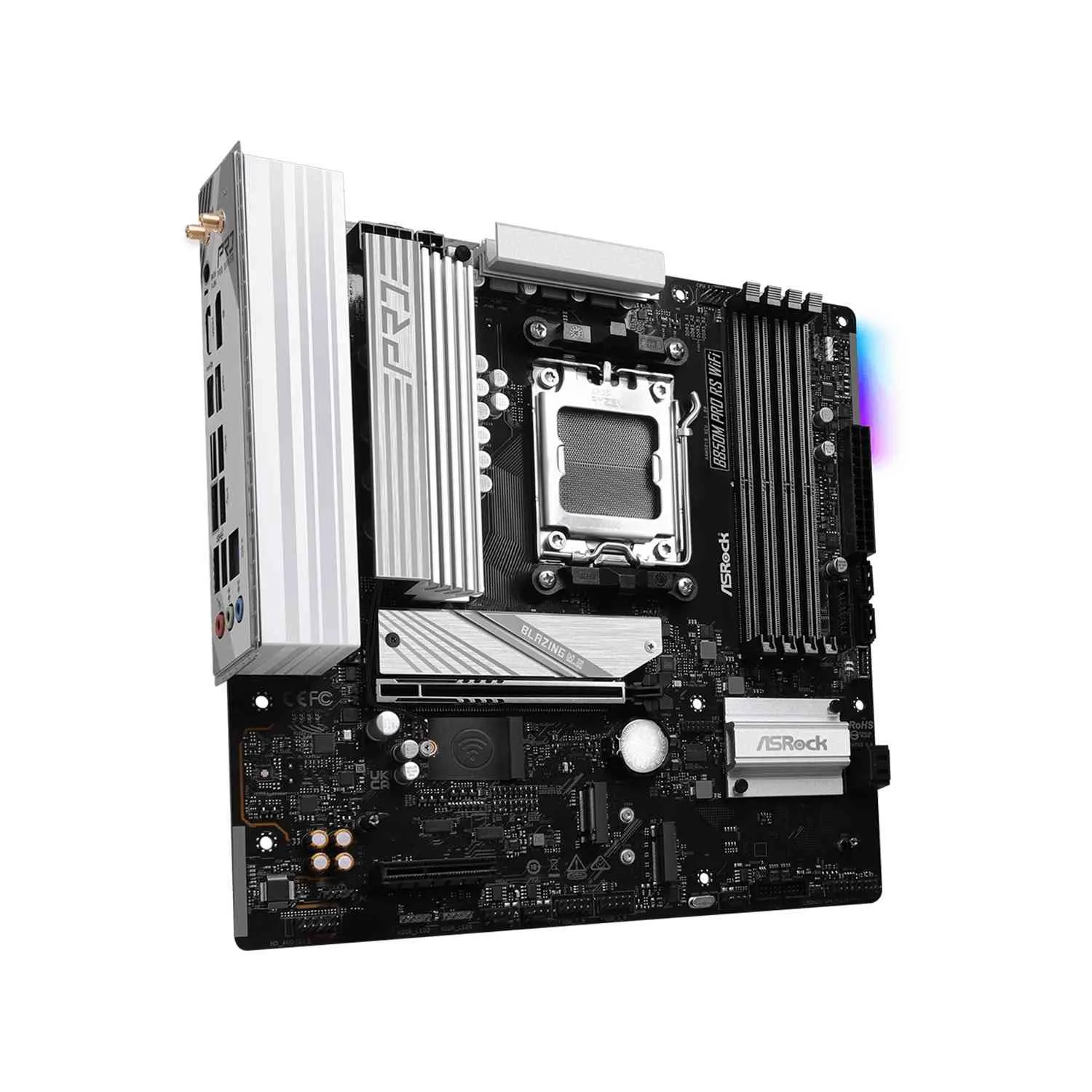

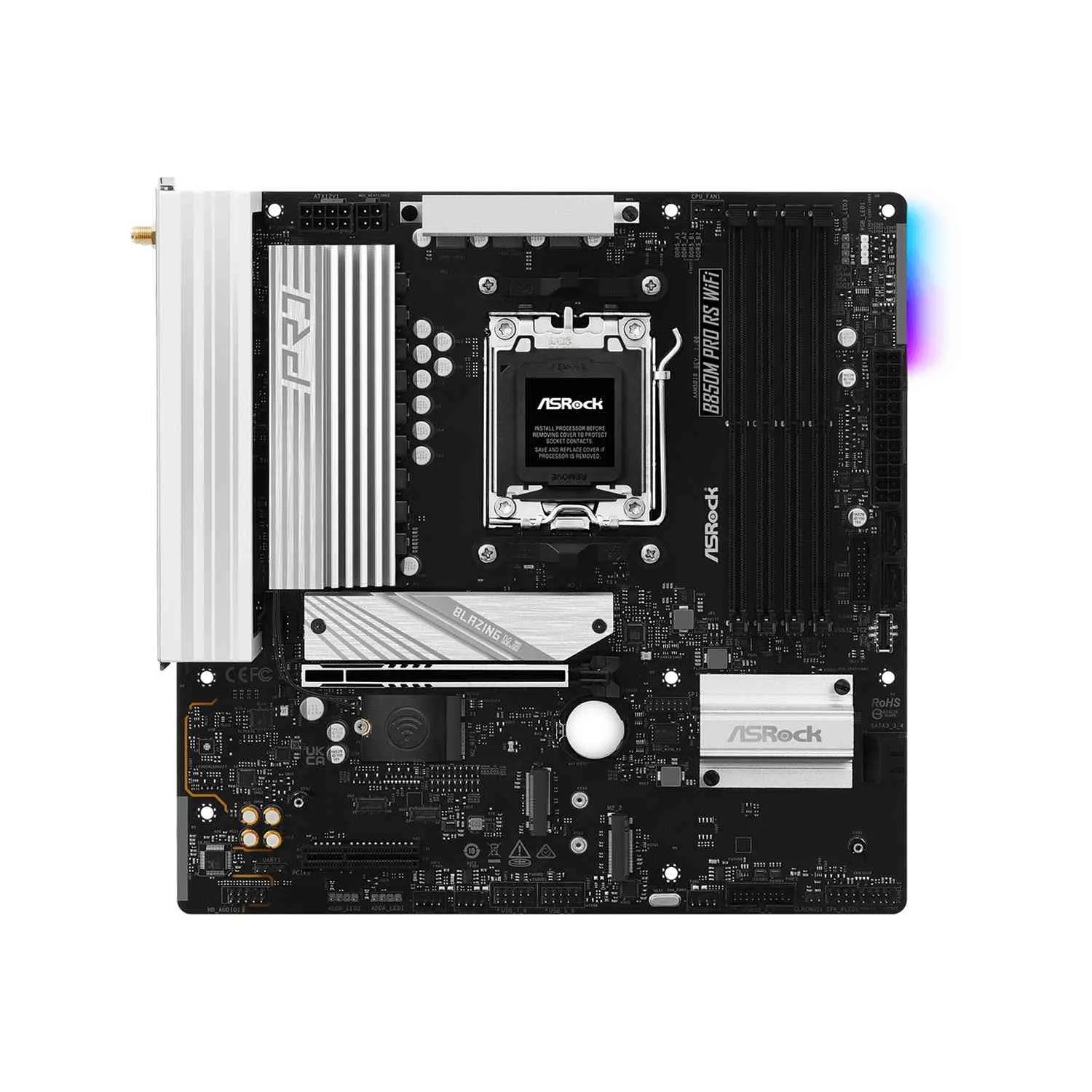

Asrock Pro Series B850M Pro RS Wifi PCIe 5.0 Gaming MotherBoard

Model No : Asrock Pro Series B850M Pro RS Wifi PCIe 5.0 Gaming MotherBoard Part No : 90-MXBR70-A0UAYZ Chipset : AMD B850 Form Factor : Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm Memroy : Dual Channel DDR5 Memory Technology- 4 x DDR5 DIMM Slots- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)- Max. capacity of system memory: 256GB- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules CPU : Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors* Graphics : Integrated AMD RDNA™ graphics (Actual support may vary by CPU)- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz Storage : CPU:- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*Chipset:- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*- 4 x SATA3 6.0 Gb/s Connectors Slots : CPU:- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*- 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode*Chipset:- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module- 15μ Gold Contact in VGA PCIe Slot (PCIE1) USB : CPU:- 1 x USB 3.2 Gen2 Type-C (Rear)- 1 x USB 3.2 Gen2 Type-A (Rear)Chipset:- 1 x USB 3.2 Gen1 Type-C (Front)- 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)- 8 x USB 2.0 (4 Rear, 4 Front) Rear Panel I/O : 2 x Antenna Ports- 1 x HDMI Port- 1 x DisplayPort 1.4- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)- 1 x USB 3.2 Gen2 Type-C Port- 2 x USB 3.2 Gen1 Ports- 4 x USB 2.0 Ports- 1 x RJ-45 LAN Port- 1 x BIOS Flashback Button- HD Audio Jacks: Line in / Front Speaker / Microphone Connector : 1 x SPI TPM Header- 1 x Power LED and Speaker Header- 1 x RGB LED Header*- 3 x Addressable LED Headers**- 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***- 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)- 1 x Front Panel Audio Connector- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)- 1 x Front Panel Type C USB 3.2 Gen1 Header Audio : 7.1 CH HD Audio (Realtek ALC897 Audio Codec)- Nahimic Audio LAN : 2.5 Gigabit LAN 10/100/1000/2500 Mb/s- Dragon RTL8125BG- Supports Dragon 2.5G LAN Software- Smart Auto Adjust Bandwidth Control- Visual User Friendly UI- Visual Network Usage Statistics- Optimized Default Setting for Game, Browser, and Streaming Modes- User Customized Priority Control Wireless LAN : 802.11axe Wi-Fi 6E Module- Supports IEEE 802.11a/b/g/n/ac/ax/axe- Supports Dual-Band 2x2 with extended 6GHz band* support- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology- Supports Bluetooth 5.2- Supports MU-MIMO RAID : Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* OS : Microsoft Windows® 10 64-bit / 11 64-bit Accessories : 2 x SATA Data Cables- 2 x ASRock WiFi 2.4/5/6 GHz Antennas BIOS : 256Mb AMI UEFI Legal BIOS with GUI support Special Features : Superb Productivity- PCIe Gen5 (Graphics, M.2)- Dual Channel DDR5Rock-Solid Durability- 8+2+1 Power Phase, Dr.MOS for VCore+SOC+MISC- Pre-Installed I/O ShieldUltrafast Connectivity- 2.5G LAN, 802.11axe Wi-Fi 6E ModuleEZ Update- BIOS Flashback Button- ASRock Auto Driver InstallerEZ Troubleshooter- ASRock Post Status Checker Warranty : 1 Year ( As per Manufacturer Policy )
