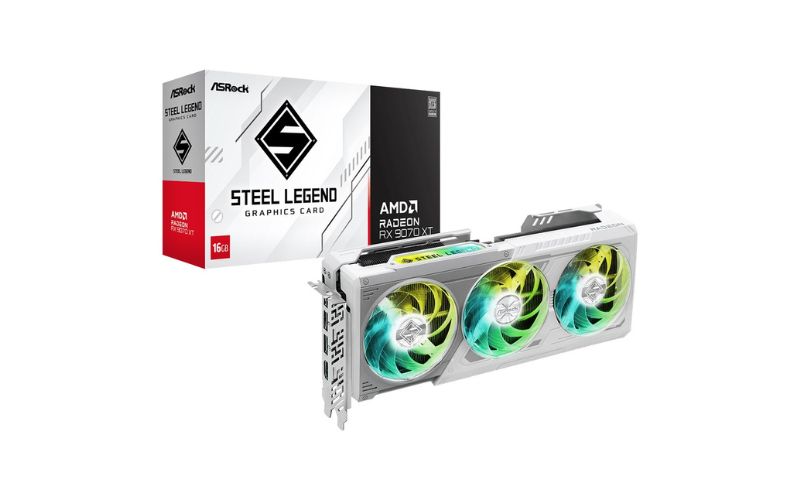

ASRock Radeon RX 9070 XT Steel Legend 16GB GDDR6 Graphics Card - HDMI & DisplayPort, White Edition

The ASRock Radeon RX 9070 XT Steel Legend 16GB GDDR6

Graphics Card in its striking white edition is engineered for gamers and creators seeking top-tier performance and aesthetics. Built on AMD's RDNA 4 architecture, it boasts 64 compute units and 16GB of GDDR6 memory across a 256-bit interface, ensuring smooth 4K gaming and demanding workloads. With a boost clock reaching up to 2970 MHz and a game clock of 2400 MHz, this card delivers exceptional speed and responsiveness.

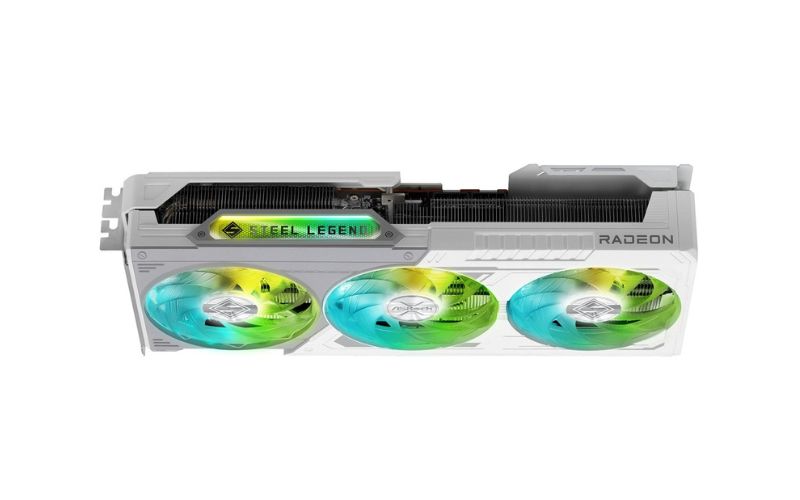

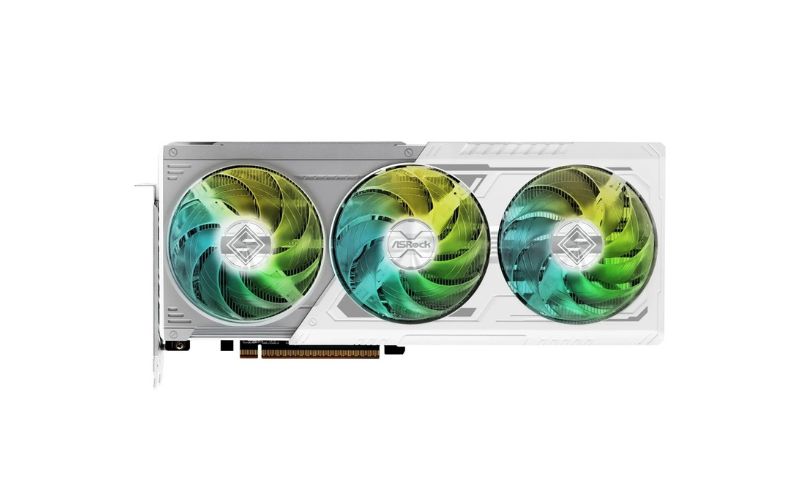

Elegant Design with Advanced Cooling

The Steel Legend series is renowned for its distinctive white design, featuring a triple-fan cooling system that includes striped ring fans and an ultra-fit heatpipe. This setup ensures efficient heat dissipation while maintaining a 2.9-slot profile. The card also incorporates an air-deflecting fin and a reinforced metal frame, contributing to both durability and optimal airflow. Additionally, the stylish metal backplate adds a premium touch to its appearance.

Connectivity and Compatibility

Equipped with PCI Express 5.0 support, the RX 9070 XT offers high-speed data transfer capabilities. It provides versatile display options with 3x DisplayPort 2.1a and 1x HDMI 2.1b outputs, supporting resolutions up to 7680 x 4320. The card requires two 8-pin power connectors and is compatible with power supplies rated at 850W or higher. It's important to note that while the card's RGB lighting is controlled via ASRock's Polychrome SYNC software, some users have reported limited compatibility with third-party RGB control software

Key Specification :

GPU: AMD Radeon RX 9070 XT (Navi 48 XTX)

Architecture: RDNA 4.0 (TSMC 4nm)

Compute Units: 64

Stream Processors: 4096

Tensor Cores: 128

RT Cores: 64

Base Clock: 1660 MHz

Game Clock: 2400 MHz

Boost Clock: Up to 2970 MHz

Memory: 16GB GDDR6

Memory Bus: 256-bit

Memory Speed: 2518 MHz (20.1 Gbps effective)

Memory Bandwidth: 644.6 GB/s

PCIe Interface: PCIe 5.0 x16
