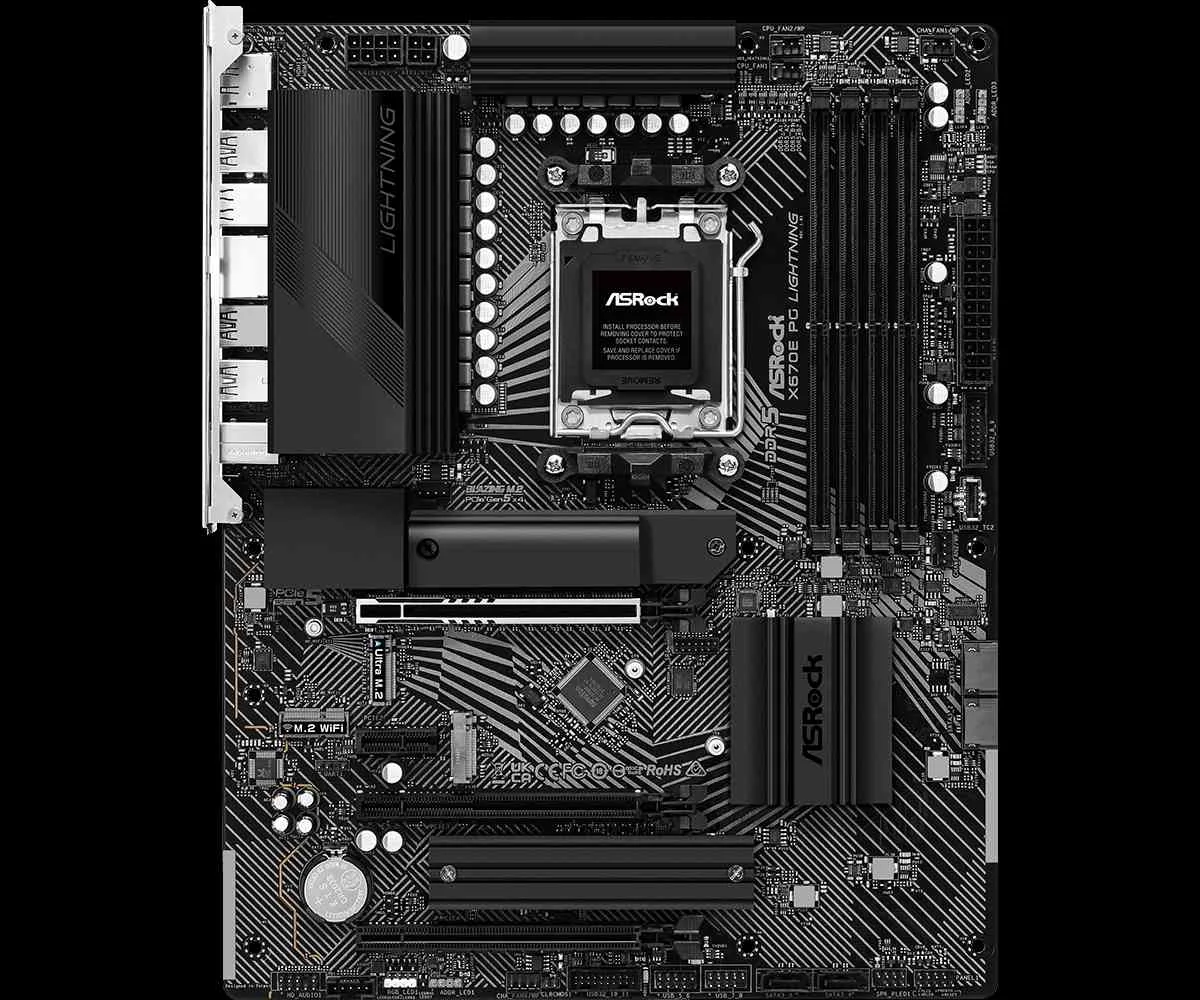

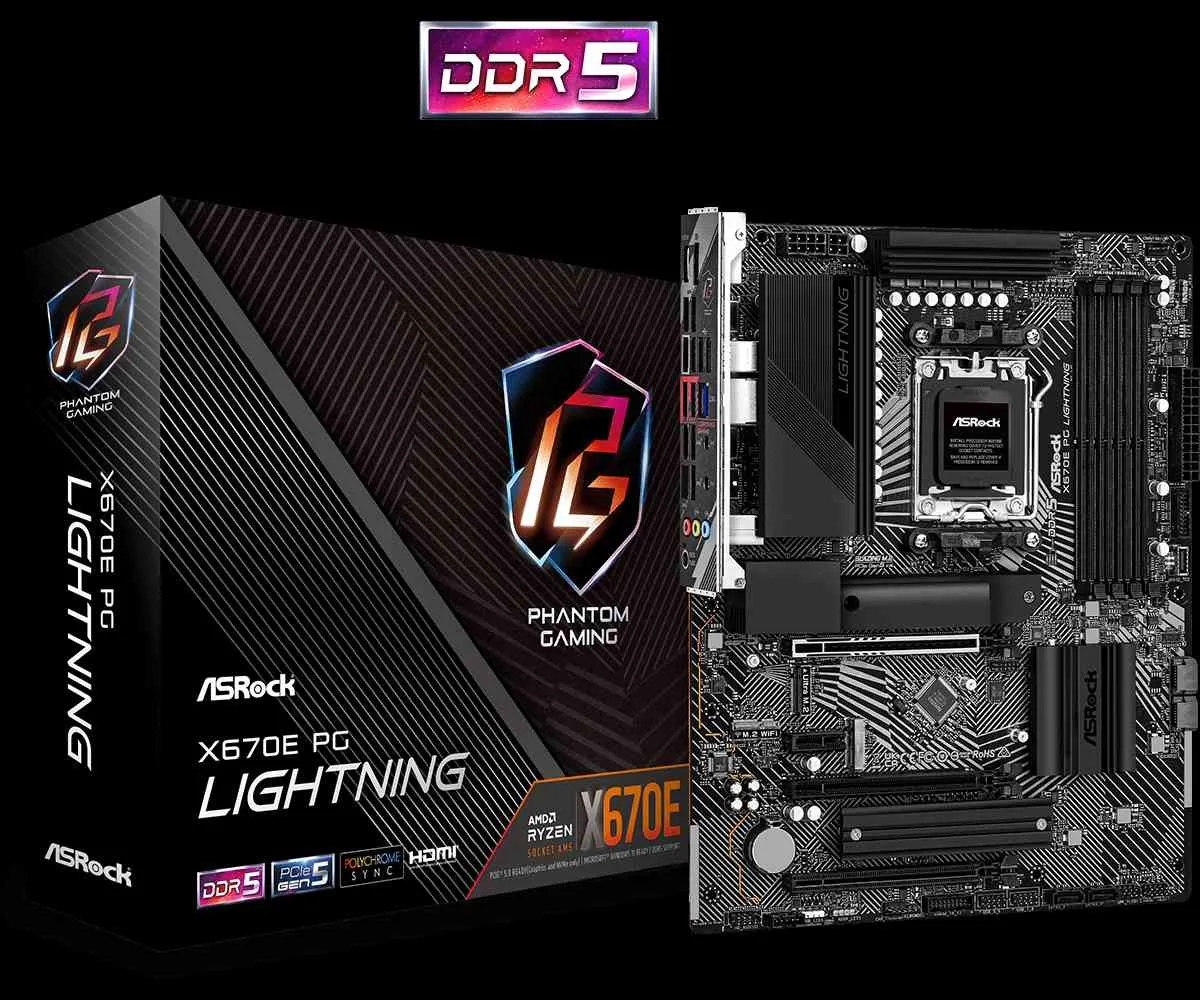

ASRock X670E PG Lightning - Support AMD AM5 RYZEN 7000 Series Processors - DDR5 Motherboard

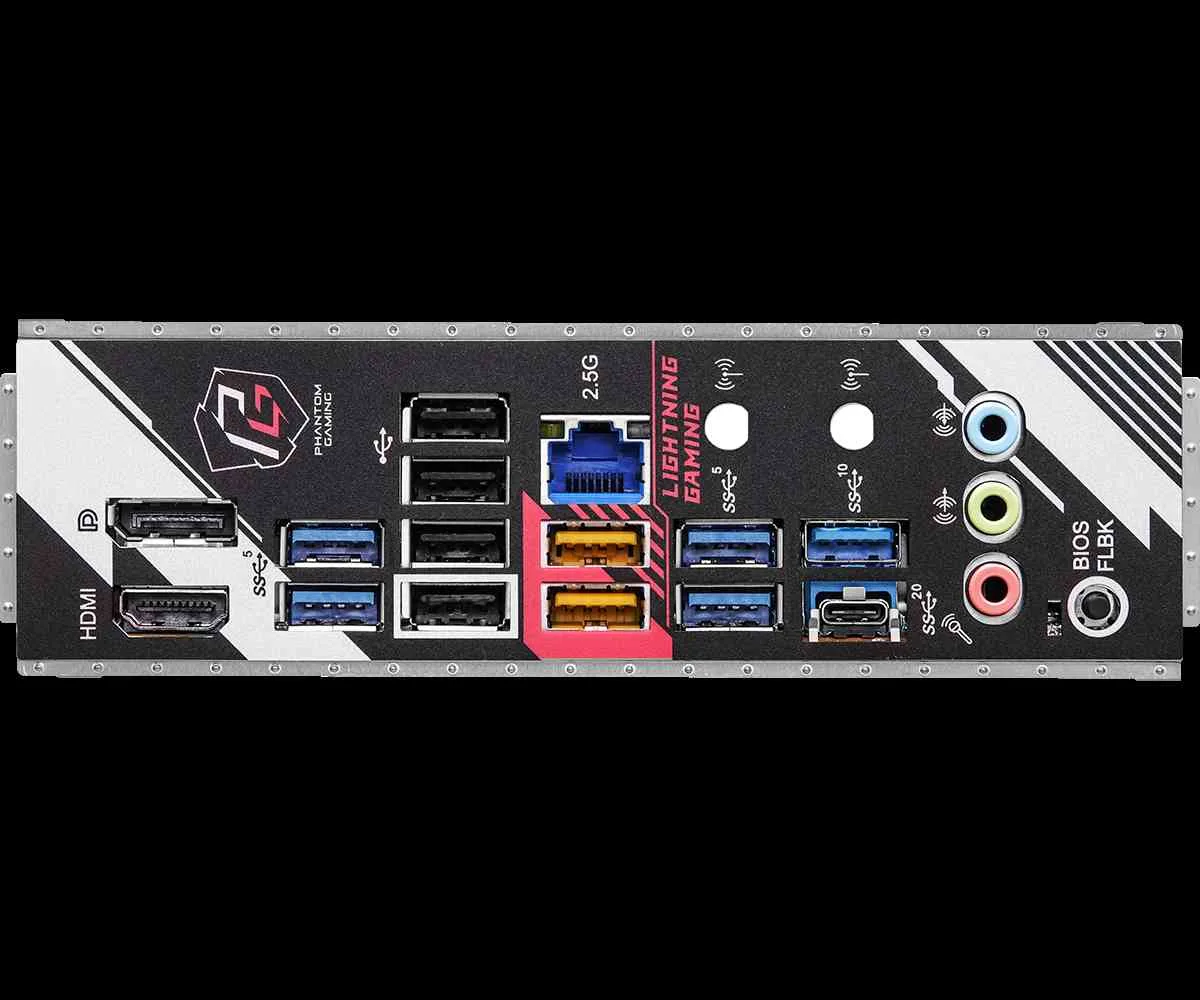

Model No : ASRock X670E PG Lightning - Support AMD AM5 RYZEN 7000 Series Processors - DDR5 Motherboard Part No : 90-MXBJ60-A0UAYZ Unique Feature : Superb ProductivityPCIe Gen5 (Graphics, M.2)Dual Channel DDR5Rock-Solid DurabilityServer-Grade Low-Loss PCB14+2+1 Power Phase, 70A SPS for VCore+SOCPre-Installed I/O ShieldUltrafast Connectivity2.5G LANASRock Lightning Gaming PortsEZ UpdateBIOS Flashback ButtonASRock Auto Driver InstallerEZ Troubleshooter CPU : Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors Chipset : AMD X670 Memory : Dual Channel DDR5 Memory Technology4 x DDR5 DIMM SlotsSupports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*Max. capacity of system memory: 256GBSupports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules BIOS : 256Mb AMI UEFI Legal BIOS with GUI support Graphics : Integrated AMD RDNA™ graphics (Actual support may vary by CPU)1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz Audio : 7.1 CH HD Audio (Realtek ALC897 Audio Codec)Nahimic Audio LAN : 2.5 Gigabit LAN 10/100/1000/2500 Mb/sDragon RTL8125BGSupports Phantom Gaming LAN SoftwareSmart Auto Adjust Bandwidth ControlVisual User Friendly UIVisual Network Usage StatisticsOptimized Default Setting for Game, Browser, and Streaming ModesUser Customized Priority Control Slots : CPU:1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*Chipset:1 x PCIe 4.0 x1 Slot (PCIE2)*1 x PCIe 4.0 x16 Slot (PCIE4), supports x1 mode*1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi moduleSupports AMD CrossFire™15μ Gold Contact in VGA PCIe Slot (PCIE1) Storage : CPU:1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*Chipset:1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*1 x M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode*1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*4 x SATA3 6.0 Gb/s Connectors RAID : Supports RAID 0, RAID 1 and RAID 10 for SATA storage devicesSupports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices Connector : 1 x SPI TPM Header1 x Power LED and Speaker Header1 x RGB LED Header*3 x Addressable LED Headers**1 x CPU Fan Connector (4-pin)***1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****1 x 24 pin ATX Power Connector1 x 8 pin 12V Power Connector (Hi-Density Power Connector)1 x 4 pin 12V Power Connector (Hi-Density Power Connector)1 x Front Panel Audio Connector1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)2 x USB 2.0 Headers (Support 4 USB 2.0 ports)2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver) Rear Panel I/O : 2 x Antenna Mounting Points1 x HDMI Port1 x DisplayPort 1.41 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)6 x USB 3.2 Gen1 Ports (USB32_34 are Lightning Gaming Ports)4 x USB 2.0 Ports1 x RJ-45 LAN Port1 x BIOS Flashback ButtonHD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI : SoftwareASRock Motherboard Utility (Phantom Gaming Tuning)ASRock Phantom Gaming LAN SoftwareASRock Polychrome SYNC*UEFIASRock Full HD UEFIASRock Auto Driver InstallerASRock Instant Flash Accessories : 1 x User Manual2 x SATA Data Cables4 x Screws for M.2 Sockets1 x Standoff for M.2 Socket Form Factor : ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm8 Layer PCB OS : Microsoft Windows® 10 64-bit / 11 64-bit Certifications : FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)- CEC Tier II ready Warranty : 1 Year (As Per Manufacturer)
