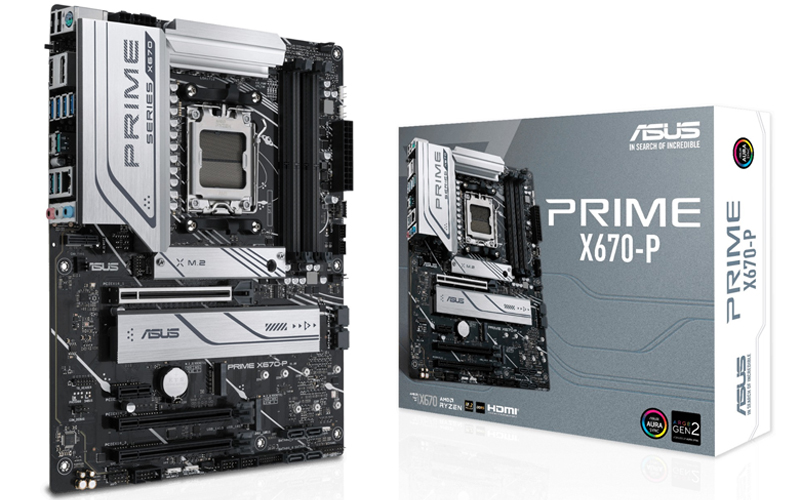

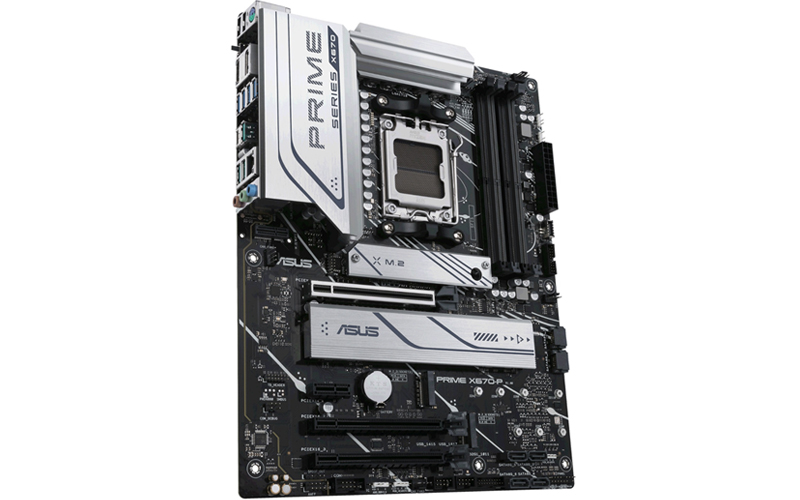

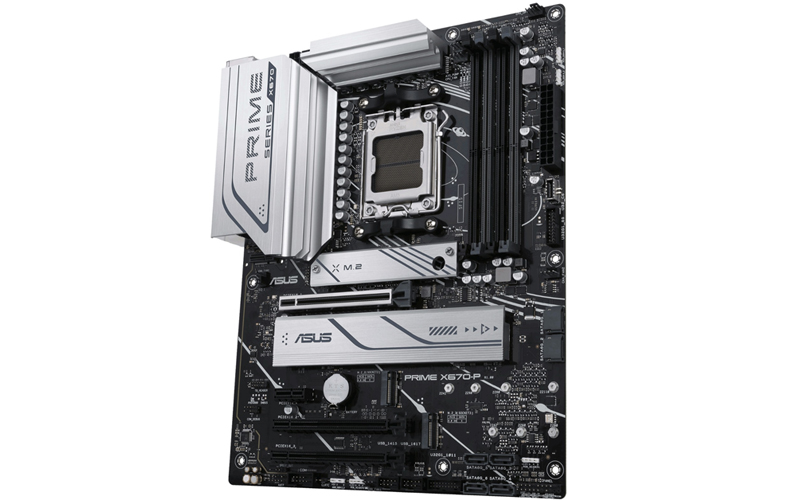

Asus AMD Prime X670-P Motherboard

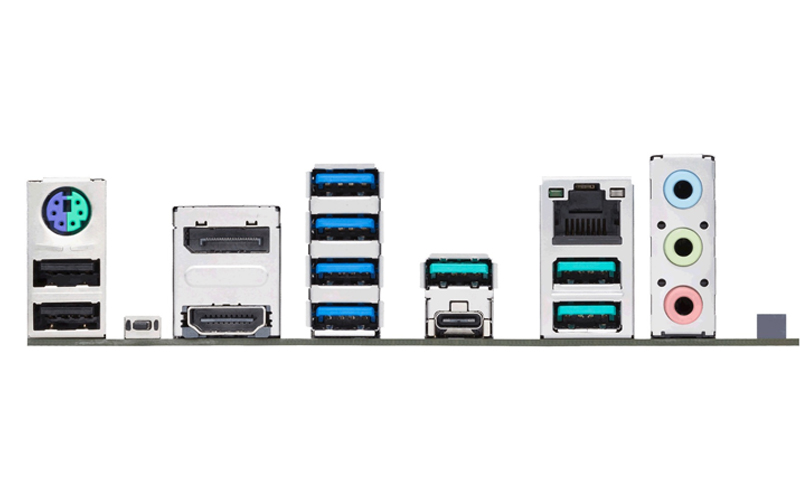

Model No : Asus AMD Prime X670-P Motherboard Part No : 90MB1BU0-M0EAY0 Chipset : AMD X670 Chipset Form Factor : ATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) Socket Compatibility : AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* Ethernet : 1 x Realtek 2.5Gb Ethernet Wireless : V-M.2 slot only (Key E, PCIe)** Wi-Fi module is sold separately. Graphics : 1 x DisplayPort**1 x HDMI® port**** Graphics specifications may vary between CPU types.** Supports max. 8K@60Hz as specified in DisplayPort 1.4.*** Supports 4K@60Hz as specified in HDMI® 2.1. Memroy : 4 x DIMM, Max. 192GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports AMD Extended Profiles for Overclocking (EXPO™)OptiMem II* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function. Storage Compatibility : Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports*AMD Ryzen™ 9000 & 7000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)AMD Ryzen™ 8000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)**AMD X670 ChipsetM.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)6 x SATA 6Gb/s ports**** AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.** Specifications vary by CPU types.*** The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used. Expansion Slot : AMD Ryzen™ 9000 & 7000 Series Desktop Processors1 x PCIe 4.0 x16 slot (supports x16 mode)AMD Ryzen™ 8000 Series Desktop Processors1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**AMD X670 Chipset2 x PCIe 4.0 x16 slots (support x4 mode)1 x PCIe 3.0 x1 slot*** Back Panel I/O Ports : 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)3 x USB 3.2 Gen 2 ports (3 x Type-A)4 x USB 3.2 Gen 1 ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x DisplayPort1 x HDMI® port1 x V-M.2 slot (Key E)1 x Realtek 2.5Gb Ethernet port3 x Audio jacks1 x BIOS FlashBack™ button1 x PS/2 Keyboard/Mouse combo port Audio : Realtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Internal I/O Connectors : Fan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header3 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connector1 x 4-pin +12V Power connectorStorage related3 x M.2 slots (Key M)6 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 connector (supports USB Type-C®)2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers2 x Aura RGB headers1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x S/PDIF Out header1 x SPI TPM header (14-1pin)1 x 20-5 pin System Panel header1 x Thunderbolt™ (USB4®) header USB : Rear USB (Total 10 ports)1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)3 x USB 3.2 Gen 2 ports (3 x Type-A)4 x USB 3.2 Gen 1 ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)Front USB (Total 9 ports)1 x USB 3.2 Gen 1 connector (supports USB Type-C®)2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports* USB Type-C® power delivery output: max. 5V/3A Manageability : WOL by PME, PXE BIOS : 256 Mb Flash ROM, UEFI AMI BIOS Special Features : ASUS 5X PROTECTION III- DIGI+ VRM (- Digital power design with DrMOS)- ESD Guards- LANGuard- Overvoltage Protection- Safeslot Core+- Stainless-Steel Back I/OASUS Q-Design- M.2 Q-Latch- Q-DIMM- Q-LED Core- Q-SlotASUS Thermal Solution- M.2 heatsink- VRM heatsink designASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- ProCoolAura Sync- Aura RGB headers- Addressable Gen 2 headers Accessories : Cables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O Shield1 x Rubber Package for M.22 x Screw Packages for M.2 SSDDocumentation1 x User guide Warranty : 1 Year ( As per Manufacturer Policy )
