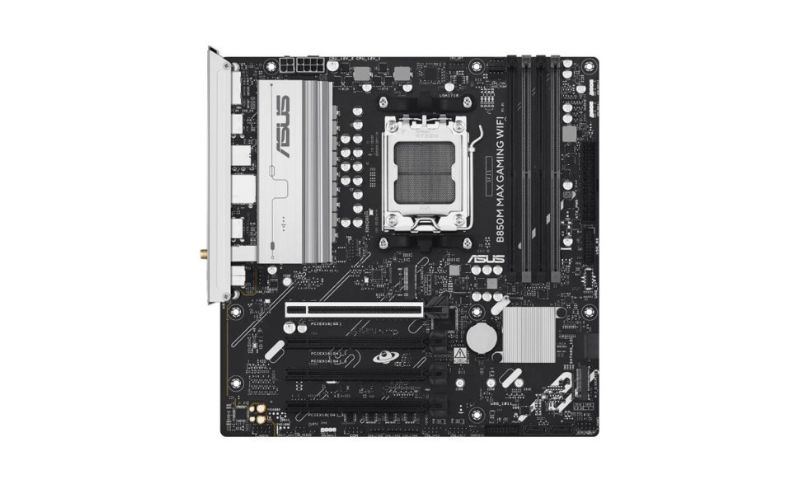

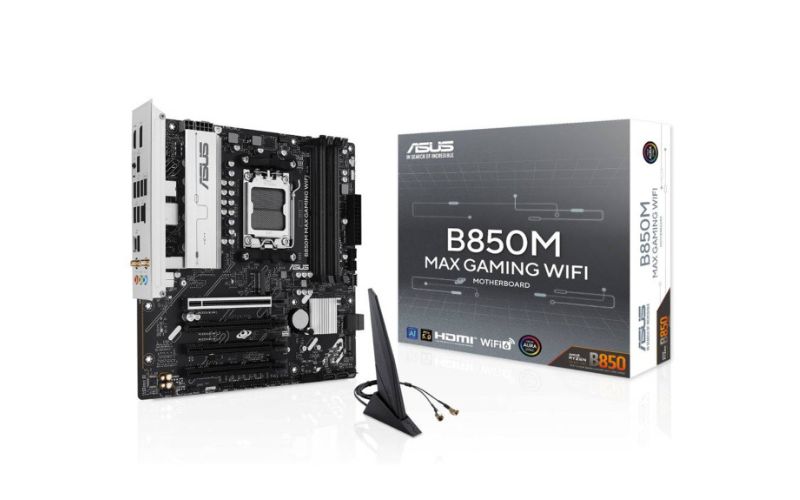

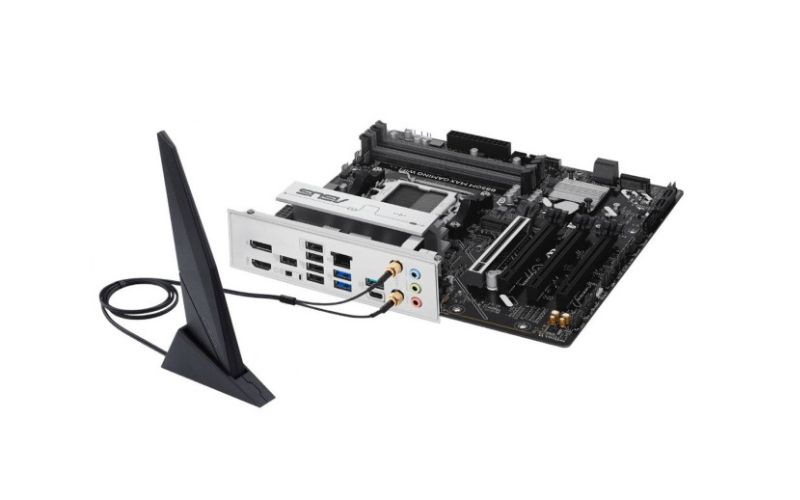

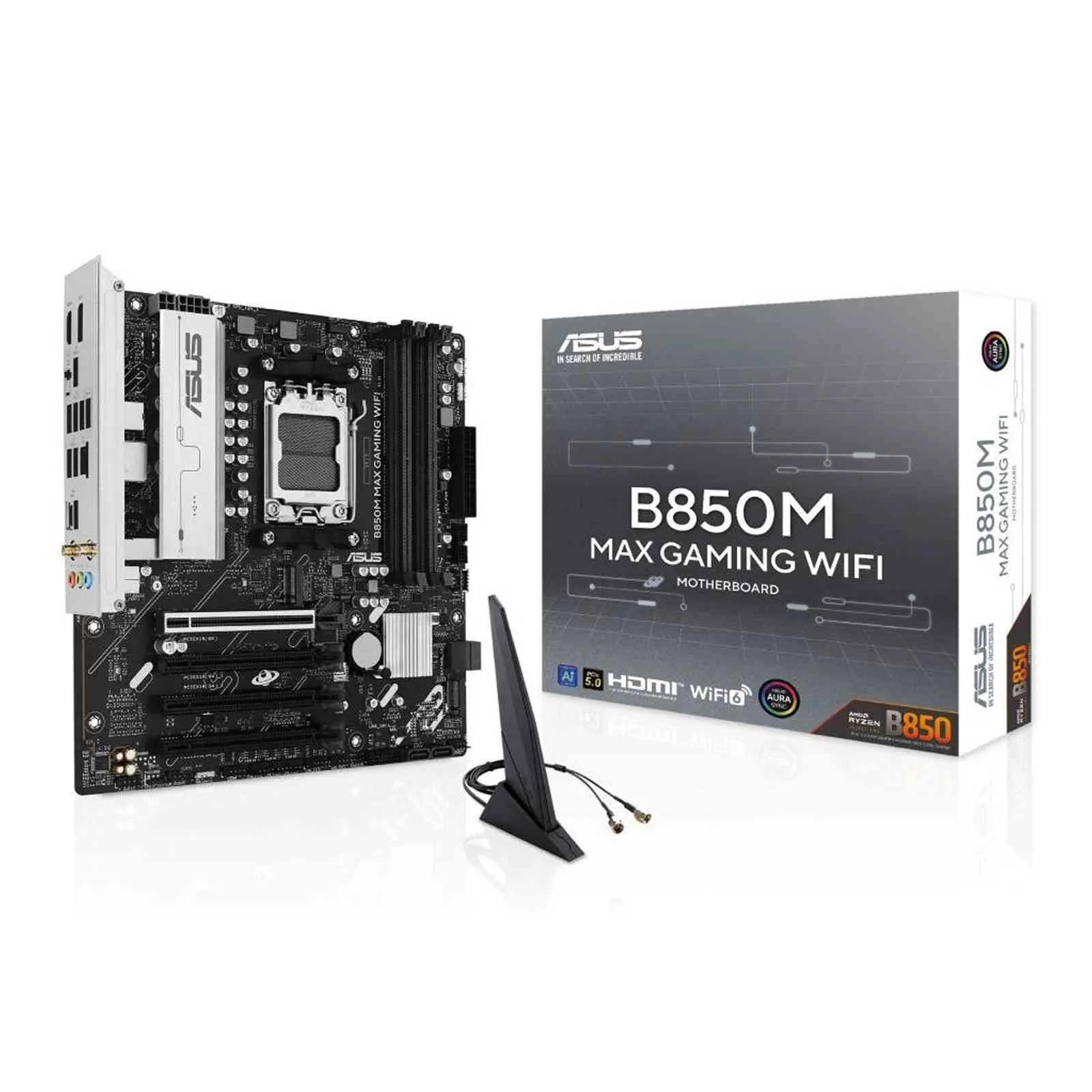

Asus B850M Max Gaming Wifi PCIe 5.0 DDR5 AM5 for AMD Ryzen Gaming MotherBoard

Model No : B850M MAX GAMING WIFI Part No : 90MB1LL0-M0EAY0 Chipset : AMD B850 Chipset Form Factor : mATX Form Factor Socket Compatibility : AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors Wireless & Bluetooth : Wi-Fi 61x1 Wi-Fi 6 (802.11ax)Supports 2.4/5GHz frequency bandBluetooth® v5.4** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. Ethernet : 1 x Realtek 1Gb EthernetASUS LANGuard Memroy : 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*Dual channel memory architectureSupports AMD Extended Profiles for Overclocking (EXPO™)ASUS Enhanced Memory Profile (AEMP) Lighting : None Storage Compatibility : Supports 3 x M.2 slots and 4 x SATA 6Gb/s portsAMD Ryzen™ 9000 & 7000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)AMD Ryzen™ 8000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*AMD B850 ChipsetM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)4 x SATA 6Gb/s ports* Specifications vary by CPU types.AMD RAIDXpert2 TechnologyRyzen™ 9000 Series Processors: RAID 0/1/5/10Ryzen™ 8000 Series Processors: RAID 0/1Ryzen™ 7000 Series Processors: RAID 0/1/10 Back Panel I/O Ports : 2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®)2 x USB 5Gbps ports (2 x Type-A)5 x USB 2.0 ports (5 x Type-A)1 x DisplayPort1 x HDMI™ port1 x Wi-Fi module1 x Realtek 1Gb Ethernet port3 x Audio jacks1 x BIOS FlashBack™ button USB Ports Front (Support ) : Rear USB (Total 9 ports)2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®)2 x USB 5Gbps ports (2 x Type-A)5 x USB 2.0 ports (5 x Type-A)Front USB (Total 9 ports)1 x USB 5Gbps connector (supports USB Type-C®)2 x USB 5Gbps header support 4 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 ports* USB Type-C® power delivery output: max. 5V/3A Expansion Slots : AMD Ryzen™ 9000 & 7000 Series Desktop Processors*1 x PCIe 5.0 x16 slot (supports x16 mode)3 x PCIe 4.0 x16 slot (support x1 mode)AMD Ryzen™ 8000 Series Desktop Processors1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**3 x PCIe 4.0 x16 slot (support x1 mode)* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).** Specifications vary by CPU types.- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported Audio : Realtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Internal I/O Connectors : Fan and Cooling Related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header4 x 4-pin Chassis Fan headersPower Related1 x 24-pin Main Power connector1 x 8-pin +12V CPU Power connectors1 x 4-pin +12V CPU Power connectorsStorage Related3 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 5Gbps connector (supports USB Type-C® )2 x USB 5Gbps header support 4 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous3 x Addressable RGB Gen 2 headers1 x Clear CMOS header1 x Chassis Intrusion header1 x COM Port header1 x Front Panel Audio header (F_AUDIO)1 x S/PDIF Out header1 x SPI TPM header (14-1 pin)1 x 10-1 pin System Panel header Special Features : ASUS 5X PROTECTION III- DIGI+ VRM- LANGuard- Overvoltage protection- SafeSlot- Stainless-steel back I/OASUS Q-Design- Q-Dashboard- Q-DIMM- Q-LED Core- Q-SlotASUS Thermal Solution- VRM heatsink designASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- Pre-mounted I/O shield- SafeSlotAura Sync- Addressable RGB Gen 2 headers Package Content : Cables2 x SATA 6Gb/s cablesMiscellaneous1 x ASUS Wi-Fi moving antenna2 x Screw packages for M.2 SSDDocumentation1 x Quick start guide Product Size ( Dimension ) : 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) Warranty : 1 Year ( As per Manufacturer Policy )
