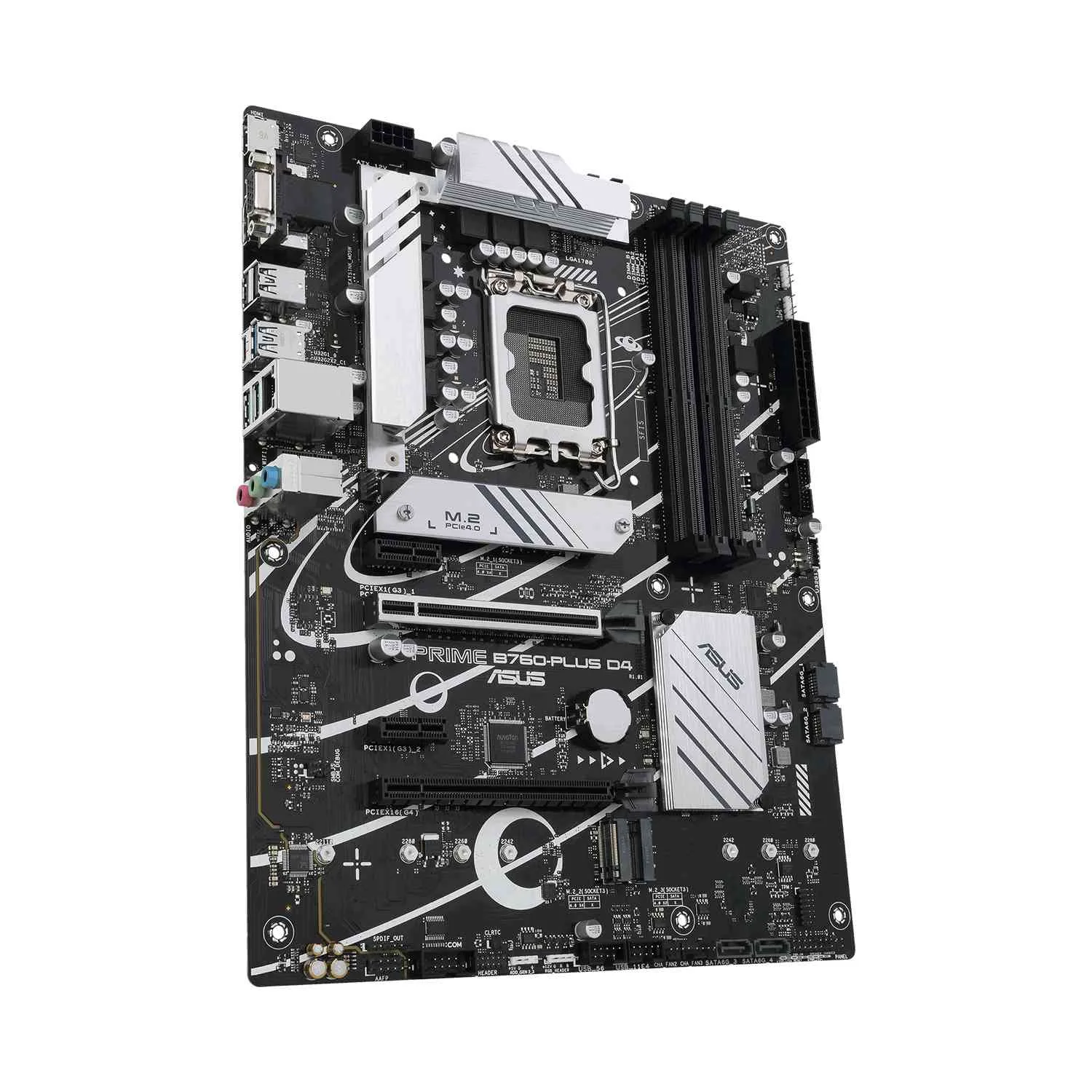

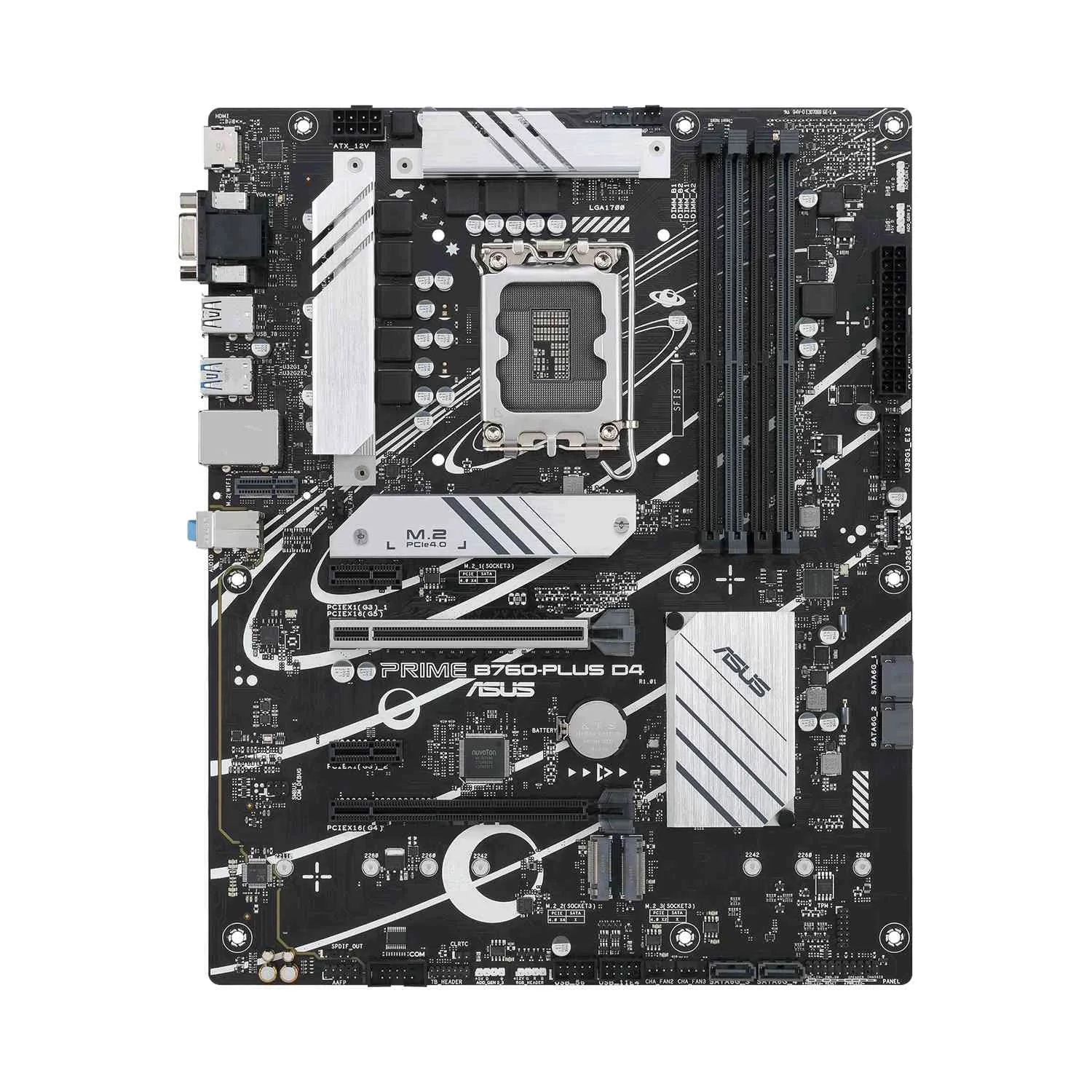

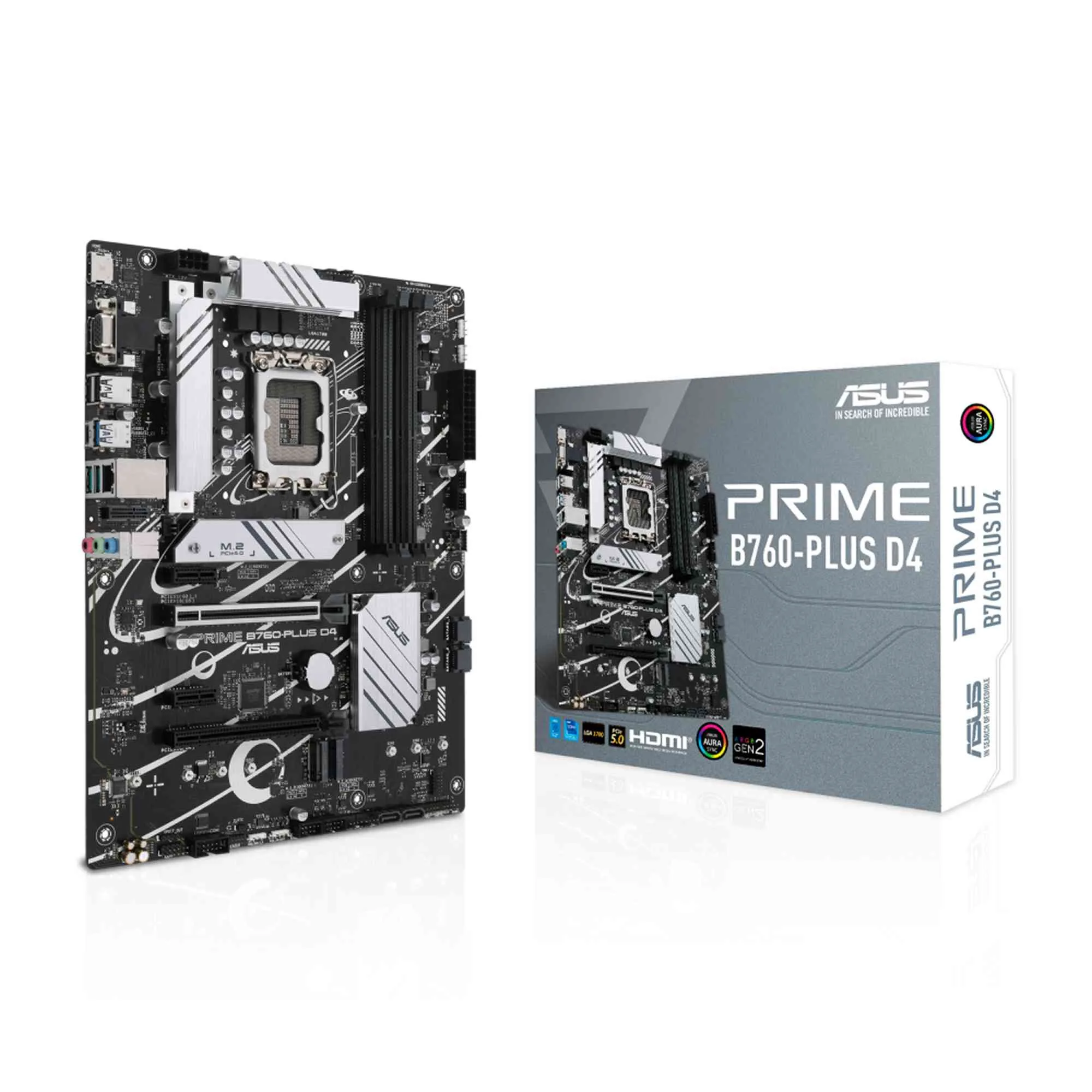

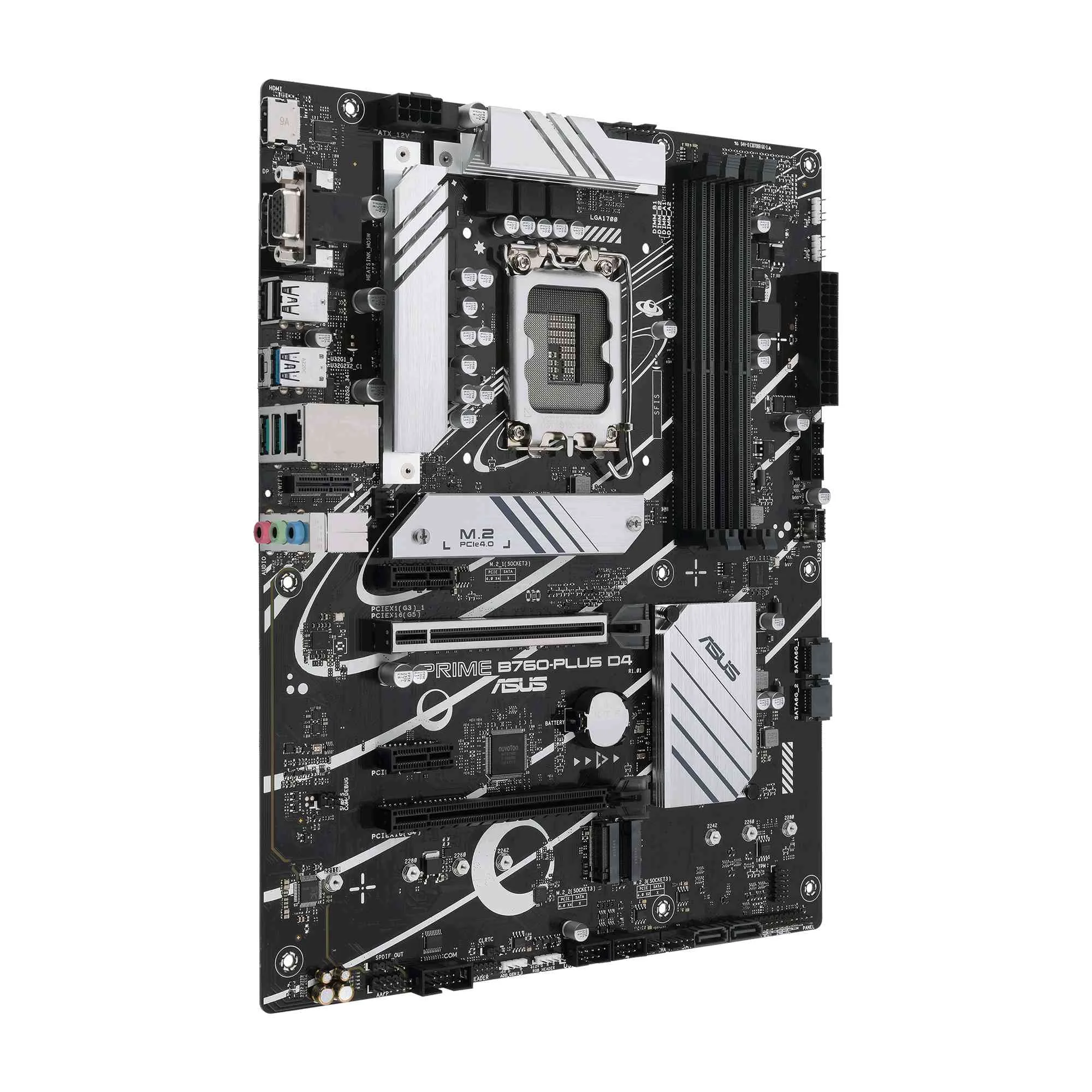

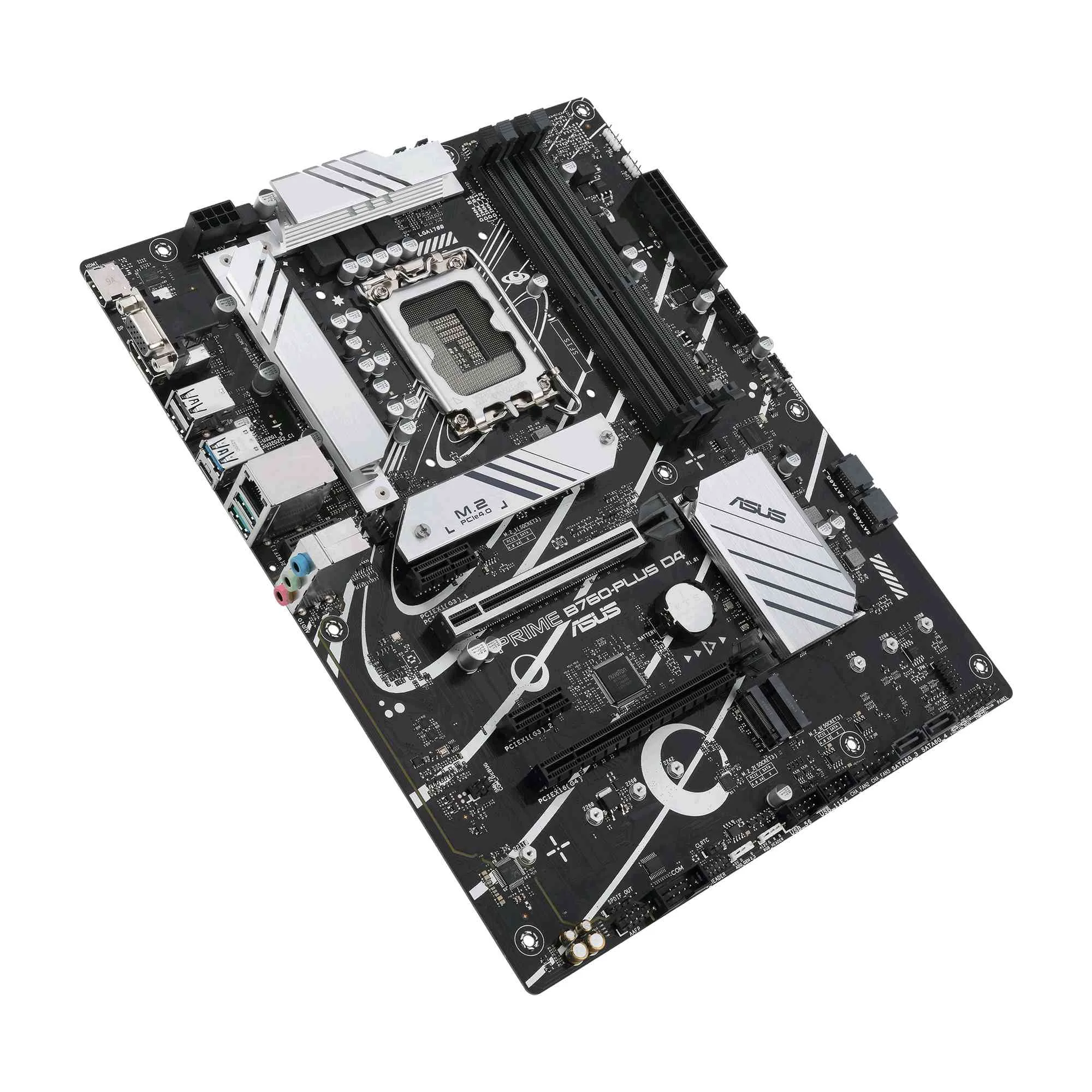

Asus Intel Prime B760-PLUS D4 MotherBoard

Model No : Asus Intel Prime B760-PLUS D4 MotherBoard Part No : 90MB1CW0-M0EAY0 Chipset : Intel® B760 Chipset Form Factor : ATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) Socket Compatibility : Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron®Processors*Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Wireless & Bluetooth : Vertical M.2 slot only (Key E, CNVi & PCIe)** Wi-Fi module is sold separately. Ethernet : 1 x Realtek 2.5Gb Ethernet Memroy Type : 4 x DIMM, Max. 128GB, DDR4 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)OptiMem* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration Storage Compatibility : Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*Intel® 13th & 12th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)Intel® B760 ChipsetM.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)4 x SATA 6Gb/s ports* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. Graphics : 1 x DisplayPort**1 x VGA port1 x HDMI® port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.** Supports max. 4K@60Hz as specified in DisplayPort 1.4.*** Supports 4K@60Hz as specified in HDMI® 2.1. USB Ports : Rear USB (Total 6 ports)1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)2 x USB 3.2 Gen 2 ports (2 x Type-A)1 x USB 3.2 Gen 1 port (1 x Type-A)2 x USB 2.0 ports (2 x Type-A)Front USB (Total 7 ports)1 x USB 3.2 Gen 1 connector (supports USB Type-C®)1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 ports Expansion Slots : Intel® 13th & 12th Gen Processors*1 x PCIe 5.0 x16 slotIntel® B760 Chipset1 x PCIe 4.0 x16 slot (supports x4 mode)2 x PCIe 3.0 x1 slots Audio : Realtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports : 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)2 x USB 3.2 Gen 2 ports (2 x Type-A)1 x USB 3.2 Gen 1 port (1 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x DisplayPort1 x VGA port1 x HDMI® port1 x Vertical M.2 slot (Key E)1 x Realtek 2.5Gb Ethernet port3 x Audio jacks Internal I/O Connectors : Fan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin AIO Pump header3 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related3 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 connector (supports USB Type-C® )1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x Aura RGB header1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x S/PDIF Out header1 x SPI TPM header (14-1pin)1 x 20-3 pin System Panel header with Chassis intrude function1 x Thunderbolt™ (USB4®) header Special Features : ASUS 5X PROTECTION III- DIGI+ VRM- LANGuard- Overvoltage Protection- SafeSlot Core+- Stainless-Steel Back I/OASUS Q-Design- Q-DIMM- Q-LED Core- Q-SlotASUS Thermal Solution- M.2 heatsink- VRM heatsink designASUS EZ DIY- ProCoolAura Sync- Aura RGB header- Addressable Gen 2 headers Accessories : Cables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O Shield1 x M.2 Rubber Package2 x Screw Packages for M.2 SSDDocumentation1 x User guide Operating System : Windows® 11, Windows® 10 64-bit Manageability : WOL by PME, PXE BIOS : 128 Mb Flash ROM, UEFI AMI BIOS Warranty : 1 Year ( As per Manufacturer Policy )
