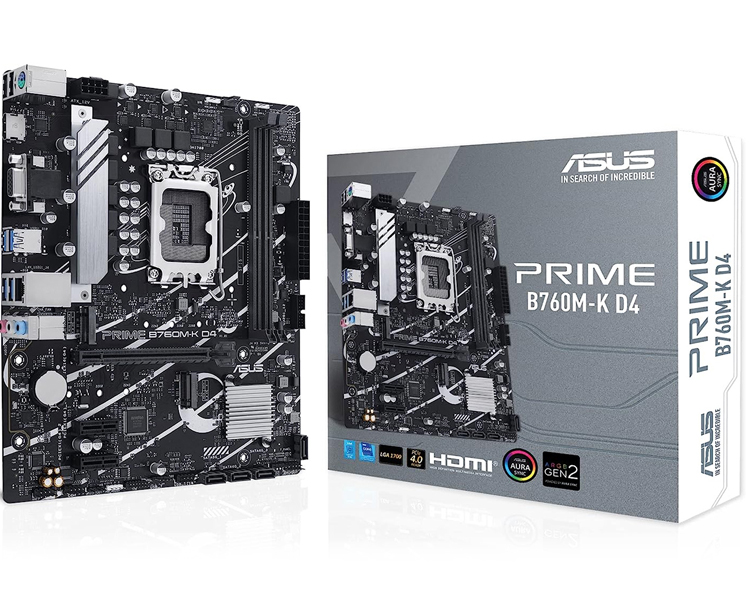

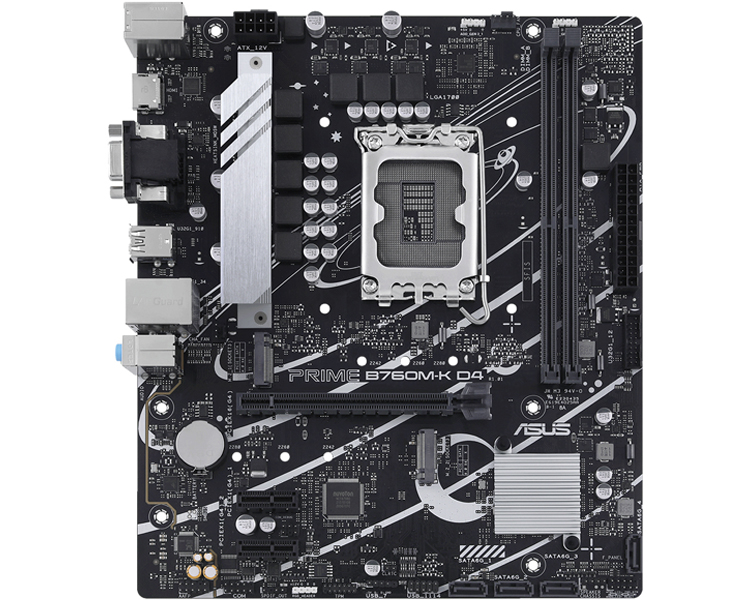

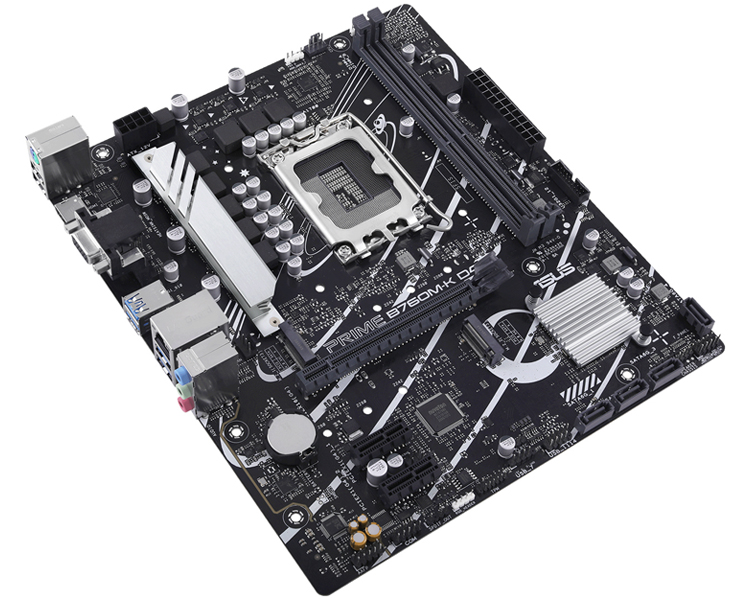

Asus Intel Prime B760M-K DDR4 MotherBoard

Model No : Asus Intel Prime B760M-K DDR4 MotherBoard Part No : 90MB1DS0-M1EAY0 Chipset : Intel® B760 Chipset Form Factor : mATX Form Factor9.6 inch x 8.3 inch (24.4cm x 21.1cm) Socket Compatibility : Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Ethernet : 1 x Realtek 2.5Gb Ethernet Memroy Type : 2 x DIMM, Max. 64GB, DDR45333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration Storage Compatibility : Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*Intel® 13th & 12th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)Intel® B760 ChipsetM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. Graphics : 1 x VGA port1 x HDMI® port*** Graphics specifications may vary between CPU types.** Supports 4K@60Hz as specified in HDMI® 2.1. USB Ports : Rear USB (Total 6 ports)4 x USB 3.2 Gen 1 ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A）Front USB (Total 5 ports)1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 3 additional USB 2.0 ports Expansion Slots : Intel® 13th & 12th Gen Processors1 x PCIe 4.0 x16 slotIntel® B760 Chipset2 x PCIe 4.0 x1 slots Audio : Realtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports : 4 x USB 3.2 Gen 1 ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x VGA port1 x HDMI® port1 x Realtek 2.5Gb Ethernet port3 x Audio jacks1 x PS/2 Keyboard/Mouse combo port Internal I/O Connectors : Fan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin Chassis Fan headerPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 3 additional USB 2.0 portsMiscellaneous2 x Addressable Gen 2 headers1 x Aura RGB header1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x S/PDIF Out header1 x Speaker header1 x SPI TPM header (14-1pin)1 x 10-1 pin System Panel header Special Features : ASUS 5X PROTECTION III- DIGI+ VRM- LANGuard- Overvoltage Protection- SafeSlot Core- Stainless-Steel Back I/OASUS Q-Design- Q-DIMM- Q-LED Core- Q-SlotASUS EZ DIY- ProCoolASUS Thermal Solution- VRM heatsink designAura Sync- Aura RGB header- Addressable Gen 2 headers Accessories : Cables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O Shield2 x M.2 anchorsDocumentation1 x User guide Operating System : Windows® 11, Windows® 10 64-bit Manageability : WOL by PME, PXE BIOS : 128 Mb Flash ROM, UEFI AMI BIOS Warranty : 1 Year ( As per Manufacturer Policy ) Model No : Asus Intel Prime B760M-K DDR4 MotherBoard Part No : 90MB1DS0-M1EAY0 Chipset : Intel® B760 Chipset Form Factor : mATX Form Factor9.6 inch x 8.3 inch (24.4cm x 21.1cm) Socket Compatibility : Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Ethernet : 1 x Realtek 2.5Gb Ethernet Memroy Type : 2 x DIMM, Max. 64GB, DDR45333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration Storage Compatibility : Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*Intel® 13th & 12th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)Intel® B760 ChipsetM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. Graphics : 1 x VGA port1 x HDMI® port*** Graphics specifications may vary between CPU types.** Supports 4K@60Hz as specified in HDMI® 2.1. USB Ports : Rear USB (Total 6 ports)4 x USB 3.2 Gen 1 ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A）Front USB (Total 5 ports)1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 3 additional USB 2.0 ports Expansion Slots : Intel® 13th & 12th Gen Processors1 x PCIe 4.0 x16 slotIntel® B760 Chipset2 x PCIe 4.0 x1 slots Audio : Realtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports : 4 x USB 3.2 Gen 1 ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x VGA port1 x HDMI® port1 x Realtek 2.5Gb Ethernet port3 x Audio jacks1 x PS/2 Keyboard/Mouse combo port Internal I/O Connectors : Fan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin Chassis Fan headerPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 3 additional USB 2.0 portsMiscellaneous2 x Addressable Gen 2 headers1 x Aura RGB header1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x S/PDIF Out header1 x Speaker header1 x SPI TPM header (14-1pin)1 x 10-1 pin System Panel header Special Features : ASUS 5X PROTECTION III- DIGI+ VRM- LANGuard- Overvoltage Protection- SafeSlot Core- Stainless-Steel Back I/OASUS Q-Design- Q-DIMM- Q-LED Core- Q-SlotASUS EZ DIY- ProCoolASUS Thermal Solution- VRM heatsink designAura Sync- Aura RGB header- Addressable Gen 2 headers Accessories : Cables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O Shield2 x M.2 anchorsDocumentation1 x User guide Operating System : Windows® 11, Windows® 10 64-bit Manageability : WOL by PME, PXE BIOS : 128 Mb Flash ROM, UEFI AMI BIOS Warranty : 1 Year ( As per Manufacturer Policy )
