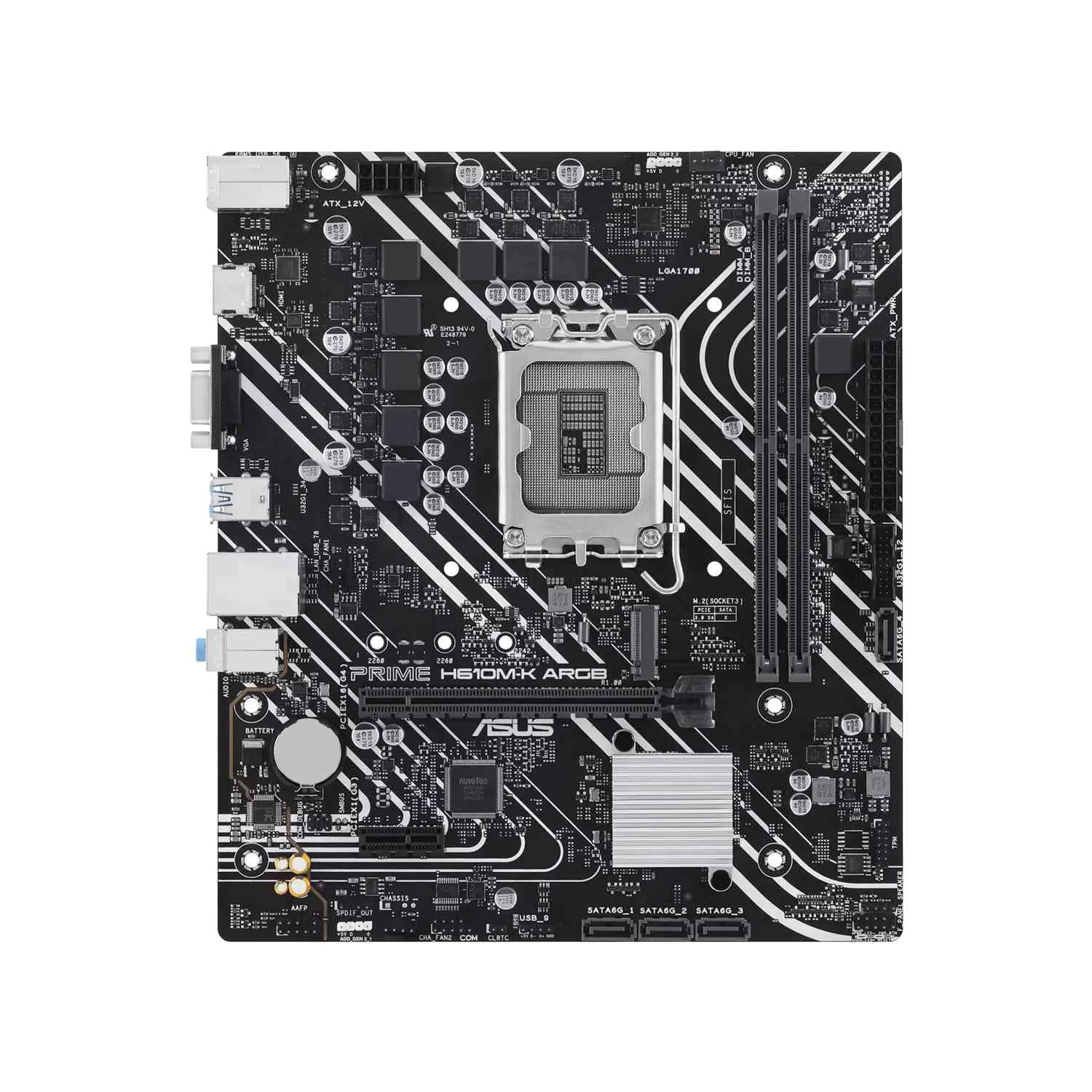

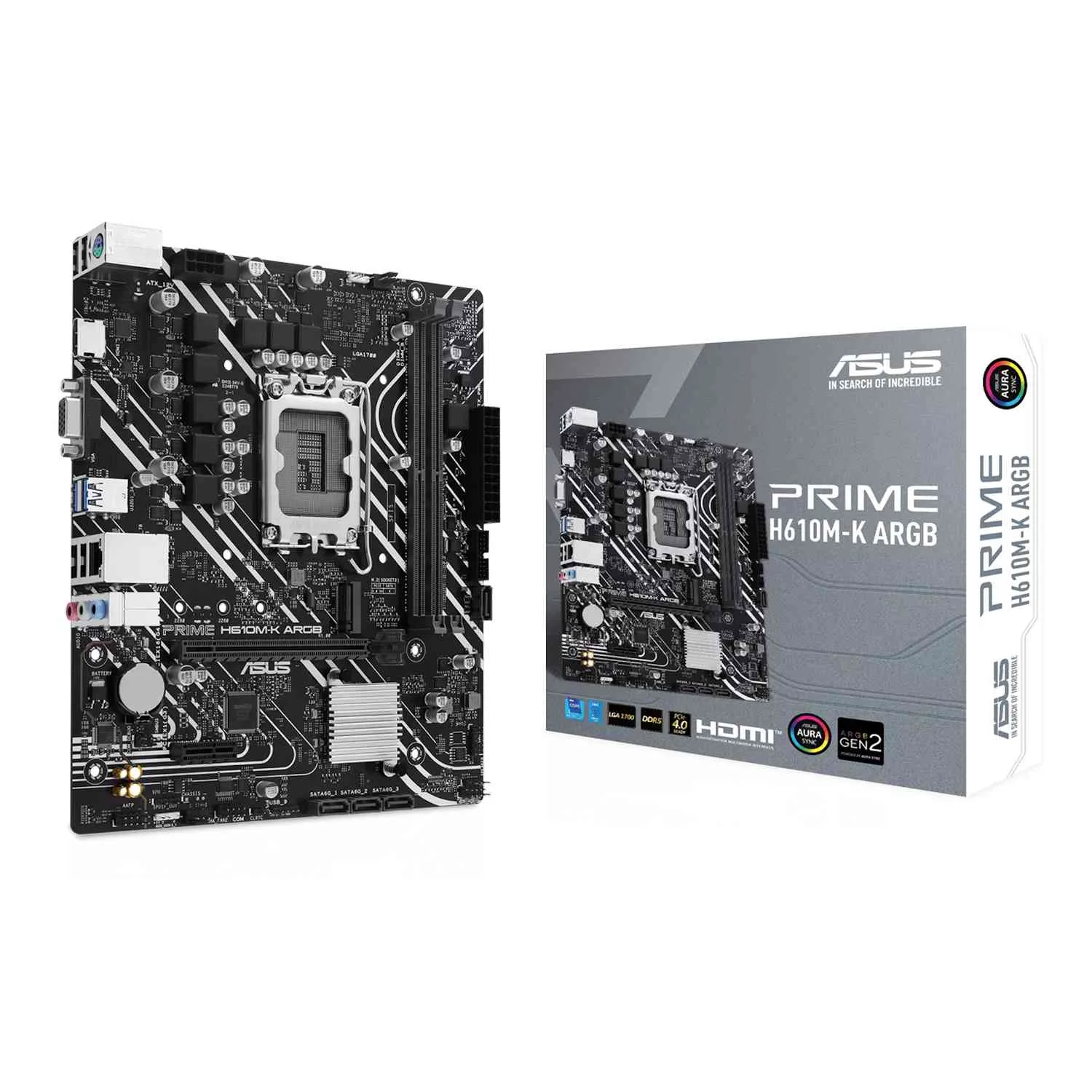

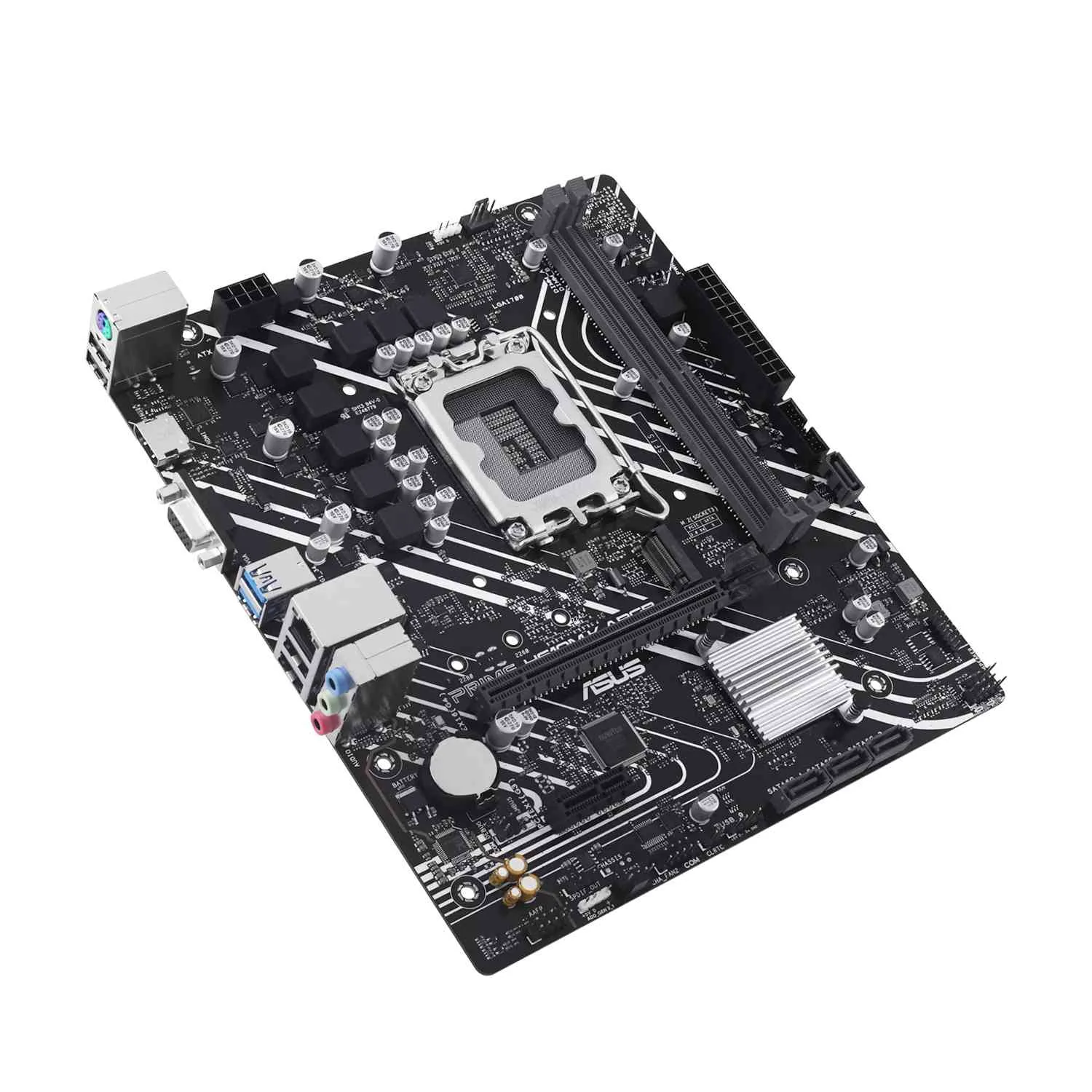

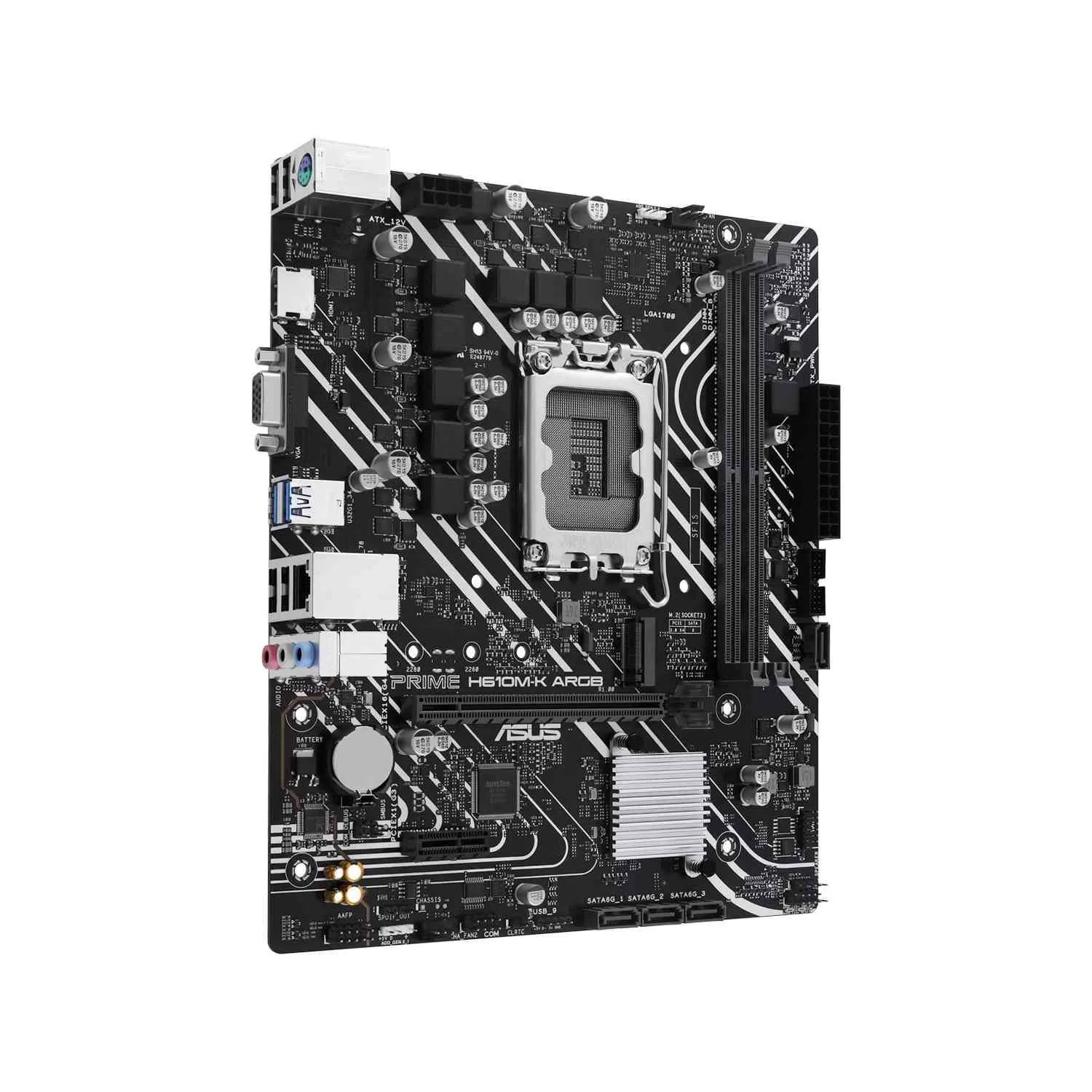

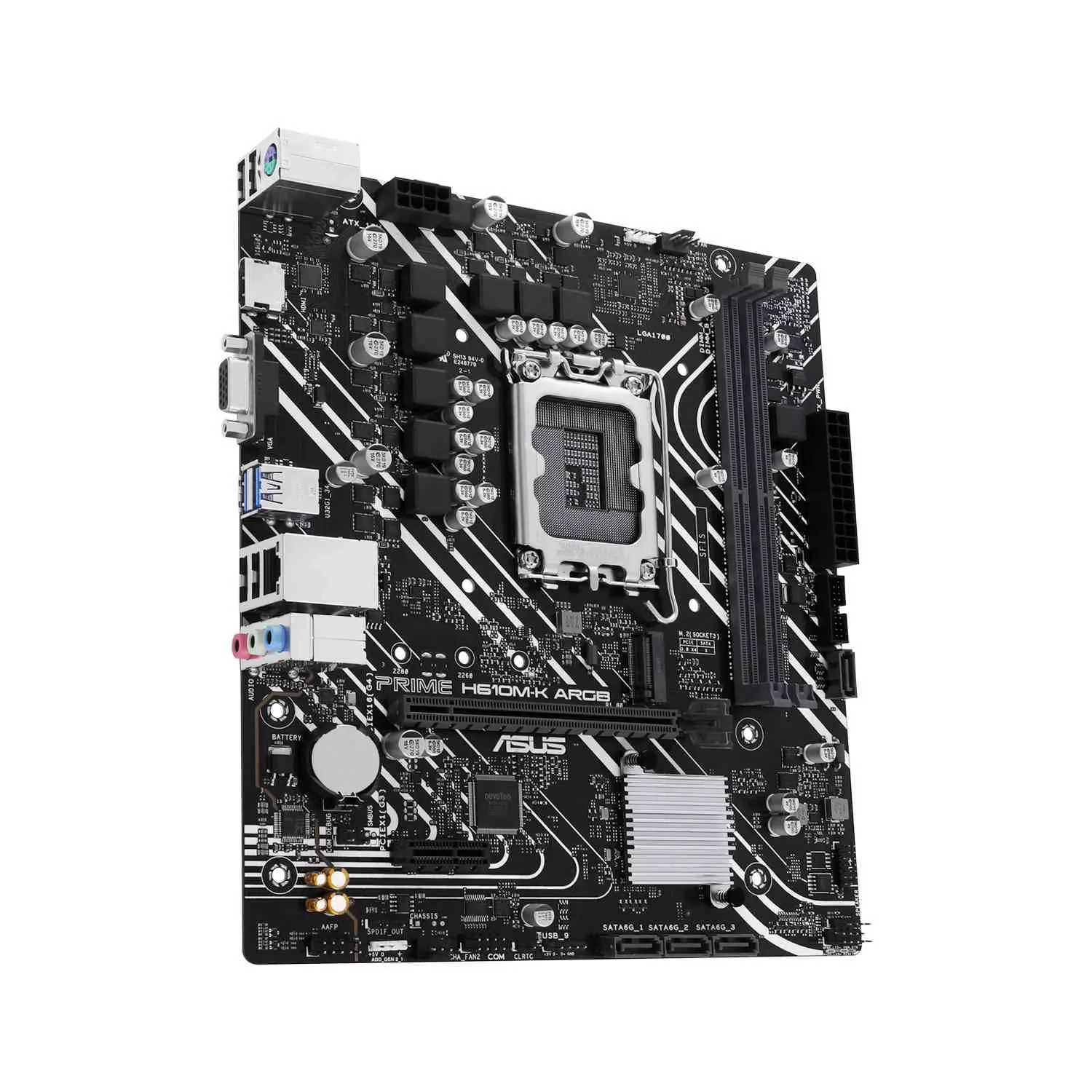

Asus Intel Prime H610M-K ARGB DDR5 MotherBoard

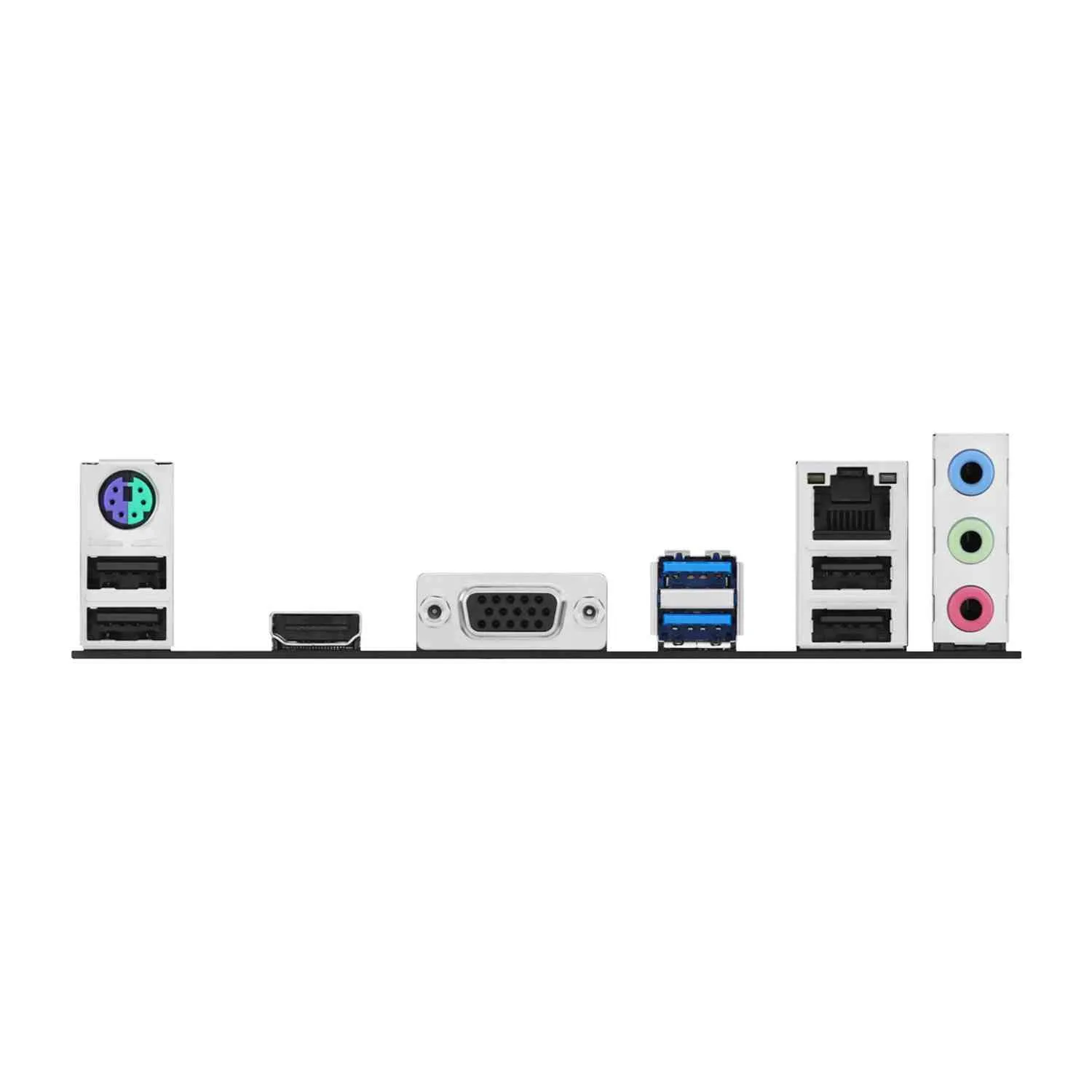

Model No : PRIME H610M-K ARGB Part No : 90MB1G90-M0EAY0 Chipset : Intel® H610 Chipset Form Factor : micro-ATX Form Factor Socket Compatibility : Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Wireless & Bluetooth : None Ethernet : 1 x Realtek 1Gb Ethernet Memroy Type : 2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP) Graphics : 1 x VGA port1 x HDMI™ port*** Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.** Supports 4K@60Hz as specified in HDMI 2.1. Storage Compatibility : Total supports 1 x M.2 slot and 4 x SATA 6Gb/s portsIntel® H610 ChipsetM.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)4 x SATA 6Gb/s ports Back Panel I/O Ports : 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A)1 x VGA port1 x HDMI™ port1 x Realtek 1Gb Ethernet port3 x Audio jacks1 x PS/2 Keyboard/Mouse combo port USB Ports Front (Support ) : Rear USB (Total 6 ports)2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A)Front USB (Total 3 ports)1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports1 x USB 2.0 header supports 1 additional USB 2.0 port Expansion Slots : Intel® Core™ Processors (14th & 13th & 12th Gen)1 x PCIe 4.0 x16 slotIntel® H610 Chipset1 x PCIe 3.0 x1 slot Audio : Realtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Internal I/O Connectors : Fan and Cooling related1 x 4-pin CPU Fan header2 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related1 x M.2 slot (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports1 x USB 2.0 header supports 1 additional USB 2.0 portMiscellaneous2 x Addressable Gen 2 headers1 x Clear CMOS header1 x Front Panel Audio header (AAFP)1 x COM Port header1 x S/PDIF Out header1 x Speaker header1 x SPI TPM header (14-1pin)1 x 10-1 pin System Panel header Special Features : ASUS 5X PROTECTION III- DIGI+ VRM- LANGuard- Overvoltage Protection- SafeSlot Core- Stainless-Steel Back I/OASUS Q-Design- Q-DIMM- Q-LED Core- Q-SlotASUS Thermal Solution- Aluminum heatsink designAura Sync- Addressable Gen 2 RGB headers Package Content : Cables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O Shield1 x M.2 AnchorDocumentation1 x User guide Product Size ( Dimension ) : 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm ) Product Weight : 1.82 pounds Warranty : 1 Year ( As per Manufacturer Policy )
