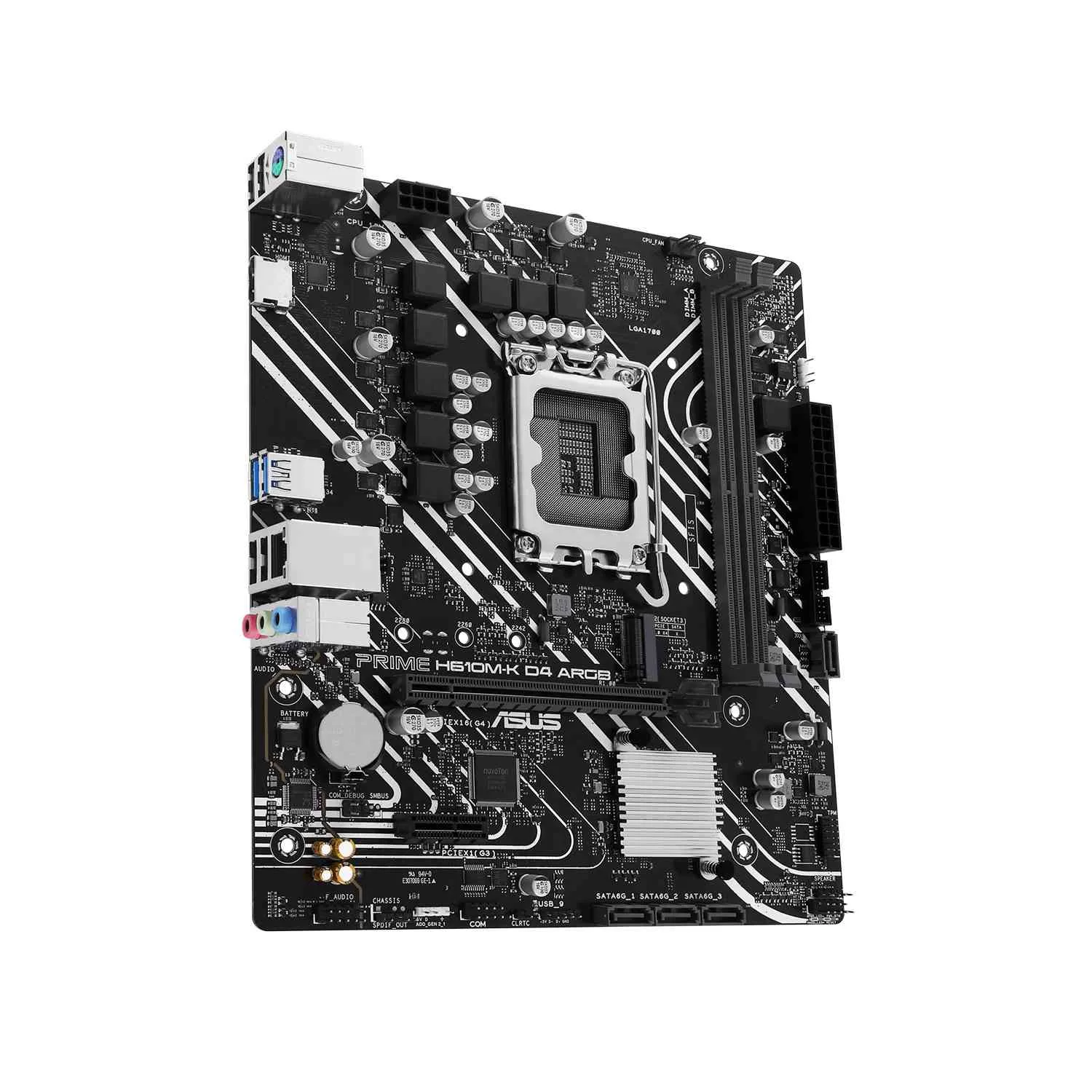

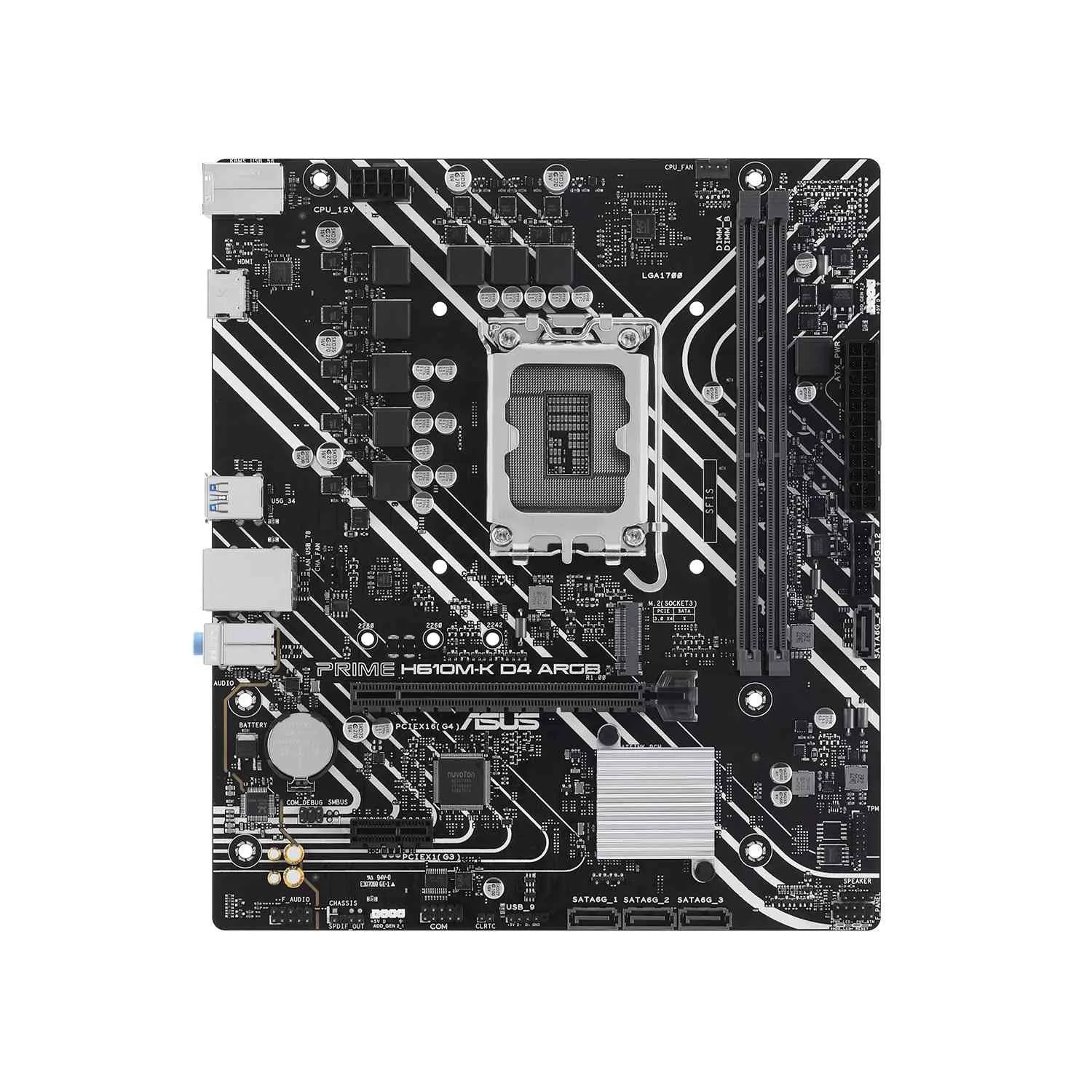

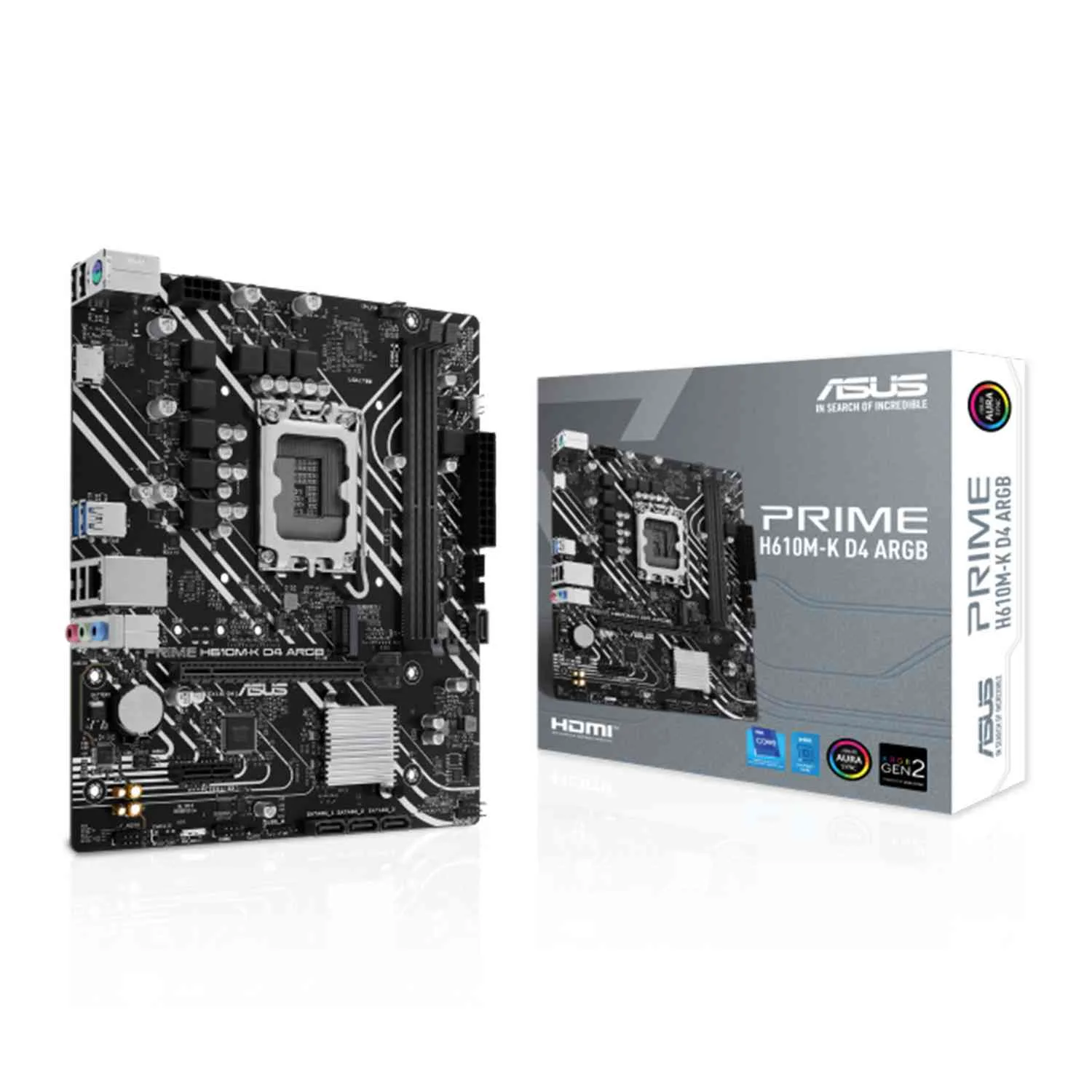

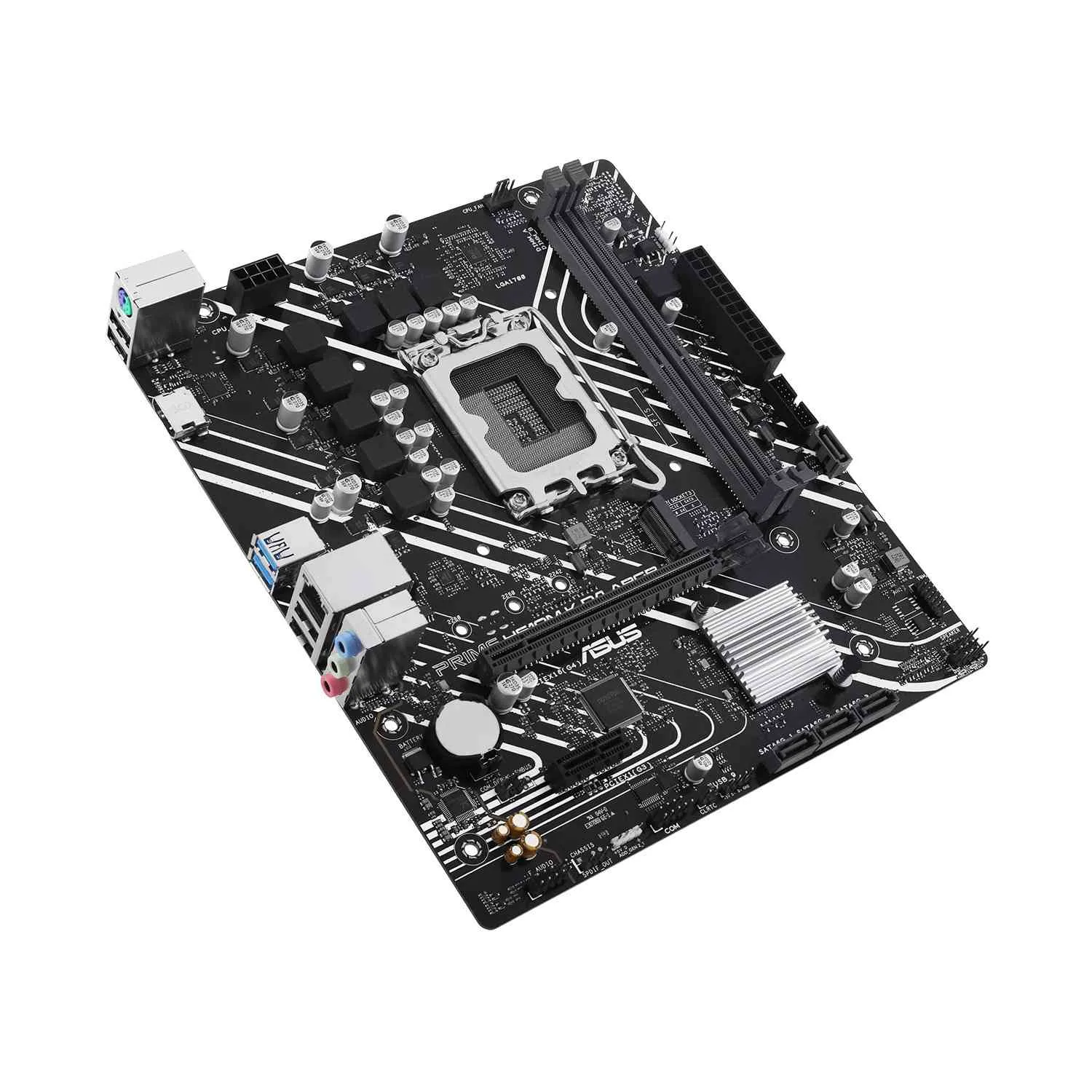

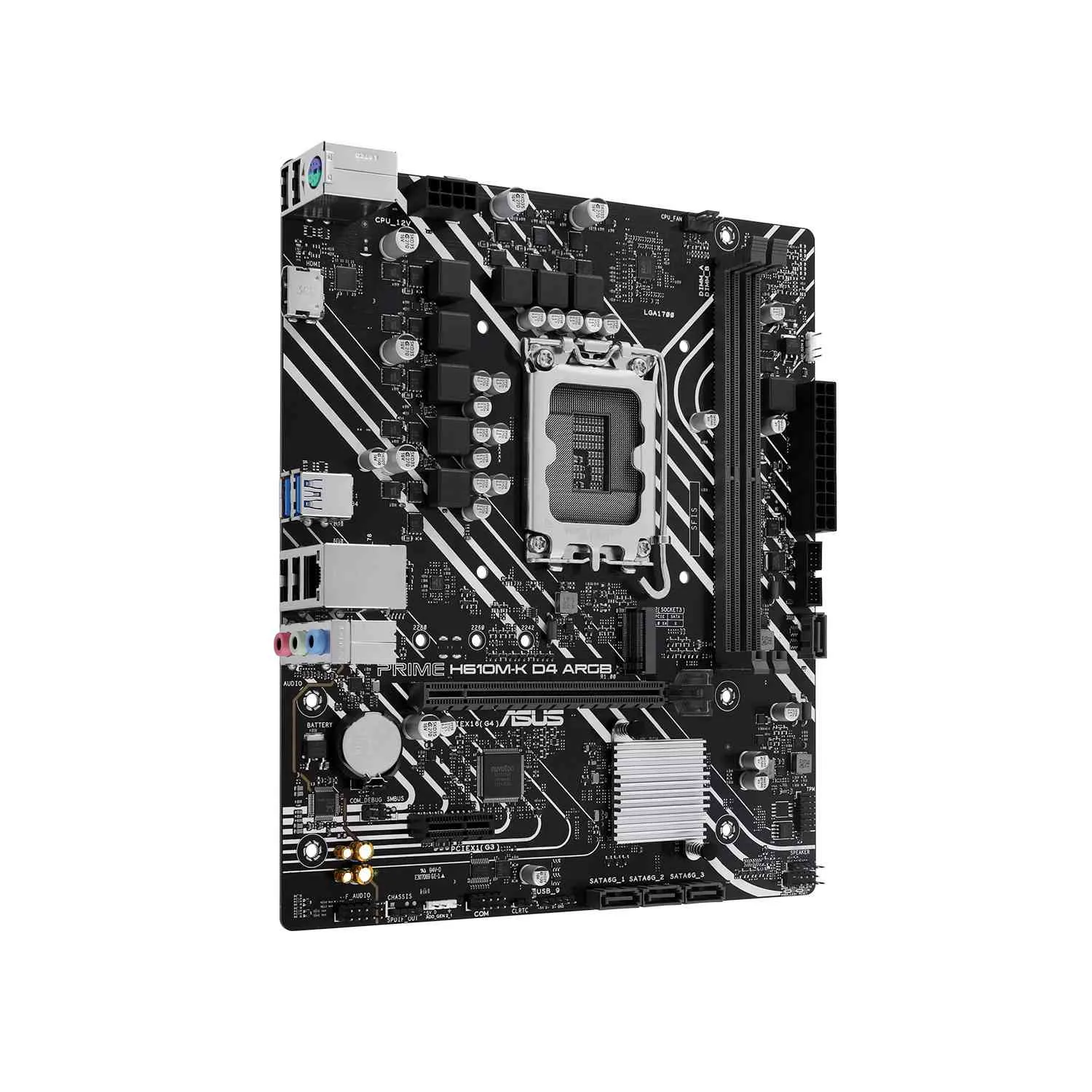

Asus Intel Prime H610M-K D4 DDR4 ARGB MotherBoard

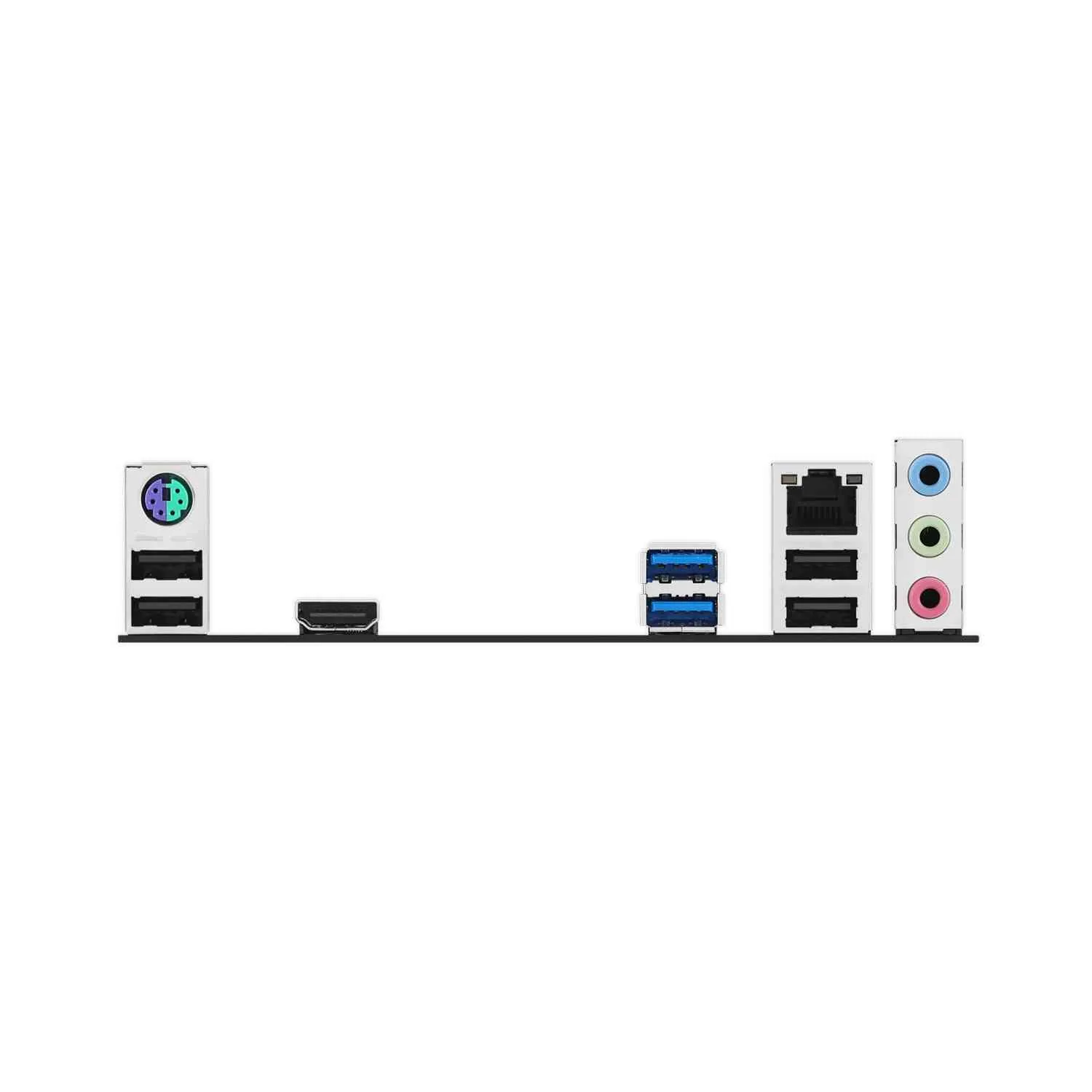

Model No : Asus Intel Prime H610M-K D4 DDR4 ARGB MotherBoard Part No : 90MB1HN0-M0EAY0 Chipset : Intel® H610 Chipset Form Factor : micro-ATX Form Factor9.2 inch x 8.0 inch (23.4 cm x 20.3 cm) Socket Compatibility : Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Ethernet : 1 x Realtek 1Gb Ethernet Memroy : 2 x DIMM slots, max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*Dual channel memory architectureSupports Intel® Extreme Memory Profile (XMP) memory module Graphics : 1 x HDMI™ port*** Graphics specifications may vary between CPU types.** Supports 4K@60Hz as specified in HDMI 2.1. Storage Compatibility : Supports 1 x M.2 slot and 4 x SATA 6Gb/s portsIntel® H610 ChipsetM.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)4 x SATA 6Gb/s ports Back Panel I/O Ports : 2 x USB 5Gbps ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A)1 x HDMI™ port1 x Realtek 1Gb Ethernet port3 x Audio jacks1 x PS/2 keyboard/mouse combo port USB Ports : Rear USB (Total 6 ports)2 x USB 5Gbps ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A)Front USB (Total 3 ports)1 x USB 5Gbps header supports 2 additional USB 5Gbps ports1 x USB 2.0 header supports 1 additional USB 2.0 port Expansion Slots : Intel® Core™ Processors (14th & 13th & 12th Gen)1 x PCIe 4.0 x16 slot (supports x16 mode)Intel® H610 Chipset1 x PCIe 3.0 x1 slot Audio : Realtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Internal I/O Connectors : Fan and Cooling Related1 x 4-pin CPU Fan header1 x 4-pin Chassis Fan headerPower Related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage Related1 x M.2 slot (Key M)4 x SATA 6Gb/s portsUSB1 x USB 5Gbps header supports 2 additional USB 5Gbps ports1 x USB 2.0 header supports 1 additional USB 2.0 portMiscellaneous2 x Addressable Gen 2 headers1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (F_AUDIO)1 x S/PDIF Out header1 x Speaker header1 x SPI TPM header (14-1 pin)1 x 10-1 pin System Panel header Special Features : ASUS 5X PROTECTION III- DIGI+ VRM- LANGuard- Overvoltage protection- SafeSlot Core- Stainless-steel back I/OASUS Q-Design- Q-DIMM- Q-LED Core- Q-SlotASUS Thermal Solution- Aluminum heatsink designAura Sync- Addressable Gen 2 headers Package Content : Cables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O shield1 x M.2 anchorDocumentation1 x Quick start guide BIOS : 128 Mb Flash ROM, UEFI AMI BIOS Manageability : WOL by PME, PXE Operating System : Windows® 11, Windows® 10 64-bit Warranty : 1 Year ( As per Manufacturer Policy )
