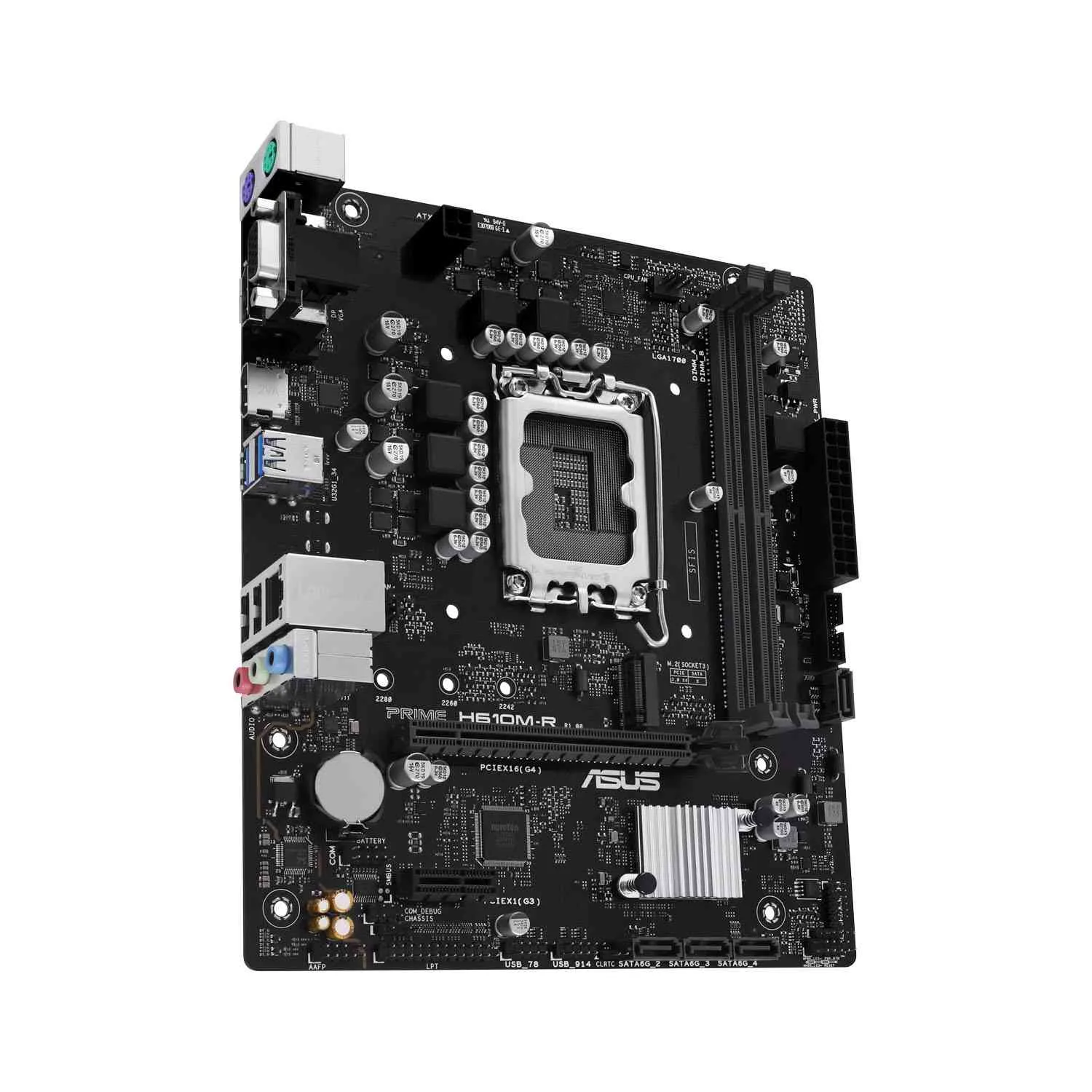

Asus Intel Prime H610M-R-SI DDR5 Gaming Motherboard

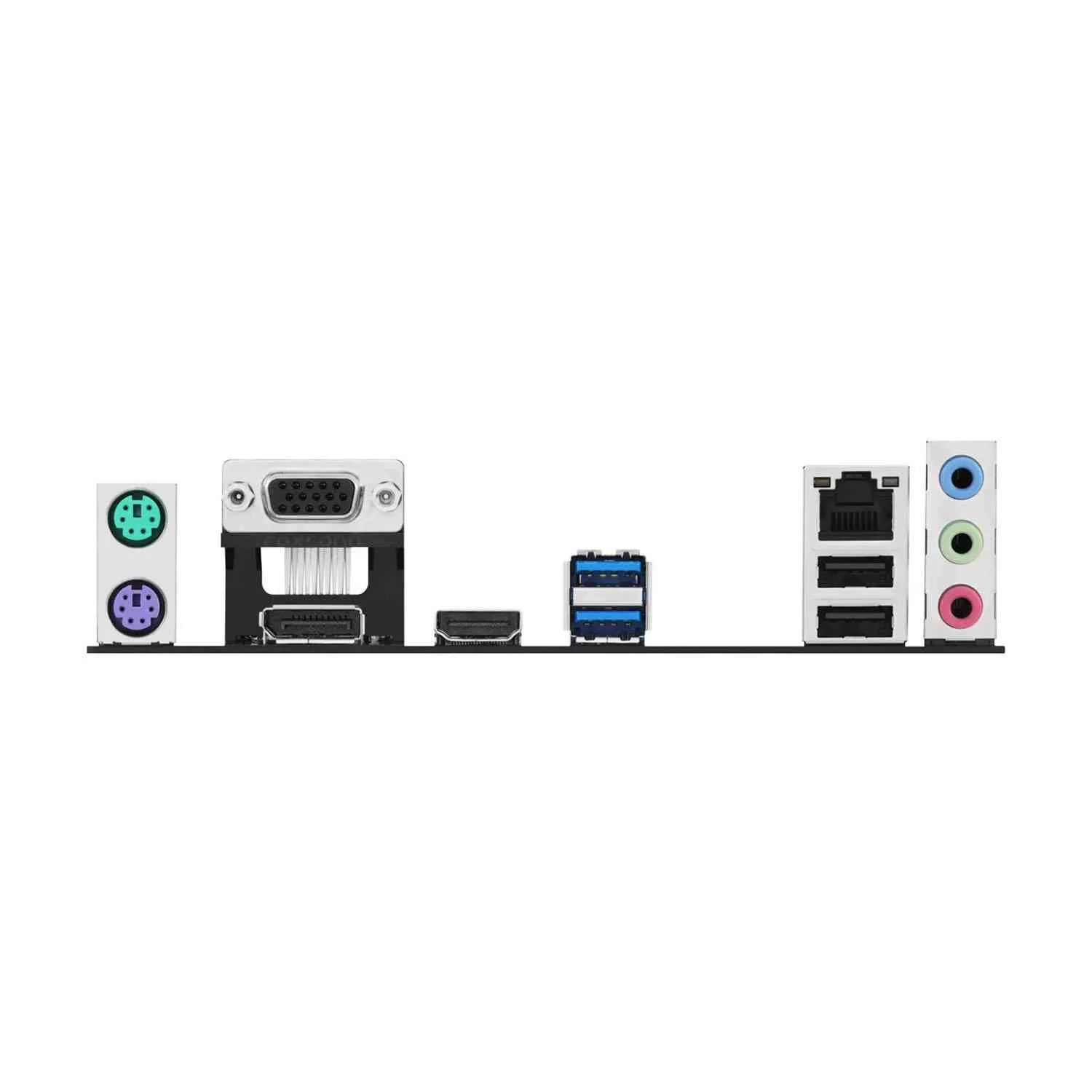

Model No : Asus Intel Prime H610M-R-SI DDR5 Gaming Motherboard Part No : 90MB1GL0-M0ECY0 Chipset : Intel® H610 Chipset Form Factor : mATX Socket Compatibility : Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*Supports up to Intel® 65W CPUSupports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** Wireless & Bluetooth : None Lighting : None Memroy Type : 2 x DIMM, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP) Ethernet : 1 x Realtek 1Gb Ethernet Storage Compatibility : Total supports 1 x M.2 slot and 4 x SATA 6Gb/s portsIntel® H610 ChipsetM.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)4 x SATA 6Gb/s ports Back Panel I/O Ports : 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x DisplayPort1 x VGA port1 x HDMITM port1 x Realtek 1Gb Ethernet port3 x Audio jacks1 x PS/2 Keyboard (purple) port1 x PS/2 Mouse (green) port USB Ports Front (Support ) : Rear USB (Total 4 ports)2 x USB 3.2 Gen 1(5G) ports (2 x Type-A)2 x USB 2.0 ports (2 x Type-A)Front USB (Total 6 ports)1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports Expansion Slots : Intel® Core™ Processors (14th & 13th & 12th Gen)1 x PCIe 4.0 x16 slotIntel® H610 Chipset1 x PCIe 3.0 x1 slot Audio : Realtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Internal I/O Connectors : Fan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin Chassis Fan headerPower related1 x 24-pin Main Power connector1 x 4-pin +12V Power connectorStorage related1 x M.2 slot (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 portsMiscellaneous1 x Clear CMOS header1 x Chassis Intrusion header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x LPT header1 x Speaker header1 x SPI TPM header (14-1 pin)1 x 10-1 pin System Panel header Special Features : ASUS 5X PROTECTION III- DIGI+ VRM- LANGuard- Overvoltage Protection- SafeSlot Core- Stainless-Steel Back I/OASUS Q-Design- Q-DIMM- Q-Slot- Q-LED CoreASUS Thermal Solution- Aluminum heatsink design Package Content : Cables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O Shield1 x M.2 ANCHORDocumentation1 x User guide Product Size ( Dimension ) : 8.9 inch x 7.7 inch (22.6 cm x 19.5 cm ) Warranty : 1 Year ( As per Manufacturer Policy )
