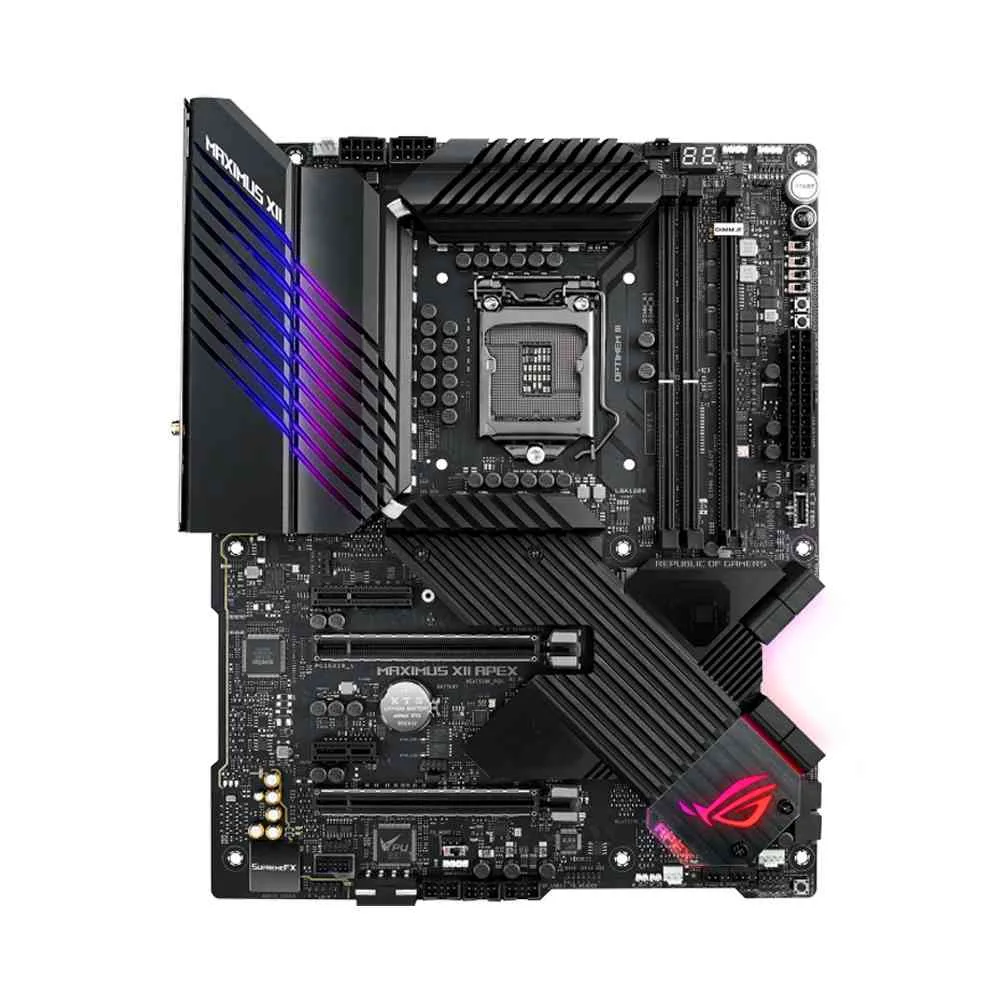

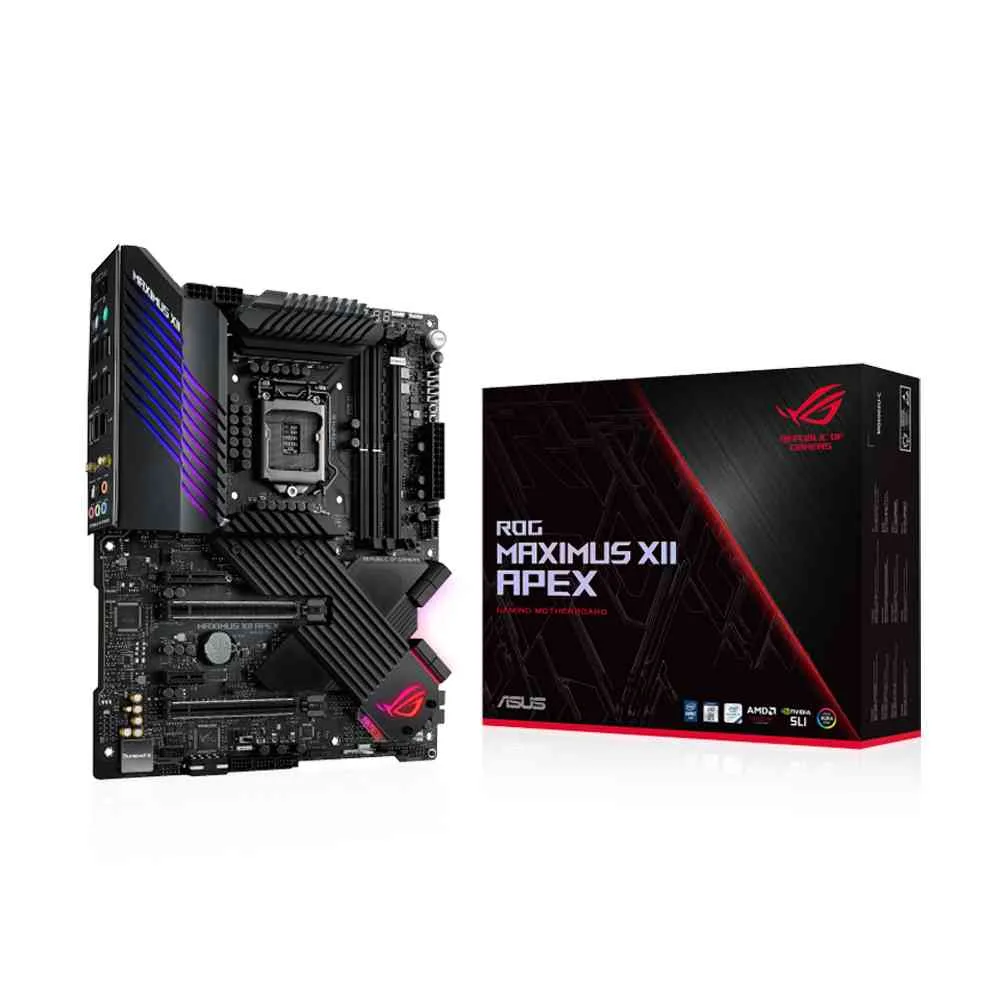

Asus Intel Rog Maximus Xll Apex Gaming MotherBoard

Model No : Asus Intel Rog Maximus Xll Apex Gaming MotherBoard Part No : 90MB13D0-M0EAY0 Chipset : Build in Intel® Z490 Form Factor : ATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) Socket Compatibility : Build in Intel® Socket 1200for 10th Gen Intel® Core™, Pentium® Gold and Celeron® ProcessorsSupports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0****Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Wireless & Bluetooth : Wi-Fi Intel® Wi-Fi 6Intel® Wi-Fi 6 AX201Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHzBluetooth v5.1**BT 5.1 function will be ready in Windows 10 build 19041 or later. LAN : Intel® I225-V 2.5Gb Ethernet, 1 x Gigabit LAN Controller(s)Anti-surge LANGuard Graphics : Supports NVIDIA® 2-Way SLI® TechnologySupports AMD 2-Way CrossFireX Technology Memroy : 2 x DIMM, Max. 64GB, DDR4 4800(O.C.)/4700(O.C)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)3866(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.2933(O.C.)/2800(O.C.)/2666/2133 MHz Memory ** Double Capcity DRAM support depends on the DRAM modelsDual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP) Storage Compatibility : 1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*11 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*2Intel® Z490 Chipset : 6 x SATA 6Gb/s port(s)*3ASMedia® SATA 6Gb/s controller : 2 x SATA 6Gb/s port(s),Support Raid 0, 1, 5Intel® Optane™ Memory Ready Back Panel I/O Ports : 4 x USB 3.2 Gen 2 (red)1 x USB 3.2 Gen 2 (black)Type-C,5 x USB 3.2 Gen 1 (blue)1 x USB BIOS FlashBack™ Button(s)1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.01 x PS/2 keyboard (purple)1 x PS/2 mouse (green)1 x LAN (RJ45) port(s)1 x Optical S/PDIF out1 x Clear CMOS button(s)5 x Gold-plated audio jacks USB Ports : Rear USB Port ( Total 10 )5 x USB 3.2 Gen 2 port(s)(4 + Type-A +1 + Type-C)5 x USB 3.2 Gen 1 port(s)5 x USB 2.0 port(s)Front USB Port ( Total 8 )2 x USB 3.2 Gen 1 port(s)1 x USB 3.2 Gen 2 front panel connector port(s) Expansion Slots : Intel® 10th Gen Processors Intel® Z490 Chipset2 x PCIe 3.0 x16 (Single at x16, dual at x8/x8)1 x PCIe 3.0 x41 x PCIe 3.0 x1 Audio : ROG SupremeFX7.1-Channel High Definition Audio CODEC S1220APremium Japan-made audio capacitors provides warm, natural, and immersive sound with exceptional clarity and fidelity- Impedance sense for front and rear headphone outputs- High quality120dBSNR stereo playback outputand113dBSNR recording input- Supports up to 32-Bit/192kHz playbackAudio Feature :- SupremeFX Shielding™ Technology- Optical S/PDIF out port(s) at back panel Internal I/O Connectors : 2 x 4-pin Full Speed Fan connectors1 x USB 3.2 Gen 1 connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)1 x USB 3.2 Gen 2 front panel connector1 x FS Mode switch3 x USB 2.0 connector(s) support(s) additional 5 USB 2.0 port(s)3 x onboard LED ON/OFF jumper(s)1 x ReTry jumper1 x W_Pump+ Header2 x Aura Addressable Strip Header(s)2 x 8-pin EATX 12V Power connectors1 x 4-pin EZ_PLUG Power connector(s)1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110)1 x Q-Code1 x RGB Header1 x W_IN header1 x W_OUT header1 x W_FLOW header1 x Node Connector(s)1 x S/PDIF out header(s)1 x Front panel audio connector(s) (AAFP)1 x LN2 Mode jumper(s)1 x Safe Boot button1 x ReTry button1 x System panel connector1 x AIO PUMP Header1 x Start button Special Features : Infineon TDA21472 Power StageCondensation detection- O.C. Profile- GPU.DIMM PostClear CMOS buttonROG CloneDriveSlow ModeReTry ButtonSafe Boot ButtonLN2 ModeMem TweakItDouble Power :- Dual 8-pin CPUProbeItROG CPU-ZOverwolfStart ButtonReset ButtonExtreme Engine Digi+ :- MicroFine Alloy Chokes- 10K Black Metallic CapacitorsROG Extreme OC kit :- OptiMem IIIUEFI BIOS features :- Tweakers´ Paradise- ROG SSD Secure Erase- Graphic Card Information PreviewExtreme TweakerROG Patented Pre-mounted I/O ShieldROG Exclusive Software- RAMCache III Package Content : User manual1 x Customizable Name Plate Accessory Pack1 x M.2 screw kit (long screw and mount)2 x M.2 screw kit (short screw and mount)1 x ROG DIMM.2 with heatsink1 x M.2 Pad for ROG DIMM.21 x Supporting DVD1 x ROG big sticker1 x Q-Connector1 x Wi-Fi Antenna(s)1 x Extension Cable for RGB strips (80 cm)1 x Extension cable for Addressable LED1 x ROG coaster(s)1 x ROG Thank you card BIOS : 2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information. Manageability : WOL by PME, PXE Warranty : 1 Year ( As per Manufacturer Policy )
