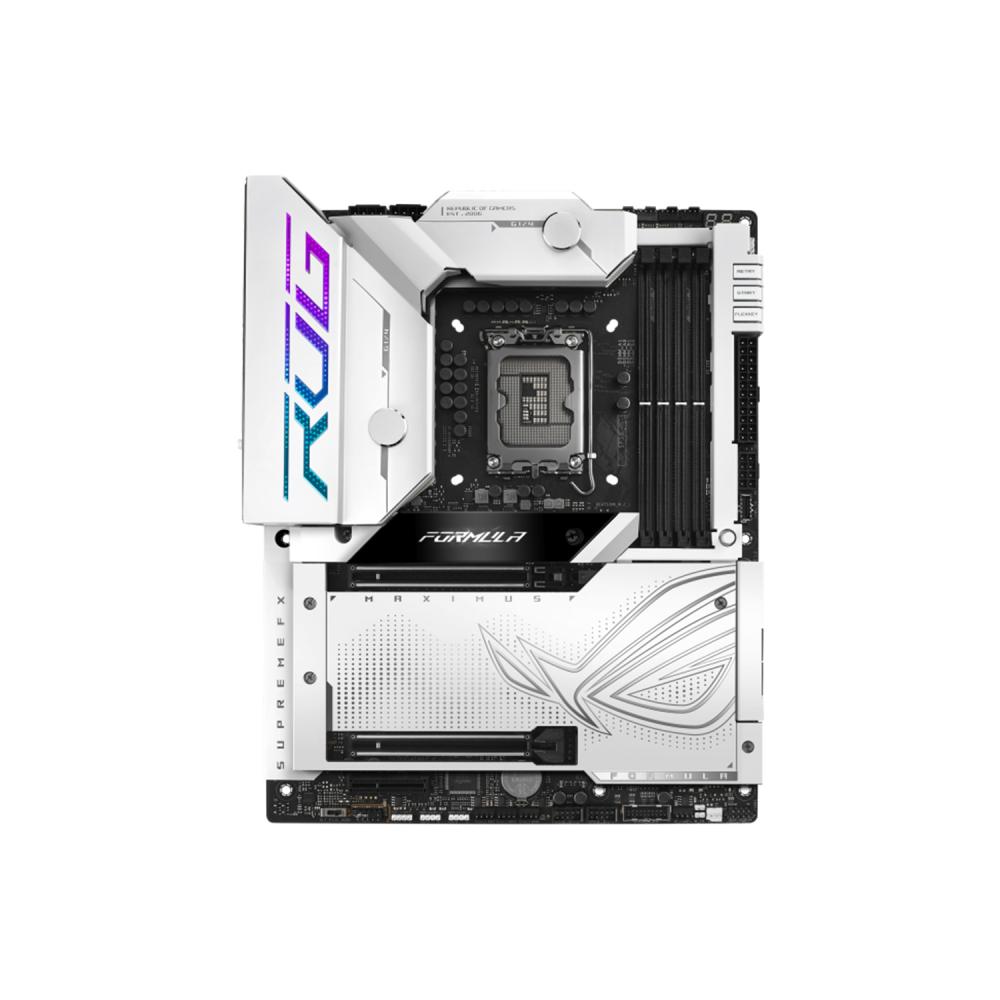

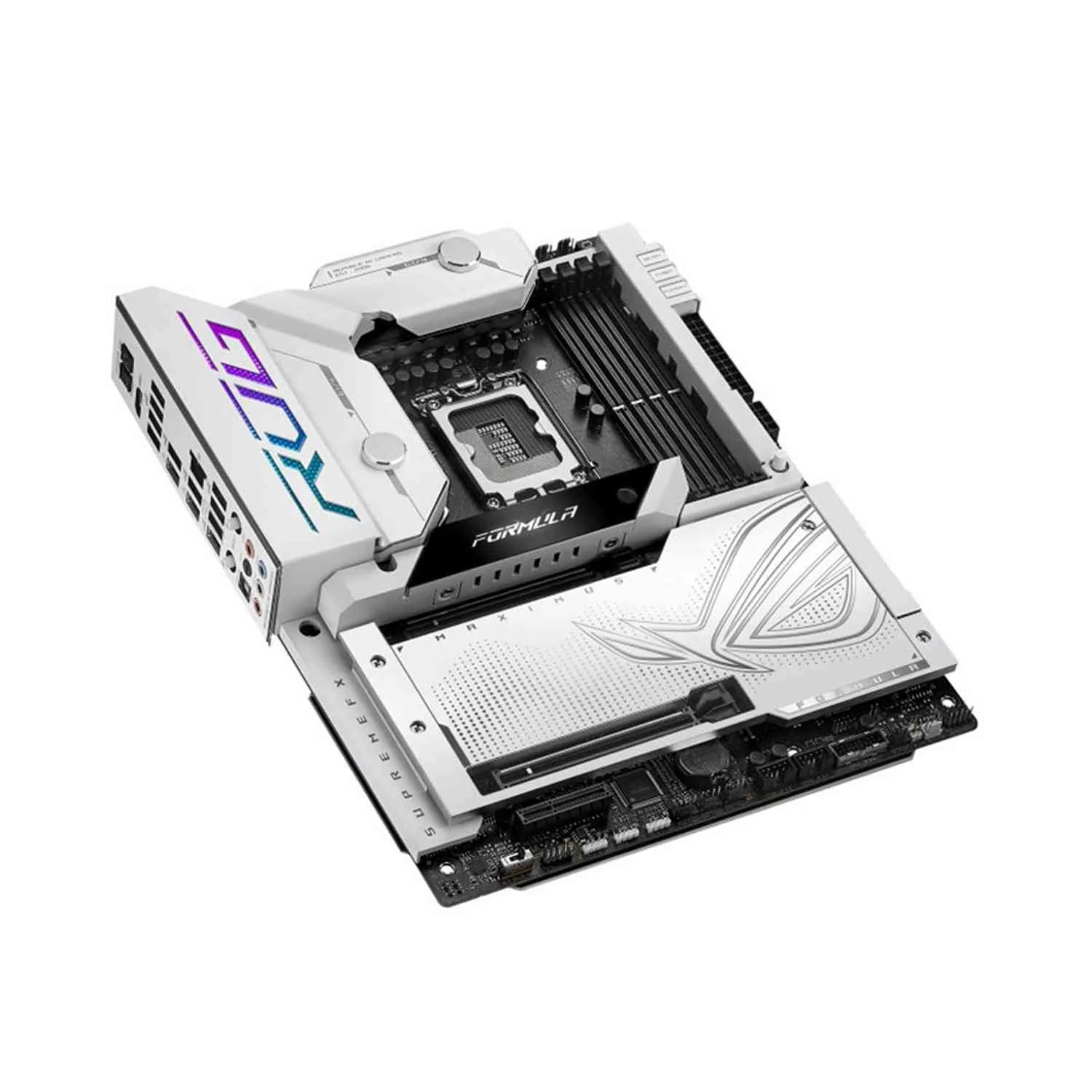

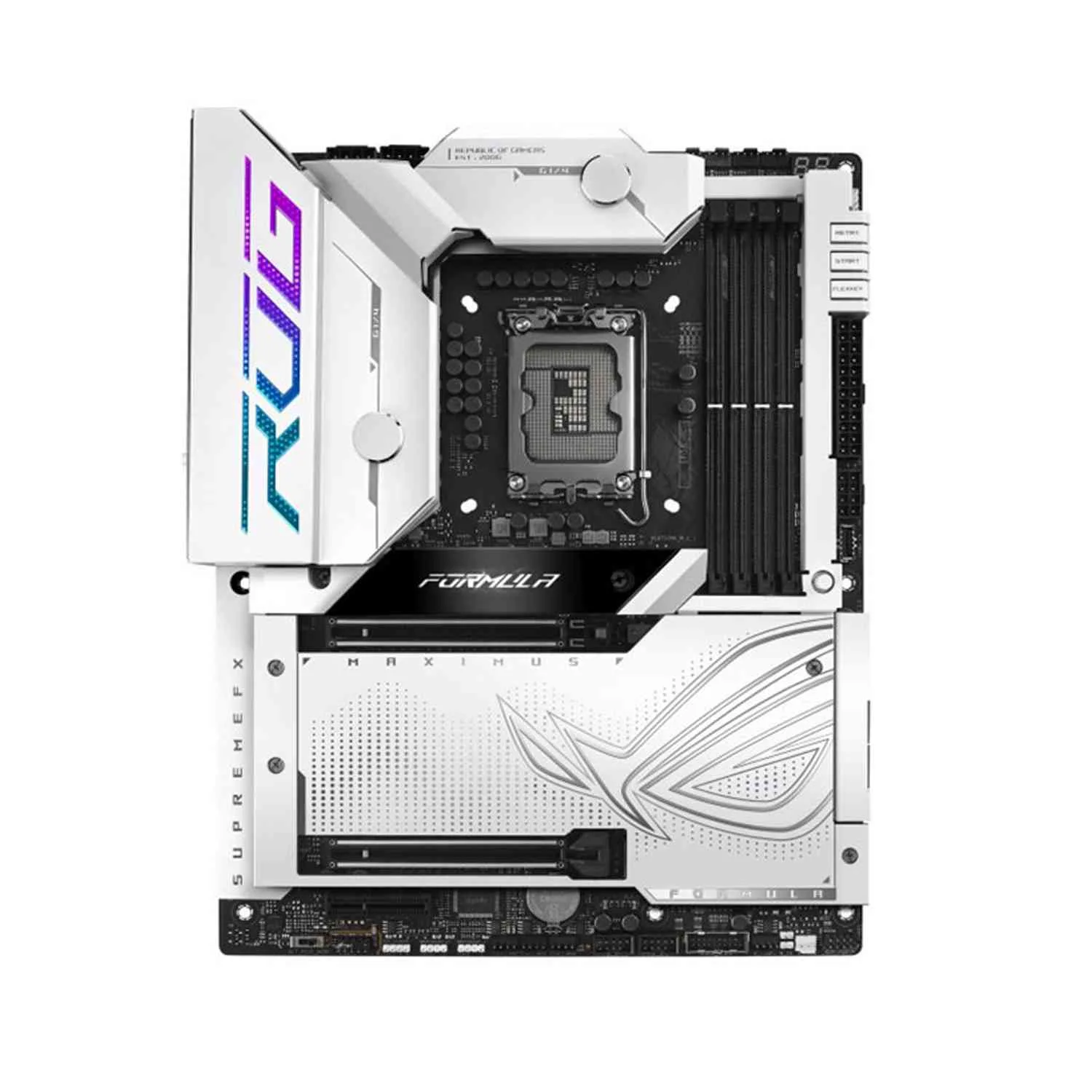

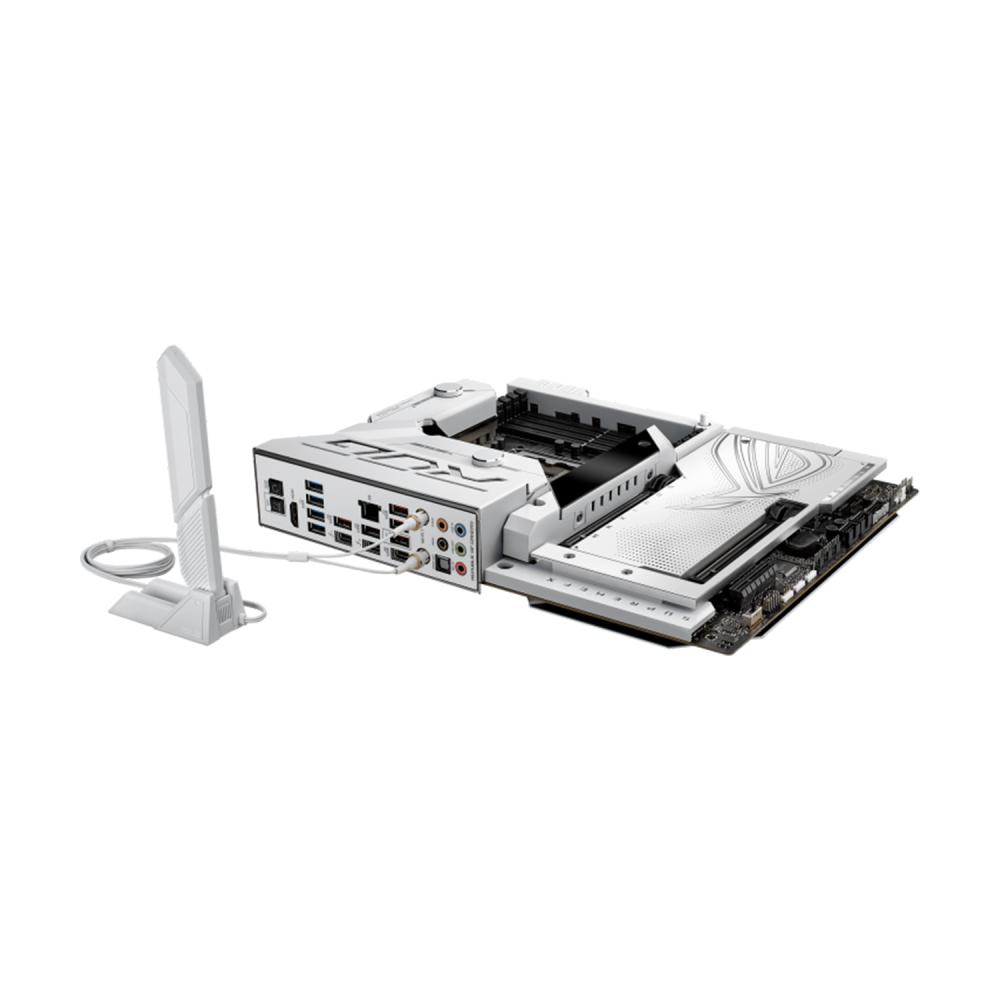

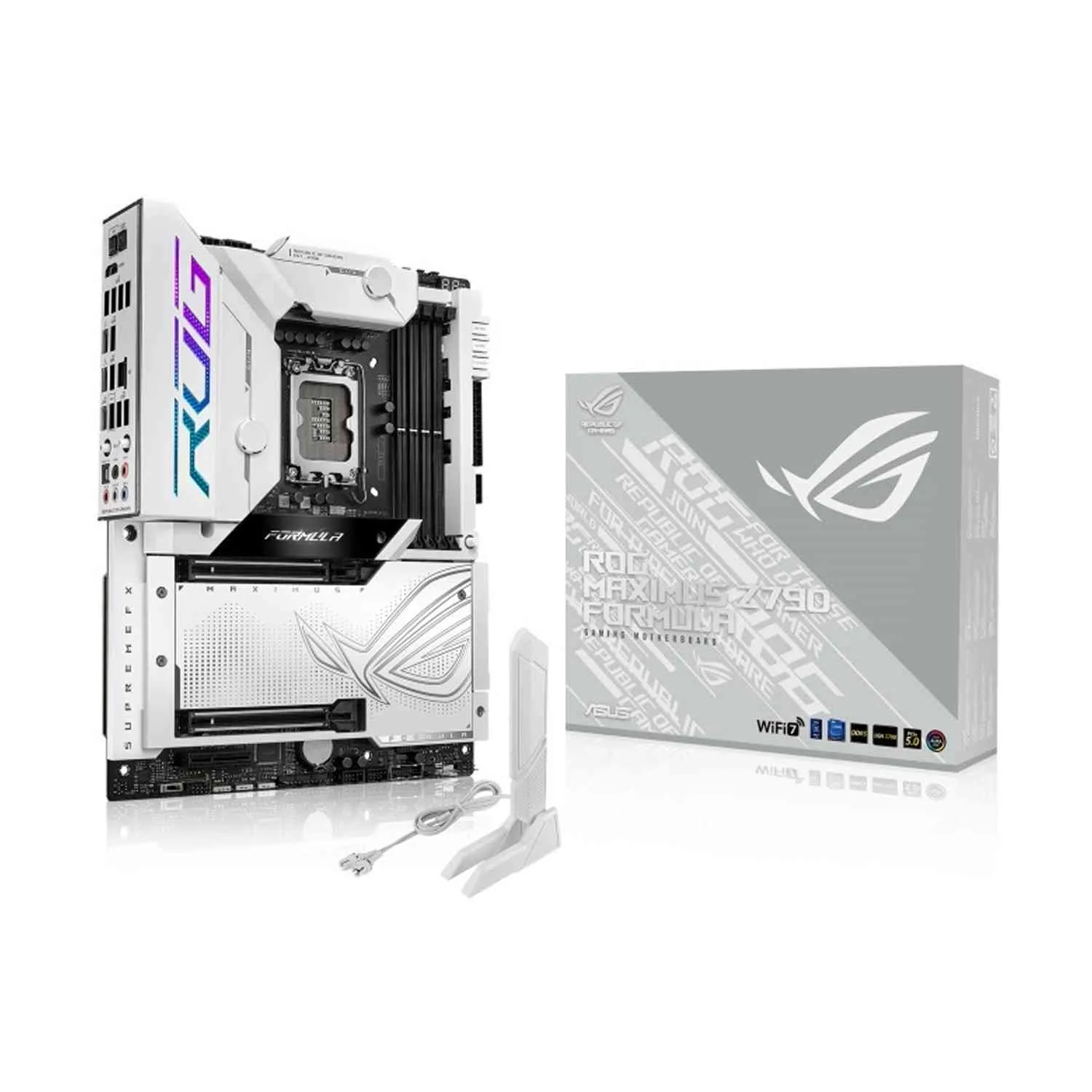

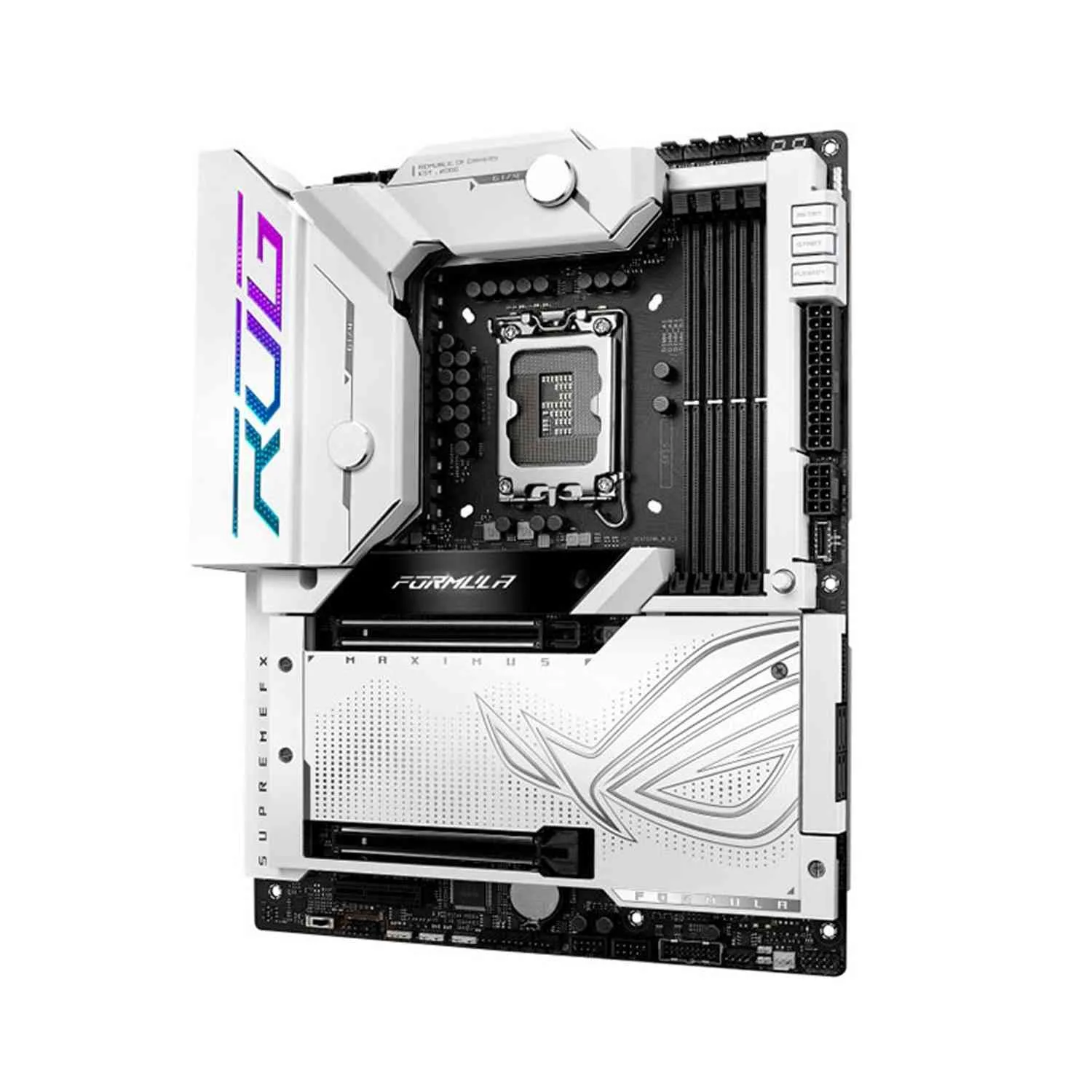

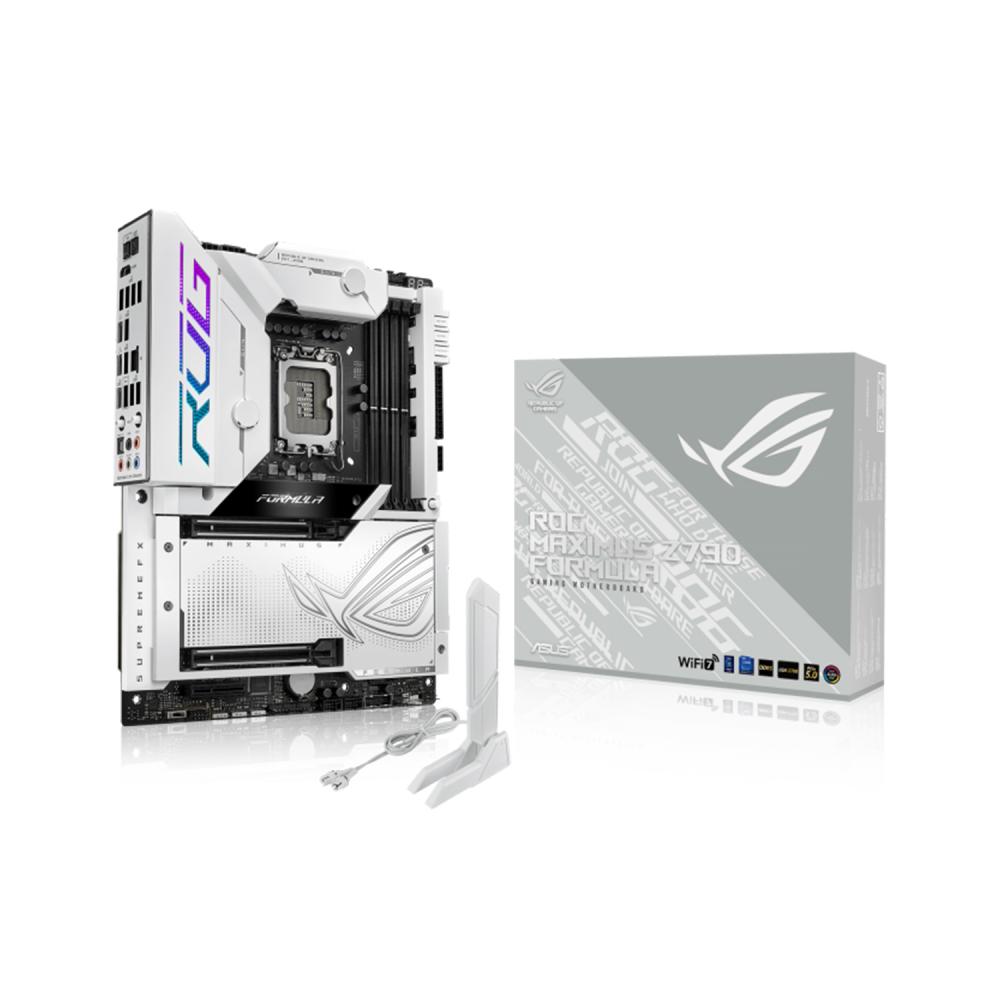

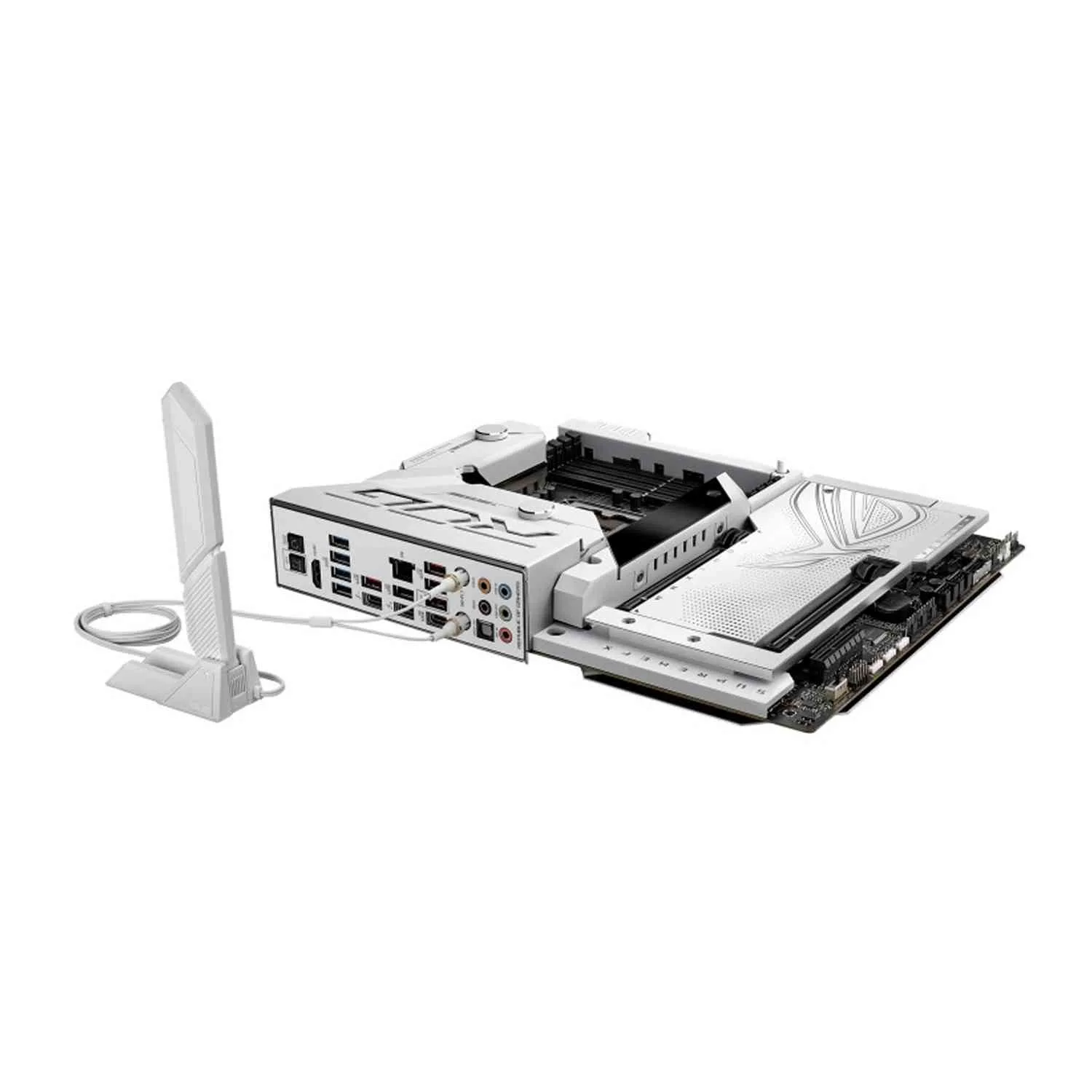

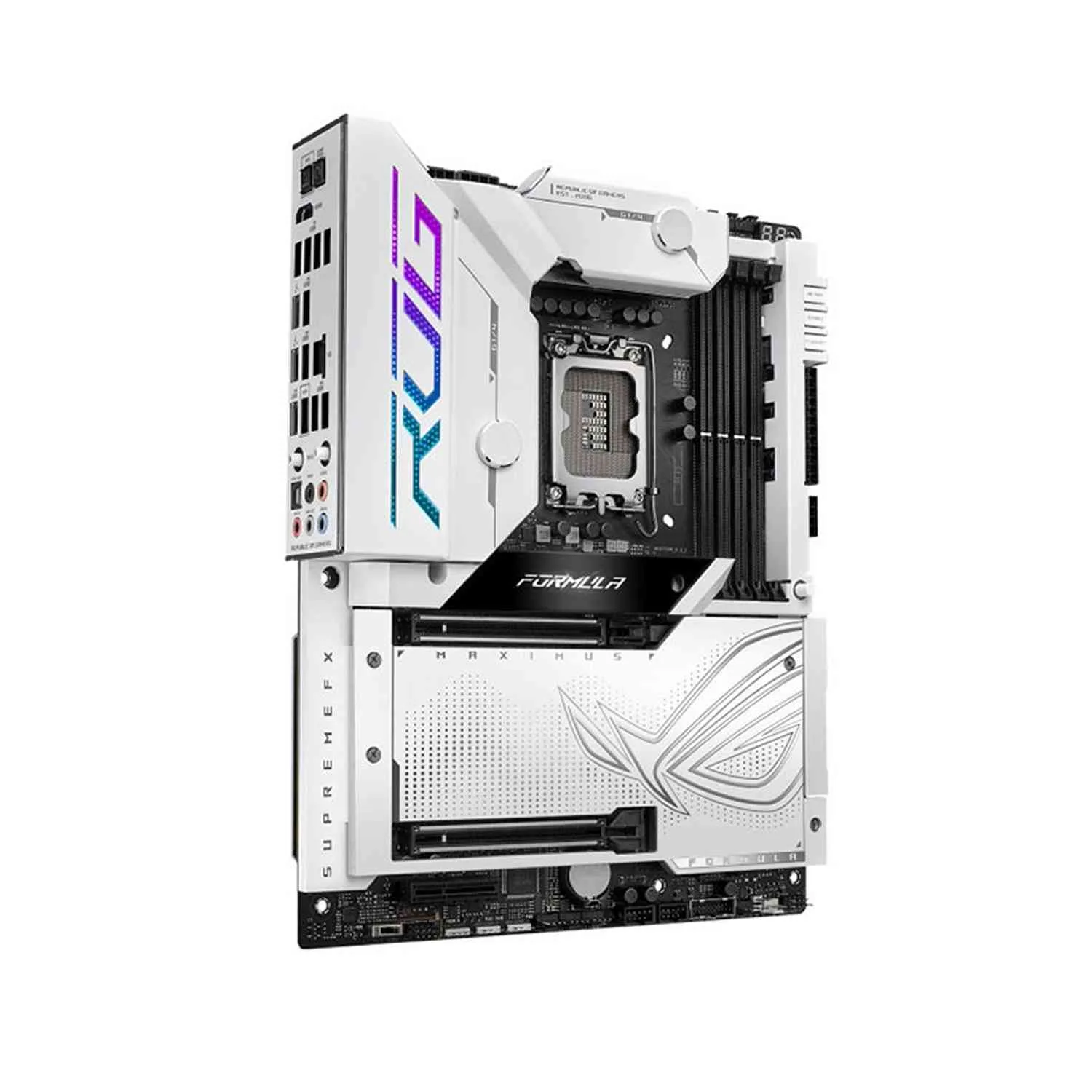

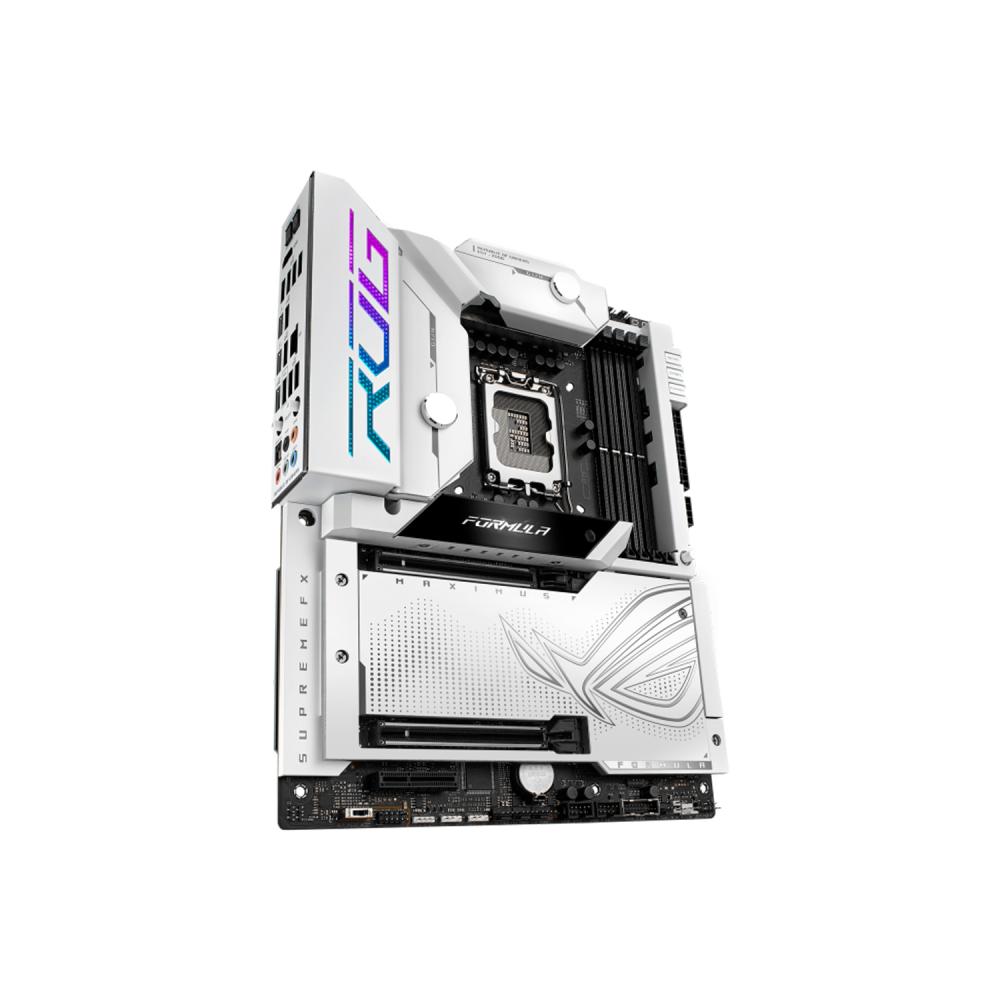

Asus Intel Rog Maximus Z790 Formula WIFI DDR5 Gaming Motherboard

Model No : Asus Intel Rog Maximus Z790 Formula WIFI DDR5 Gaming Motherboard Part No : 90MB1FS0-M0EAY0 Chipset : Intel® Z790 Chipset Form Factor : ATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) Socket Compatibility : Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Wireless & Bluetooth : Intel® Wi-Fi 7*2x2 Wi-Fi 7 (802.11be)**Supports 2.4/5/6GHz frequency band***Support Wi-Fi 7 320MHz bandwidth, up to 5.76Gbps transfer rate.Bluetooth® v5.4***** Compatible with Windows 11 or later.** Wi-Fi 7 MLO(Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later.*** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.**** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications." Ethernet : 1 x Realtek 5Gb EthernetASUS LANGuard Graphics : 1 x HDMI™ port**2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs**** Graphics specifications may vary between CPU types.** Supports 4K@60Hz as specified in HDMI 2.1. *** VGA resolution support depends on processors' or graphic cards' resolution. Memroy : 4 x DIMM slots, max. 192GB, DDR58000+(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)5800(OC)/5600/5400/5200/5000/4800Non-ECC, Un-buffered Memory*Dual channel memory architectureSupports Intel® Extreme Memory Profile (XMP) memory moduleASUS Enhanced Memory Profile II (AEMP II)Supports DIMM Flex* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration.* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Storage Compatibility : Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*Intel® CoreTM Processors (14th & 13th & 12th Gen)M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)Intel® Z790 ChipsetM.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled and PCIEX16(G5)_1 will run x8 only. Back Panel I/O Ports : 2 x Thunderbolt™ 4 USB Type-C® ports6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®)4 x USB 5Gbps ports (4 x Type-A)1 x HDMI™ port1 x Wi-Fi module1 x Realtek 5Gb Ethernet port5 x Gold-plated audio jacks1 x Optical S/PDIF out port1 x BIOS FlashBack™ button 1 x Clear CMOS button USB Ports : Rear USB (Total 12 ports)2 x Thunderbolt™ 4 ports (2 x USB Type-C®)6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®)4 x USB 5Gbps ports (4 x Type-A)Front USB (Total 9 ports)1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)**2 x USB 5Gbps headers support 4 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 ports* USB Type-C® power delivery output: max. 5V/3A** USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A Expansion Slots : Intel® Core™ Processors (14th & 13th & 12th Gen)*2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)**Intel® Z790 Chipset1 x PCIe 4.0 x4 slot* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled and PCIEX16(G5)_1 will run x8 only.*** To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Audio : ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082- Impedance sense for front and rear headphone outputs- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input- Supports up to 32-Bit/384 kHz playback on front panel"Audio Features - SupremeFX Shielding Technology- ESS® ES9218 QUAD DAC- Gold-plated audio jacks- Rear optical S/PDIF out port- Premium audio capacitors* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. Internal I/O Connectors : Fan and Cooling Related 1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header4 x 4-pin Chassis Fan headers1 x W_PUMP+ header1 x 2-pin Water In header1 x 2-pin Water Out header1 x 3-pin Water Flow headerPower Related 1 x 24-pin main power connector2 x 8-pin +12V power connectors1 x 8-pin PCIe power connectorStorage Related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s portsUSB 1 x USB 20Gbps connector (supports USB Type-C® ) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x Alteration PCIe mode switch1 x Aura RGB header1 x CPU over voltage jumper1 x FlexKey button 1 x Front panel audio header (F_AUDIO)1 x ReTry button1 x Start button1 x 10-1 pin system panel header1 x Thermal sensor header Special Features : Extreme OC Kit- FlexKey button- ReTry button- Start buttonExtreme Engine Digi+- 10K Black metallic capacitors- MicroFine alloy choke ASUS Q-Design - M.2 Q-Latch- PCIe Slot Q-Release- Q-Antenna- Q-Code- Q-Connector- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- HybridChill VRM block- M.2 heatsink backplate- M.2 heatsink- Metal backplate- VRM heatsink designASUS EZ DIY- BIOS FlashBack™ button- Clear CMOS button- CPU Socket lever protector- ProCool II- Pre-mounted I/O shield- SafeSlot- SafeDIMMAura Sync- Aura RGB header- Addressable Gen 2 headersOLED 2"Front Panel USB 20Gbps with Quick Charge 4+ Support- Support: up to 60W fast charging and USB Wattage Watcher*- Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A- Compatible with PD3.0 and PPS* To support 60W, please install the power cable to the 6-pin PCIe power connector or else only 27W will be supported. Package Content : Cables1 x ARGB RGB extension cable2 x ROG weave SATA 6G cables2 x SATA 6Gb/s cables Additional Cooling Kit1 x DDR5 fan holder1 x Thermal pad for M.2Miscellaneous1 x ASUS WiFi Q-Antenna1 x Q-connector3 x M.2 backplate Q-Latch packages1 x ROG key chain1 x ROG stickers1 x ROG VIP card1 x M.2 rubber package3 x M.2 backplate rubber packagesInstallation Media1 x USB drive with utilities and drivers Documentation1 x Quick start guide Software Features : ROG Exclusive Software- ROG CPU-Z- DTS® Sound Unbound - Internet Security (1-year full version)ASUS Exclusive SoftwareArmoury Crate- AIDA64 Extreme (1 year full version)- Aura Creator- Aura Sync- Fan Xpert 4 (with AI Cooling II)- GameFirst- Power Saving- Sonic Studio- Two-Way AI Noise Cancelation- OLED displayAI Suite 3- Easy Optimization with AI Overclocking - TPU- DIGI+ Power Control- Turbo app- PC CleanerMyASUSUSB Wattage WatcherIntel® Unison™Adobe Creative Cloud (Free Trial)WinRAR (40 Days Free Trial)UEFI BIOSAI Overclocking GuideASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode- ASUS MyHotkeyMemTest86 BIOS : 256 Mb Flash ROM, UEFI AMI BIOS Warranty : 1 Year ( As per Manufacturer Policy )
