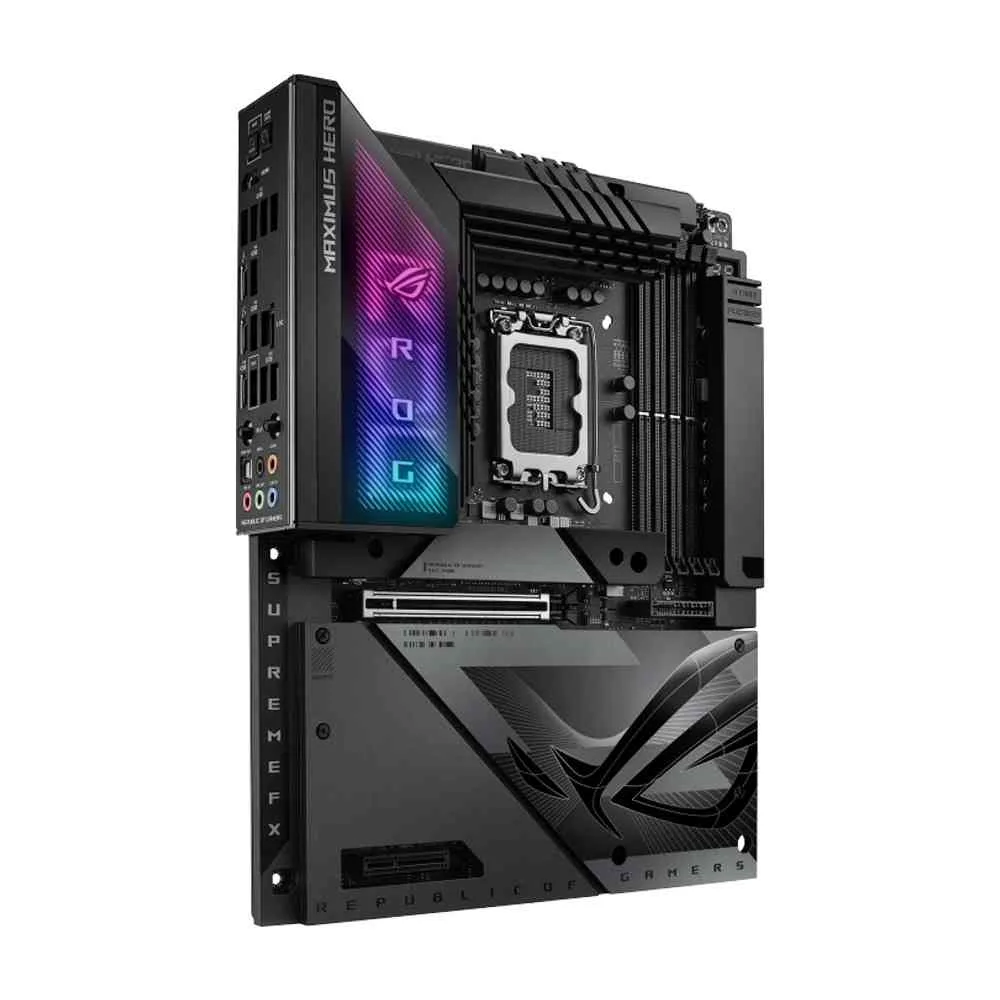

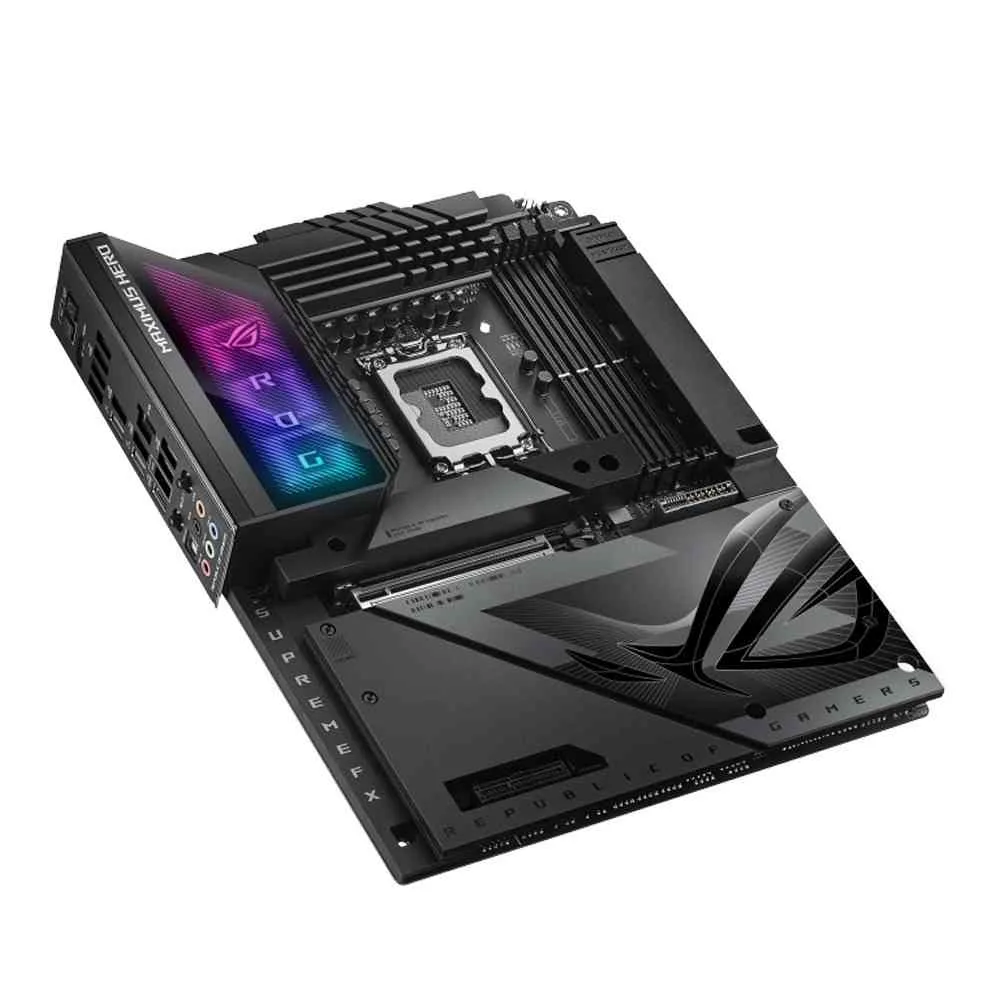

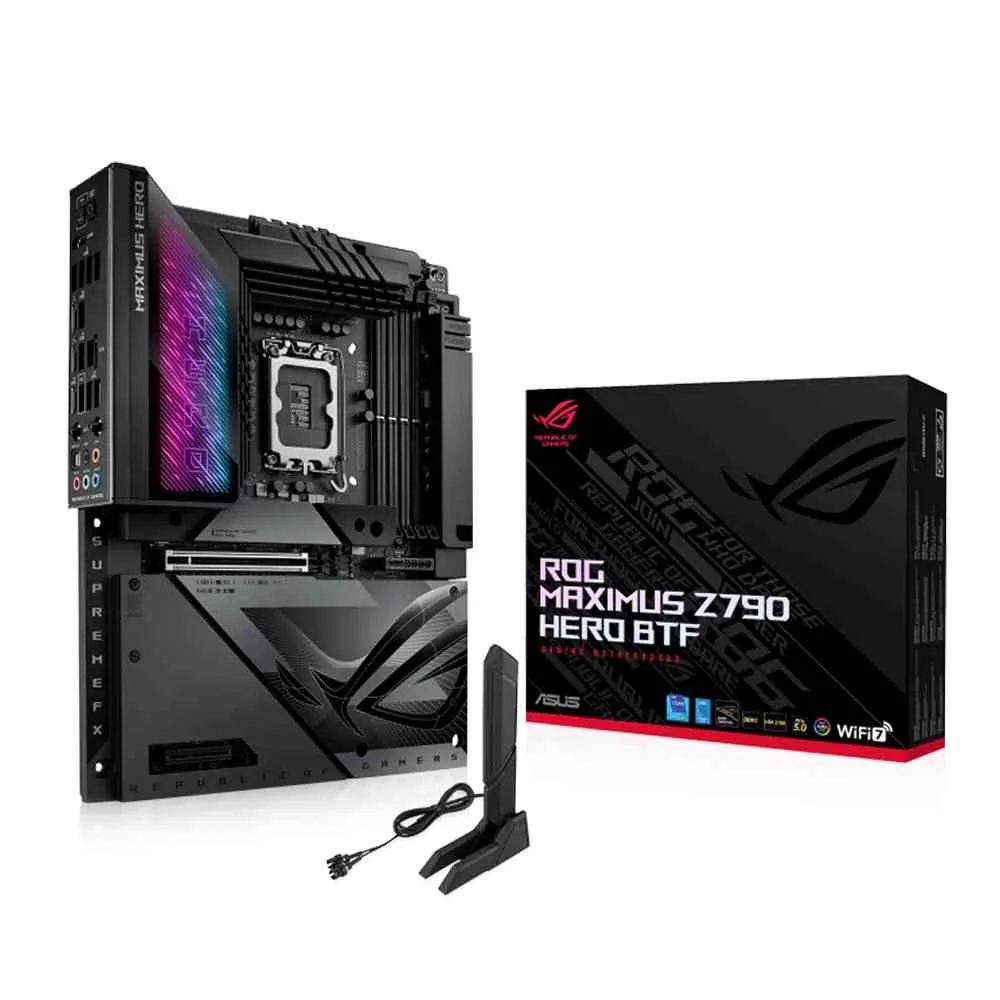

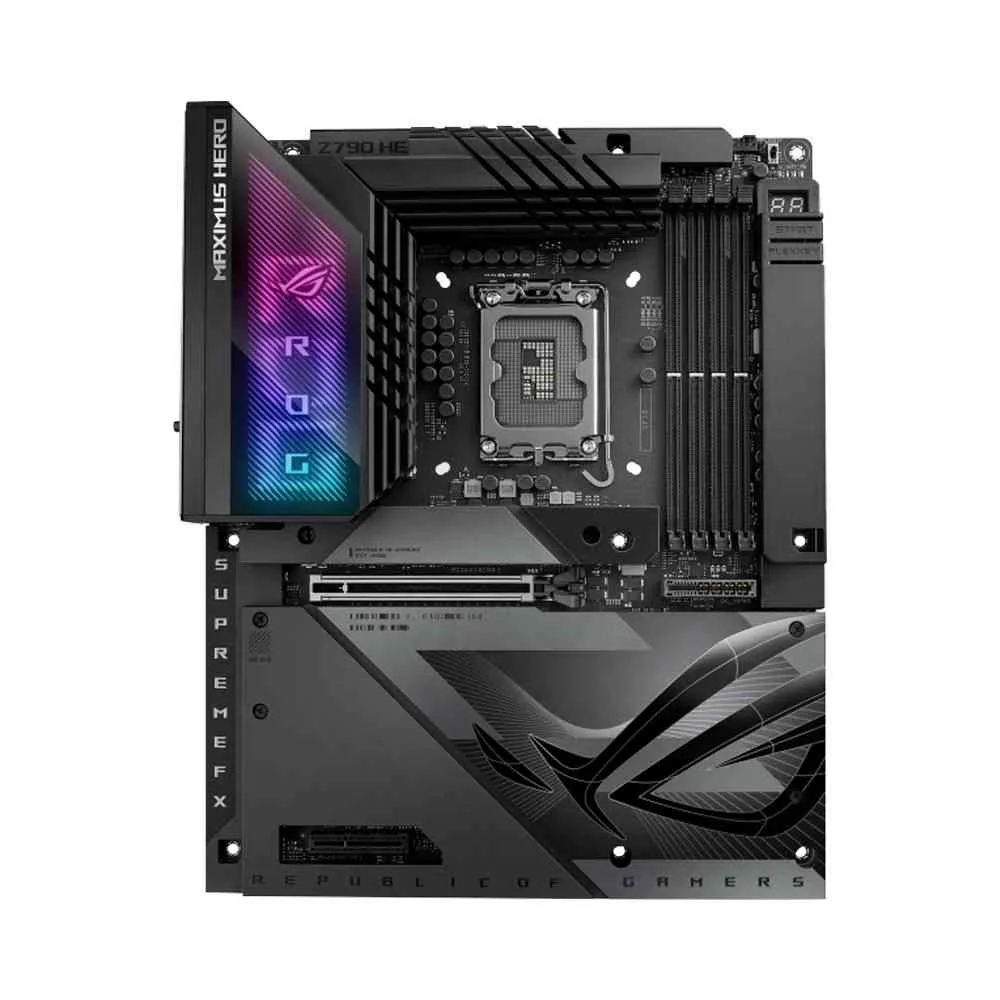

Asus Intel Rog Maximus Z790 Hero BTF WIFI 7 DDR5 Gaming Motherboard

Model No : Asus Intel Rog Maximus Z790 Hero BTF WIFI 7 DDR5 Gaming Motherboard Part No : 90MB1H50-M0EAY0 Chipset : Intel® Z790 Chipset Form Factor : ATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) Socket Compatibility : Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® ProcessorsSupports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Wireless & Bluetooth : Intel® Wi-Fi 7*2x2 Wi-Fi 7 (802.11be)** Supports 2.4/5/6GHz frequency band***Support Wi-Fi 7 320MHz bandwidth, up to 5.76Gbps transfer rate.Bluetooth® v5.4***** Compatible with Windows 11 or later.** Wi-Fi 7 MLO(Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later.*** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.**** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. Ethernet : 1 x Intel® 2.5Gb EthernetASUS LANGuard Graphics : 1 x HDMITM port**2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs**** Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.** Support 4K@60Hz as specified in HDMI 2.1.*** VGA resolution support depends on processors' or graphic cards' resolution. Memroy : 4 x DIMM, Max. 128GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)* Supported memory types, data rate (Speed), and number of DRAM modules vary depending on the CPU and memory configuration* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function Storage Compatibility : Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*Intel® CoreTM Processors (14th & 13th & 12th Gen)M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode.)**M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode.)Intel® Z790 Chipset**M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.** When M.2_1 is enabled, PCIEX16(G5)_1 will run x8 only. Back Panel I/O Ports : 2 x Thunderbolt™ 4 USB Type-C® ports6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®)4 x USB 5Gbps ports (4 x Type-A)1 x HDMITM port1 x Wi-Fi Module1 x Intel® 2.5Gb Ethernet port5 x Gold-plated audio jacks1 x Optical S/PDIF out port1 x BIOS FlashBack™ button 1 x Clear CMOS button USB Ports : Rear USB (Total 12 ports)2 x Thunderbolt™ 4 ports (2 x USB Type-C®)6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®)4 x USB 5Gbps ports (4 x Type-A)Front USB (Total 9 ports)1 x USB 20Gbps connector2 x USB 5Gbps headers support 4 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 ports Expansion Slots : Intel® CoreTM Processors (14th & 13th & 12th Gen)*1 x PCIe 5.0 x16 slot (support x16 or x8 modes)**Intel® Z790 Chipset1 x PCIe 4.0 x4 slot Audio : ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*- Impedance sense for front and rear headphone outputs- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input- Supports up to 32-Bit/384 kHz playback on front panelAudio Features - SupremeFX Shielding Technology- ESS® ES9218 QUAD DAC- Gold-plated audio jacks- Rear optical S/PDIF out port- Premium audio capacitors*The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. Internal I/O Connectors : Fan and Cooling related 1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header4 x 4-pin Chassis Fan headers1 x W_PUMP+ headerPower related 1 x 24-pin main power connector2 x 8-pin +12V power connector1 x Graphics card high power slot1 x 12V-2X6 Auxiliary power connectorStorage related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s portsUSB 1 x USB 20Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x AURA RGB header1 x FlexKey button 1 x Front panel audio header (F_AUDIO)1 x Start button1 x 10-1 pin system panel header1 x Thermal sensor header1 x Q-Installation Switch Special Features : Extreme OC Kit- FlexKey button- Start buttonExtreme Engine Digi+- 10K Black metallic capacitors- MicroFine alloy choke ASUS Q-Design - M.2 Q-Latch- PCIe Slot Q-Release Slim- Q-Antenna- Q-Code- Q-Connector- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) with DRAM Detection- Q-SlotASUS Thermal Solution- M.2 heatsink backplate- M.2 heatsink- VRM heatsink designASUS EZ DIY- BIOS FlashBack™ button- Clear CMOS button- CPU Socket lever protector- ProCool II- Pre-mounted I/O shield- SafeSlot- SafeDIMMAURA Sync- AURA RGB header(s)- Addressable Gen 2 header(s) Package Content : Cables1 x ARGB RGB extension cable4 x SATA 6Gb/s cables Additional Cooling Kit1 x Thermal pad for M.21 x DDR5 fan holderMiscellaneous1 x ASUS WiFi Q-Antenna3 x M.2 backplate Q-Latch packages3 x M.2 backplate Rubber Packages1 x Q-connector1 x ROG stickers1 x ROG key chain1 x M.2 rubber package1 x ROG VIP cardInstallation Media1 x USB drive with utilities and drivers Documentation1 x Quick start guide BIOS : 256 Mb Flash ROM, UEFI AMI BIOS Manageability : WOL by PME, PXE Warranty : 1 Year ( As per Manufacturer Policy )
