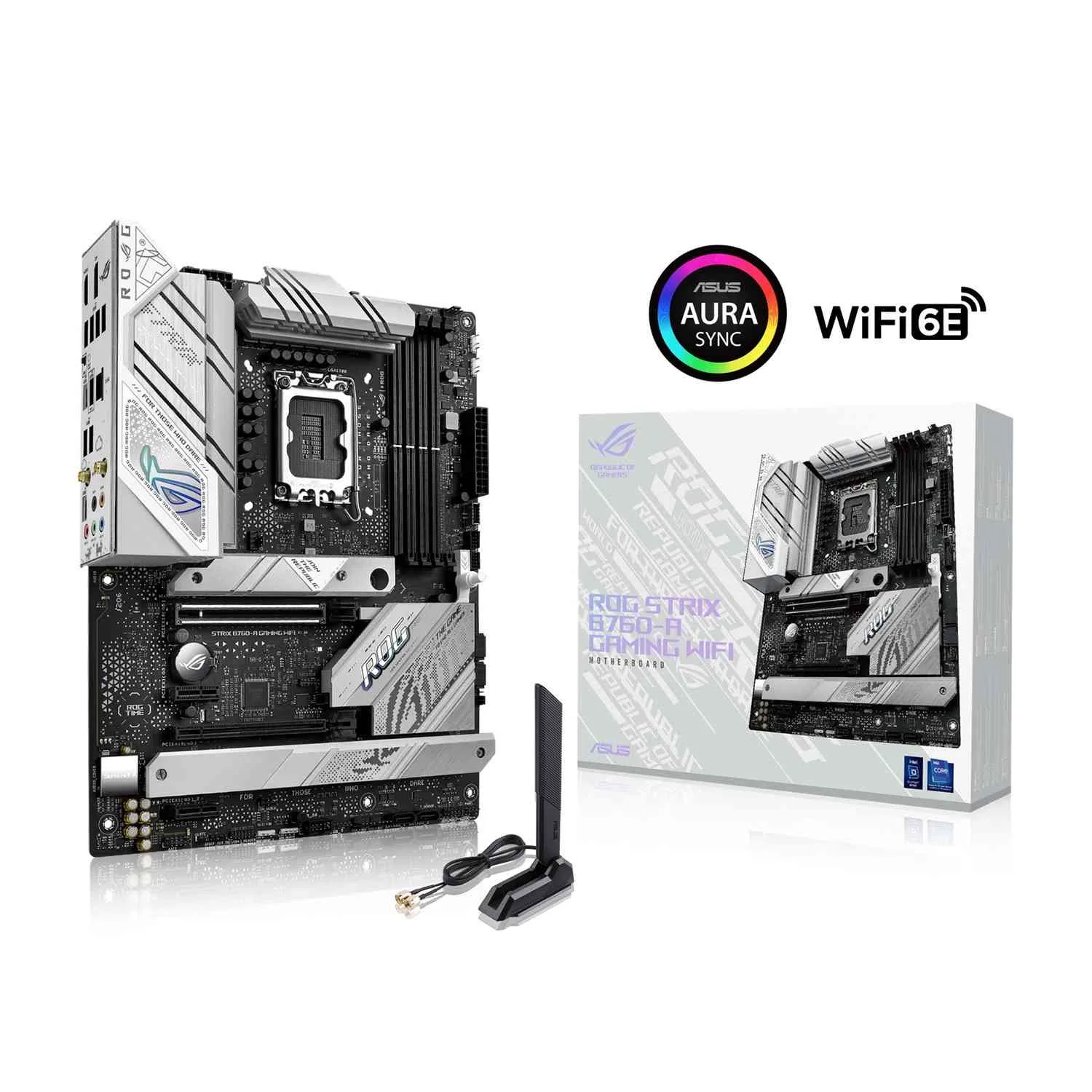

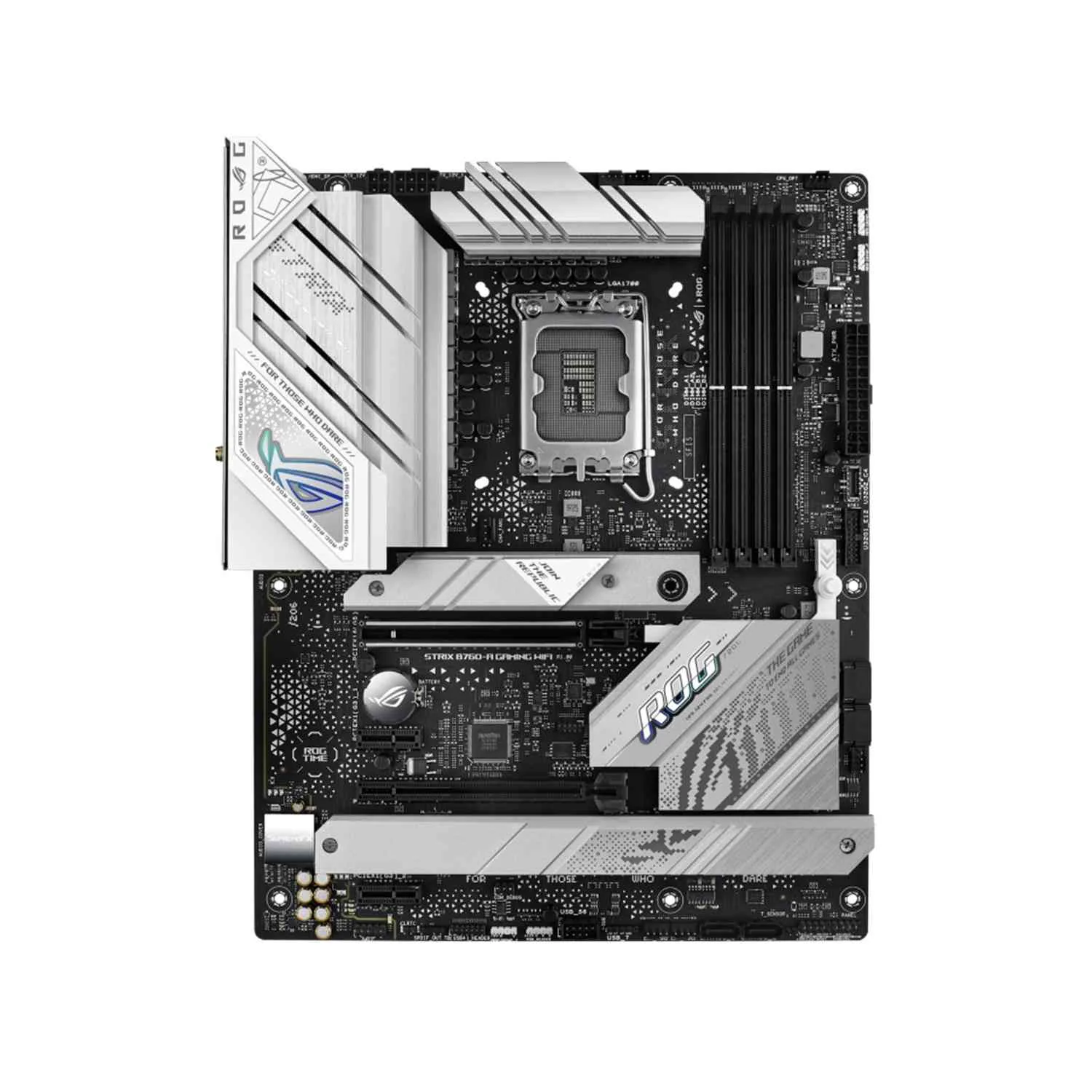

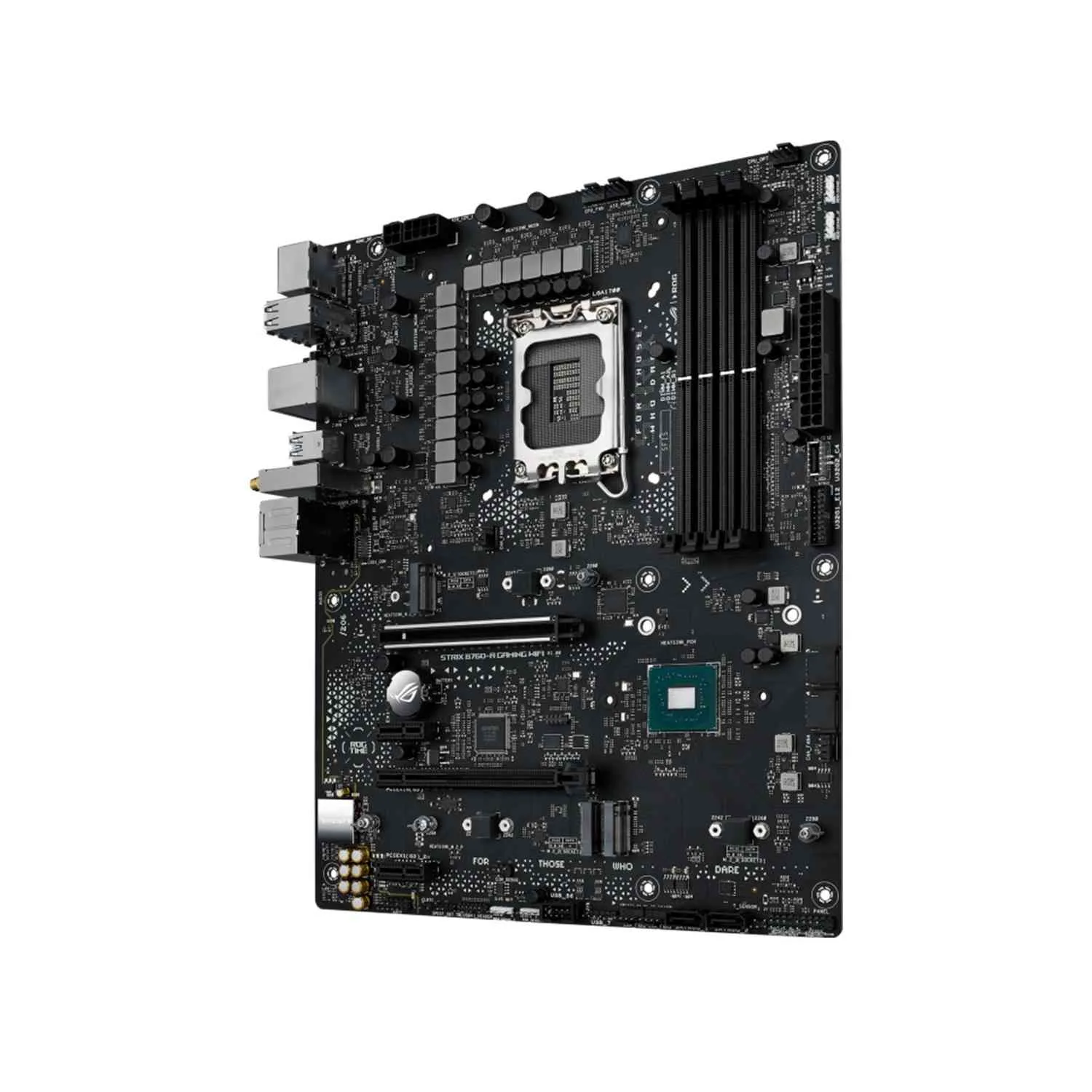

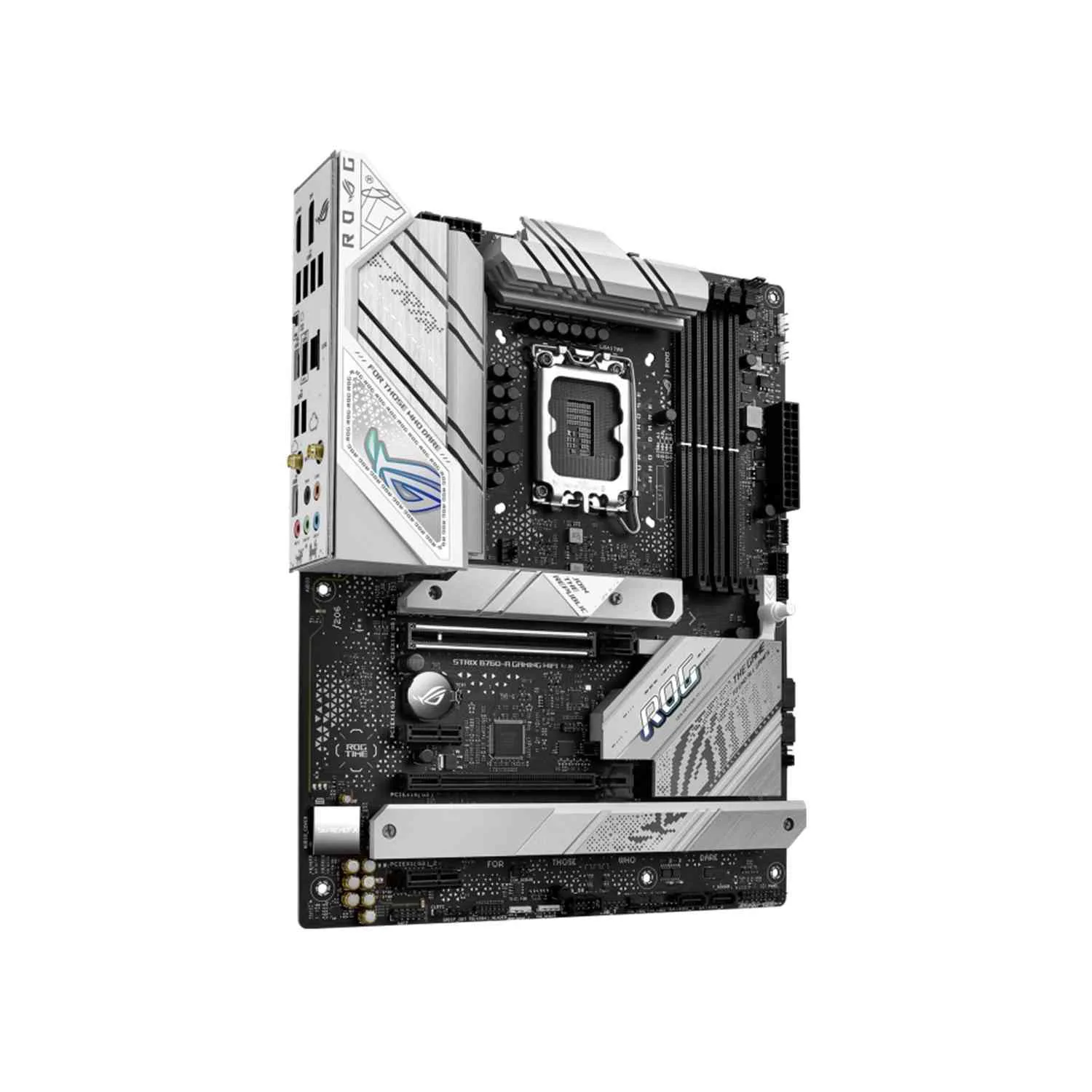

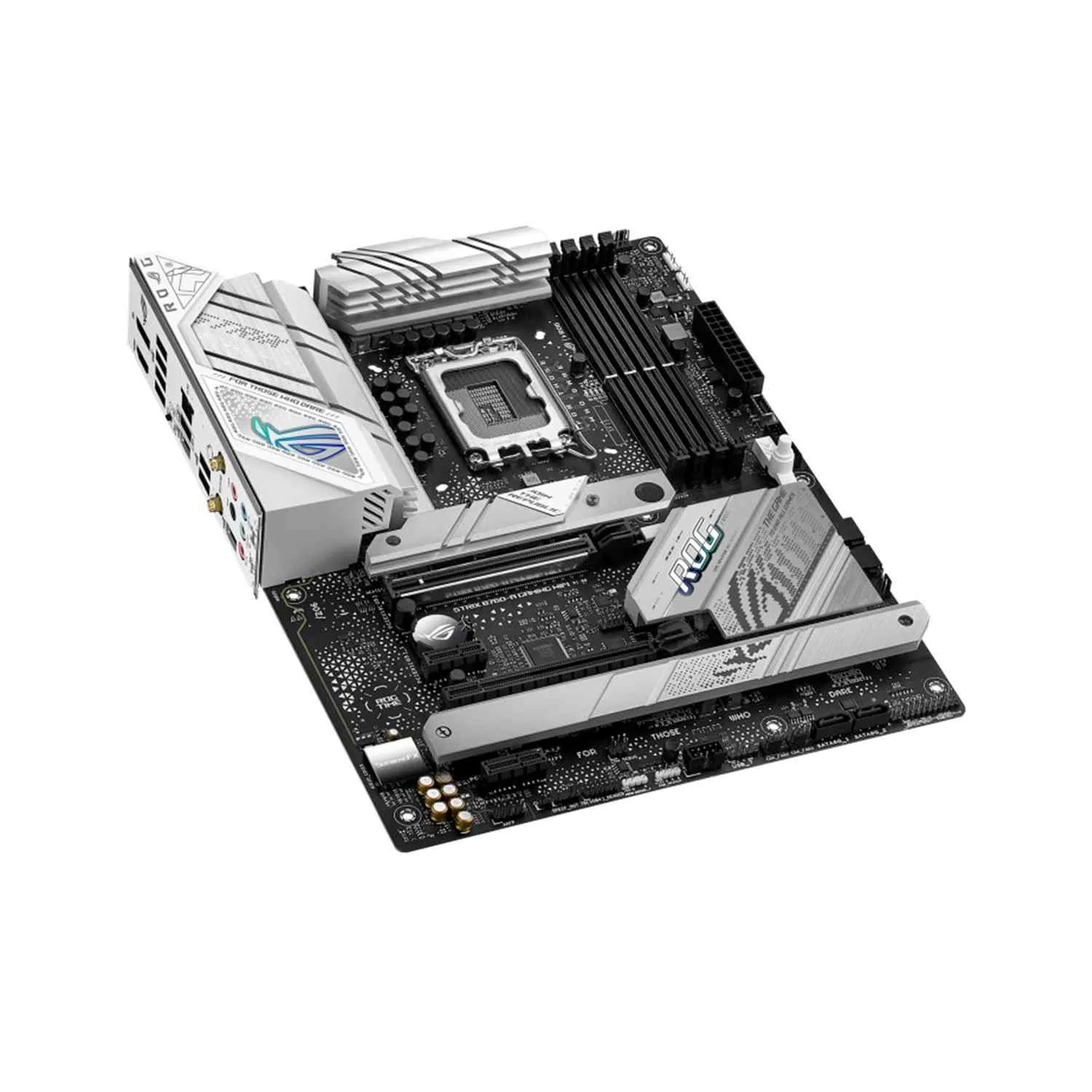

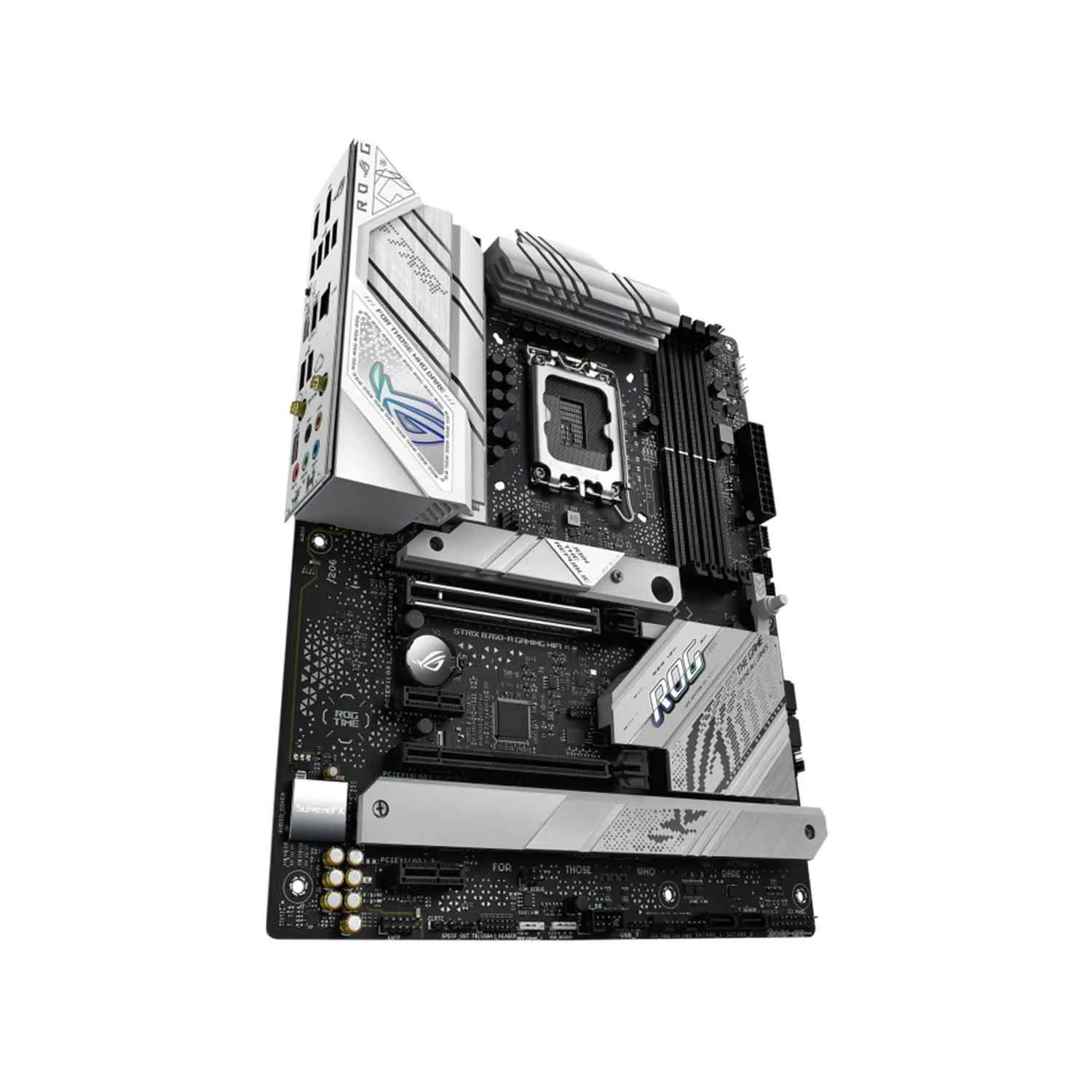

Asus Intel Rog Strix B760-A WIFI DDR5 Gaming MotherBoard

Model No : Asus Intel Rog Strix B760-A WIFI DDR5 Gaming MotherBoard Part No : 90MB1EP0-M1EAY0 Chipset : Intel® B760 Chipset Form Factor : ATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) Socket Compatibility : Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Wireless & Bluetooth : Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth® v5.3** * WiFi 6E 6GHz regulatory may vary between countries. ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. Ethernet : 1 x Intel® 2.5Gb EthernetASUS LANGuard Memroy Type : 4 x DIMM slots, Max. 192GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)OptiMem II Storage Compatibility : Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*Intel® Core™ Processors (14th & 13th & 12th Gen)M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)Intel® B760 ChipsetM.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. Graphics : 1 x DisplayPort**1 x HDMITM port*** * Graphics specifications may vary between CPU types.** Supports max. 4K@60Hz as specified in DisplayPort 1.4*** Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors' or graphic cards' resolution. USB Ports : Rear USB (Total 9 ports)1 x USB 3.2 Gen 2x2 (20G) port (1 x USB Type-C®)1 x USB 3.2 Gen 2 (10G) port (1 x Type-A)3 x USB 3.2 Gen 1 (5G) port (2 x Type-A, 1 x USB Type-C®)4 x USB 2.0 ports (4 x Type-A)Front USB (Total 6 ports)1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C®)1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports Expansion Slots : Intel® Core™ Processors (14th & 13th & 12th Gen)1 x PCIe 5.0 x16 slotIntel® B760 Chipset1 x PCIe 3.0 x16 slot (supports x4 mode)*2 x PCIe 3.0 x1 slots** PCIe x1(G3)_1 and PCIe x1(G3)_2 slots share bandwidth with PCIe x16(G3). When PCIe x1(G3)_1 or PCIe x1(G3)_2 slot is operating, PCIe x16(G3) will only supports x2 mode. Audio : ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playbackAudio Features - SupremeFX Shielding Technology- Savitech SV3H712 AMP- Premium audio capacitors- Dedicated audio PCB layers- Audio cover*The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis. Back Panel I/O Ports : 1 x USB 3.2 Gen 2x2 (20G) port (1 x USB Type-C®)1 x USB 3.2 Gen 2 (10G) port (1 x Type-A)3 x USB 3.2 Gen 1 (5G) ports (2 x Type-A, 1 x USB Type-C®)4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort1 x HDMI™ port1 x Wi-Fi Module1 x Intel® 2.5Gb Ethernet port5 x Audio jacks 1 x BIOS FlashBack™ button Internal I/O Connectors : Fan and Cooling related 1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header4 x 4-pin Chassis Fan headersPower related 1 x 24-pin Main Power connector1 x 8-pin +12V Power connector1 x 4-pin +12V Power connectorStorage related 3 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB 1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x Aura RGB header1 x Clear CMOS header1 x Front Panel Audio header (AAFP)1 x S/PDIF Out header1 x 20-5 pin System Panel header1 x Thermal Sensor header1 x Thunderbolt™ (USB4®) header Special Features : Extreme Engine Digi+- 5K Black Metallic CapacitorsASUS Q-Design - M.2 Q-Latch- PCIe Slot Q-Release- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink- VRM heatsink designASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- CPU Socket lever protector- ProCool- Pre-mounted I/O shield- SafeSlot- SafeDIMMAura Sync- Aura RGB header- Addressable Gen 2 headers Accessories : Cables2 x SATA 6Gb/s cablesAdditional Cooling Kit1 x Thermal pad for M.2Miscellaneous1 x ASUS Wi-Fi moving antennas 1 x Cable ties package1 x M.2 Q-Latch package1 x ROG Strix stickers1 x ROG Strix thank you card1 x M.2 Rubber PackagesDocumentation1 x User guide Operating System : Windows® 11, Windows® 10 64-bit Manageability : WOL by PME BIOS : 256 Mb Flash ROM, UEFI AMI BIOS Warranty : 1 Year ( As per Manufacturer Policy )
