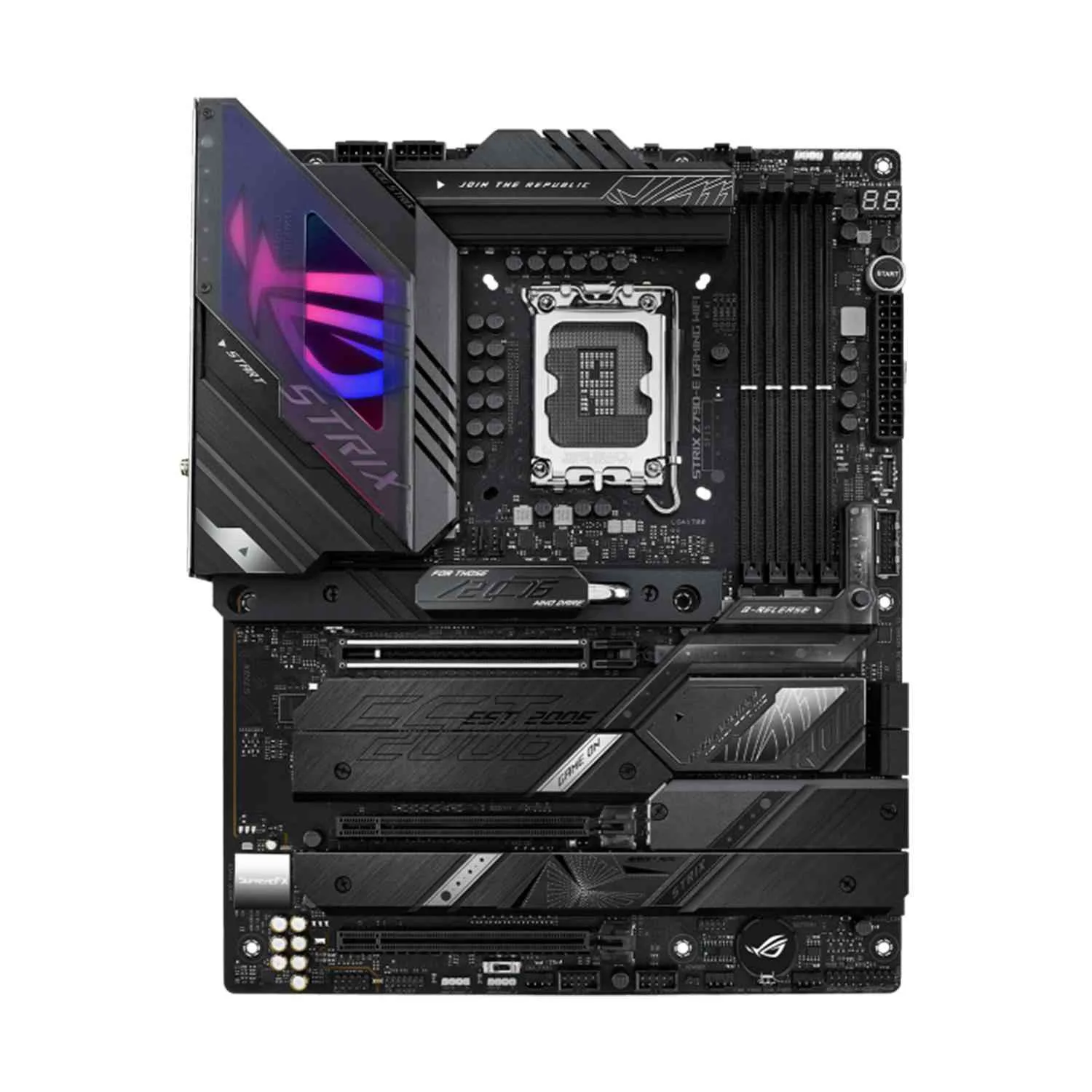

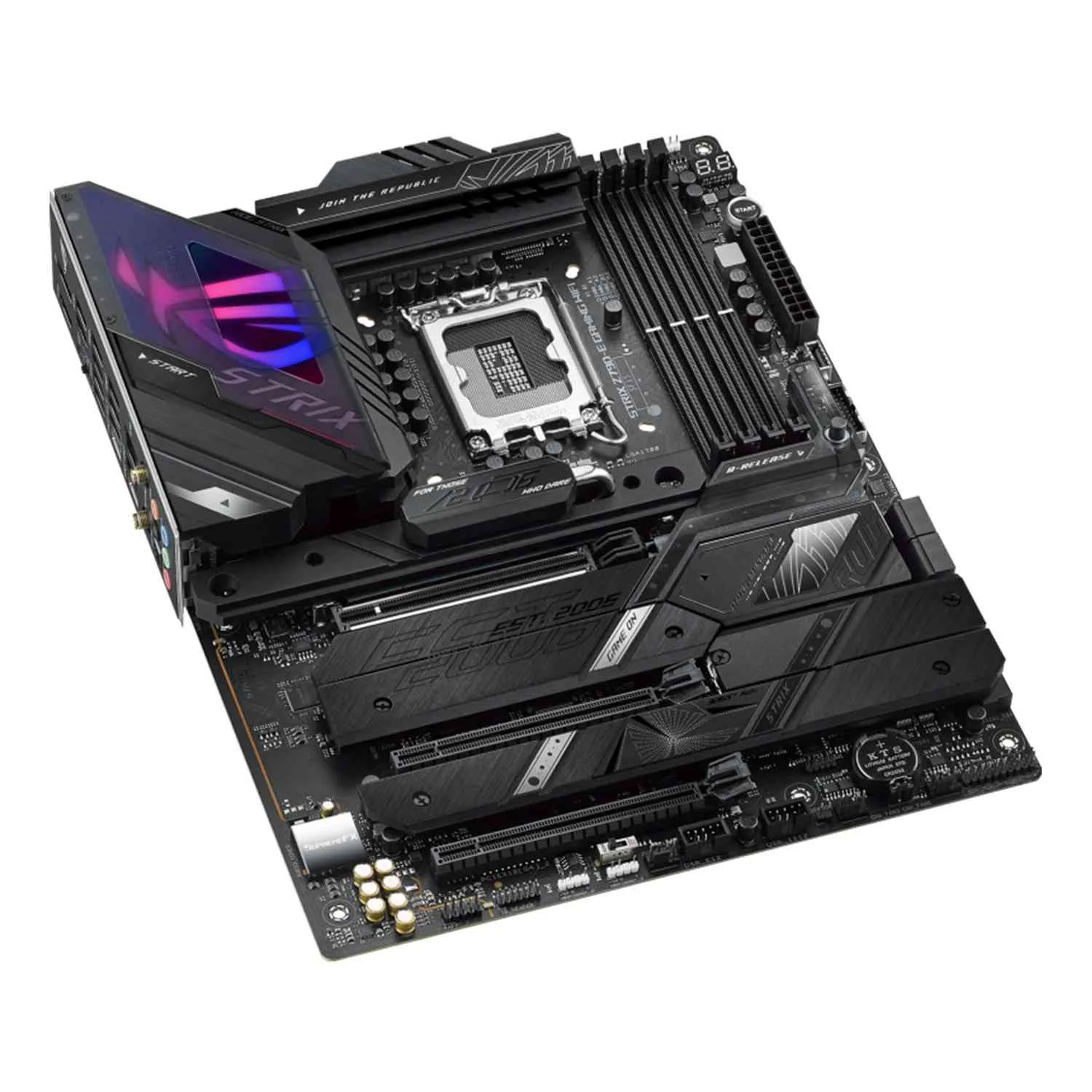

Asus Intel Rog Strix Z790-E Gaming WIFI MotherBoard

Model No : Asus Intel Rog Strix Z790-E Gaming WIFI MotherBoard Part No : 90MB1CL0-M0EAY0 Chipset : Intel® Z790 Chipset Form Factor : ATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) Socket Compatibility : Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® ProcessorsSupports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Wireless & Bluetooth : Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth® v5.3 * WiFi 6E 6GHz regulatory may vary between countries. Ethernet : 1 x Intel® 2.5Gb EthernetASUS LANGuard Graphics : 1 x DisplayPort**1 x HDMI® port**** Graphics specifications may vary between CPU types. Please refer to ww.intel.com for any updates. ** Supports max. 8K@60Hz as specified in DisplayPort 1.4.*** Supports 4K@60Hz as specified in HDMI 2.1.**** VGA resolution support depends on processors' or graphic cards' resolution. Memroy : 4 x DIMM, Max. 128GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)OptiMem II* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration**** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function. Storage Compatibility : Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*Intel® 14th & 13th & 12th Gen Processors*M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)Intel® Z790 Chipset**M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode & SATA modes)4 x SATA 6Gb/s ports* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. Back Panel I/O Ports : 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)7 x USB 3.2 Gen 2 ports (6 x Type-A, 1 x USB Type-C® )4 x USB 3.2 Gen 1 ports (4 x Type-A)1 x HDMI™ port1 x DisplayPort1 x Wi-Fi Module1 x Intel® 2.5Gb Ethernet port5 x Gold-plated audio jacks*1 x Optical S/PDIF out port1 x BIOS FlashBack™ button 1 x Clear CMOS button *The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis. USB Ports : Rear USB (Total 12 ports)1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C®)4 x USB 3.2 Gen 1 ports (4 x Type-A)Front USB (Total 9 ports)1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 30W PD Fast-charge)2 x USB 3.2 Gen 1 header support additional 4 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports Expansion Slots : Intel® 14th & 13th & 12th Gen Processors1 x PCIe 5.0 x16 slotIntel® Z790 Chipset2 x PCIe 4.0 x16 slots (support x4 mode) Audio : ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playbackAudio Features - SupremeFX Shielding Technology- Savitech SV3H712 AMP- Gold-plated audio jacks - Rear optical S/PDIF out port- Premium audio capacitors- Audio cover Internal I/O Connectors : Fan and Cooling related 1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector2 x 8-pin +12V Power connectorsStorage related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s portsUSB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 30W PD Fast-charge)2 x USB 3.2 Gen 1 header support additional 4 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x Alternative PCIe Mode Switch1 x AURA RGB header1 x CPU Over Voltage jumper1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function1 x Start button1 x Thermal Sensor header1 x Thunderbolt™ (USB4®) header Special Features : Extreme Engine Digi+- 5K Black Metallic CapacitorsASUS Q-Design - M.2 Q-Latch- PCIe Slot Q-Release- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink backplate- M.2 heatsink- VRM heatsink designASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- Clear CMOS button- CPU Socket lever protector- ProCool II- Pre-mounted I/O shield- SafeSlot- SafeDIMMAURA Sync- AURA RGB header- Addressable Gen 2 RGB headersFront Panel USB 3.2 Gen 2x2 with PD Fast-charge Support- Support: up to 30W charging- Output: 5/9V max. 3A, 12V max 2.5A- Compatible with PD3.0 Package Content : Cables2 x SATA 6Gb/s cables Additional Cooling Kit1 x DDR5 Fan holder1 x VRM Fan holder1 x Thermal pad for M.2Miscellaneous1 x ASUS Wi-Fi moving antennas 1 x Cable ties package1 x M.2 backplate Q-Latch package1 x M.2 Q-Latch package1 x ROG key chain1 x ROG Strix stickers1 x ROG Strix thank you card2 x M.2 Rubber Packages1 x M.2 backplate Rubber PackageDocumentation1 x User guide Product Size ( Dimension ) : 13.4 x 10.7 x 2.7" Product Weight : 3.495 lb Warranty : 1 Year ( As per Manufacturer Policy )
