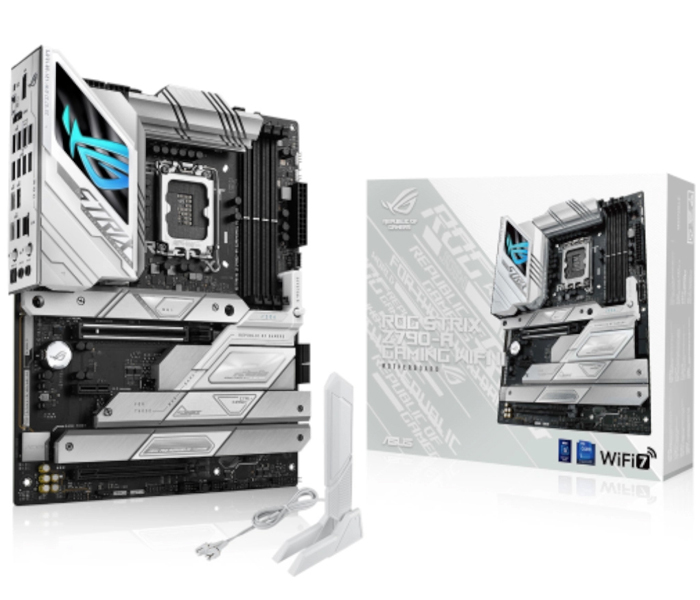

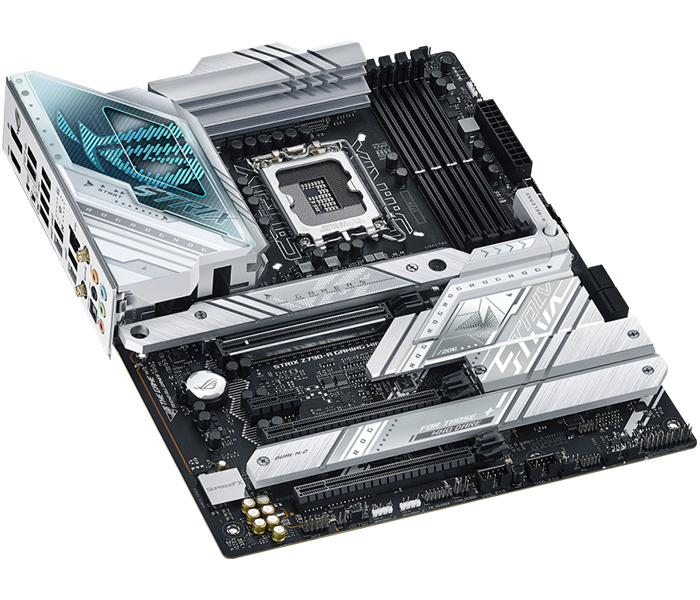

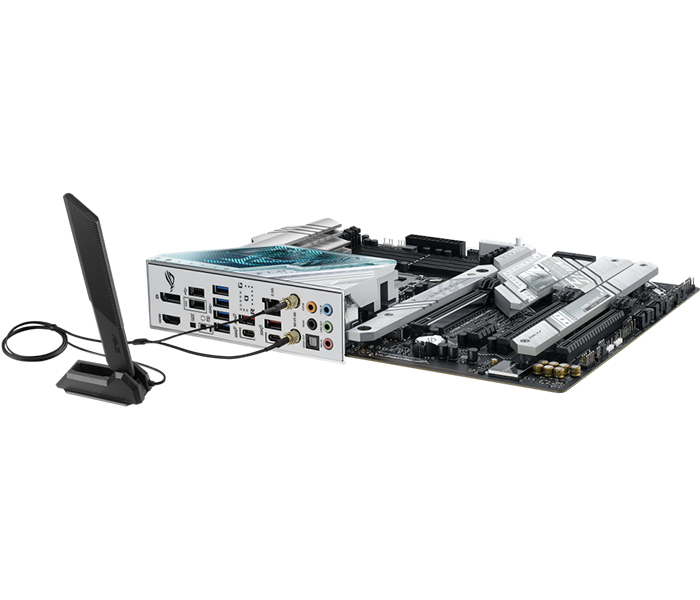

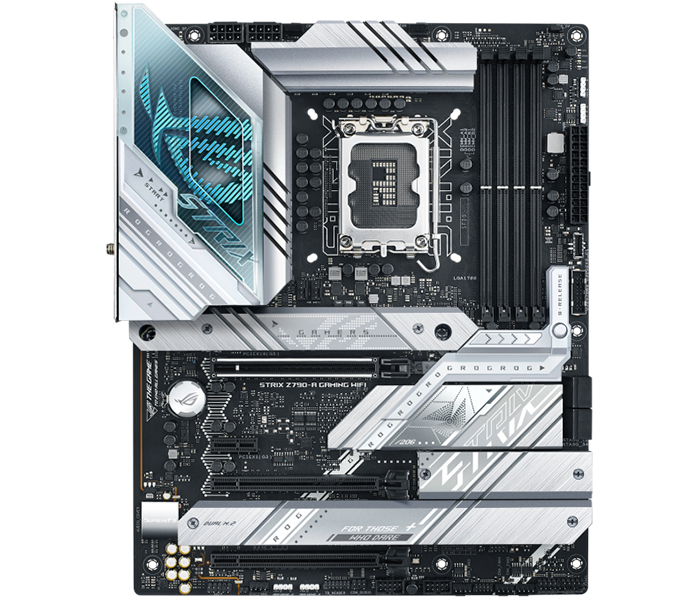

Asus Intel Rog Strix Z790-A WIFI DDR5 Gaming MotherBoard

Model No : Asus Intel Rog Strix Z790-A WIFI II DDR5 Gaming MotherBoard Part No : 90MB1FN0-M0EAY0 Chipset : Intel® Z790 Chipset Form Factor : ATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) Socket Compatibility : Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® ProcessorsSupports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Wireless & Bluetooth : Intel® Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be)** Supports 2.4/5/6GHz frequency band*** Support Wi-Fi 7 160MHz bandwidth, up to 2.4Gbps transfer rate. Bluetooth® v5.4**** * Compatible with Windows 11 or later. ** Wi-Fi 7 MLO(Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later. *** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. **** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. Ethernet : 1 x Intel® 2.5Gb EthernetASUS LANGuard Graphics : 1 x DisplayPort**1 x HDMI™ port*** * Graphics specifications may vary between CPU types.** Supports max. 8K@60Hz as specified in DisplayPort 1.4.*** Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors' or graphic cards' resolution. Memroy : 4 x DIMM slots, max. 192GB, DDR58000+(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*Dual channel memory architectureSupports Intel® Extreme Memory Profile (XMP) memory moduleSupports DIMM FlexOptiMem IIASUS Enhanced Memory Profile II (AEMP II)* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Storage Compatibility : Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*Intel® Core™ Processors (14th & 13th & 12th Gen)M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)Intel® Z790 ChipsetM.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)4 x SATA 6Gb/s ports* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. Back Panel I/O Ports : 1 x USB 20Gbps port (1 x USB Type-C®)3 x USB 10Gbps ports (2 x Type-A+1 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A)4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort1 x HDMI™ port1 x Wi-Fi module1 x Intel® 2.5Gb Ethernet2 x Audio jacks 1 x Optical S/PDIF out port1 x BIOS FlashBack™ button 1 x Clear CMOS button USB Ports : Rear USB (Total 12 ports)1 x USB 20Gbps port (1 x USB Type-C®)3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)4 x USB 5Gbps ports (4 x Type-A)4 x USB 2.0 ports (4 x Type-A)Front USB (Total 7 ports)1 x USB 20Gbps (supports USB Type-C® with up to with up to 30W PD Fast-charge )1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 ports Expansion Slots : Intel® Core™ Processors (14th & 13th & 12th Gen)*1 x PCIe 5.0 x16 slotIntel® Z790 Chipset1 x PCIe 4.0 x16 slot (supports x4 mode)1 x PCIe 3.0 x1 slot Audio : ROG SupremeFX 5.1 Surround Sound High Definition Audio CODEC ALC4080*- Impedance sense for front and rear headphone outputs- Supports: Jack-detection, Multi-streaming, Front and Rear Panel MIC Jack-retasking- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input- Supports up to 32-Bit/384 kHz playback on front panelAudio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Audio jacks- Rear optical S/PDIF out port- Premium audio capacitors- Audio cover**** The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis. Internal I/O Connectors : Fan and Cooling Related 1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header5 x 4-pin Chassis Fan headersPower Related 1 x 24-pin main power connector2 x 8-pin +12V power connectorStorage Related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s portsUSB 1 x USB 20Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x Aura RGB header1 x CPU Over voltage jumper1 x Front panel audio header (F_AUDIO)1 x 20-3 pin system panel header with Chassis intrude function1 x Thermal sensor header1 x Thunderbolt™ (USB4®) header Special Features : Extreme Engine Digi+- 5K Black metallic capacitorsASUS Q-Design- M.2 Q-Latch- PCIe Slot Q-Release- Q-Antenna- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) with DRAM Detection- Q-SlotASUS Thermal Solution- M.2 heatsink backplate- M.2 heatsink- VRM heatsink designASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- Clear CMOS button- CPU Socket lever protector- ProCool II- Pre-mounted I/O shield- SafeSlot- SafeDIMMAura Sync- Aura RGB header- Addressable Gen 2 headersFront Panel USB 20Gbps with PD Fast Charge Support- Support: up to 30W charging- Support: USB power delivery notification with power output wattage display- Output: 5V/9V max. 3A, 12V max 2.5A- Compatible with PD3.0 Package Content : Cables2 x SATA 6Gb/s cablesAdditional Cooling Kit1 x Thermal pad for M.2Miscellaneous1 x ASUS Wi-Fi Q-Antenna1 x Cable ties package1 x M.2 backplate Q-Latch package1 x M.2 Q-Latch package1 x ROG key chain1 x ROG Strix stickers 2 x M.2 rubber packages1 x M.2 backplate Rubber packageDocumentation1 x Quick start guide BIOS : 256 Mb Flash ROM, UEFI AMI BIOS Manageability : WOL by PME, PXE Warranty : 1 Year ( As per Manufacturer Policy )
