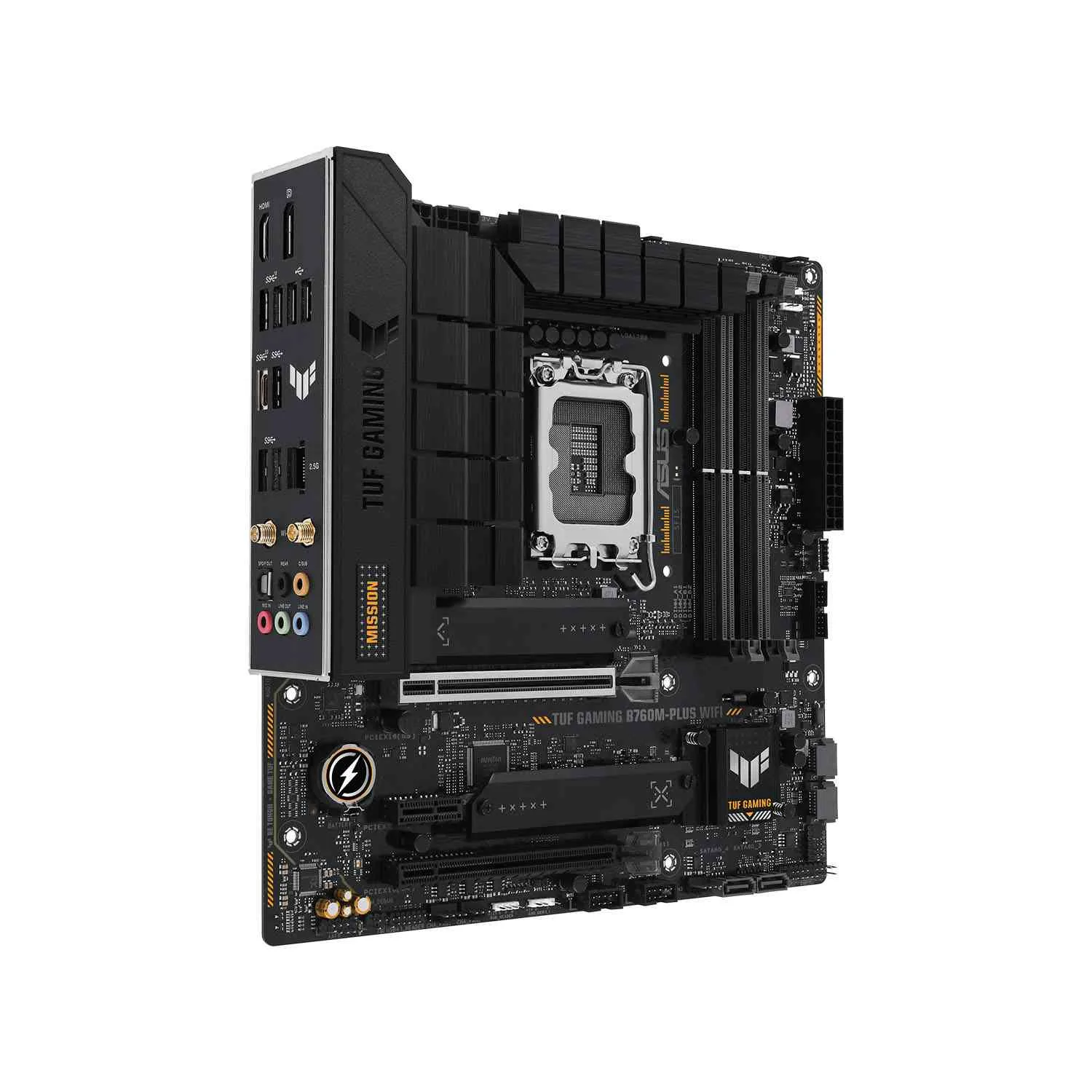

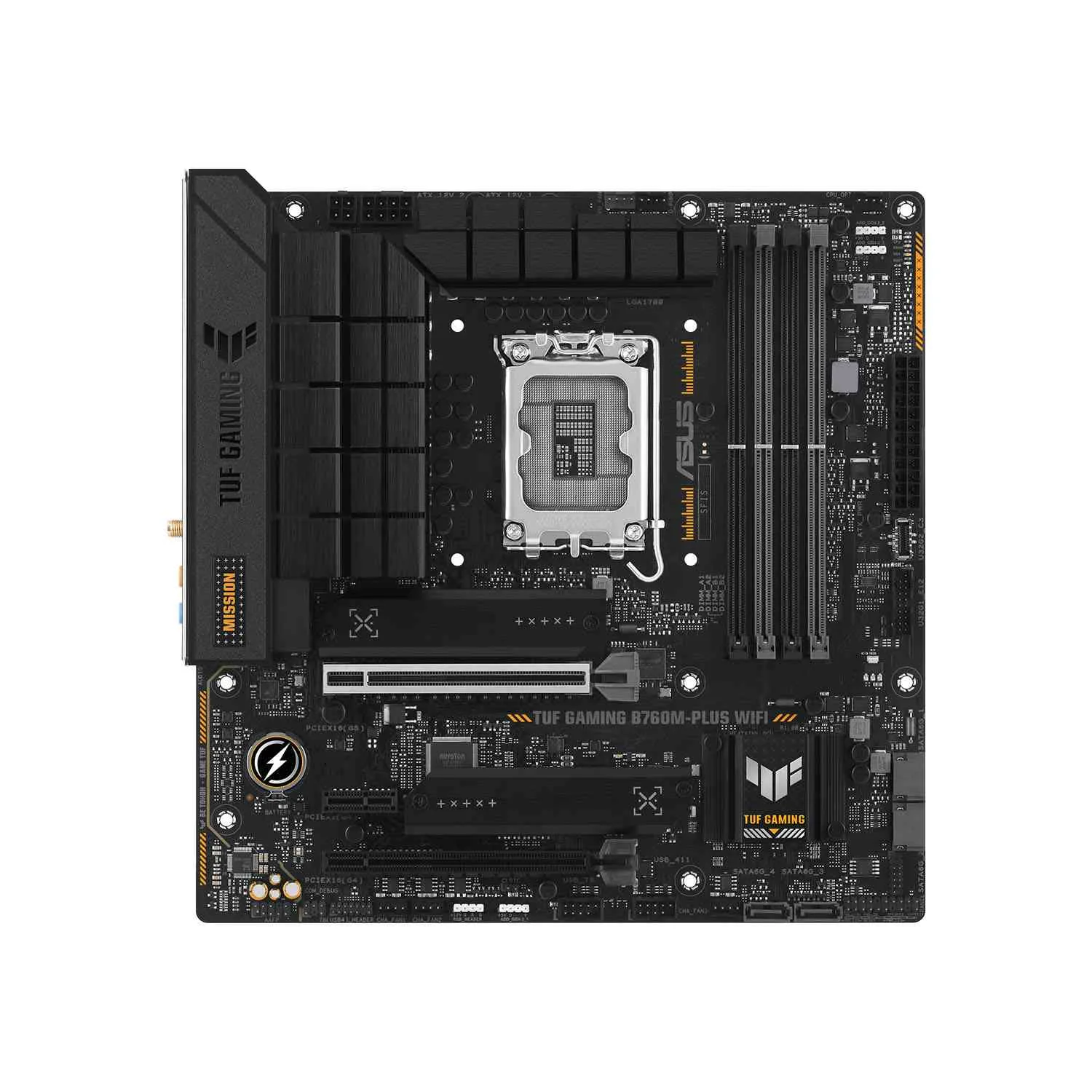

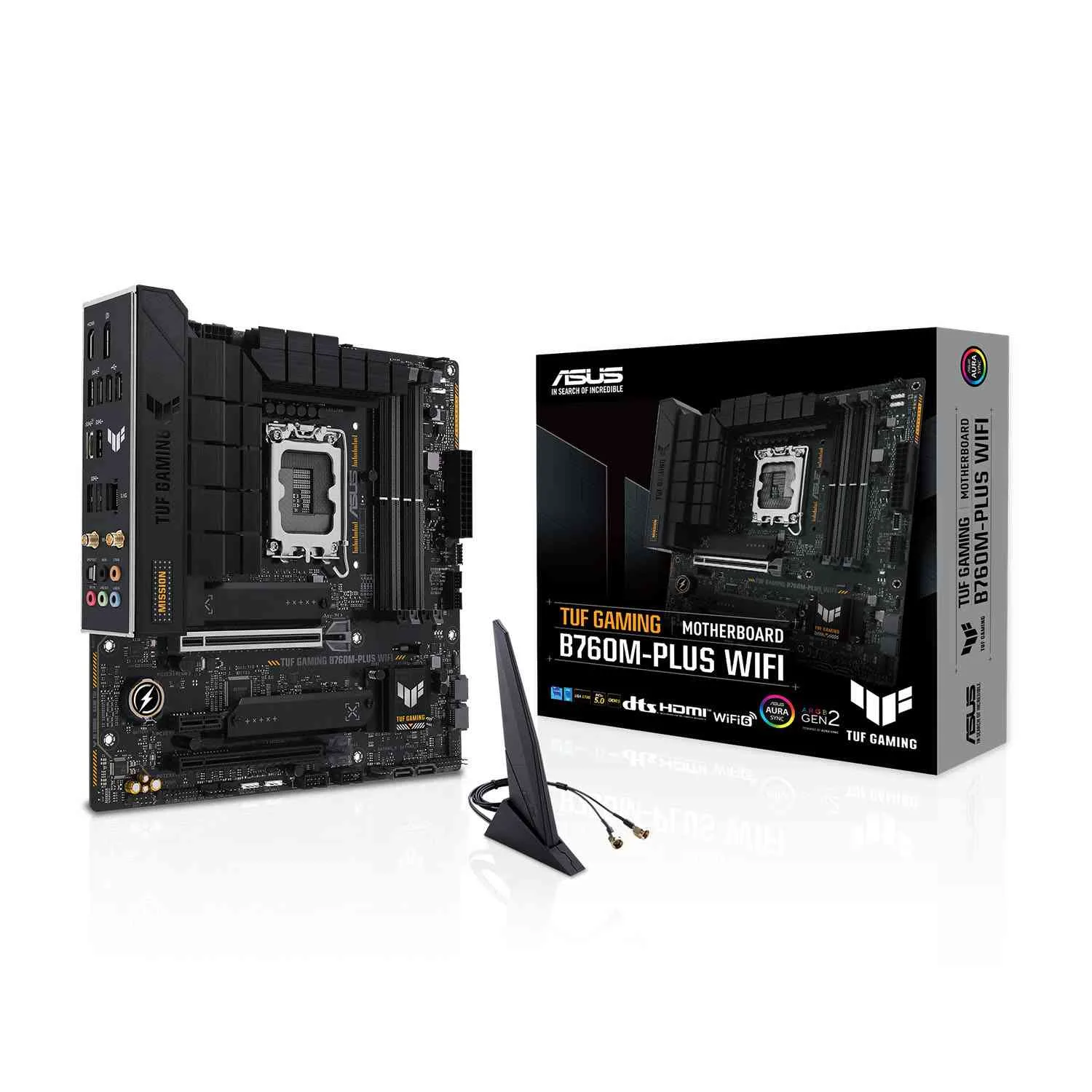

Asus Intel TUF B760M-PLUS WIFI DDR5 Gaming MotherBoard

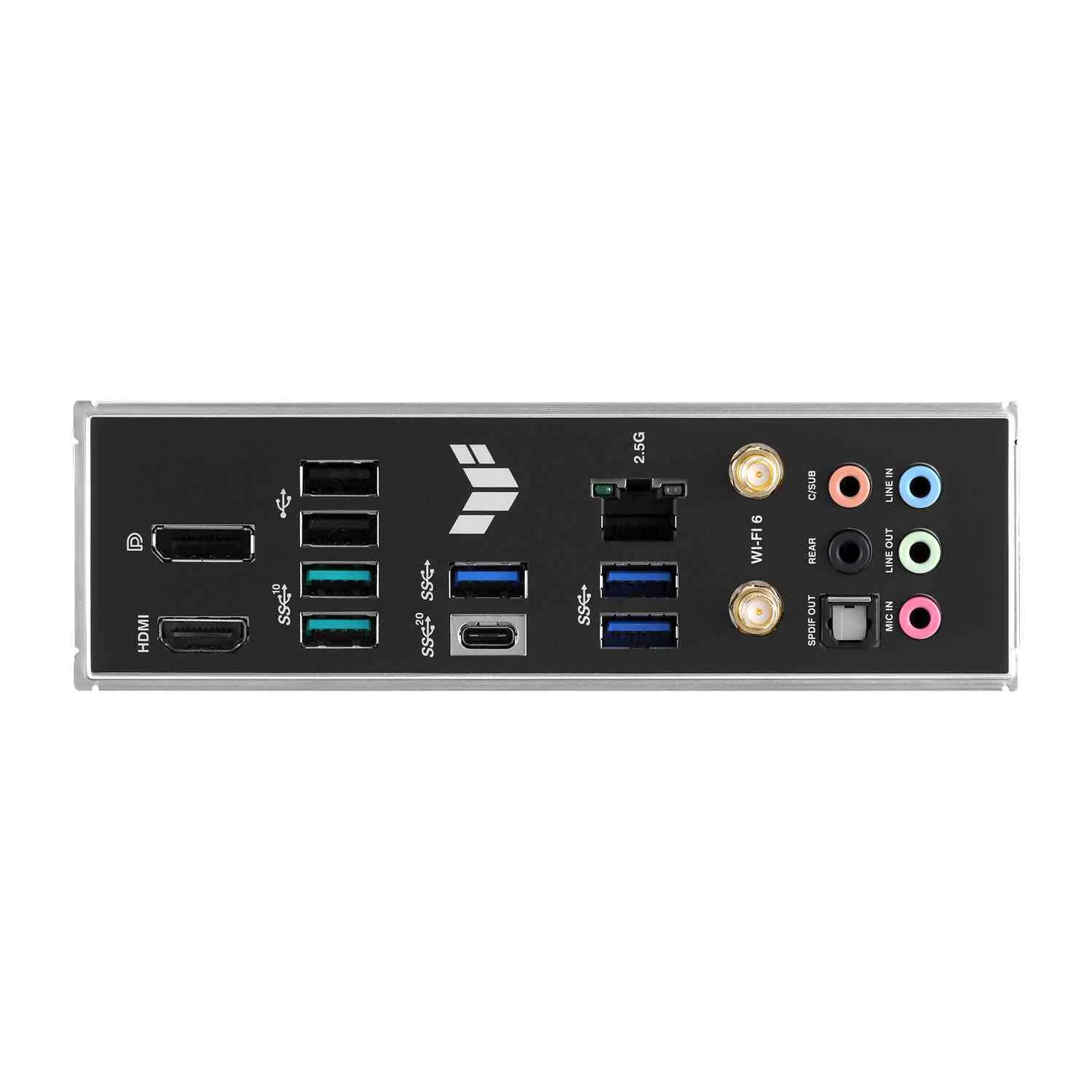

Model No : Asus Intel TUF Gaming B760M-PLUS WIFI DDR5 MotherBoard Part No : 90MB1ET0-M0EAY0 Chipset : Intel® B760 Chipset Form Factor : mATX Form Factor9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm ) Socket Compatibility : Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Ethernet : 1 x Realtek 2.5Gb EthernetTUF LANGuard Wireless & Bluetooth : Wi-Fi 62x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)Supports 2.4/5GHz frequency bandBluetooth® v5.2* Memroy Type : 4 x DIMM slots, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)OptiMem II* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Storage Compatibility : Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*Intel® 13th & 12th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)Intel® B760 ChipsetM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. Graphics : 1 x DisplayPort**1 x HDMI™port**** Graphics specifications may vary between CPU types.** Supports max. 4K@60Hz as specified in DisplayPort 1.4. ***Supports 4K@60Hz as specified in HDMI 2.1. USB Ports : Rear USB (Total 8 ports)1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)2 x USB 3.2 Gen 2 ports (2 x Type-A)3 x USB 3.2 Gen 1 ports (3 x Type-A)2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports)1 x USB 3.2 Gen 2 connector (supports USB Type-C®)*1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports* Expansion Slots : Intel® 13th & 12th Gen Processors1 x PCIe 5.0 x16 slotIntel® B760 Chipset1 x PCIe 4.0 x16 slot (supports x4 mode)1 x PCIe 4.0 x1 slot Audio : Realtek 7.1 Surround Sound High Definition Audio CODEC- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playback "Audio Features - Audio Shielding- Rear optical S/PDIF out port- Premium audio capacitors- Dedicated audio PCB layers Back Panel I/O Ports : 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)2 x USB 3.2 Gen 2 ports (2 x Type-A)3 x USB 3.2 Gen 1 ports (3 x Type-A)2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort1 x HDMI™ port1 x Wi-Fi Module1 x Realtek 2.5Gb Ethernet port5 x Audio jacks 1 x Optical S/PDIF out port Internal I/O Connectors : I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header3 x 4-pin Chassis Fan headersPower related 1 x 24-pin Main Power connector1 x 8-pin +12V Power connector1 x 4-pin +12V Power connectorStorage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s portsUSB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x AURA RGB header1 x Clear CMOS header1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function1 x Thunderbolt™ (USB4®) header Special Features : ASUS TUF PROTECTION- DIGI+ VRM (- Digital power design with DrMOS)- ESD Guards - TUF LANGuard- Overvoltage Protection- SafeSlot Core+- Stainless-Steel Back I/OASUS Q-Design - M.2 Q-Latch- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink - VRM heatsink designASUS EZ DIY- CPU Socket lever protector- ProCool- Pre-mounted I/O shield- SafeDIMMAURA Sync- AURA RGB header- Addressable Gen 2 headers Accessories : Cables2 x SATA 6Gb/s cables Miscellaneous1 x ASUS Wi-Fi moving antennas 1 x M.2 Rubber Package1 x Screw package for M.2 SSD1 x TUF Gaming stickerDocumentation1 x TUF Certification card1 x User guide Operating System : Windows® 11, Windows® 10 64-bit Manageability : WOL by PME, PXE BIOS : 128 Mb Flash ROM, UEFI AMI BIOS Warranty : 1 Year ( As per Manufacturer Policy )
