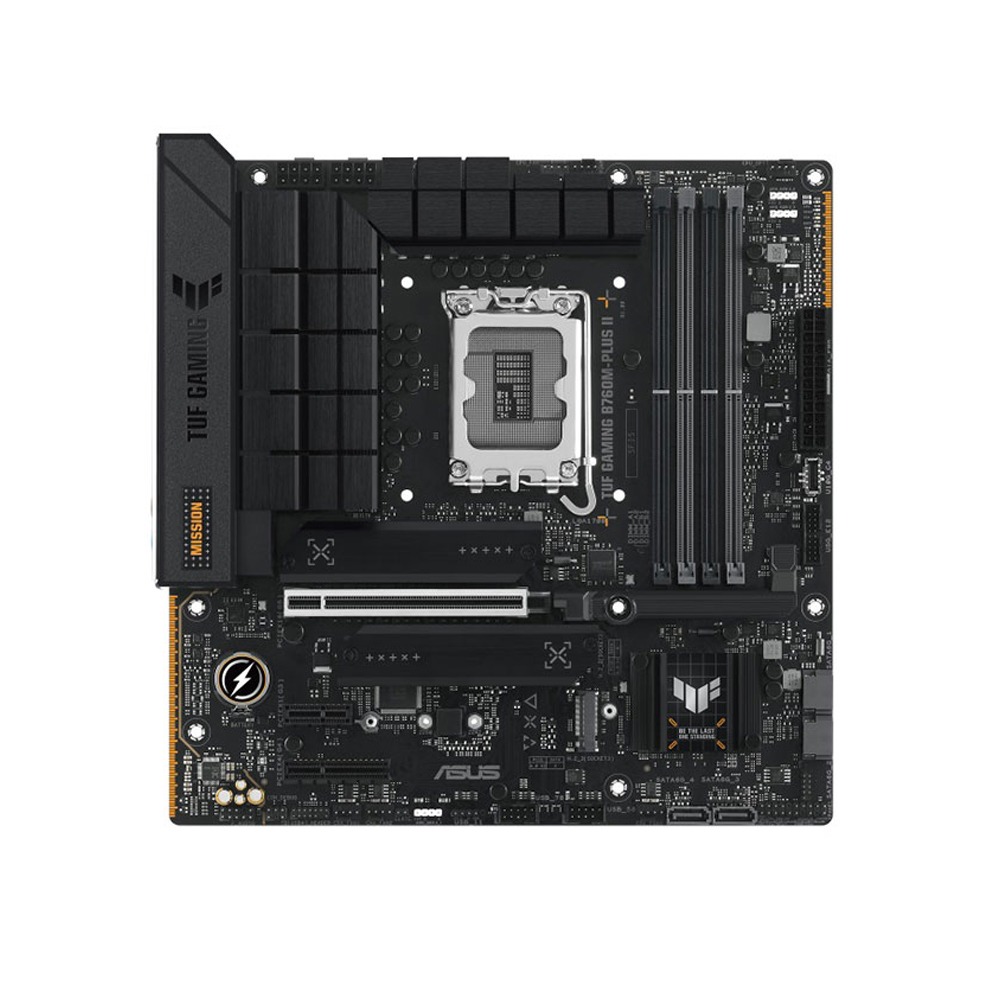

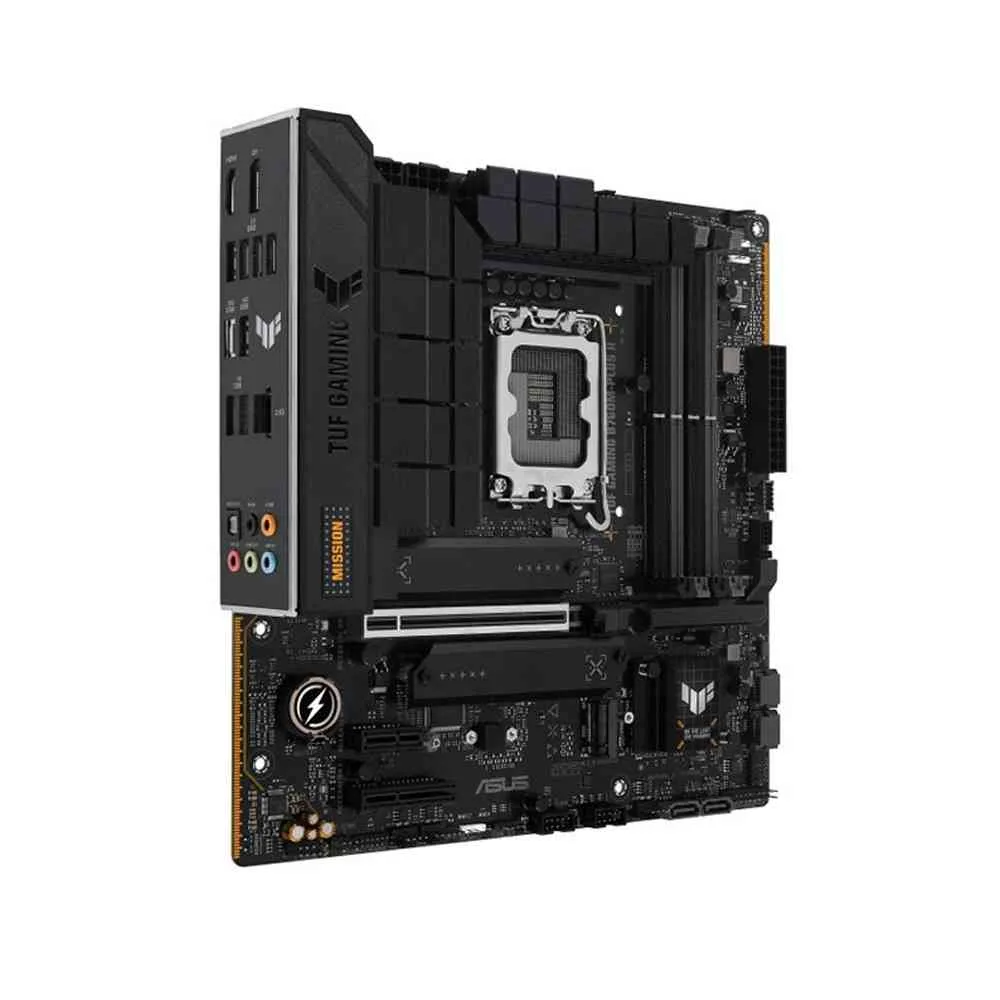

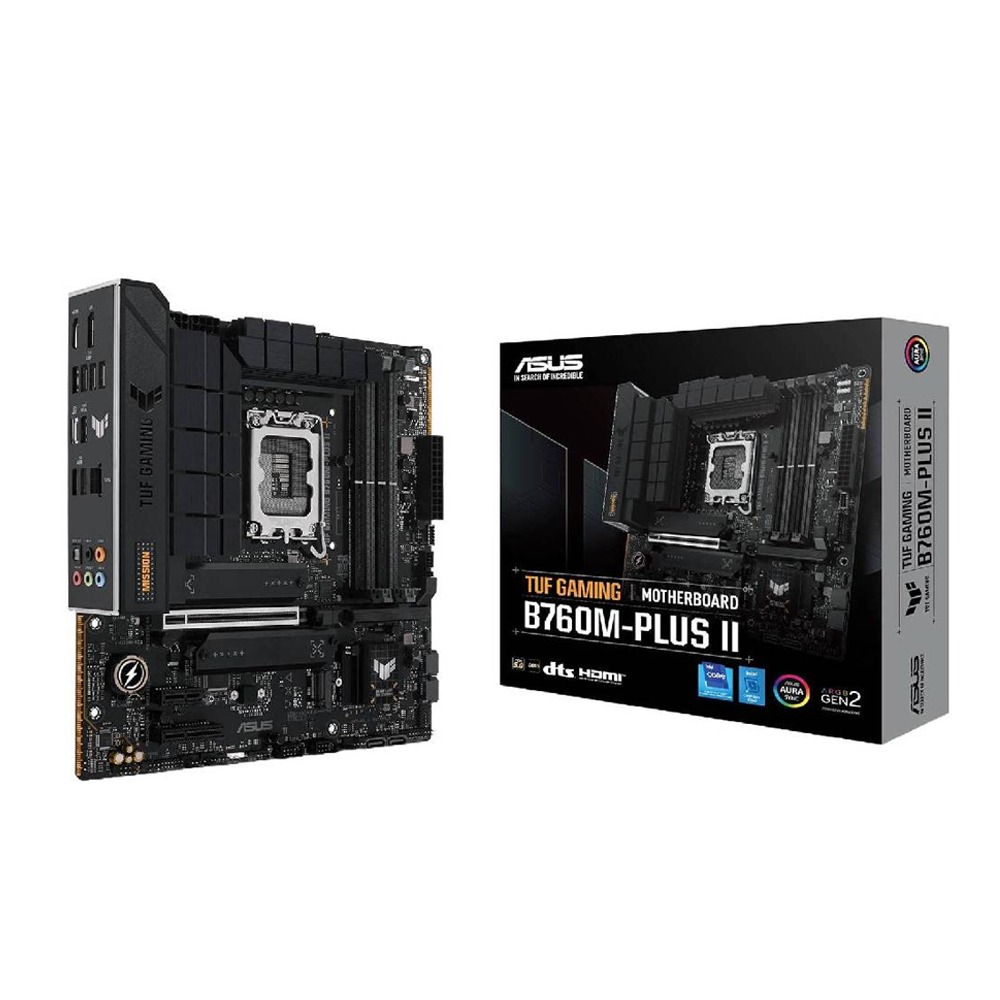

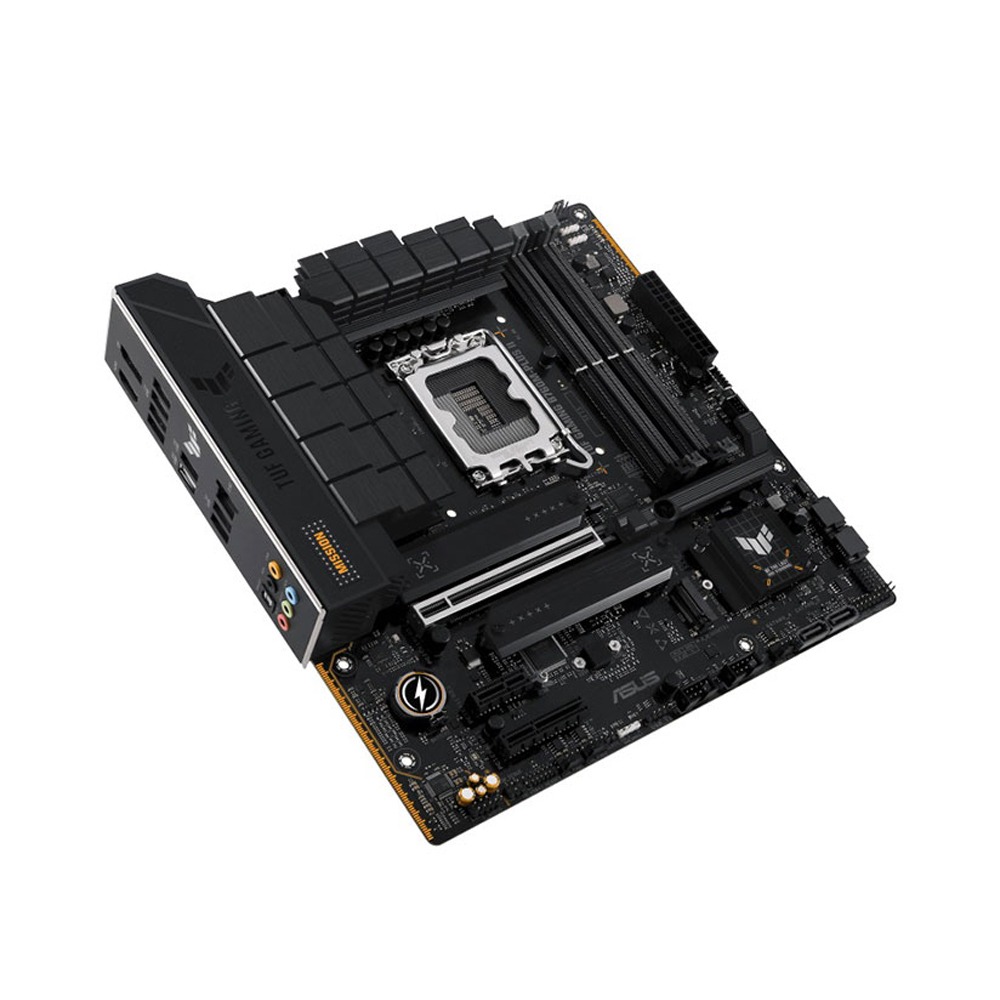

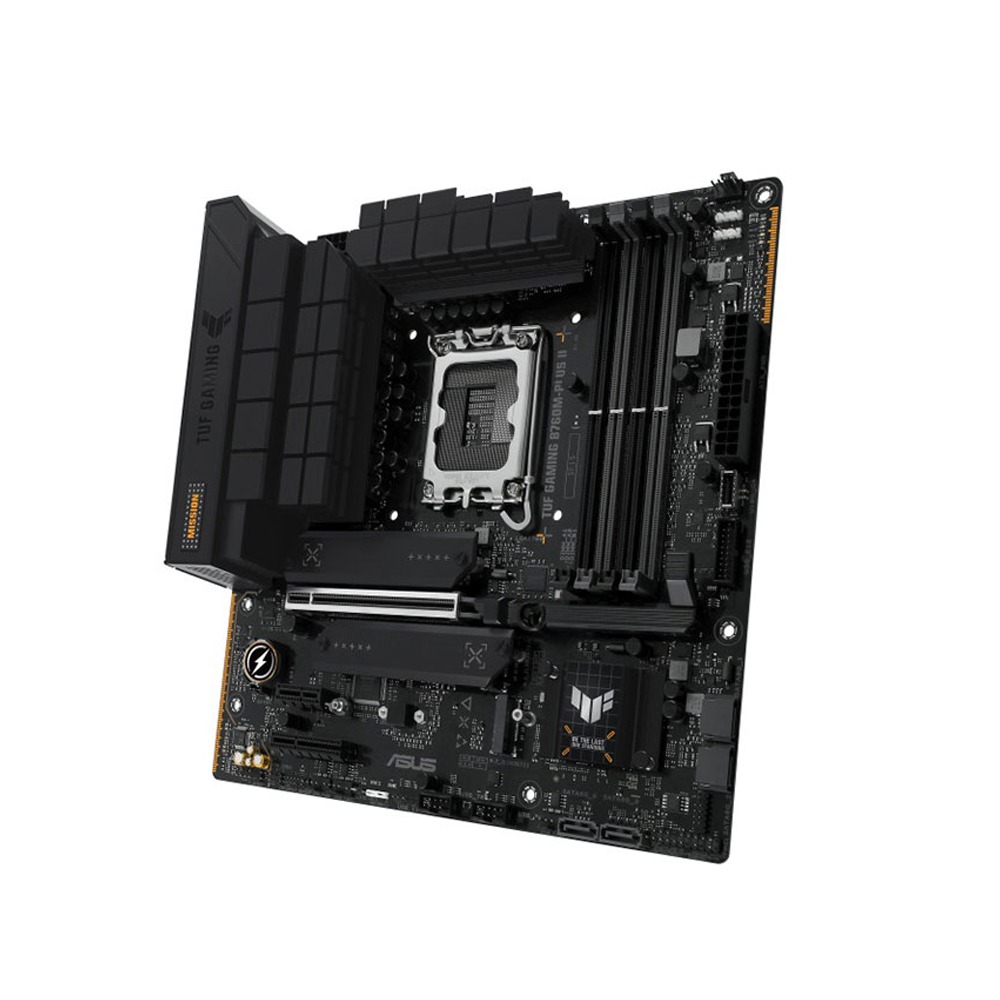

Asus Intel TUF Gaming B760M-PLUS II DDR5 MotherBoard

Model No : Asus Intel TUF Gaming B760M-PLUS II DDR5 MotherBoard Part No : 90MB1HD0-M0EAY0 Chipset : Intel® B760 Chipset Form Factor : micro-ATX Form Factor9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) Socket Compatibility : Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Ethernet : 1 x Realtek 2.5Gb EthernetTUF LANGuard Memroy Type : 4 x DIMM slots, Max. 192GB, DDR57800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*Dual channel memory architectureSupports Intel® Extreme Memory Profile (XMP)ASUS Enhanced Memory Profile II (AEMP II)* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration.* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Storage Compatibility : Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*Intel®Core™Processors (14th& 13th& 12th Gen)M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode)Intel®B760 Chipset**M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)4 x SATA 6Gb/s ports***** Intel® Rapid Storage Technology supportsSATA RAID 0/1/5/10. Graphics : 1 x DisplayPort**1 x HDMI™ port**** Graphics specifications may vary between CPU types.** Supports max. 4K@60Hz as specified in DisplayPort 1.4.***Supports 4K@60Hz as specified in HDMI 2.1.**** VGA resolution support depends on processors' or graphic cards' resolution. USB Ports : Rear USB (Total 8 ports)1 x USB 20Gbps port (1 x USB Type-C®)1 x USB 10Gbps port (1 x Type-A)2 x USB 5Gbps ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A)Front USB (Total 8 ports)1 x USB 10Gbps connector (supports USB Type-C®)*1 x USB 5Gbps header supports 2 additional USB 5Gbps ports3 x USB 2.0 headers support 5 additional USB 2.0 ports Expansion Slots : Intel®Core™Processors (14th& 13th& 12th Gen)*1 x PCIe 5.0 x16 slotIntel®B760 Chipset1 x PCIe 4.0 x4 slot1 x PCIe 3.0 x1 slot Audio : Realtek 7.1 Surround Sound High Definition Audio CODEC- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Rear optical S/PDIF out port- Premium audio capacitors- Dedicated audio PCB layers Back Panel I/O Ports : 1 x USB 20Gbps port (1 x USB Type-C®)1 x USB 10Gbps port (1 x Type-A)2 x USB 5Gbps ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A)1 x DisplayPort1 x HDMI™ port1 x Realtek 2.5Gb Ethernet port5 x Audio jacks1 x Optical S/PDIF out port Internal I/O Connectors : Fan and Cooling Related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header3 x 4-pin Chassis Fan headersPower Related1 x 24-pin Main Power connector2 x 8-pin +12V Power connectorsStorage Related3 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 10Gbps connector (supports USB Type-C®)1 x USB 5Gbps header supports 2 additional USB 5Gbps ports3 x USB 2.0 headers support 5 additional USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x Clear CMOS header1 x Front Panel Audio header (F-AUDIO)1 x20-3 pin System Panel header with chassis intrusion function1 x Thunderbolt™ (USB4®) header Special Features : ASUS TUF PROTECTION- DIGI+ VRM (- Digital power design with DrMOS)- ESD Guards- TUF LANGuard- Overvoltage Protection- SafeSlot Core+- Stainless-steel back I/OASUS Q-Design- M.2 Q-Latch- PCIe Slot Q-Release- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])ASUS Thermal Solution- M.2 heatsinks- VRM heatsink designASUS EZ DIY- CPU Socket lever protector- ProCool- Pre-mounted I/O shield- SafeDIMMAura Sync- Addressable Gen 2 headers Accessories : Cables2 x SATA 6Gb/s cablesMiscellaneous1 x M.2 rubber package1 x TUF GAMING sticker2 x Screw packages for M.2 SSDDocumentation1 x TUF certification card1 x Quick start guide Operating System : Windows® 11, Windows® 10 64-bit Manageability : WOL by PME, PXE BIOS : 128 Mb Flash ROM, UEFI AMI BIOS Warranty : 1 Year ( As per Manufacturer Policy )
