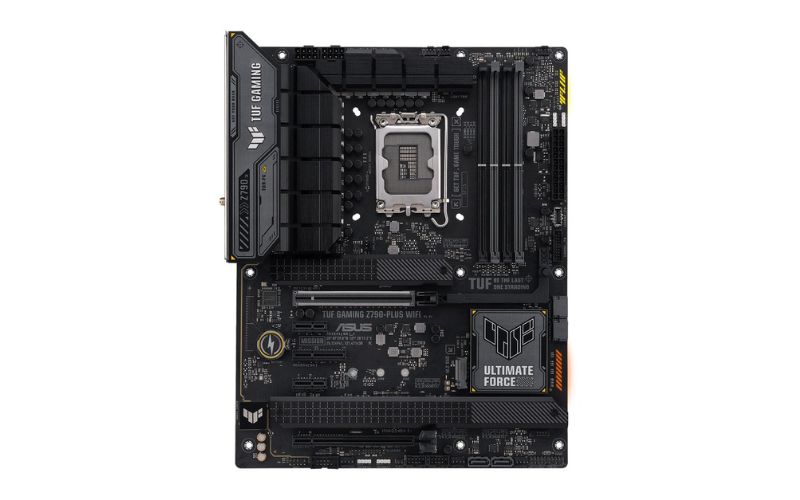

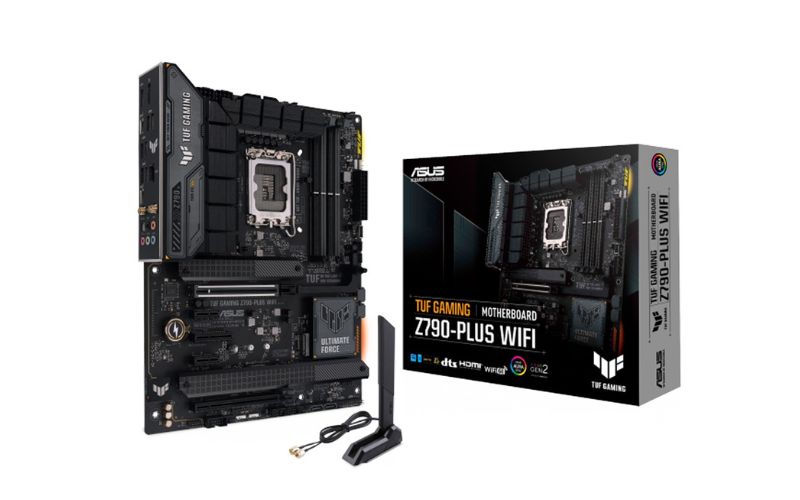

Asus Intel TUF Gaming Z790-PLUS WIFI ARGB Gen2 DDR5 Motherboard

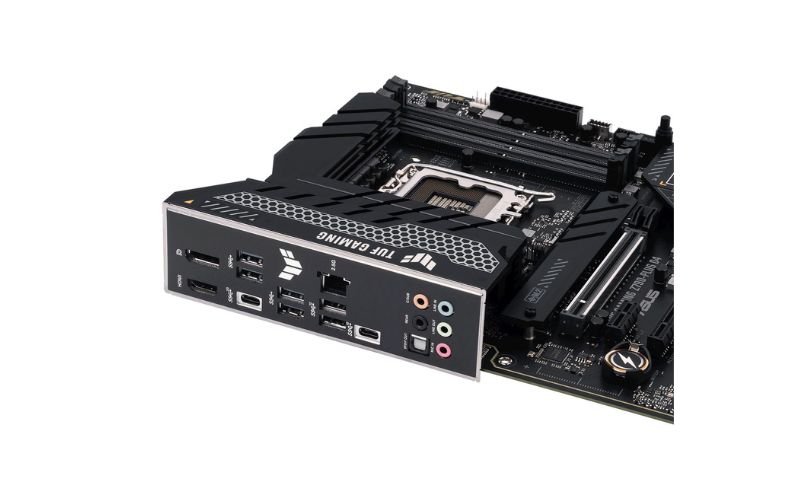

Model No : Asus Intel TUF Gaming Z790-PLUS WIFI ARGB Gen2 DDR5 Motherboard Part No / SKU : 90MB1D80-M1UAY0 Chipset : Intel Z790 Form Factor : ATX (305 mm × 244 mm) Socket Compatibility : LGA 1700 — supports Intel 14th, 13th & 12th Gen Core / Pentium Gold / Celeron CPUs Wireless & Bluetooth : Wi-Fi 6E (2×2) & Bluetooth 5.3 Lighting : Aura Edge RGB lighting; ARGB (Gen2) header support Memory Type : DDR5 Memory Compatibility : 4 × DIMM slots, up to 192 GB OC support: DDR5 up to 7200+ (OC) and various standard speeds; dual channel architecture Storage Compatibility : 4 × M.2 slots (Key M) 4 × SATA 6 Gb/s ports Supports PCIe 4.0 x4 and NVMe / SATA modes depending on slot Expansion Slots : 1 × PCIe 5.0 x16 1 × PCIe 4.0 x16 (operates at x4) 1 × PCIe 4.0 x4 2 × PCIe 3.0 x1 Back Panel I/O Ports : 1 × USB 3.2 Gen 2x2 Type-C 3 × USB 3.2 Gen 2 (2 × Type-A + 1 × Type-C) 4 × USB 3.2 Gen 1 Type-A 1 × DisplayPort 1 × HDMI 2.1 1 × Intel 2.5 Gb Ethernet Wi-Fi antennas 5 × analog audio jacks + optical S/PDIF out Internal I/O / Headers : 24-pin ATX power 2 × 8-pin +12V CPU power Fan and pump headers (CPU, CPU-OPT, 4 chassis) USB 3.2 Gen 2 header, USB 3.2 Gen1 headers, USB 2.0 headers ARGB / RGB headers Clear CMOS Q-LED, Q-Release, M.2 Q-Latch, front panel audio, system panel, Thunderbolt (USB4) header Audio : Realtek S1220A 7.1-channel HD audio codec 120 dB SNR stereo output, 113 dB SNR input Audio shielding, premium caps, dedicated audio PCB layers Special Features : TUF PROTECTION (DIGI+ VRM, SafeSlot, ESD Guards, Overvoltage Protection) Q-Design (Q-LED, Q-Release, Q-Latch, stun features) Aura RGB support Robust VRM & cooling solution with heatsinks Pre-mounted I/O shield Product Size (Dimension) : 305 mm × 244 mm Product Weight : (Not specified) Package Content : Motherboard, Wi-Fi antennas, SATA cables, M.2 screws, user manual, RGB stickers, I/O shield, driver disc Warranty : 1 Year ( As per Manufacturer Policy )
