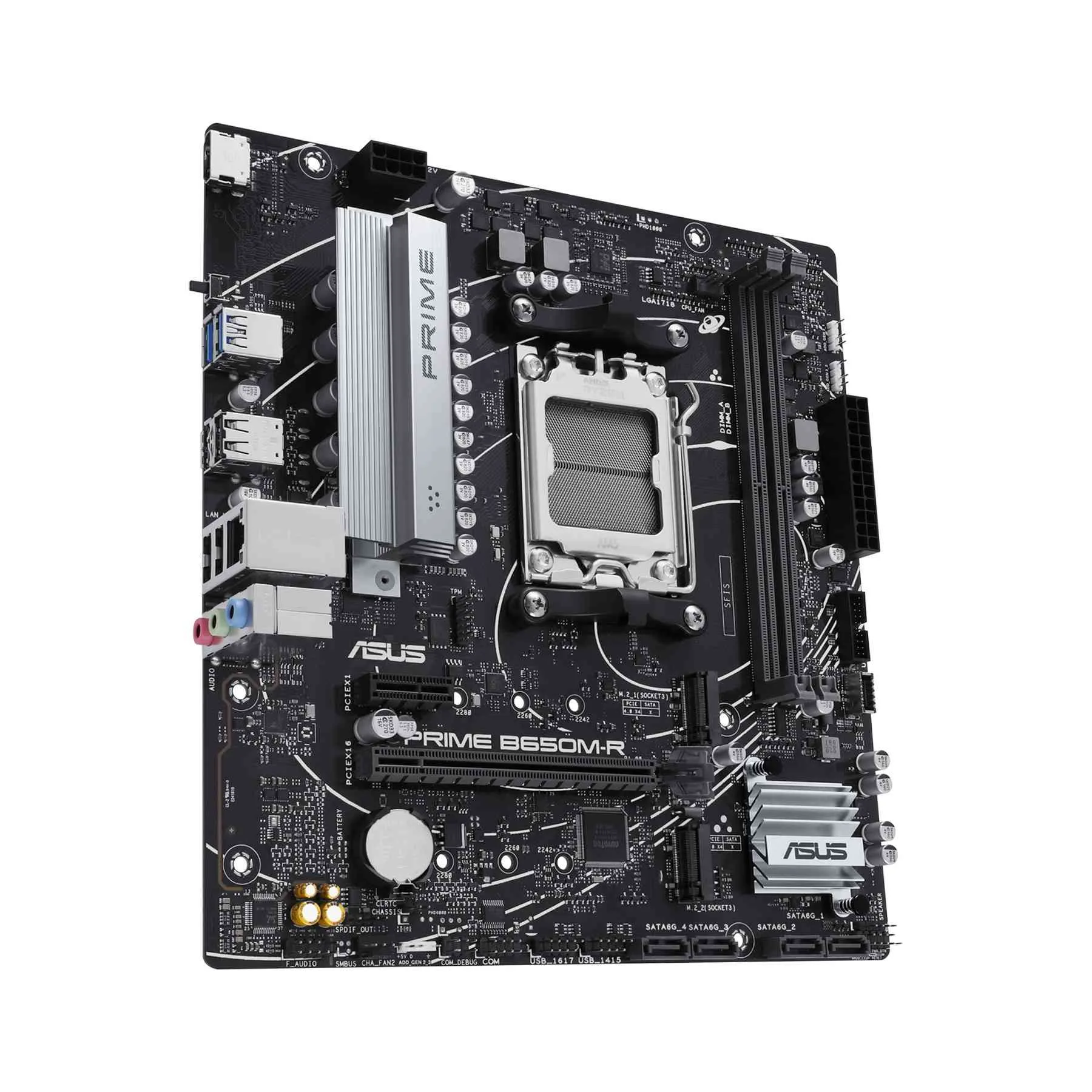

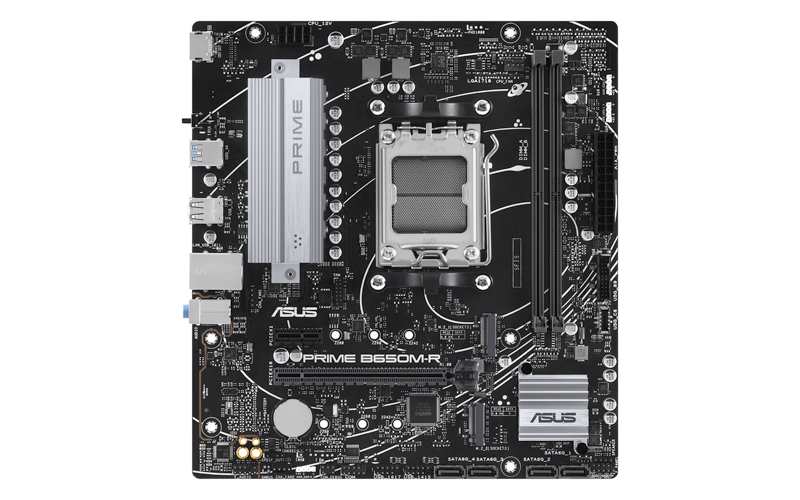

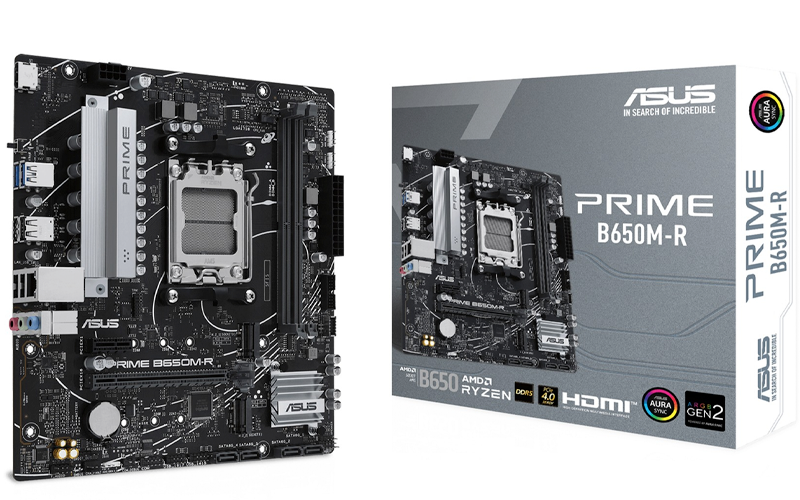

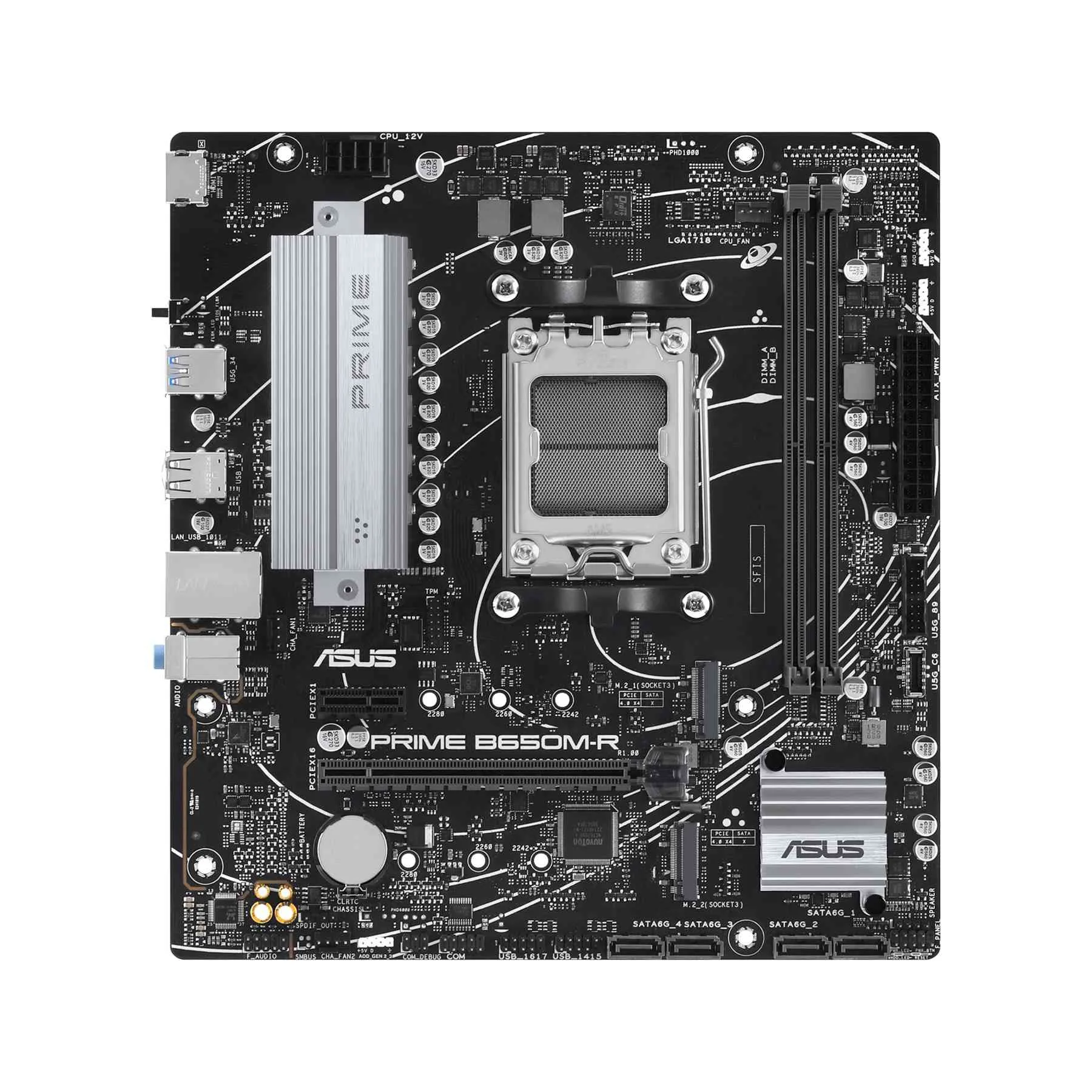

ASUS Prime B650M-R AMD DDR5 AM5 Motherboard

Model No : ASUS Prime B650M-R AMD DDR5 AM5 Motherboard Part No : 90MB1H30-M0EAY0 Chipset : AMD B650 Chipset Form Factor : micro-ATX Form Factor9.3 inch x 8.7 inch ( 23.6 cm x 22.1 cm ) Socket Compatibility : AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* Ethernet : 1 x Realtek 2.5Gb Ethernet Graphics : 1 x HDMI™ port** Graphics specifications may vary between CPU types.** Supports 4K@60Hz as specified in HDMI 2.1. Memroy : 2 x DIMM slots, Max. 96GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports AMD Extended Profiles for Overclocking (EXPO™)OptiMem II Storage Compatibility : Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)AMD B650 ChipsetM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. Expansion Slot : AMD Ryzen™ 9000 & 7000 Series Desktop Processors*1 x PCIe 4.0 x16 slot (supports x16 mode)AMD Ryzen™ 8000 Series Desktop Processors1 x PCIe 4.0 x16 slot (supports x8/x4 mode)AMD B650 Chipset1 x PCIe 4.0 x1 slots Back Panel I/O Ports : 2 x USB 5Gbps ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A)1 x HDMI™ port1 x Realtek 2.5Gb Ethernet port3 x Audio jacks1 x BIOS FlashBack™ button Audio : Realtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Internal I/O Connectors : Fan and Cooling related1 x 4-pin CPU Fan header2 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 5Gbps connector (supports USB Type-C® )1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x S/PDIF Out header1 x Speaker header1 x SPI TPM header (14-1pin)1 x 10-1 pin System Panel header USB : Rear USB (Total 6 ports)2 x USB 5Gbps ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A)Front USB (Total 7 ports)1 x USB 5Gbps connector (supports USB Type-C®)1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 ports Manageability : WOL by PME, PXE BIOS : 256 Mb Flash ROM, UEFI AMI BIOS Special Features : ASUS 5X PROTECTION III- DIGI+ VRM- LANGuard- Overvoltage Protection- Safeslot Core- Stainless-Steel Back I/OASUS Q-Design- Q-DIMM- Q-LED Core- Q-SlotASUS Thermal Solution- VRM heatsink designASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LEDAura Sync- Addressable Gen 2 headers Accessories : Cables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O Shield2 x M.2 AnchorsDocumentation1 x Quick start guide Warranty : 1 Year ( As per Manufacturer Policy )
