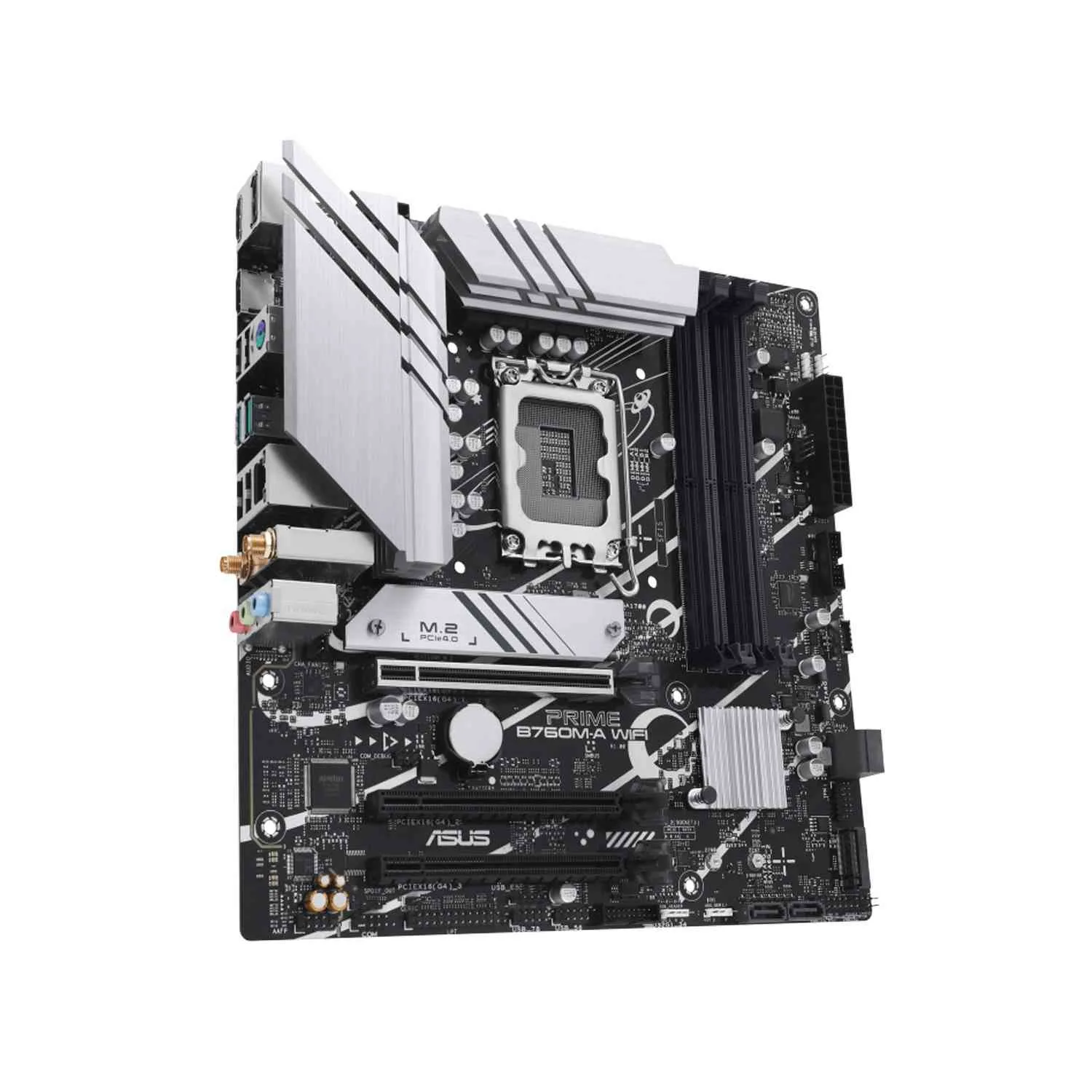

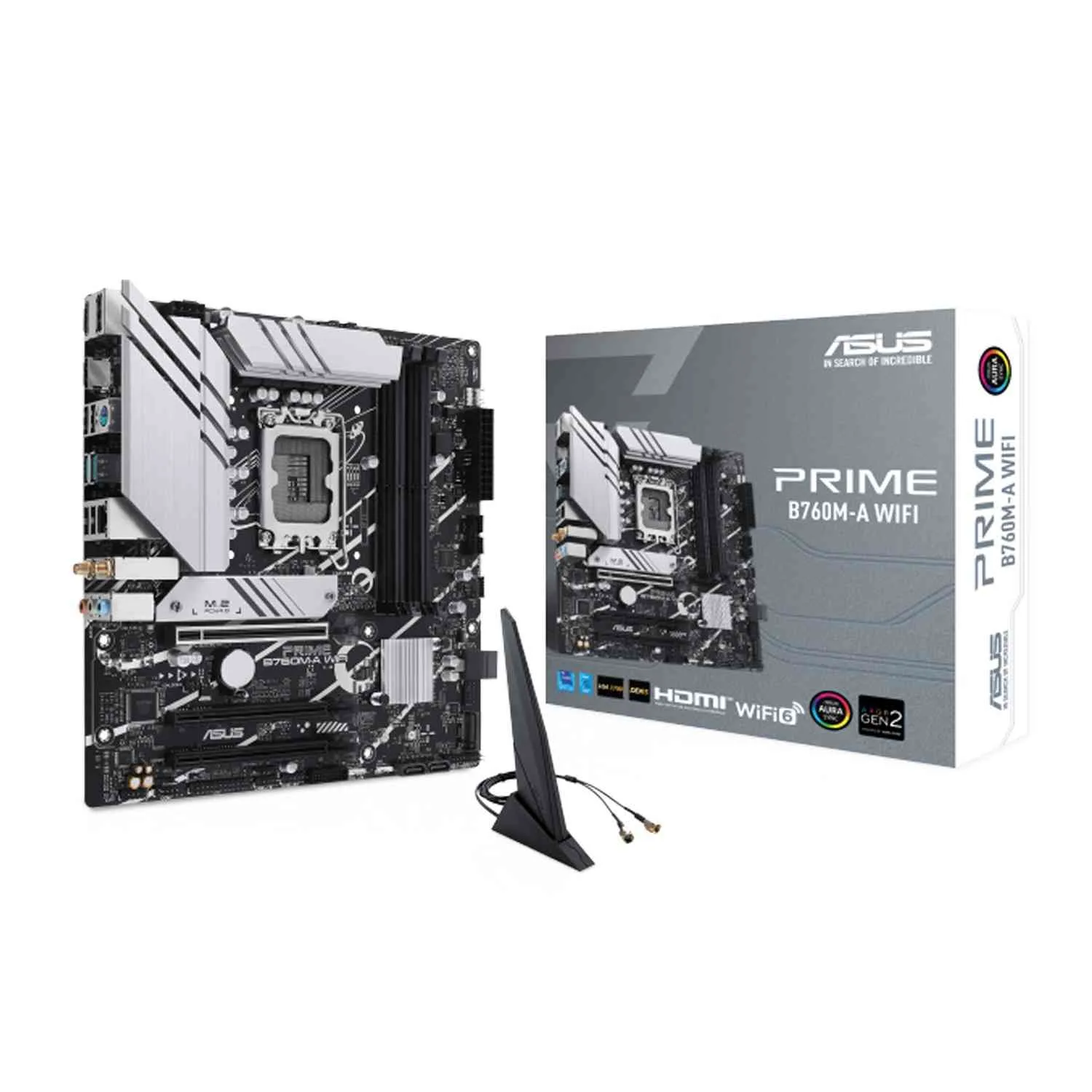

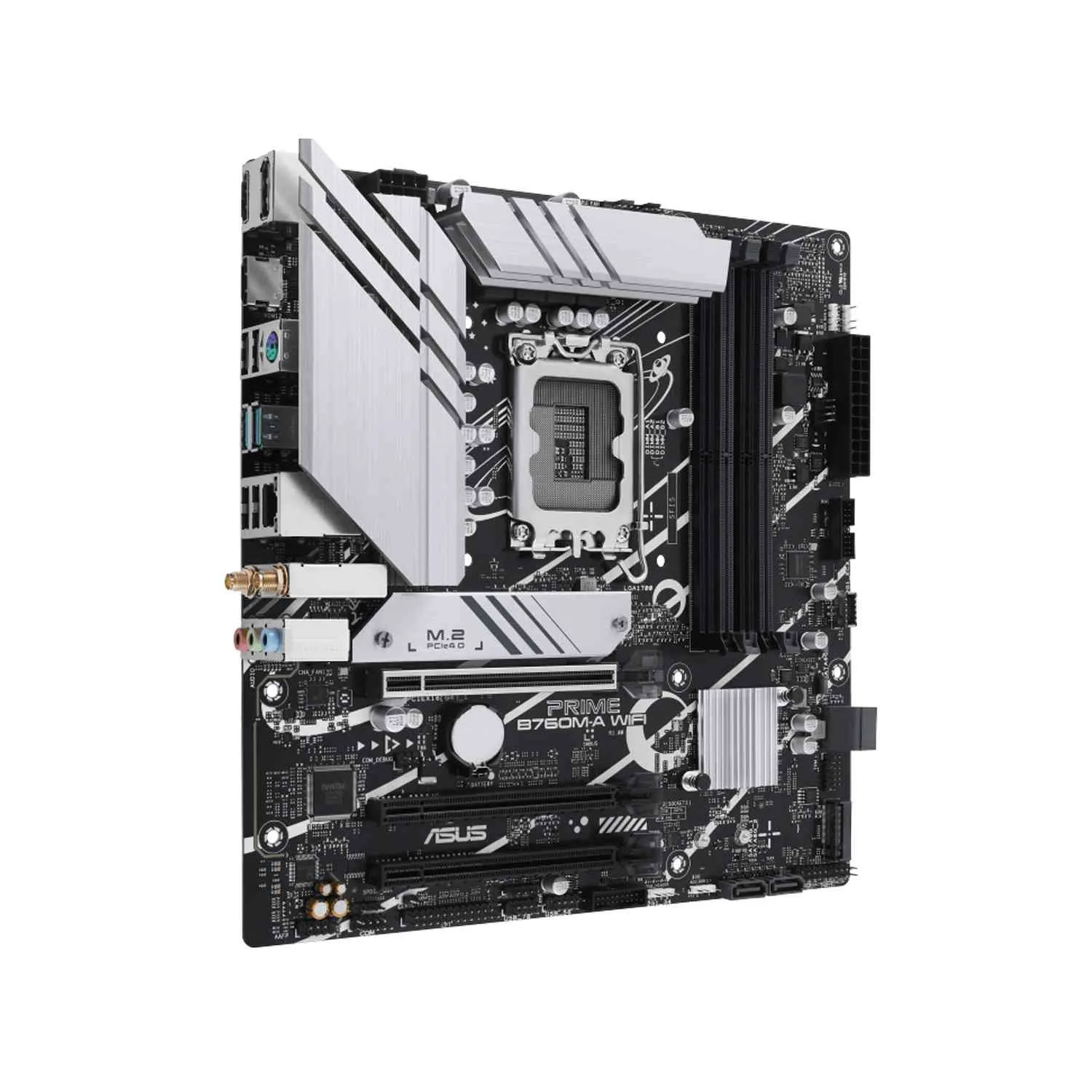

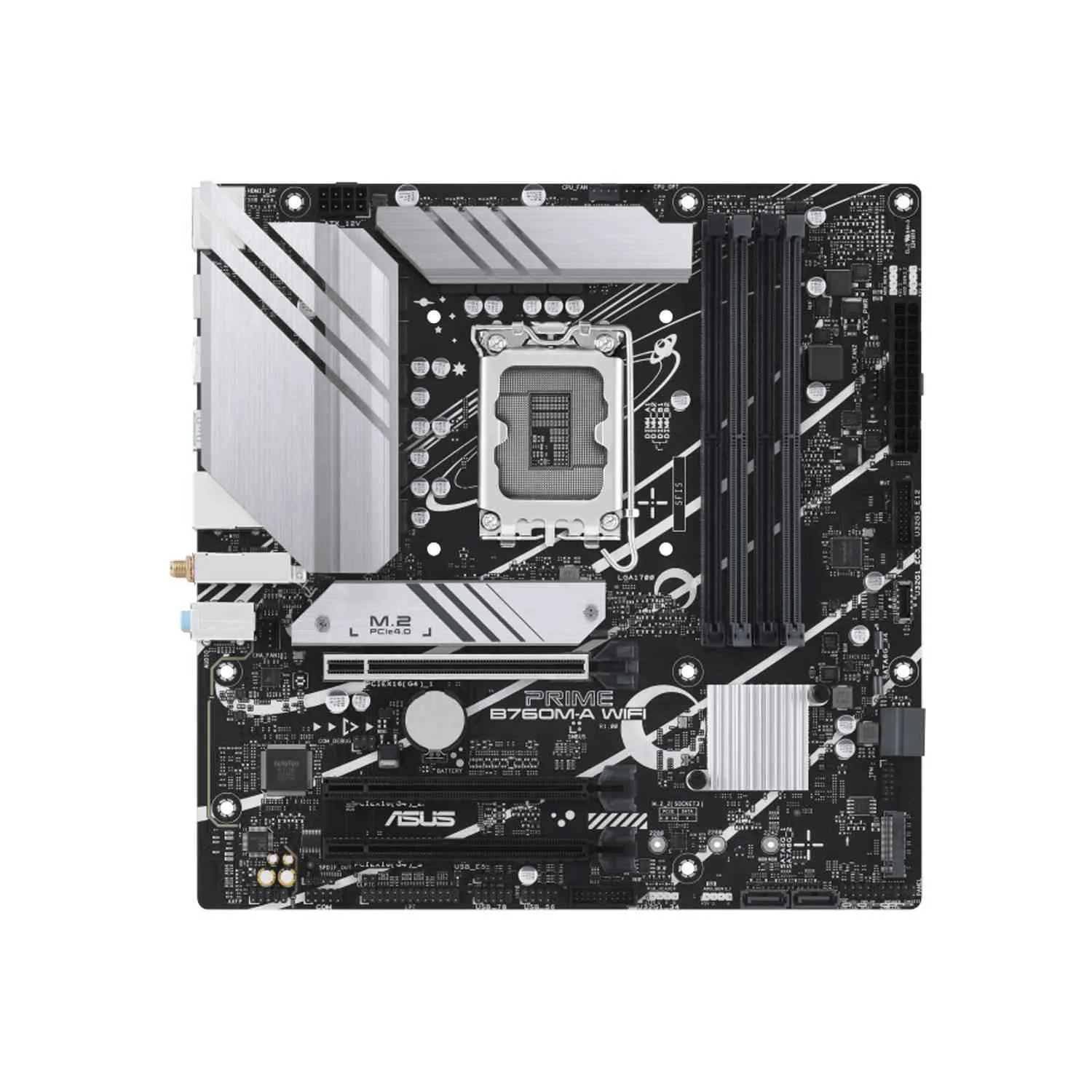

Asus PRIME B760M-A WIFI DDR5 Gaming Motherboard

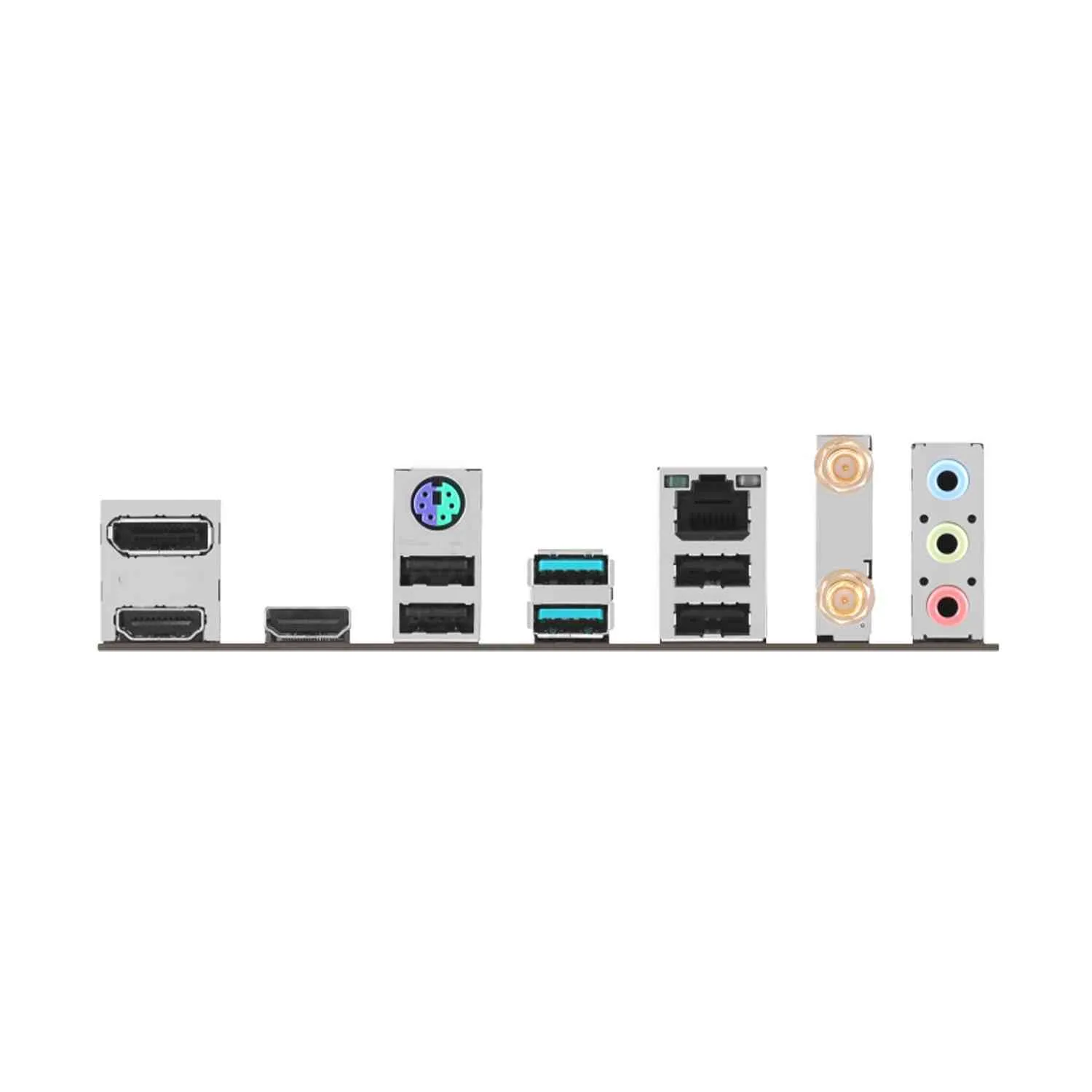

Model No : Asus PRIME B760M-A WIFI DDR5 Gaming Motherboard Part No : 90MB1EL0-M1EAY0 Chipset : Intel® B760 Chipset Form Factor : mATX Form Factor Socket Compatibility : Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** Memory : 4 x DIMM slots, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)OptiMem II Storage Compatibility : Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports*Intel® CoreTM Processors (14th & 13th & 12th Gen)M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)Intel® B760 ChipsetM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports Back Panel I/O Ports : 2 x USB 3.2 Gen 2 ports (2 x Type-A )4 x USB 2.0 ports (4 x Type-A)1 x DisplayPort2 x HDMITM ports1 x Wi-Fi Module1 x Realtek 2.5Gb Ethernet port3 x Audio jacks1 x PS/2 Keyboard/Mouse combo port USB Ports Front (Support ) : Rear USB (Total 6 ports)2 x USB 3.2 Gen 2 ports (2 x Type-A )4 x USB 2.0 ports (4 x Type-A)Front USB (Total 10 ports)2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports1 x USB 3.2 Gen 1 connector (supports USB Type-C®)2 x USB 2.0 headers support 4 additional USB 2.0 ports1 x USB 2.0 header supports 1 additional USB 2.0 port Expansion Slots : Intel® CoreTM Processors (14th & 13th & 12th Gen)1 x PCIe 4.0 x16 slotIntel® B760 Chipset1 x PCIe 4.0 x16 slot (supports x4 mode)1 x PCIe 4.0 x16 slot (supports x1 mode) Ethernet : 1 x Realtek 2.5Gb Ethernet Audio : Realtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Internal I/O Connectors : Fan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header2 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports1 x USB 3.2 Gen 1 connector (supports USB Type-C®)2 x USB 2.0 headers support 4 additional USB 2.0 ports1 x USB 2.0 header supports 1 additional USB 2.0 portMiscellaneous3 x Addressable Gen 2 headers1 x Aura RGB header1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x LPT header1 x S/PDIF Out header1 x SPI TPM header (14-1pin)1 x 20-3 pin System Panel header with Chassis intrude function Special Features : Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applicationsIntel® LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel® processorsUltrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem IIAura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware Package Content : Cables2 x SATA 6Gb/s cablesMiscellaneous1 x ASUS Wi-Fi moving antennas1 x I/O Shield1 x M.2 Rubber Package1 x Screw package for M.2 SSDDocumentation1 x User guide Product Size ( Dimension ) : 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) Warranty : 1 Year ( As per Manufacturer Policy )
