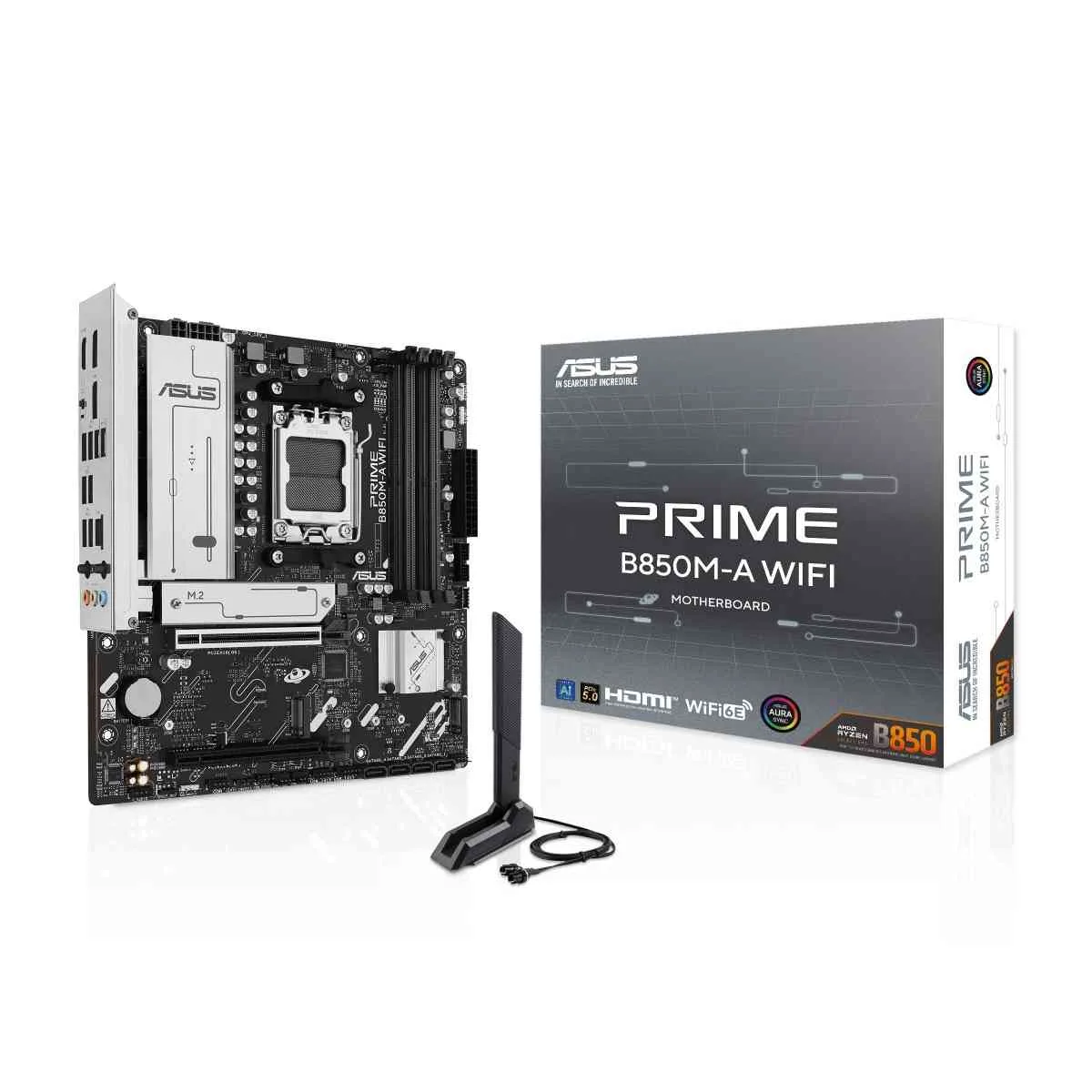

Asus Prime B850M-A Wifi 6E PCIe 5.0 Ai PC Ready AMD Gaming MotherBoard
The Asus Prime B850M-A Wifi 6E motherboard features the AMD B850 chipset and supports AMD Socket AM5 for Ryzen™ 9000, 8000, and 7000 Series processors. It includes Wi-Fi 6E, Bluetooth® v5.3, four DIMM slots for up to 256GB DDR5 memory, and multiple storage options
KWD 58.995
KWD 63.125
SKU :
90MB1LN0-M0EAY0
4 interest-free payments of KWD 15.781Learn more
Estimated delivery:1 work day
Free return within: 14 days of purchaseSecure shopping your data is always safeOverview

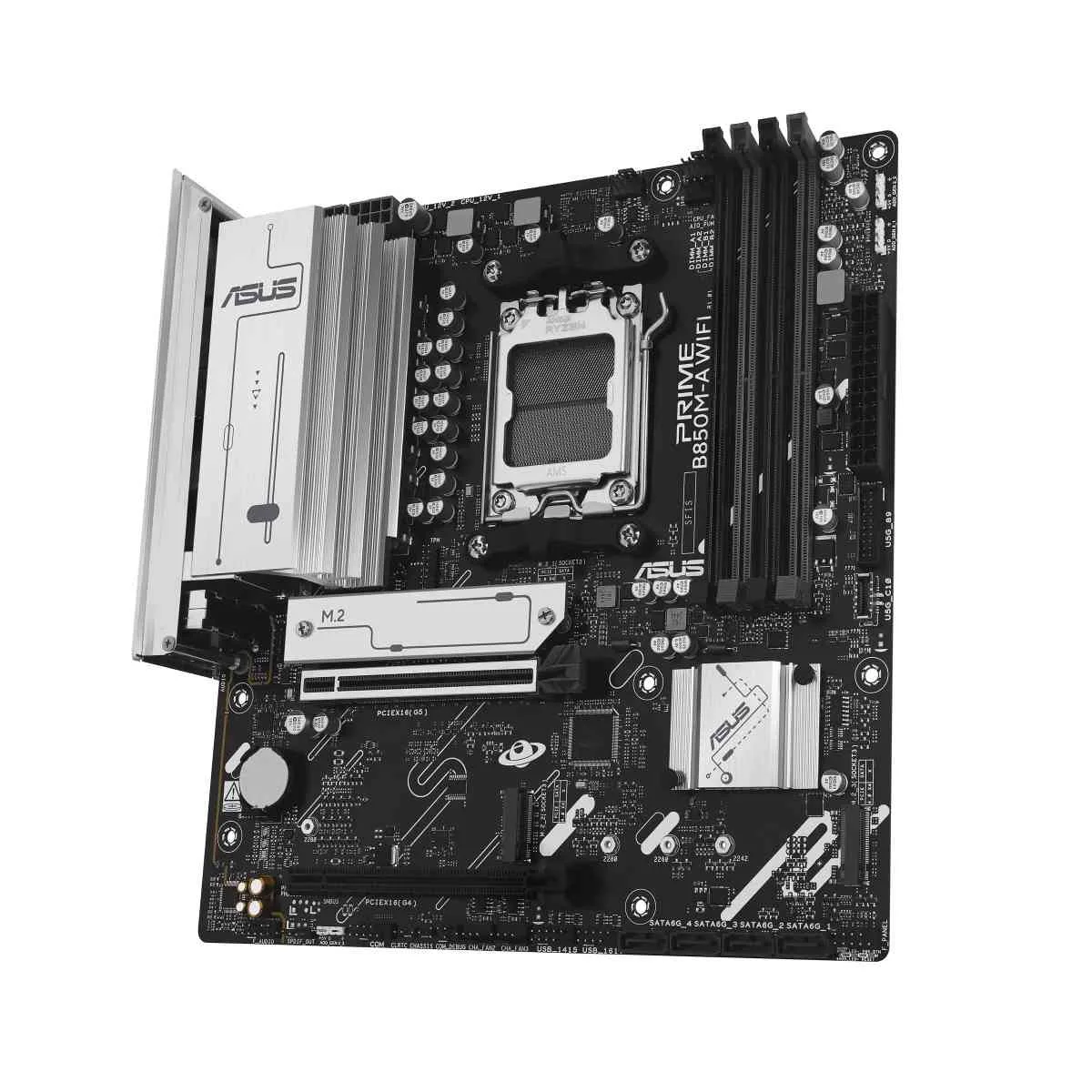

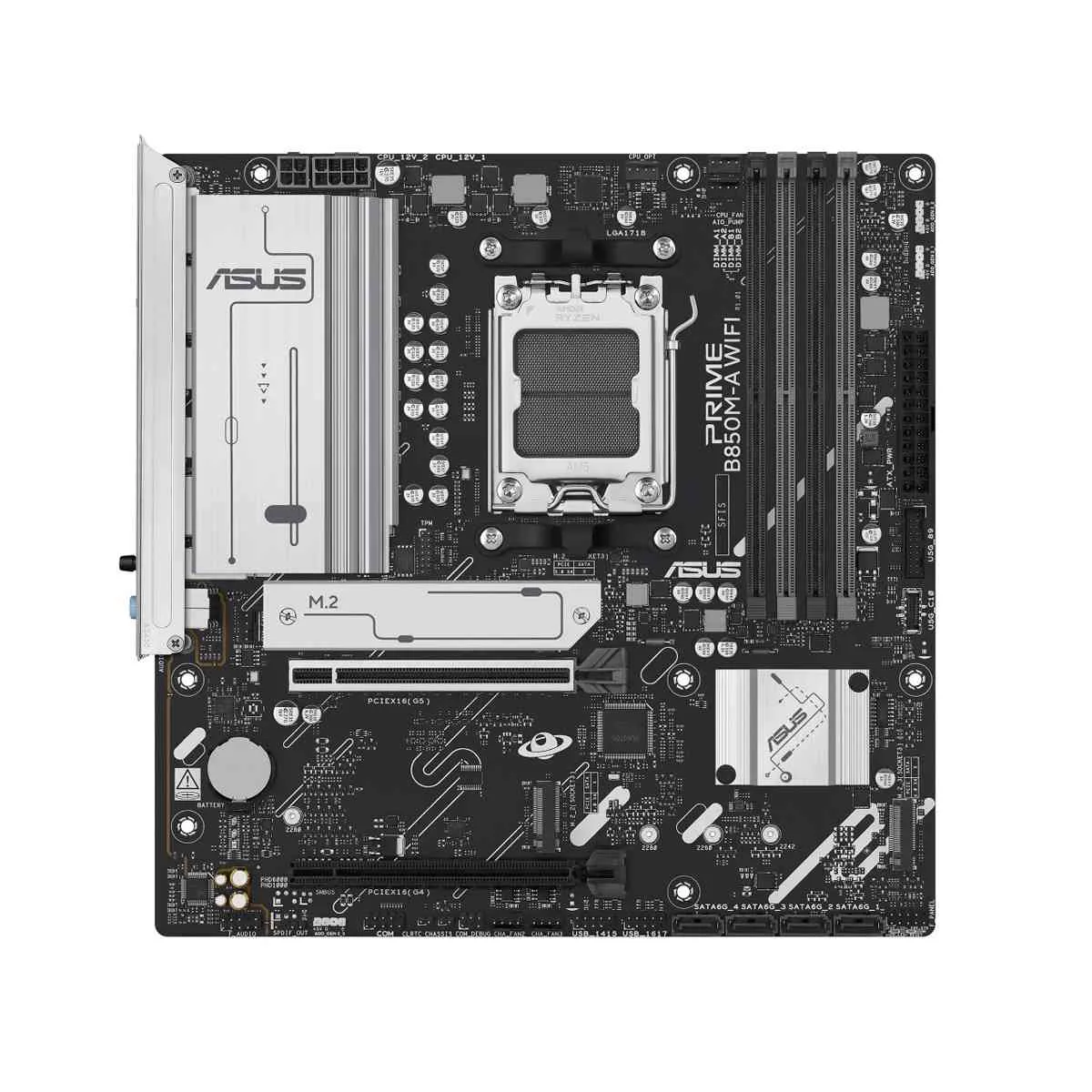

Model OverviewThe Asus Prime B850M-A Wifi 6E is a high-performance motherboard designed for AMD gaming systems. It features the AMD B850 chipset and is compatible with AMD Socket AM5 processors, including the Ryzen™ 9000, 8000, and 7000 series. This mATX form factor motherboard is engineered for optimal gaming performance and reliability. | |
 | |
 | |

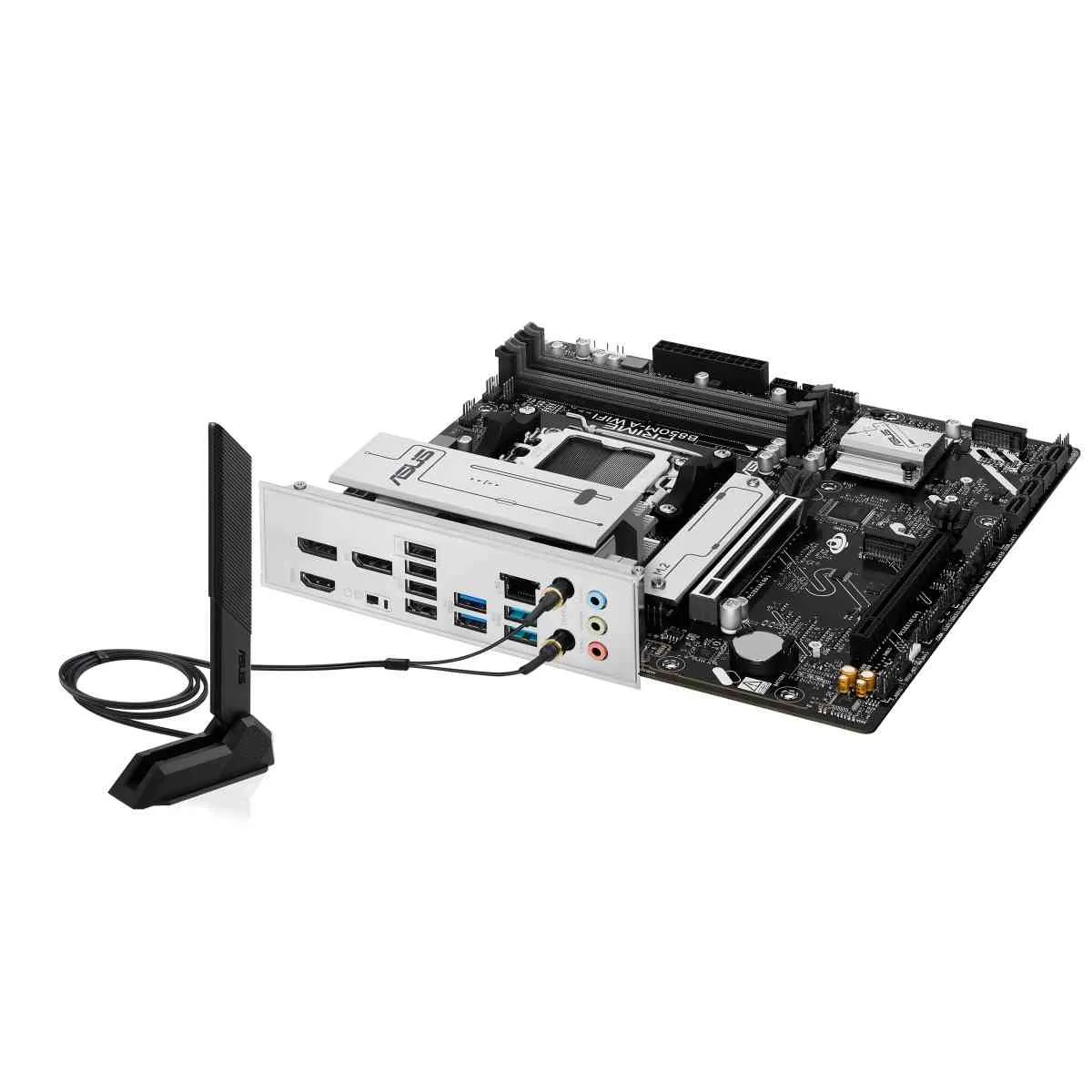

Connectivity OptionsEquipped with Wi-Fi 6E technology, the Asus Prime B850M-A offers dual-band connectivity across 2.4/5/6GHz frequencies. It includes Bluetooth® v5.3 for seamless wireless communication. The motherboard also features a Realtek 2.5Gb Ethernet port for high-speed wired connections. Access Point | |
Memory SupportThis motherboard supports up to 256GB of DDR5 memory across four DIMM slots, with speeds exceeding 8000+MT/s when paired with Ryzen™ 9000 and 8000 series processors. It is designed with dual-channel memory architecture and supports AMD Extended Profiles for Overclocking (EXPO™) and ASUS Enhanced Memory Profile (AEMP). Router | |
 | |
 | |
Storage CompatibilityThe Asus Prime B850M-A features extensive storage options, including three M.2 slots and four SATA 6Gb/s ports. The M.2_1 slot supports PCIe 5.0 x4 mode, while the other slots support PCIe 4.0 modes, ensuring high-speed data transfer for your storage devices. Compatibility with AMD RAIDXpert2 technology allows for various RAID configurations. WiFi Router | |
I/O Ports and ExpansionThis motherboard includes a comprehensive array of I/O ports, featuring multiple USB options, DisplayPort, HDMI™, and audio jacks. It has a total of eight rear USB ports and supports additional front USB connections. The expansion slots include a PCIe 5.0 x16 slot for enhanced graphics performance, making it an ideal choice for gamers. Mesh Router | |
 |
Key Specifications
- Model NoAsus Prime B850M-A Wifi 6E PCIe 5.0 Ai PC Ready AMD Gaming MotherBoard
- Part No90MB1LN0-M0EAY0ChipsetAMD B850 ChipsetForm FactormATXSocket
- CompatibilityAMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop
- ProcessorsWireless & BluetoothWi-Fi 6E2x2 Wi-Fi 6E (802.11ax)Supports 2.4/5/6GHz frequency band*Bluetooth® v5.3**LightingNoneMemroy Type4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series
- Processors, ECC and Non-ECC Un-buffered DIMM*Dual channel memory architectureSupports AMD Extended Profiles for Overclocking (EXPO™)ASUS Enhanced
- Memory Profile (AEMP)Ethernet1 x Realtek 2.5Gb EthernetASUS LANGuard
- CompatibilitySupports 3 x M.2 slots and 4 x SATA 6Gb/s portsAMD Ryzen™ 9000 & 7000 Series Desktop
- ProcessorsM.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)AMD Ryzen™ 8000 Series Desktop
- ProcessorsM.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)*AMD B850 ChipsetM.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports* Specifications vary by CPU types.AMD RAIDXpert2 TechnologyRyzen™ 9000 Series
- Processors: RAID 0/1/5/10Ryzen™ 8000 Series
- Processors: RAID 0/1Ryzen™ 7000 Series

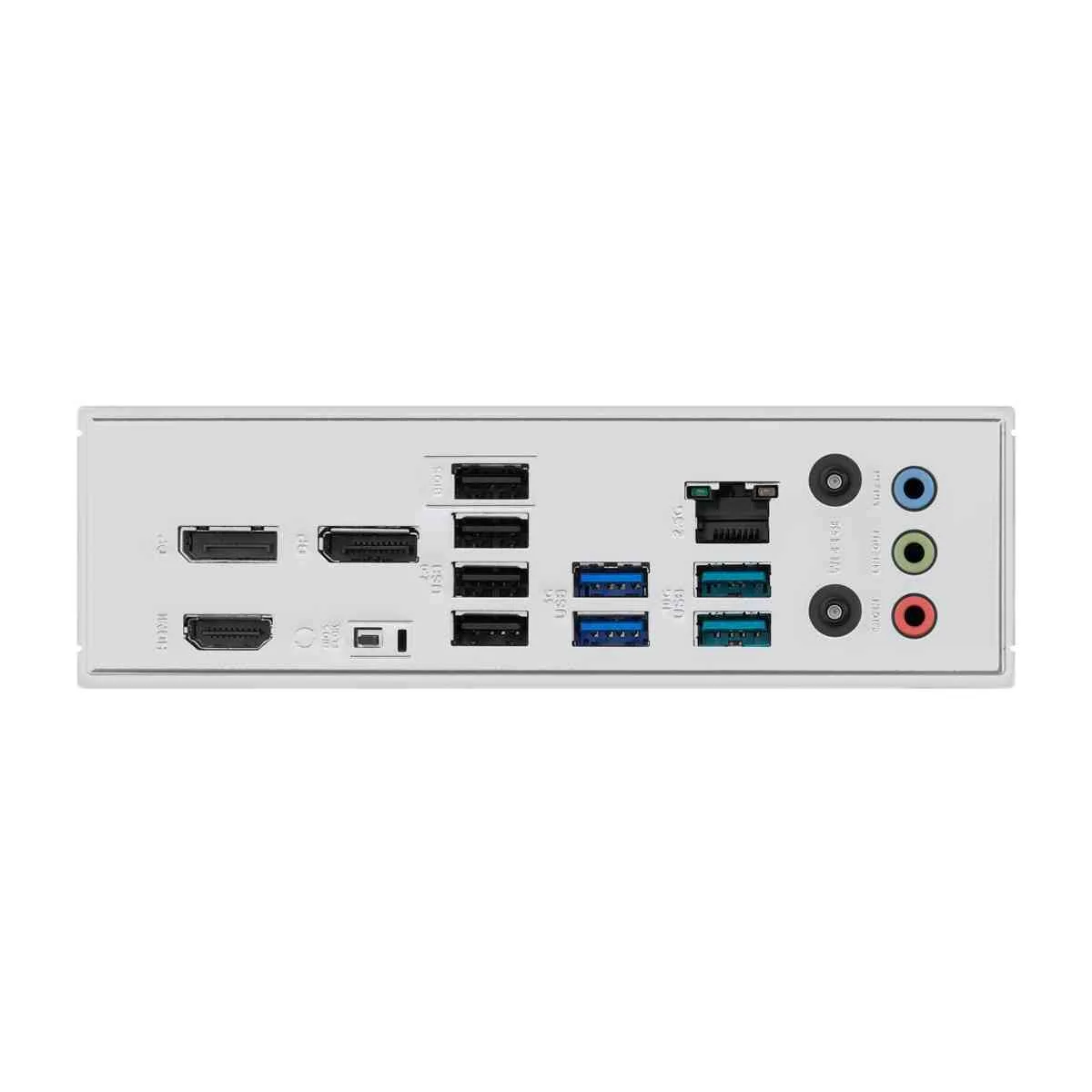

- Processors: RAID 0/1/10Back Panel I/O Ports2 x USB 10Gbps ports (2 x Type-A)2 x USB 5Gbps ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A)2 x DisplayPort1 x HDMI™ port1 x Wi-Fi module1 x Realtek 2.5Gb Ethernet port3 x Audio jacks1 x BIOS FlashBack™ buttonUSB Ports Front (Support )Rear USB (Total 8 ports)2 x USB 10Gbps ports (2 x Type-A )2 x USB 5Gbps ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A)Front USB (Total 7 ports)1 x USB 5Gbps connector (supports USB Type-C®)1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 ports* USB Type-C® power delivery output: max. 5V/3AExpansion SlotsAMD Ryzen™ 9000 & 7000 Series Desktop
- Processors*1 x PCIe 5.0 x16 slot (supports x16 mode)AMD Ryzen™ 8000 Series Desktop
- Processors1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**AMD B850 Chipset1 x PCIe 4.0 x16 slot (supports x1 mode)* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).** Specifications vary by CPU types.AudioRealtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.Internal I/O ConnectorsFan and
