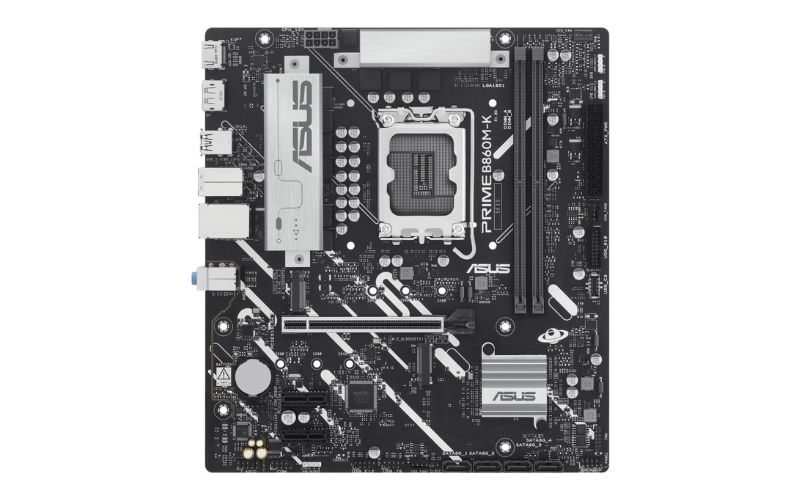

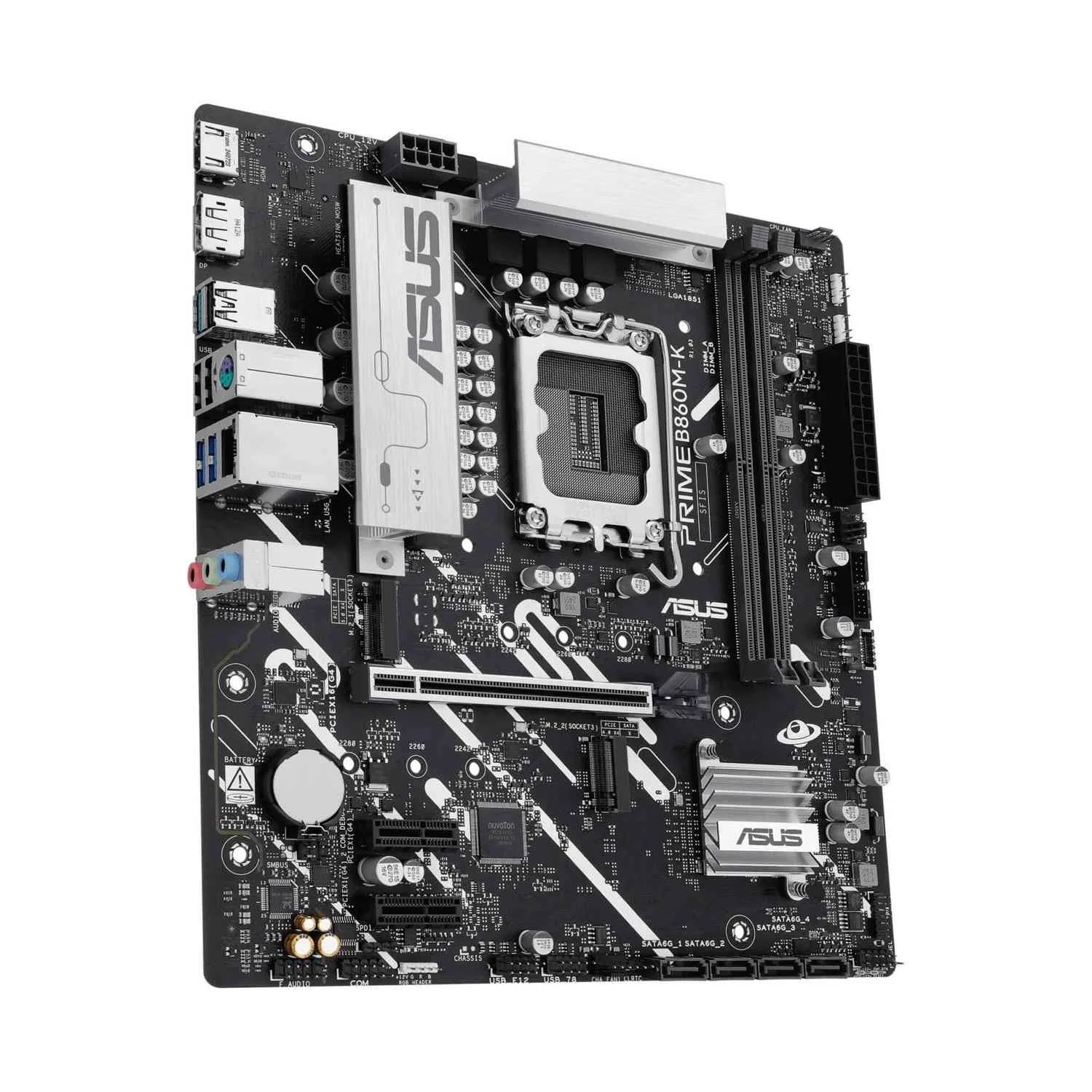

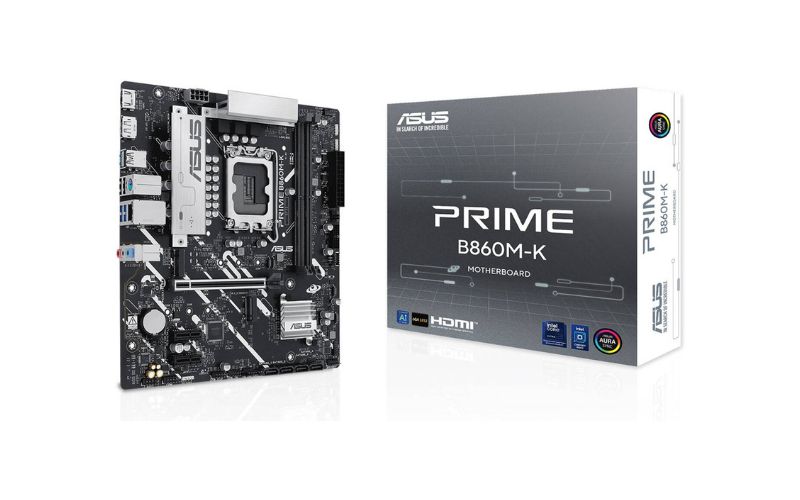

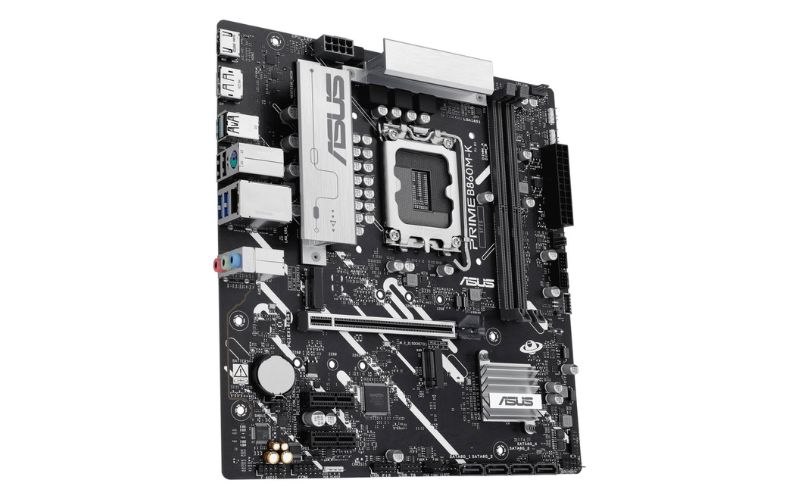

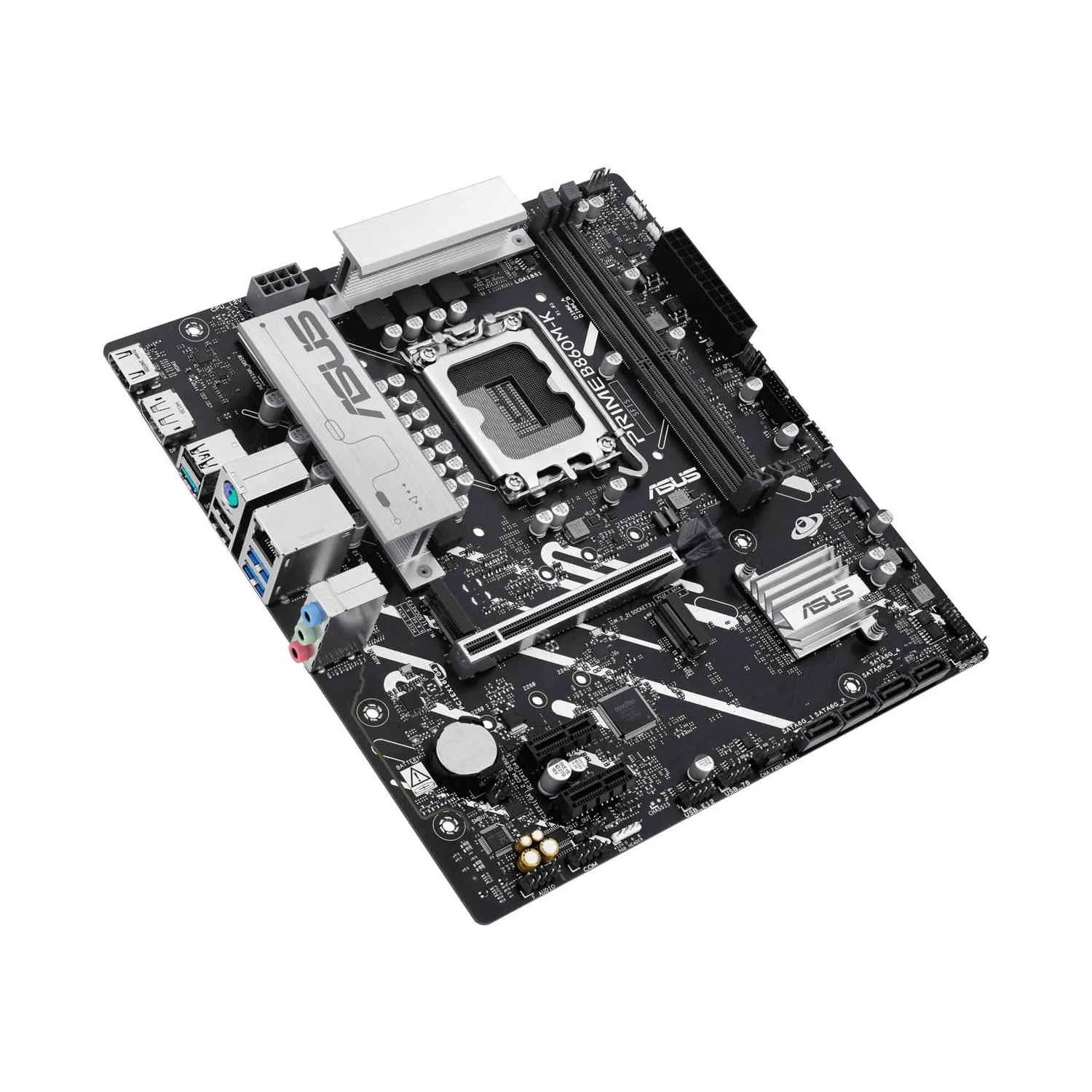

ASUS Prime B860M-K LGA 1851 Micro-ATX Motherboard LGA 1851 Micro-ATX Motherboard, Intel B860 Chipset, 2x DIMM DDR5 Slots, Up to 128GB Max Memory, 1x PCIe 4.0 x16 Slot, 2x M.2 Slots | 90MB1JT0-M0EAY0

Model No : PRIME B860M-K Part No : 90MB1JT0-M0EAY0 Chipset : Intel® B860 Chipset Form Factor : micro-ATX Socket Compatibility : Supports Intel® Core™ Ultra Processors (Series 2), LGA1851*Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** Wireless & Bluetooth : None Ethernet : 1 x Realtek 2.5Gb EthernetASUS LANGuard Memory : 2 x DIMM slots, max. 128GB, DDR5Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*Dual channel memory architectureDIMM FitSupports Intel® Extreme Memory Profile (XMP) memory moduleASUS Enhanced Memory Profile III(AEMPIII) Lighting : None Storage Compatibility : Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*Intel® Core™ Ultra Processors (Series 2) *M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)Intel® B860 ChipsetM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. Back Panel I/O Ports : 1 x USB 10Gbps port (1 x Type-A)2 x USB 5Gbps ports (2 x Type-A)3 x USB 2.0 ports (3 x Type-A)1 x DisplayPort1 x HDMITM port1 x Realtek 2.5Gb Ethernet port3 x Audio jacks1 x PS/2 Keyboard/Mouse combo port USB Ports Front (Support ) : Rear USB (Total 6 ports)1 x USB 10Gbps port (1 x Type-A)2 x USB 5Gbps ports (2 x Type-A)3 x USB 2.0 ports (3 x Type-A)**Front USB (Total 7 ports)1 x USB 5Gbps connector (supports USB Type-C®)1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 ports*** USB Type-C® power delivery output: max. 5V/3A.** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. Expansion Slots : Intel® Core™ Ultra Processors (Series 2)1 x PCIe 4.0 x16 slotIntel® B860 Chipset2 x PCIe 4.0 x1 slots Audio : Realtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Internal I/O Connectors : Fan and Cooling Related1 x 4-pin CPU Fan header2 x 4-pin Chassis Fan headersPower Related1 x 24-pin Main Power connector1 x 8-pin +12V CPU Power connectorStorage Related2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 5Gbps connector (supports USB Type-C® )1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous2 x Addressable Gen2 headers1 x Aura RGB header1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (F_AUDIO)1 x S/PDIF Out header1 x SPI TPM header (14-1 pin)1 x 10-1 pin Front Panel System header Special Features : ASUS 5X PROTECTION III- DIGI+VRM- LANGuard- Overvoltage protection- SafeSlot Core+- Stainless-steel back I/OASUS Q-Design- Q-Dashboard- Q-DIMM- Q-LED Core- Q-SlotASUS Thermal Solution- VRM heatsink designASUS EZ DIY- ProCoolAura Sync- Aura RGB header- Addressable Gen2 headers Package Content : Cables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O Shield1 x M.2 anchor packageDocumentation1 x Quick start guide Product Size ( Dimension ) : 9.6 inch x 8.75 inch (24.4cm x 22.2cm) Warranty : 1 Year ( As per Manufacturer Policy )
