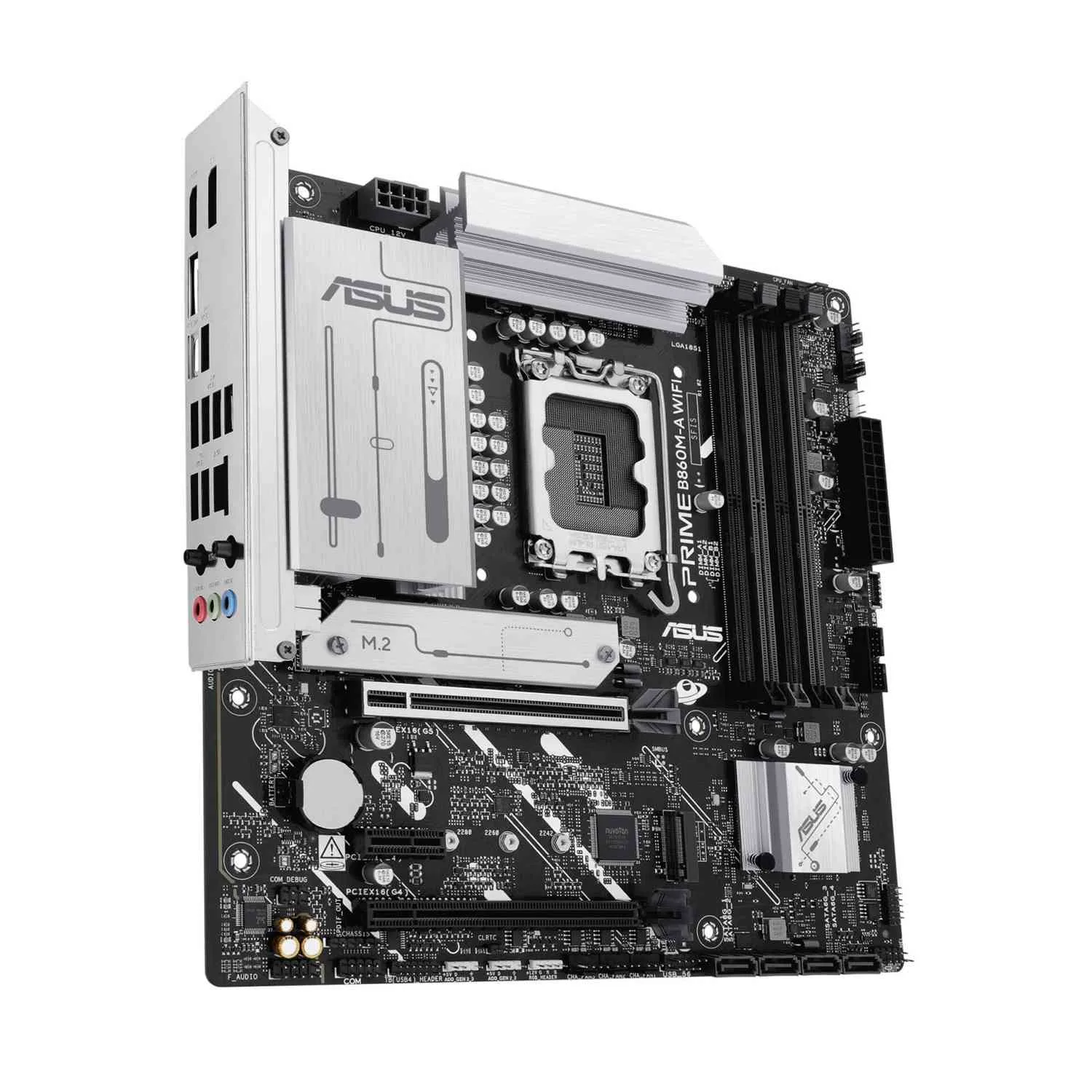

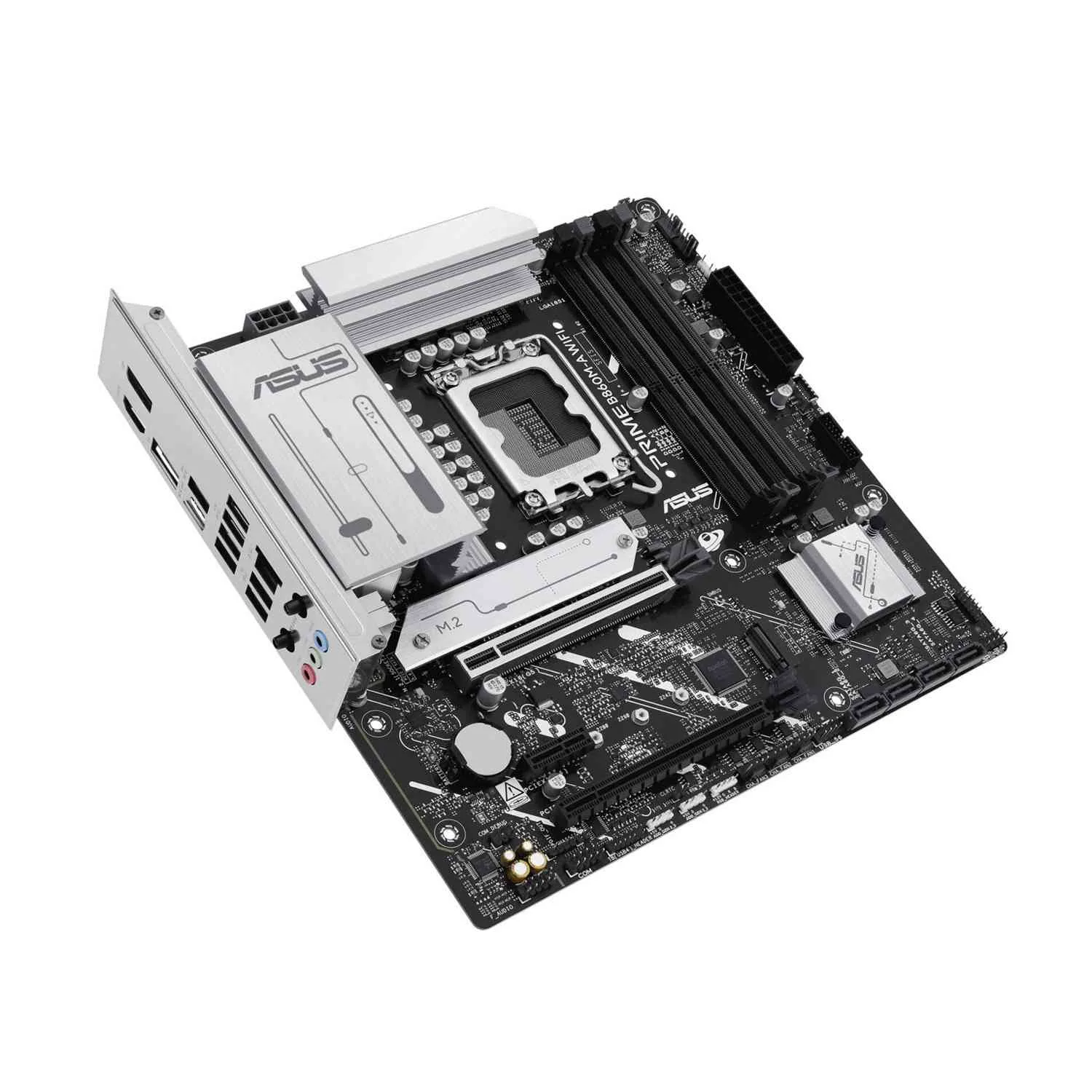

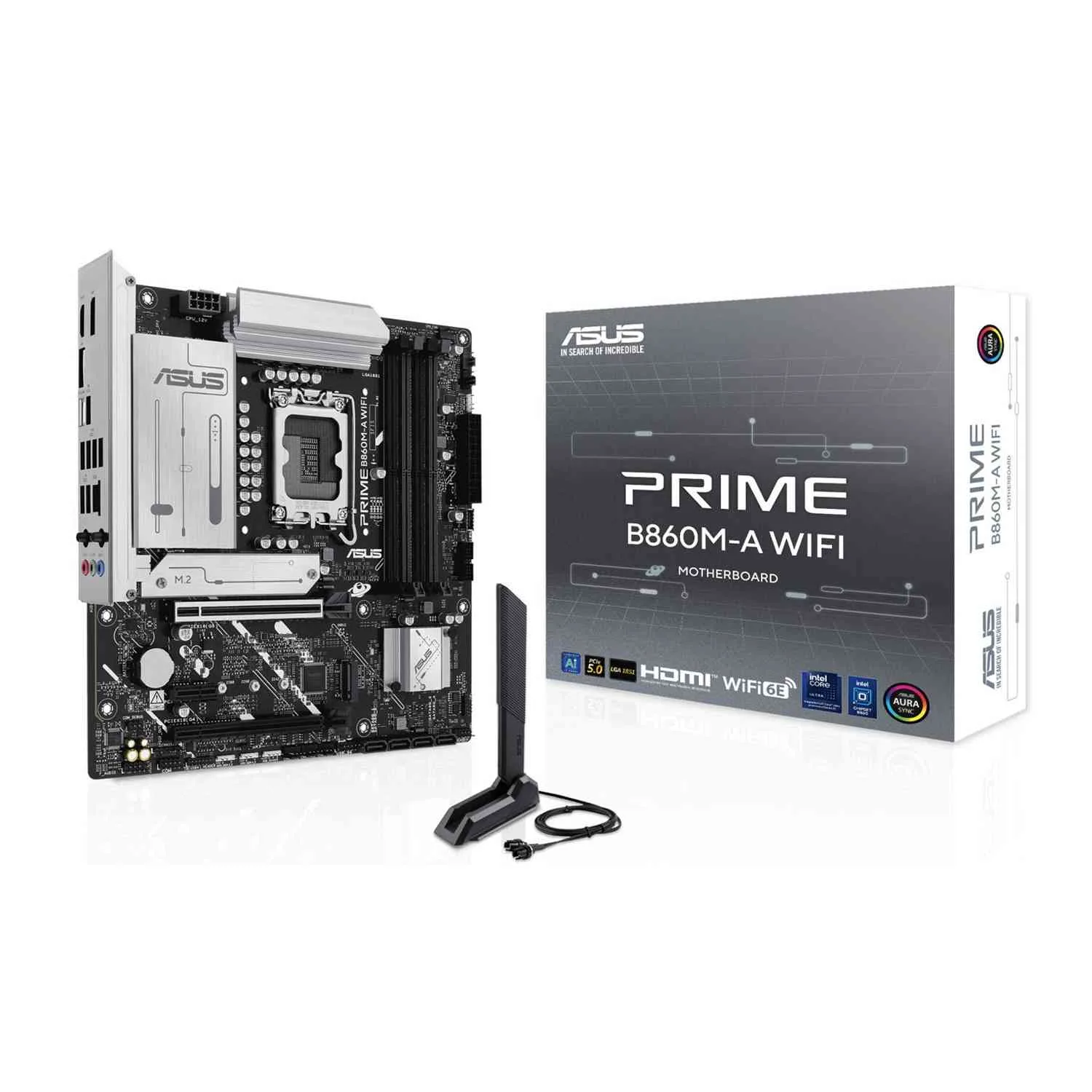

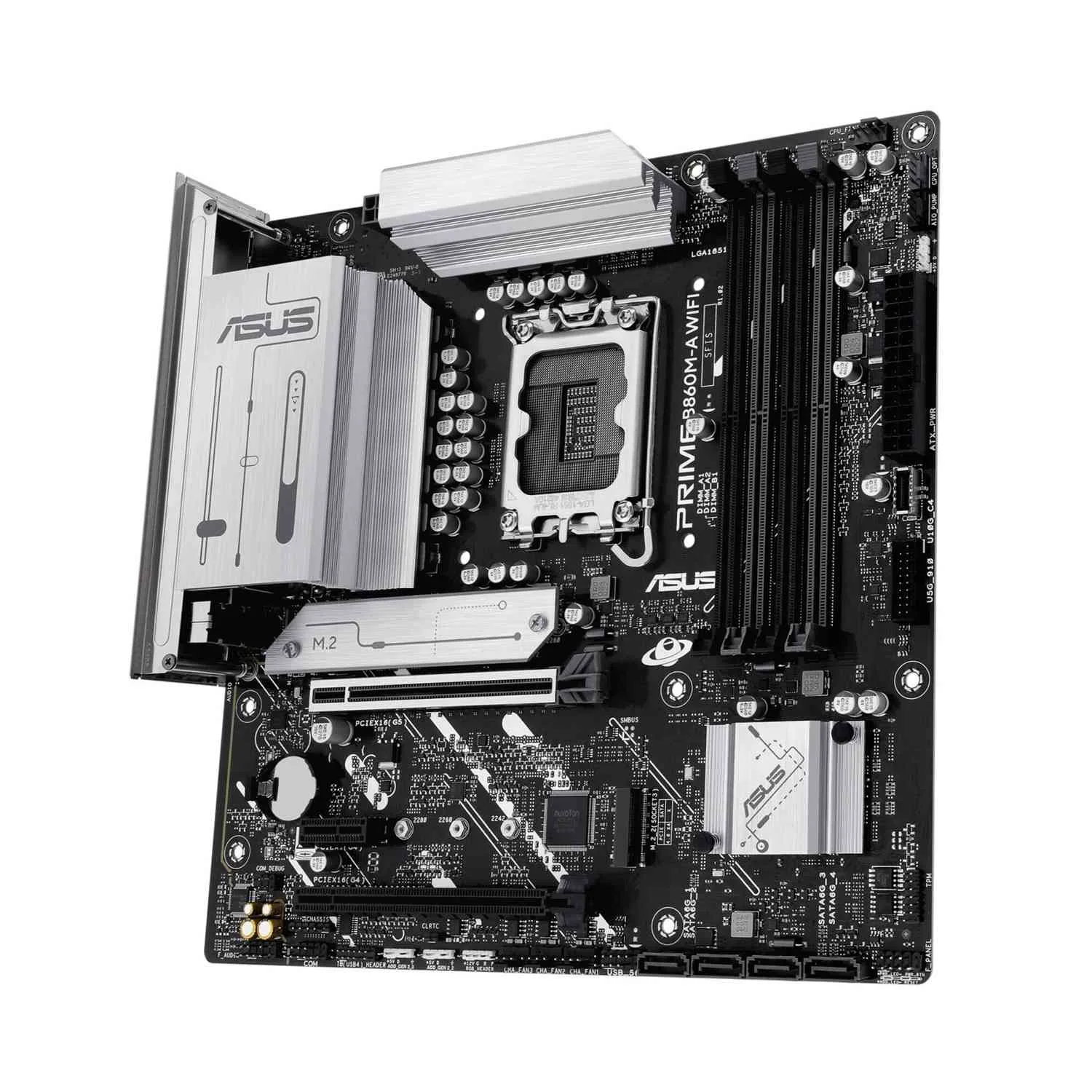

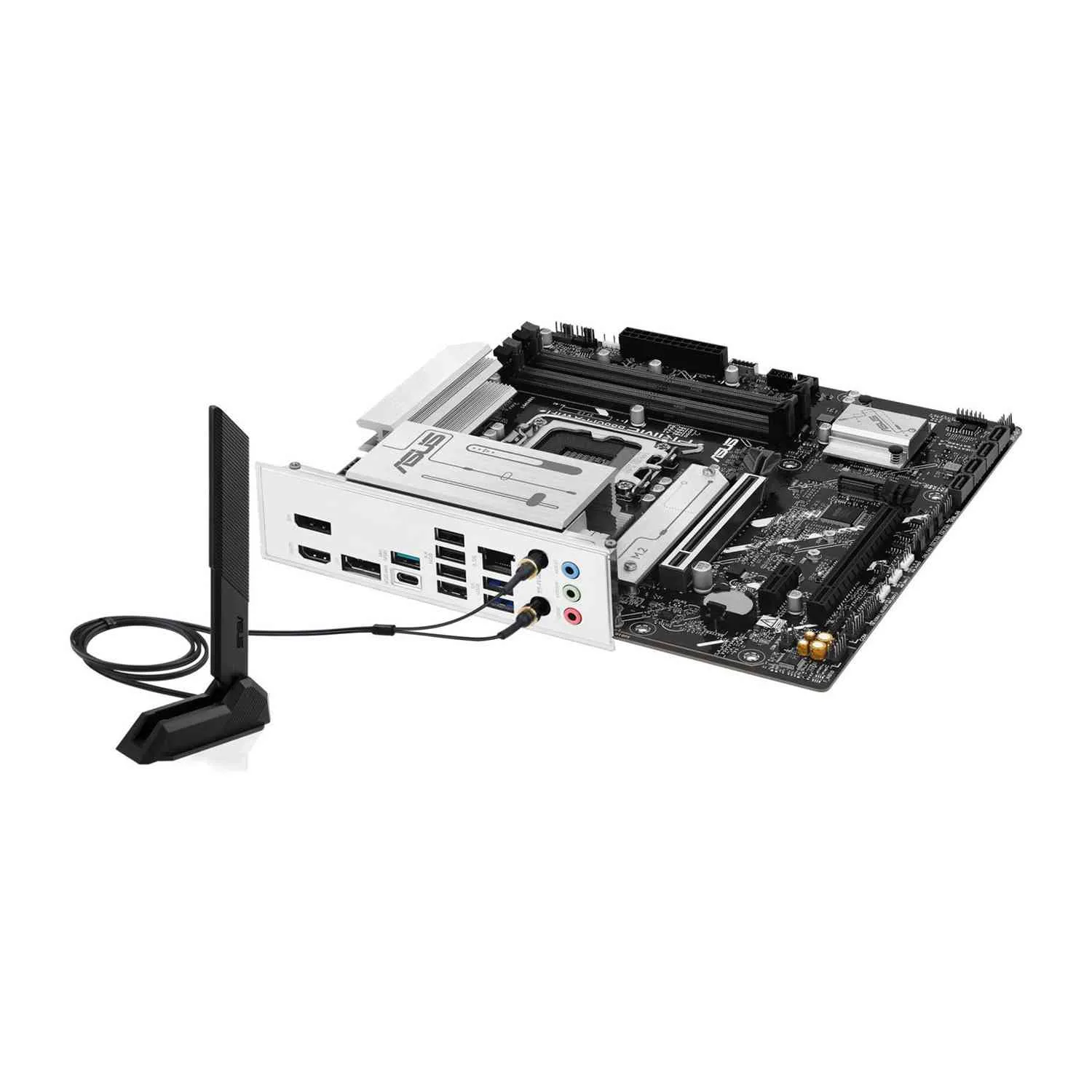

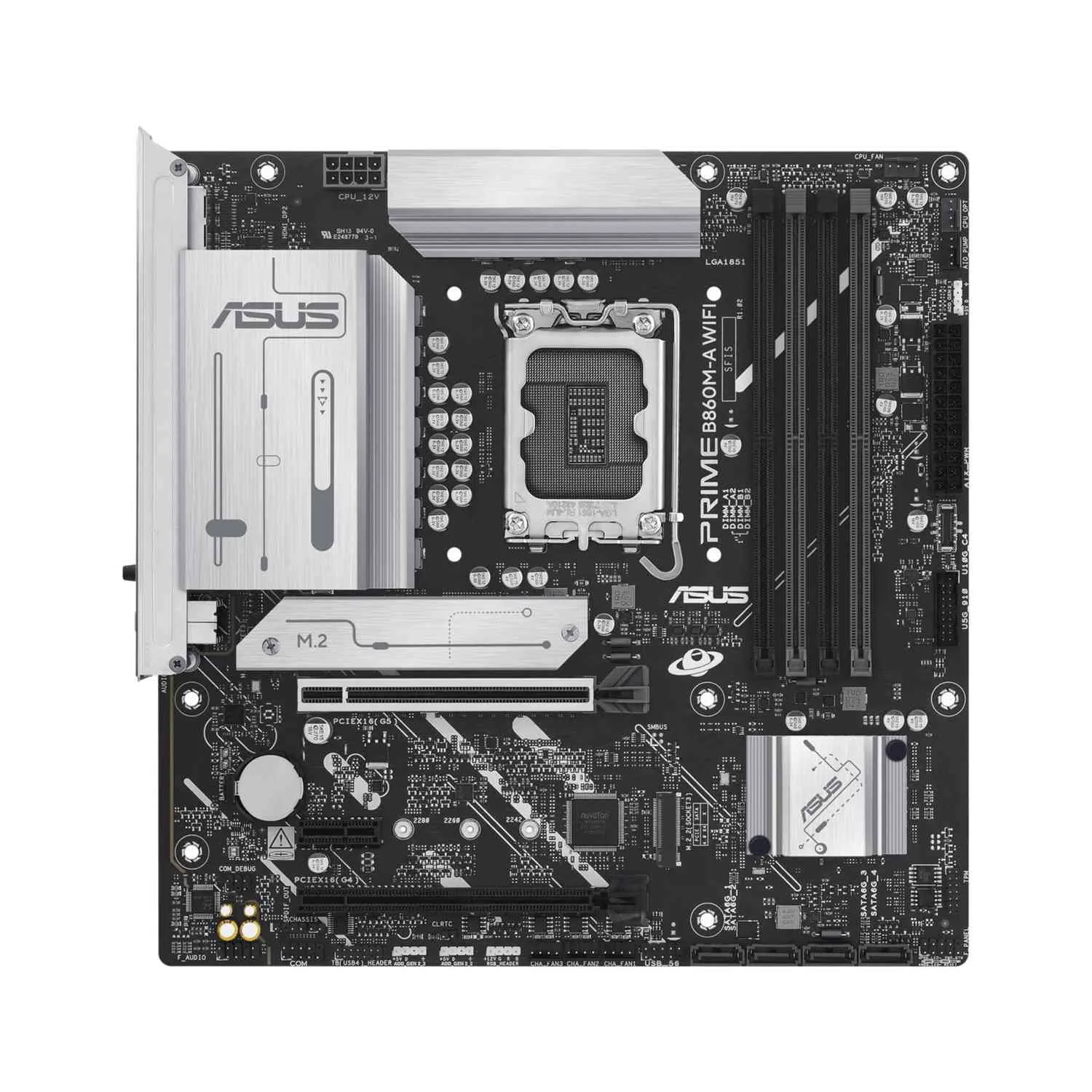

Asus Prime Intel Core Ultra B860M-A Wifi DDR5 Gaming Motherboard

Model No : Asus Prime Intel Core Ultra B860M-A Wifi DDR5 Gaming Motherboard Part No : 90MB1JY0-M0EAY0 Chipset : Intel® B860 Chipset Form Factor : micro-ATX Socket Compatibility : Support Intel® Core™ Ultra Processors (Series 2) , LGA1851* Wireless & Bluetooth : Wi-Fi 6E2x2 Wi-Fi 6E (802.11ax)Supports 2.4/5/6GHz frequency band*Bluetooth® v5.3** Lighting : None RGB Memroy : 4 x DIMM slots, max. 256GB, DDR5Supports up to 8666+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*Dual channel memory architectureDIMM FitSupports Intel® Extreme Memory Profile (XMP) memory moduleASUS Enhanced Memory Profile III(AEMPIII) Ethernet : 1 x Realtek 2.5Gb EthernetASUS LANGuard Storage Compatibility : Total supports 2 x M.2 slots and 4 x SATA 6Gb/s portsIntel® Core™ Ultra Processors (Series 2) *M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)Intel®B860 ChipsetM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes)4 x SATA 6Gb/s ports* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. Back Panel I/O Ports : 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)1 x USB 10Gbps port (1 x Type-A)2 x USB 5Gbps ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A )2 x DisplayPort1 x HDMI™ port1 x Wi-Fi module1 x Realtek 2.5Gb Ethernet port3 x Audio jacks USB Ports Front (Support ) : Rear USB (Total 8 ports)1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)1 x USB 10Gbps port (1 x Type-A )2 x USB 5Gbps ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A)**Front USB (Total 5 ports)1 x USB 10Gbps connector (supports USB Type-C® )1 x USB 5Gbps header supports 2 additional USB 5Gbps ports1 x USB 2.0 header supports 2 additional USB 2.0 ports*USB Type-C® power delivery output: max. 5V/3A**USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. Expansion Slots : Intel® Core™ Ultra Processors(series 2)1 x PCIe 5.0 x16 slotIntel® B860 Chipset1 x PCIe 4.0 x16 slot (supports x4 mode)1 x PCIe 4.0 x1 slot Audio : Realtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Internal I/O Connectors : Fan and Cooling Related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header3 x 4-pin Chassis Fan headersPower Related1 x 24-pin Main Power connector1 x 8-pin +12V CPU Power connectorStorage Related2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 10Gbps connector (supports USB Type-C® )1 x USB 5Gbps header supports 2 additional USB 5Gbps ports1 x USB 2.0 header supports 2 additionalUSB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x Aura RGB header1 x Clear CMOS header1 x Chassis Intrusion header1 x COM Port header1 x Front Panel Audio header (F_AUDIO)1 x S/PDIF Out header1 x SPI TPM header (14-1 pin)1 x 10-1 pin Front System Panel header1 x Thunderbolt™ (USB4®) header Special Features : ASUS 5X PROTECTION III- DIGI+ VRM (- Digital power design with DrMOS)- ESD Guards- LANGuard- Overvoltage protection- SafeSlot- Stainless-steel back I/OASUS Q-Design- Q-Antenna- Q-Dashboard- Q-DIMM- Q-LED Core- Q-SlotASUS Thermal Solution- M.2 heatsink- VRM heatsink designASUS EZ DIY- ProCool- Pre-mounted I/O shieldAura Sync- Aura RGB header- Addressable Gen2 headers Package Content : Cables2 x SATA 6Gb/s cablesMiscellaneous1 x ASUS WiFi Q-Antenna1 x M.2 rubber package1 x Screw package for M.2 SSDDocumentation1 x Quick start guide Product Size ( Dimension ) : 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) Warranty : 1 Year ( As per Manufacturer Policy )
