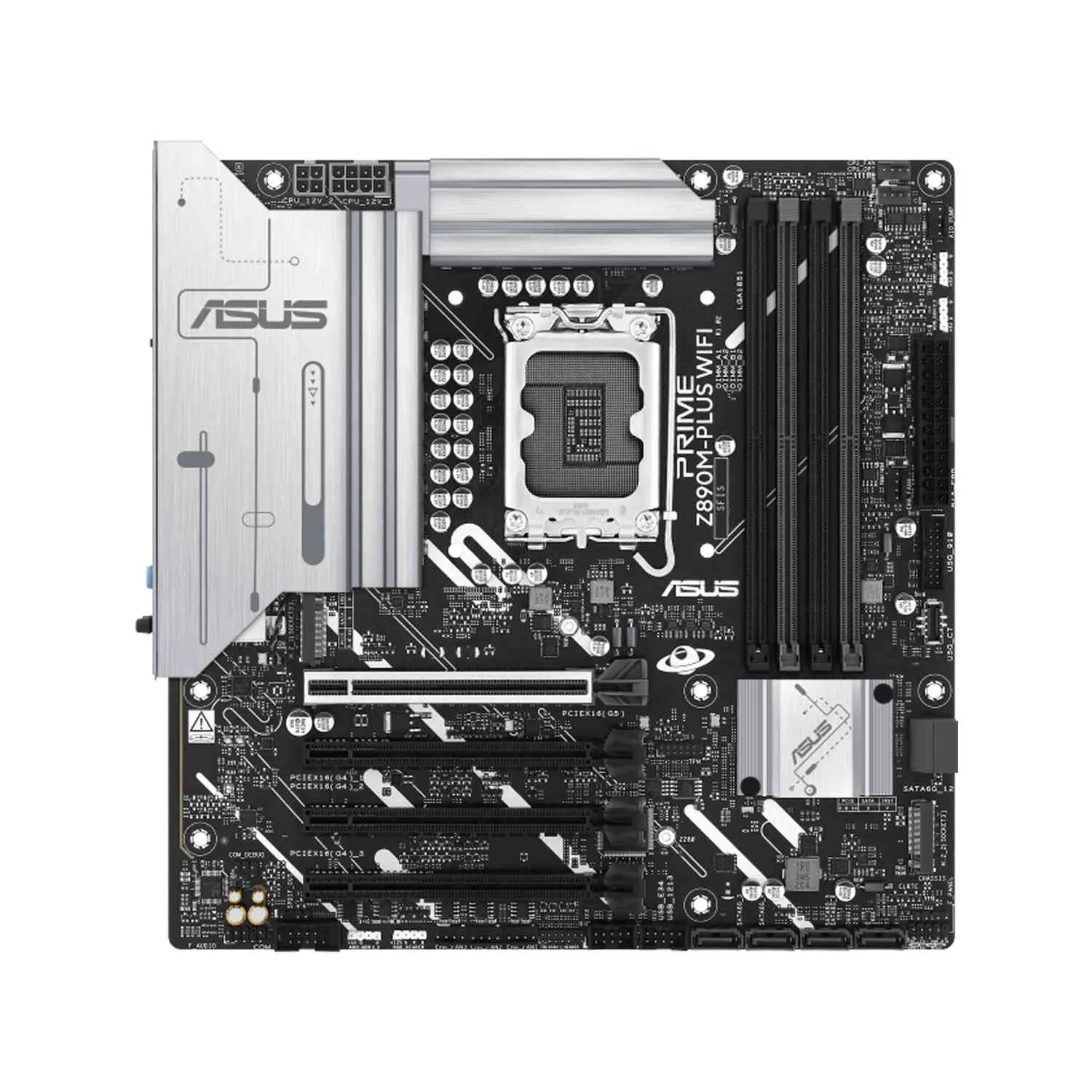

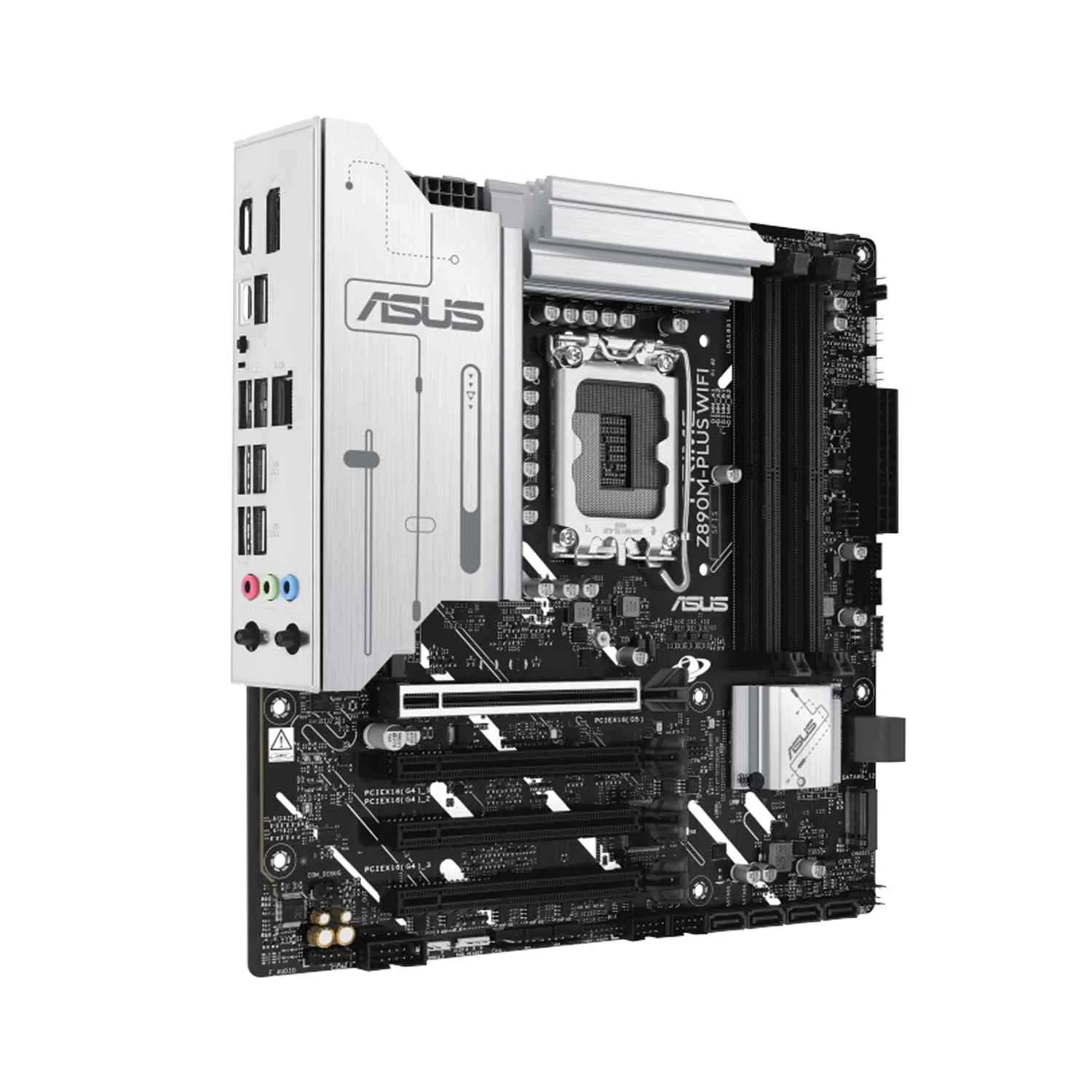

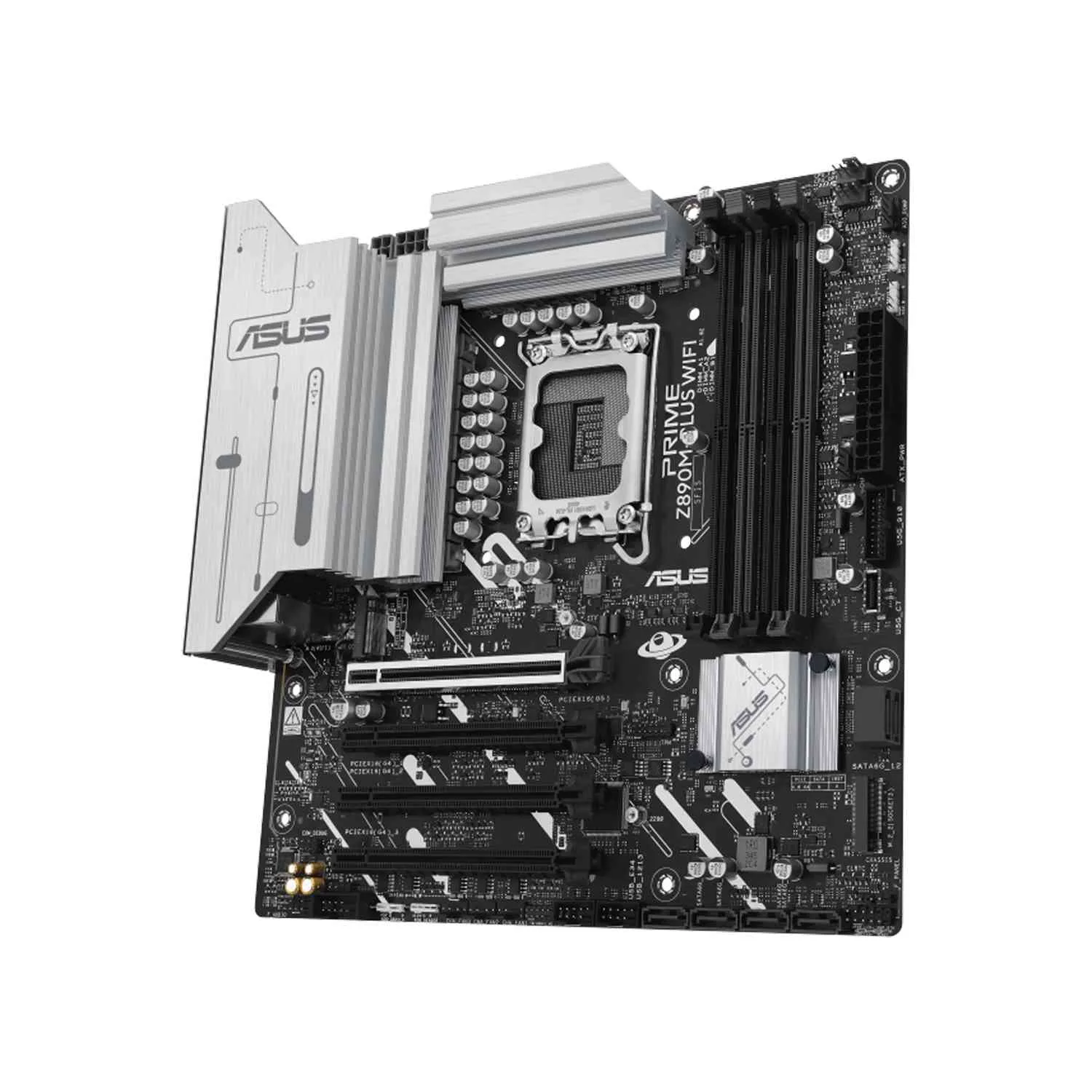

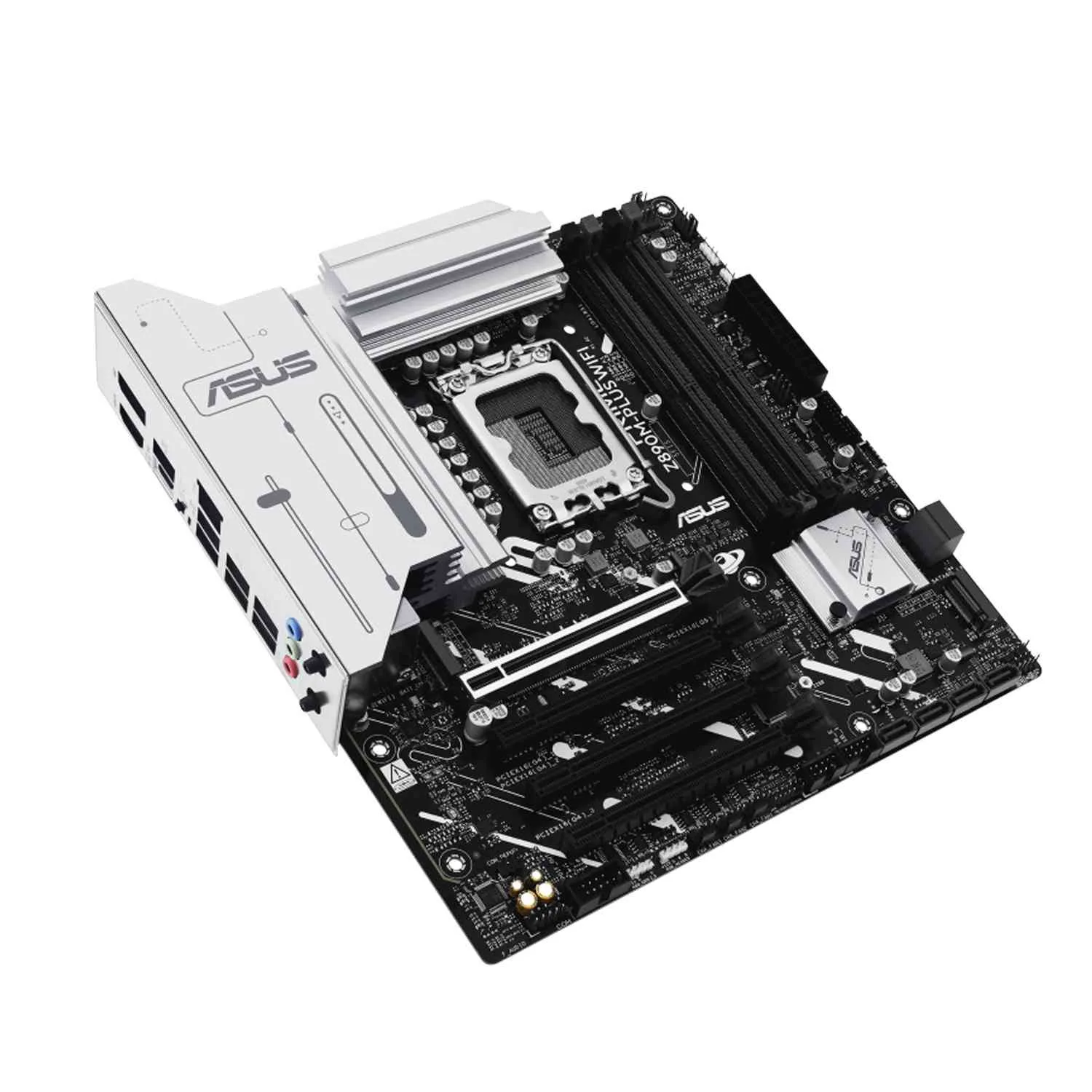

Asus PRIME Z890M-PLUS WIFI 7, DDR5 M-ATX Gaming Motherboard

Key Specifications

• Model NoPRIME Z890M-PLUS WIFI
• Part No90MB1J80-M0EAY0Form FactormATXSocket
• CompatibilitySupports Intel® Core™ Ultra
• Processors(Series 2), LGA1851*Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0ChipsetIntel® Z890 ChipsetMemroy4 x DIMM slots, max. 256GB, DDR5Support up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*Dual channel memory architectureDIMM FitSupports Intel® Extreme
• Memory Profile (XMP)ASUS Enhanced
• Memory Profile III(AEMPIII)
• Graphics1 x DisplayPort**1 x HDMI™ port*** 1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output*****
• Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.**Supports max. 4K@60Hz as specified in DisplayPort 1.4.***Supports 4K@60Hz as specified in HDMI 2.1.****Supports max. 4K@120Hz as specified in DisplayPort 1.4.***** VGA resolution support depends on processors' or graphic cards' resolution.****** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.Expansion SlotsIntel® Core™ Ultra
• Processors (Series 2)*1 x PCIe 5.0 x16 slotIntel® Z890 Chipset1 x PCIe 4.0 x16 slot (supports x4 mode)2 x PCIe 4.0 x16 slots (support x1 mode)* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
• CompatibilityTotal supports 3 x M.2 slots and 6 x SATA 6Gb/s ports*Intel® Core™ Ultra
• Processors (Series 2)*M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)Intel® Z890 ChipsetM.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)6 x SATA 6Gb/s ports* Intel® Rapid

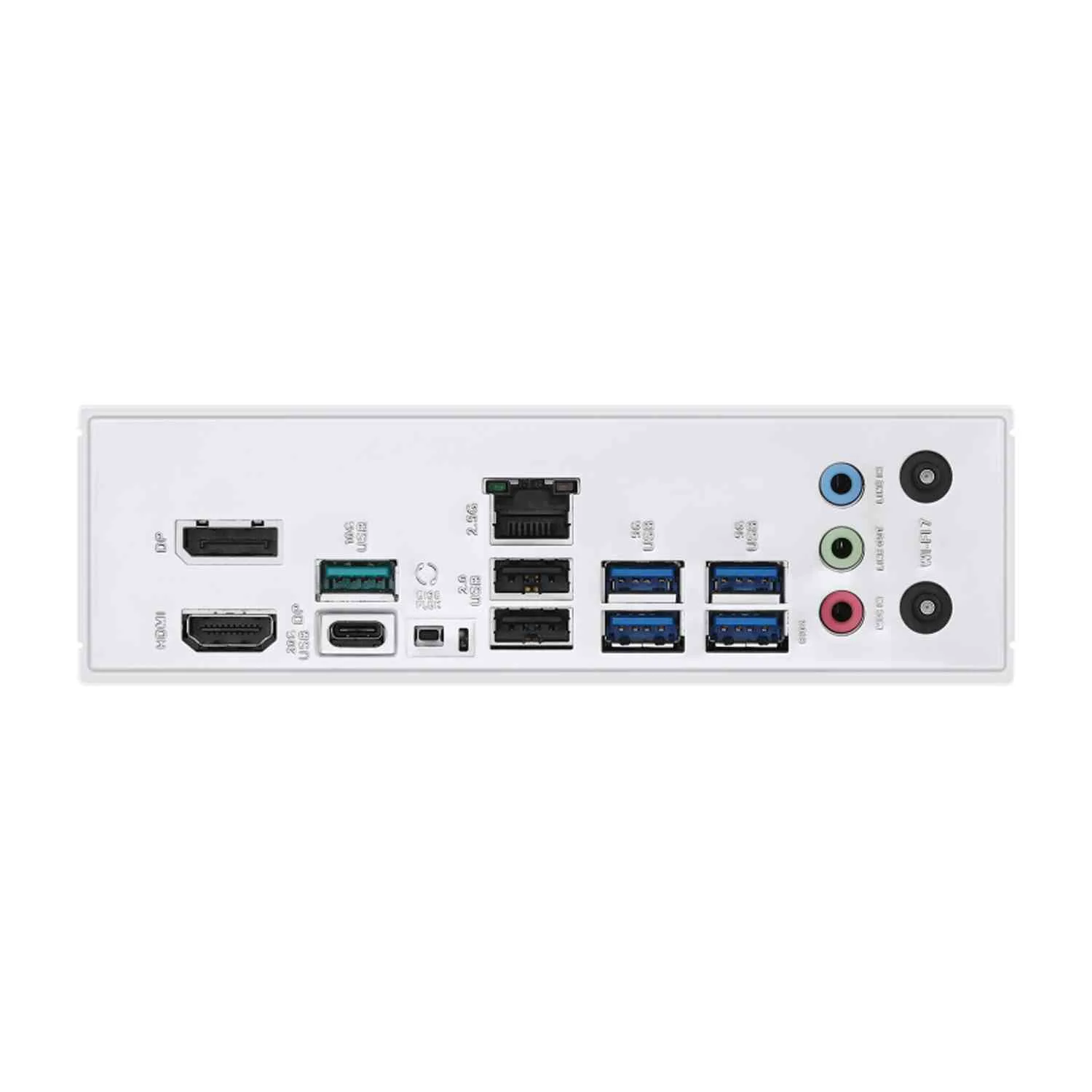

• Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.Ethernet1 x Realtek 2.5Gb EthernetASUS LANGuardWireless & BluetoothWi-Fi 7*2x2 Wi-Fi 7 (802.11be)Supports 2.4/5/6GHz frequency band**Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.Bluetooth® v5.4****Wi-Fi features may vary depending on the operating systemFor Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.USB Ports Front (Support )Rear USB (Total 8 ports)1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)1x USB 10Gbps port (1 x Type-A)4 x USB 5Gbps ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A) **Front USB (Total 7 ports)1 x USB 5Gbps connector (supports USB Type-C®)1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 ports*** USB Type-C® power delivery output: max. 5V/3A** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.AudioRealtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.Back Panel I/O Ports1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)1x USB 10Gbps port (1 x Type-A)4 x USB 5Gbps ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x DisplayPort1 x HDMI™ port1 x Wi-Fi module1 x Realtek 2.5Gb Ethernet3 x Audio jacks1 x BIOS FlashBack™ buttonInternal I/O ConnectorsFan and cooling related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header4 x 4-pin Chassis Fan headers
• Power related1 x 24-pin Main
• Power connector1 x 8-pin +12V CPU
