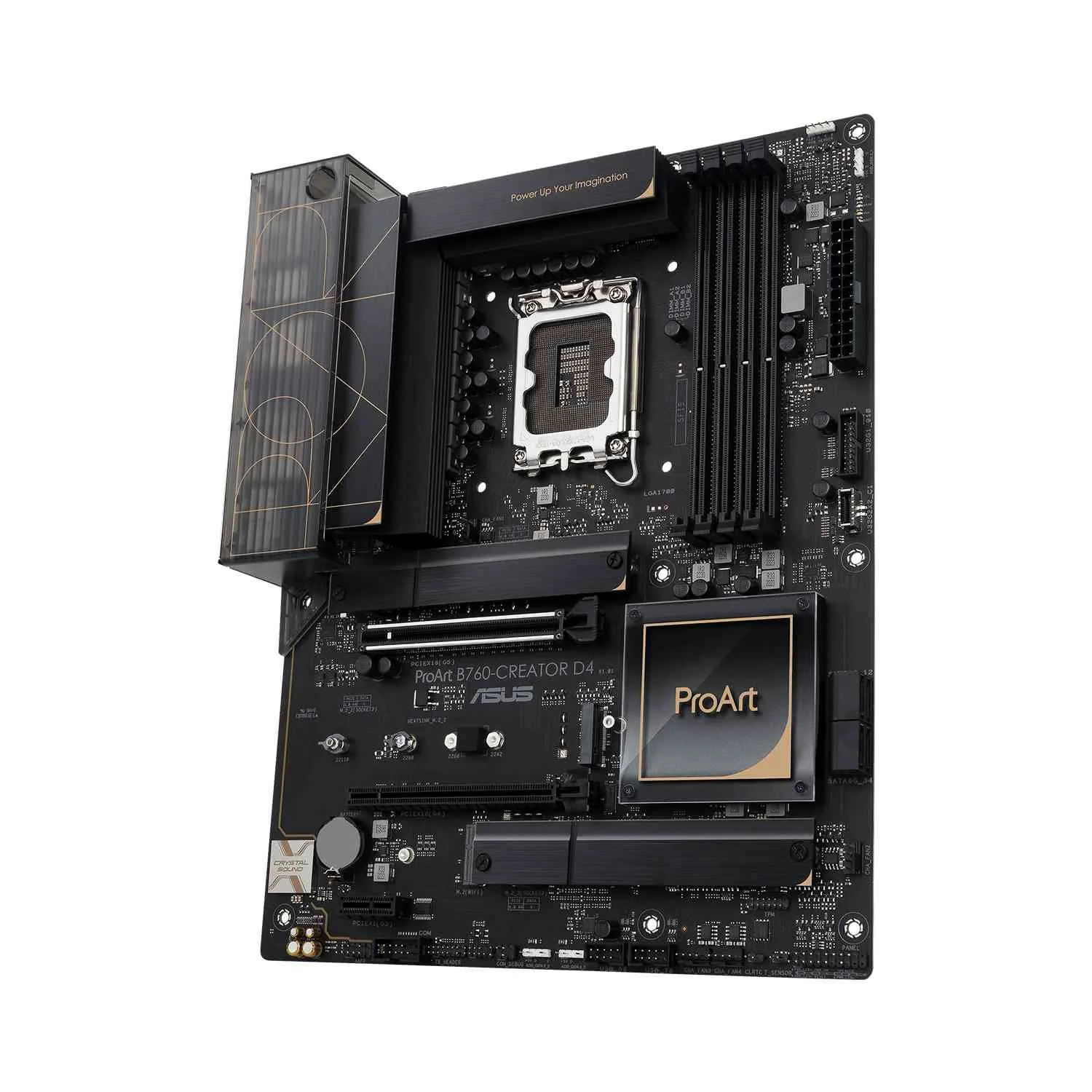

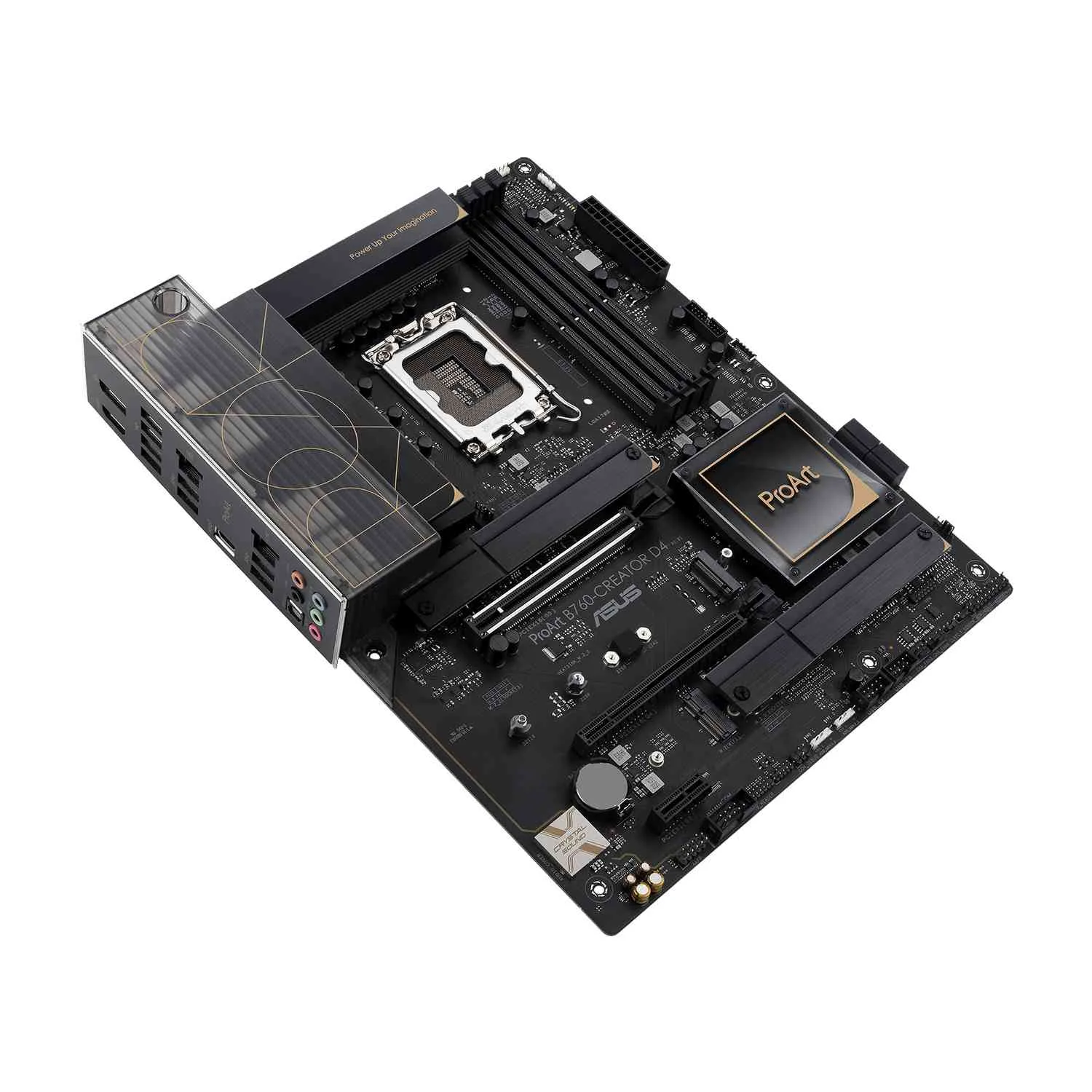

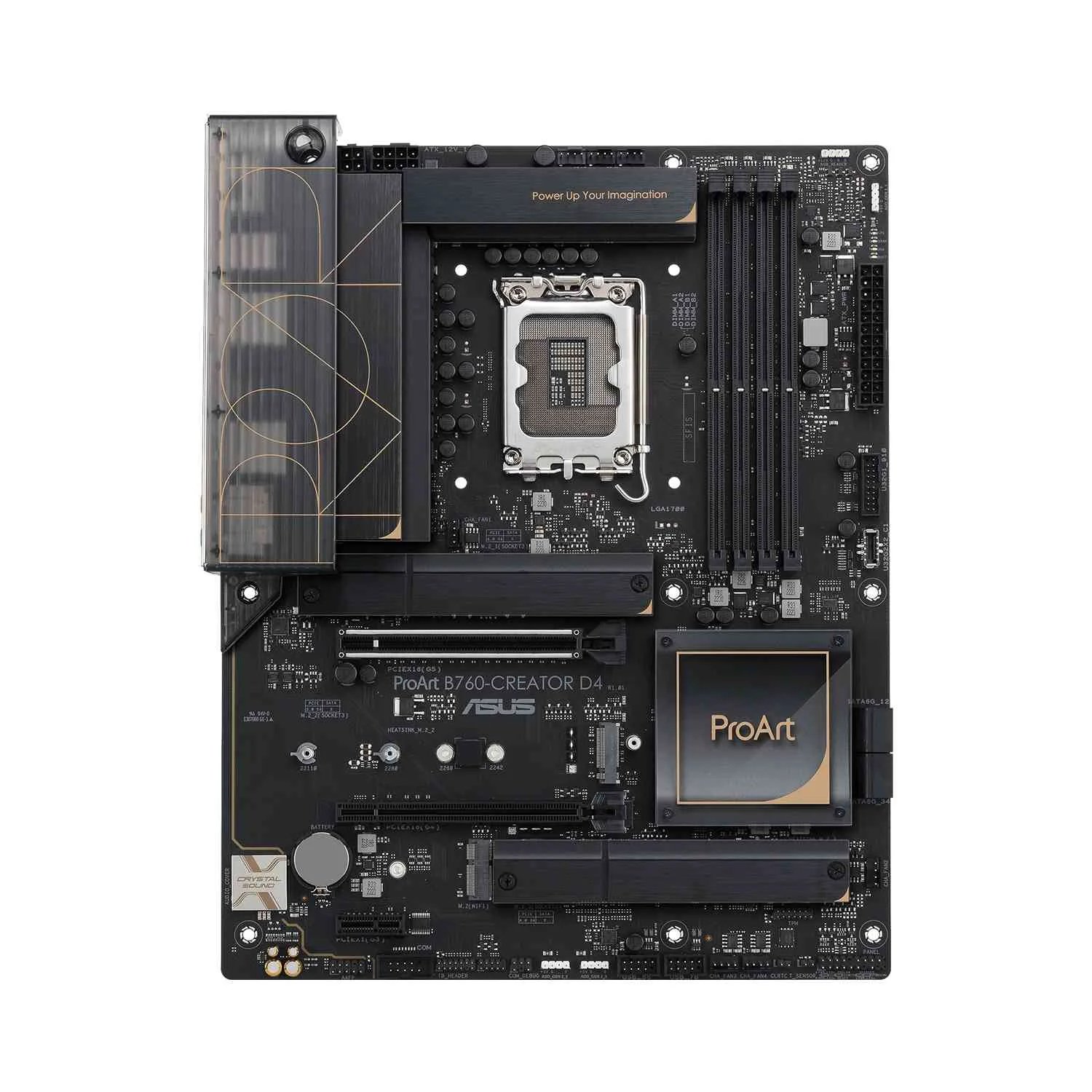

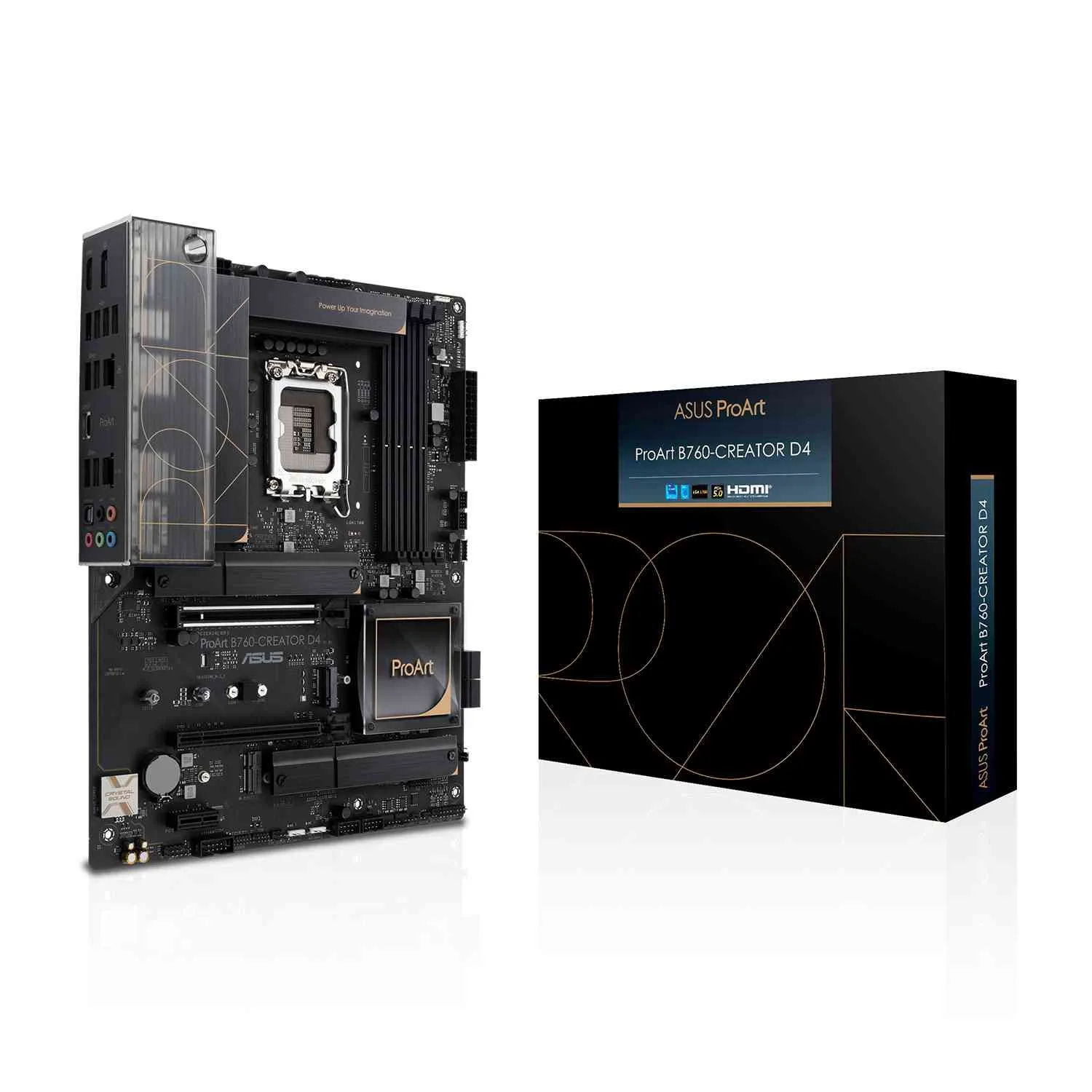

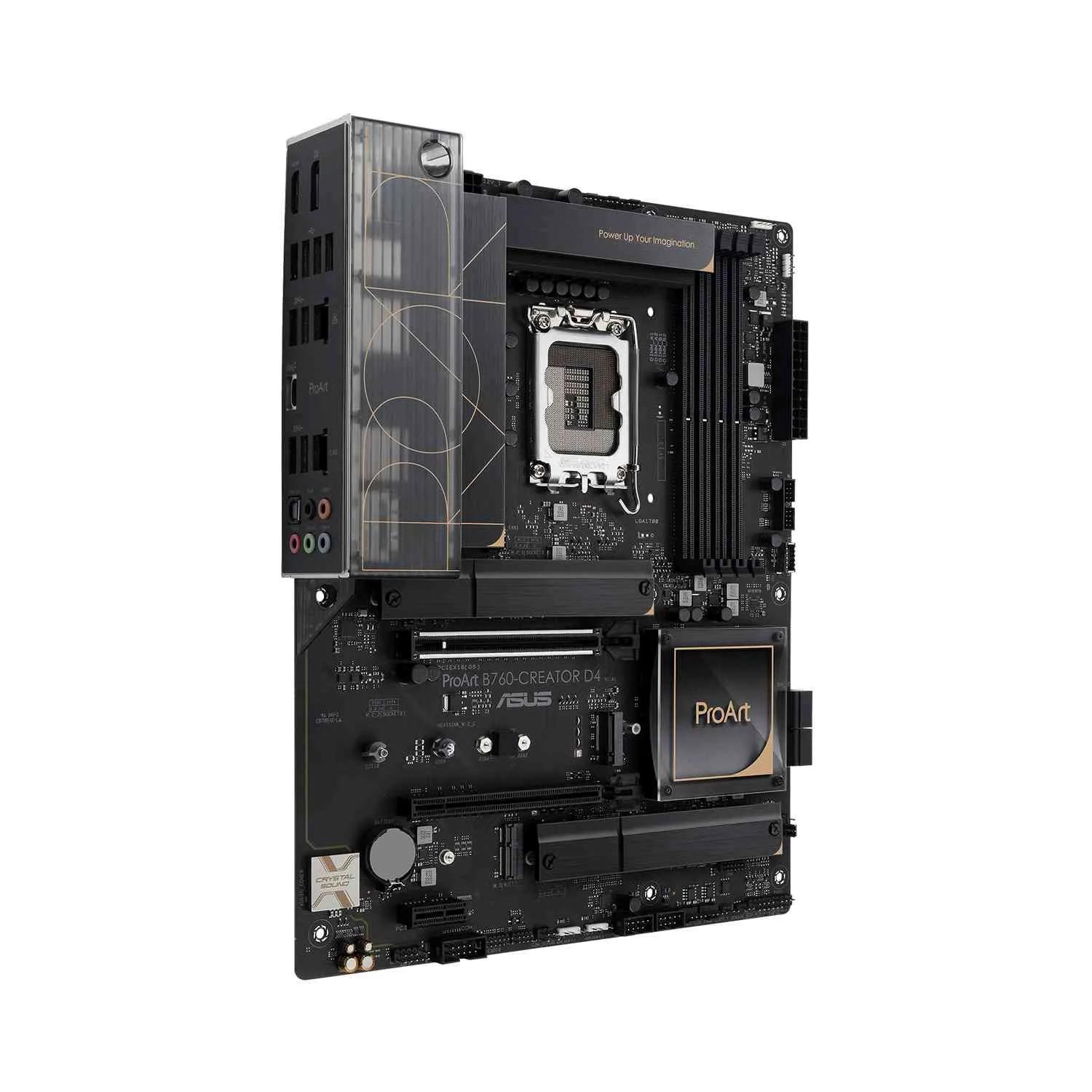

Asus ProArt Intel B760-Creator D4MotherBoard

Model No : Asus ProArt Intel B760-Creator D4 MotherBoard Part No : 90MB1DU0-M0EAY0 Chipset : Intel® B760 Chipset Form Factor : ATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) Socket Compatibility : Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® ProcessorsSupports Intel® 10 nm CPUSupports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Wireless & Bluetooth : M.2 slot only (Key E, PCIe)**Wi-Fi module is sold separately Ethernet : 1 x Realtek 2.5Gb Ethernet1 x Intel® 1Gb EthernetASUS LANGuard Memroy Type : 4 x DIMM, Max. 128GB, DDR4 Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)OptiMem II* Supported memory types, data rate (speed), and number of DRAM modules vary devpending on the CPU and memory configuration Storage Compatibility : Total supports 3 x M.2 slots and 4x SATA 6Gb/s ports*Intel® 13th & 12th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280/22110- Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode.Intel® B760 Chipset**M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)***M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports**** Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.*** M.2_2 slot shares bandwidth with PCIe X1 and WiFi Key E. M.2_2 will run at PCI 3.0 x2 mode either a device is detected at PCIe x1 or WiFi Key E slot. Graphics : 1 x HDMI® port**1 x DisplayPort port**** Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.** Support 4K@60Hz as specified in HDMI 2.1.*** Support max. 8K@60Hz as specified in DisplayPort 1.4. USB Ports : Rear USB (Total 9 ports)1 x USB 3.2 Gen 2 Type-C® port4 x USB 3.2 Gen 1 ports (4 x Type-A)4 x USB 2.0 ports (4 x Type-A)Front USB (Total 7 ports)1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports Expansion Slots : Intel® 13th & 12th Gen Processors1 x PCIe 5.0/4.0/3.0 x16 slotIntel® B760 Chipset*1 x PCIe 4.0 x16 slot (supports x4 mode)1 x PCIe 3.0 x1 slot**** PCIe X1 shares bandwidth with M.2_2. PCIe X1 will be disable when M.2_2 runs at PCIe x4 mode by manually enabled. Audio : Realtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Premium audio capacitors- Dedicated audio PCB layers- Audio cover- Unique de-pop circuit Back Panel I/O Ports : 1 x USB 3.2 Gen 2 port (1 x USB Type-C®)4 x USB 3.2 Gen 1 ports (4 x Type-A)4 x USB 2.0 ports (4 x Type-A)1 x DisplayPort1 x HDMI® port1 x Realtek 2.5Gb Ethernet port1 x Intel® 1Gb Ethernet port5 x Audio jacks1 x Optical S/PDIF out port Internal I/O Connectors : Fan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header4 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connector1 x 4-pin +12V Power connectorStorage related3 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports2 x USB 2.0 headers support additional 4 USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x AURA RGB header1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x M.2 slot (Key E)1 x SPI TPM header (14-1pin)1 x 20-5 pin System Panel header1 x Thermal Sensor header1 x Thunderbolt™ header Special Features : ASUS 5X PROTECTION III- DIGI+ VRM (- Digital power design with DrMOS)- Enhanced DRAM Overcurrent Protection- ESD Guards- LANGuard- Overvoltage Protection- SafeSlot- Stainless-Steel Back I/OASUS Q-Design- M.2 Q-Latch- Q-Connector- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- Flexible M.2 heatsink- VRM heatsink designASUS EZ DIY- ProCool- Pre-mounted I/O shieldAURA Sync- AURA RGB header- Addressable Gen 2 headers Accessories : Cables2 x SATA 6Gb/s cablesMiscellaneous2 x M.2 Rubber packages1 x Screw package for M.2 Key E1 x ProArt ruler1 x Q-connectorDocumentation1 x ACC Express Activation Key Card1 x User guide Operating System : Windows® 11 64-bit, Windows® 10 64-bit Manageability : WOL by PME, PXE BIOS : 128 Mb Warranty : 1 Year ( As per Manufacturer Policy )
