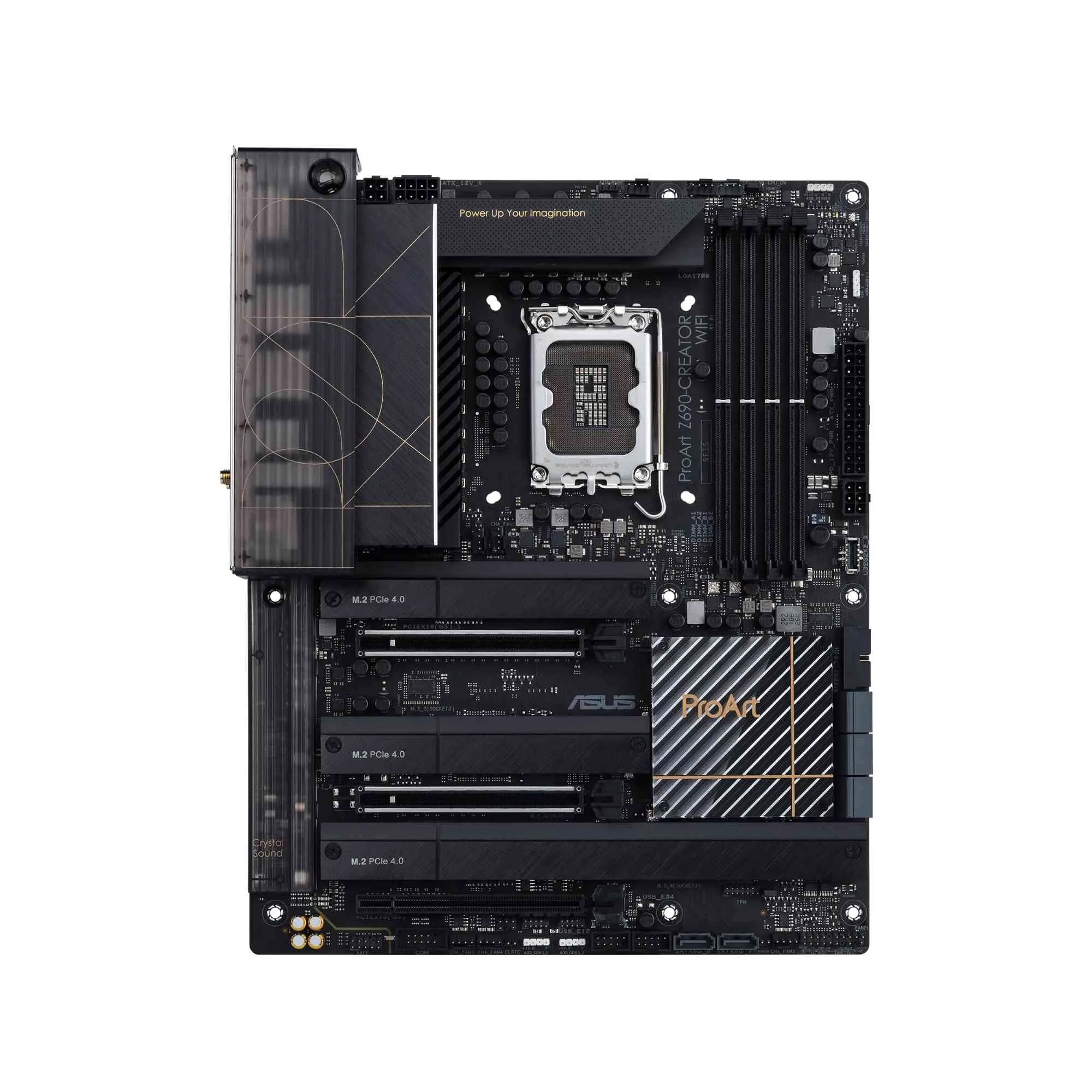

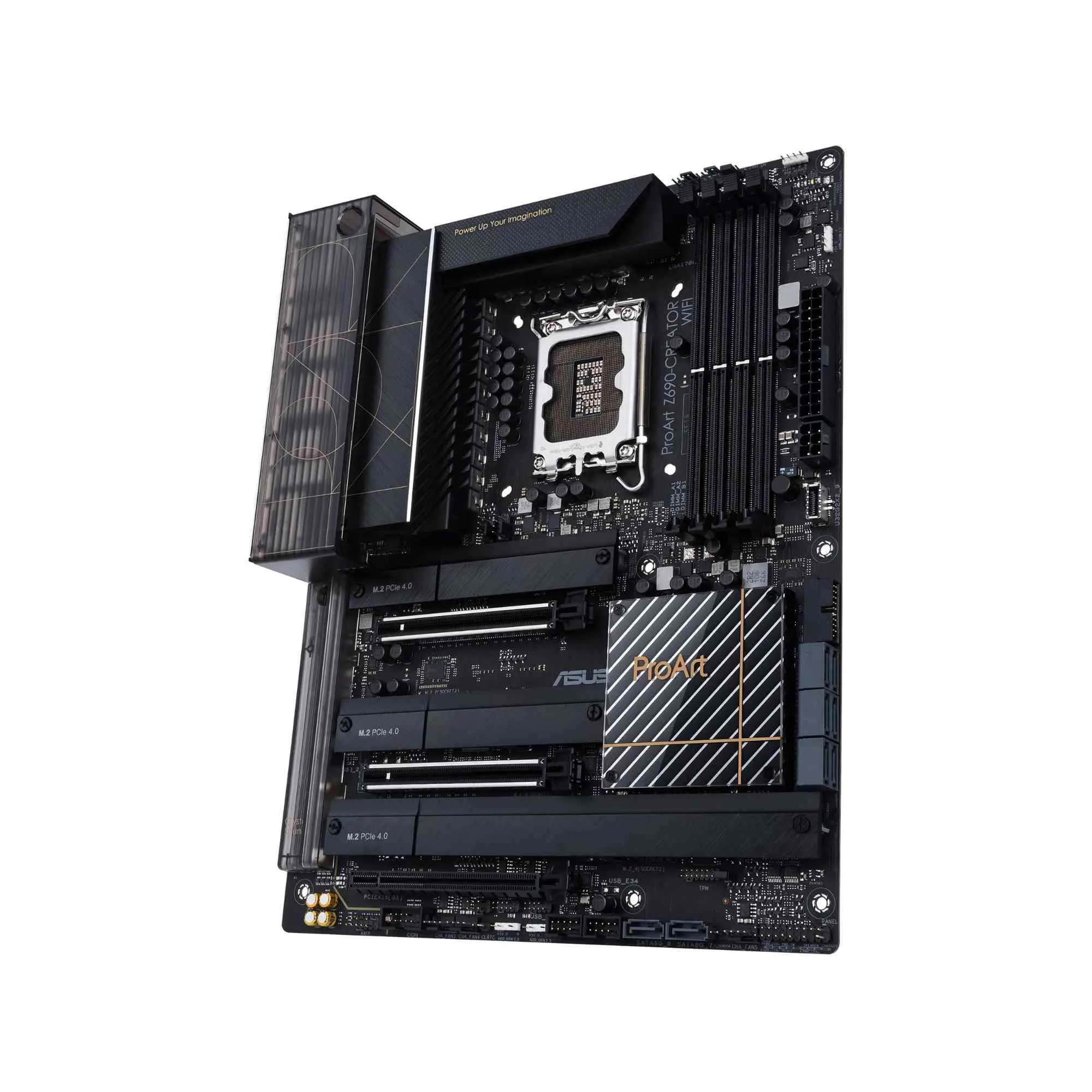

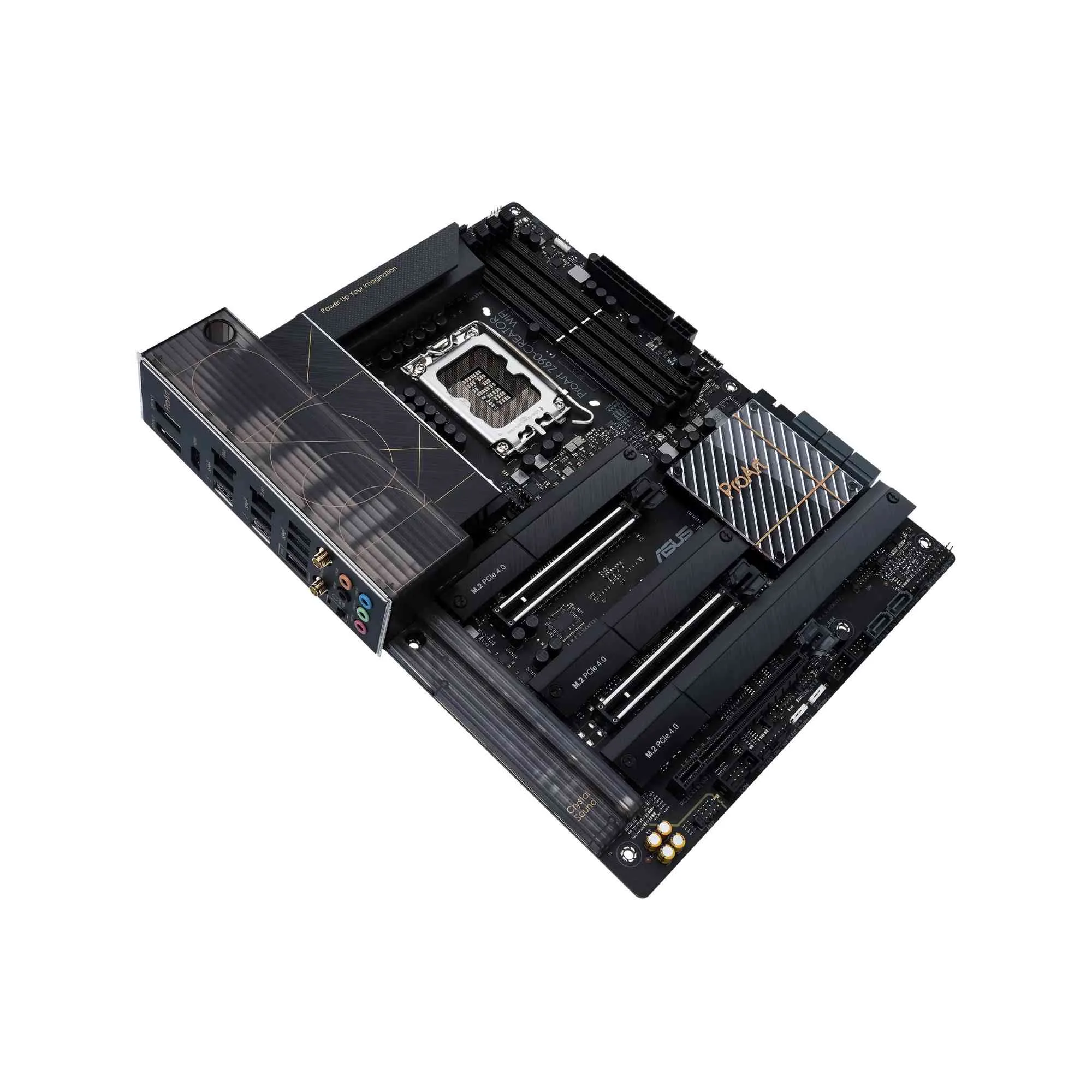

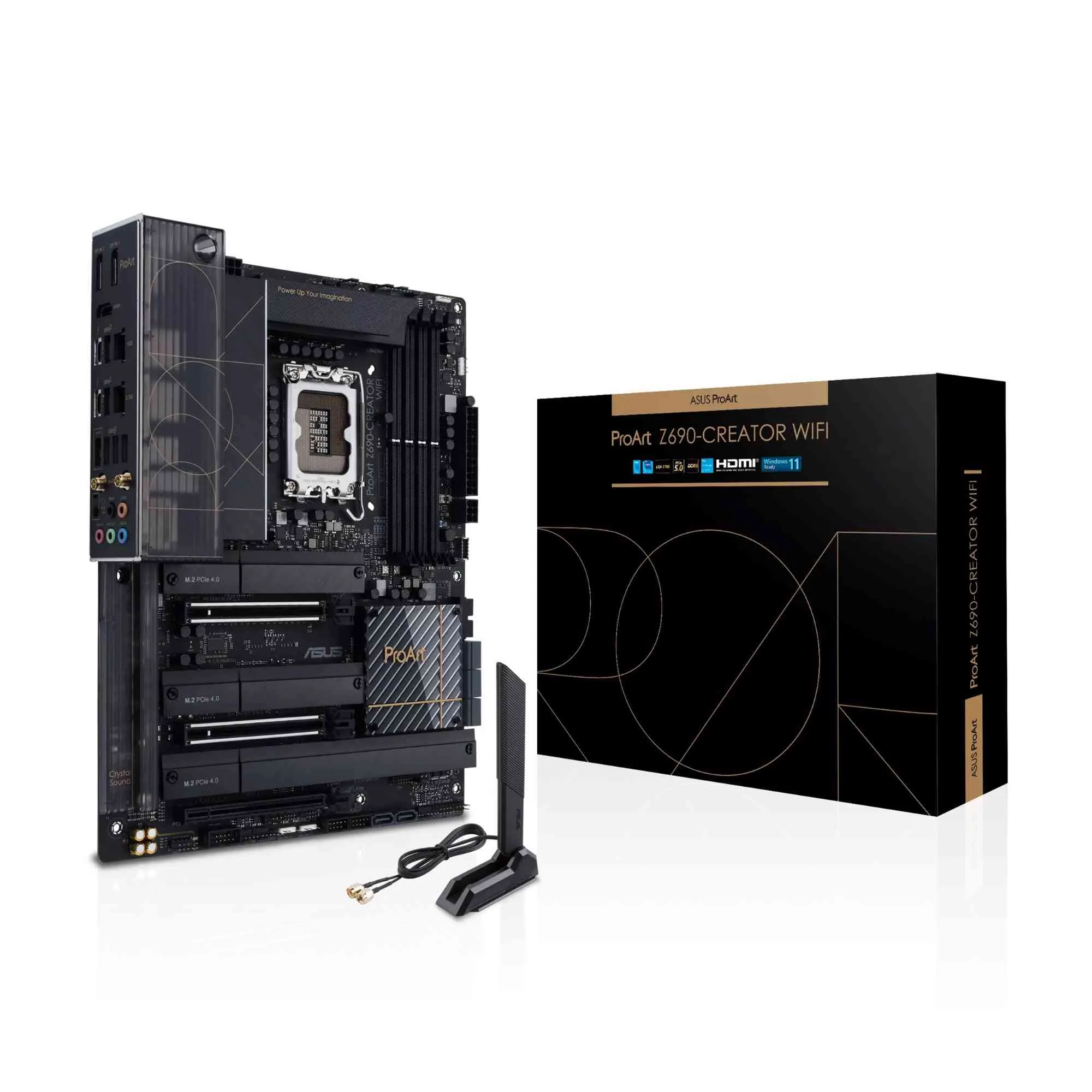

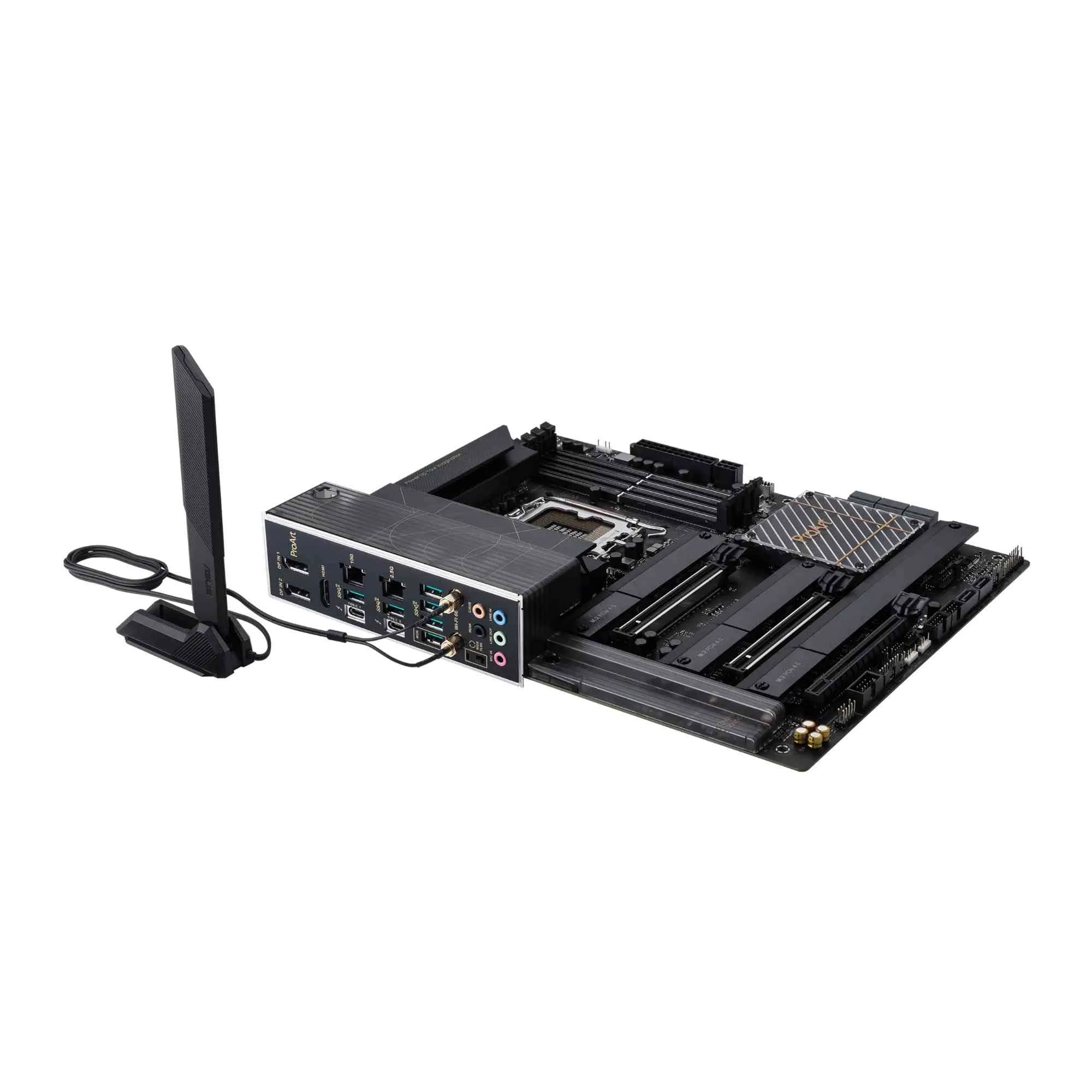

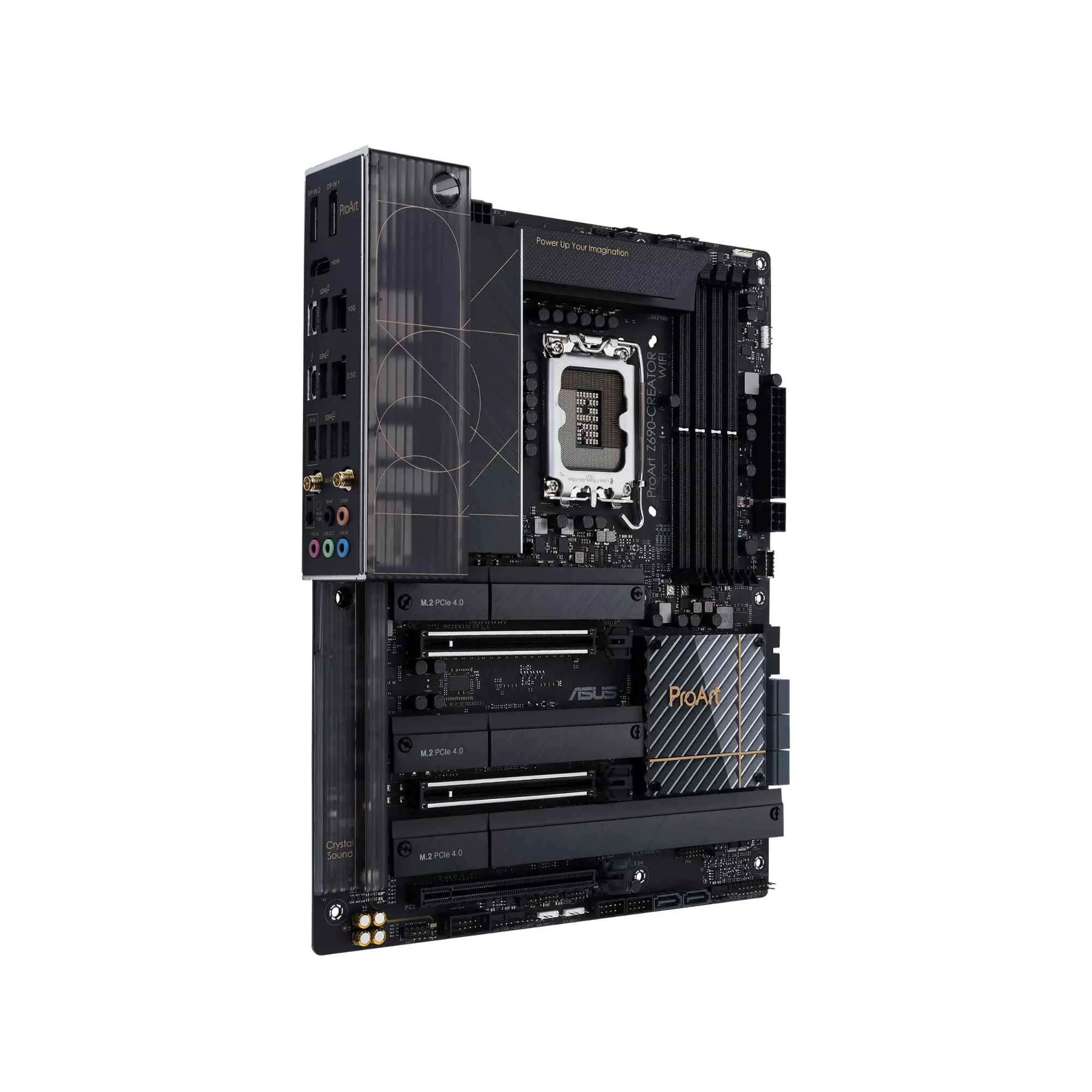

Asus ProArt Intel Z690-Creator WIFI DDR5 MotherBoard

Model No : ProArt Z690-CREATOR WIFI Part No : 90MB19H0-M0EAY0 Chipset : Intel® Z690 Chipset Form Factor : ATX30.5cm*24.5cm Socket Compatibility : Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® ProcessorsSupports Intel® 10 nm CPUSupports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*** Refer to www.asus.com for CPU support list.** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Wireless & Bluetooth : Intel® Wi-Fi 6E2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)Supports 2.4/5/6GHz frequency band*Bluetooth v5.2 hardware ready*** WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.** Bluetooth v5.2 function will be ready in Windows 11 or later. Ethernet : 1 x Intel® 2.5Gb Ethernet1 x Marvell® 10Gb EthernetASUS LANGuard Memory : 4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800MT/s Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)OptiMem II* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. Graphics : 1 x HDMI® port**2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort*** and Thunderbolt™ video outputs***** Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.** Support 4K@60Hz as specified in HDMI 2.1.*** Support 8K@60Hz as specified in DisplayPort 1.4.**** Output at TBT4_E1 and TBT4_E2, the USB Type-C® ports right under RJ45 ports, each requires a USB-C to DisplayPort adapter cable. VGA resolution support depends on processors' or graphic cards' resolution. Storage Compatibility : Supports 4 x M.2 slots and 8 x SATA 6Gb/s portsIntel® 12th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280/22110- Intel® 12th Gen processors support PCIe 4.0 x4 mode.Intel® Z690 Chipset**M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)***8 x SATA 6Gb/s ports**** Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.*** M.2_4 slot shares bandwidth with SATA6G_5~8. SATA6G5~8 will be suspended once either a SATA or NVMe device is detected at M.2_4. Back Panel I/O Ports : 2 x Thunderbolt™ 4 USB Type-C® port(s)6 x USB 3.2 Gen 2 port(s) (6 x Type-A)2 x DisplayPort (Input only)1 x HDMI® port1 x ASUS Wi-Fi Module1 x Marvell® AQtion 10Gb Ethernet port1 x Intel® 2.5Gb Ethernet port5 x Audio jacks1 x BIOS FlashBack™ button USB : Rear USB:Total 8 ports2 x Thunderbolt™ 4 port(s) (2 x USBType-C®) with up to 5V/3A, 15W charging support6 x USB 3.2 Gen 2 port(s) (6 x Type-A)Front USB:Total 7 ports1 x USB 3.2 Gen 2x2 connector(s)(support(s) USB Type-C® with 60W PD/QC4+)1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Expansion Slots : Intel® 12th Gen Processors*2 x PCIe 5.0/4.0/3.0 x16 slot(s) (supports x16 or x8/x8 mode(s))Intel® Z690 Chipset**1 x PCIe 3.0 x16 slot (supports x4 mode)* Supports PCIe bandwidth bifurcation for RAID on CPU function, please refer to PCIe bifurcation & M.2 setting in PCIe x16 slot (from CPU) table on support site.** Supports Intel® Optane Memory H Series on PCH-attached PCIE slot Audio : Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*- Impedance sense for front and rear headphone outputs- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)- Supports up to 32-Bit/192 kHz playback*"Audio Features- Power pre-regulator reduces power input noise to ensure consistent performance- Premium Japanese audio capacitors- Dedicated audio PCB layers- Audio cover- Unique de-pop circuit* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports : 2 x Thunderbolt™ 4 USB Type-C® port(s)6 x USB 3.2 Gen 2 port(s) (6 x Type-A)2 x DisplayPort (Input only)1 x HDMI® port1 x ASUS Wi-Fi Module1 x Marvell® AQtion 10Gb Ethernet port1 x Intel® 2.5Gb Ethernet port5 x Audio jacks1 x BIOS FlashBack™ button Internal I/O Connectors : Fan and Cooling related1 x 4-pin CPU Fan header(s)1 x 4-pin CPU OPT Fan header(s)1 x 4-pin AIO Pump header(s)5 x 4-pin Chassis Fan header(s)Power related1 x 24-pin Main Power connector1 x 8-pin +12V Power connector1 x 4-pin +12V Power connectorStorage related4 x M.2 slots (Key M)8 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 2x2 (support(s) USB Type-C®)1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 portsMiscellaneous3 x Addressable Gen 2 header(s)1 x AURA RGB header(s)1 x Clear CMOS header1 x COM Port header1 x CPU Over Voltage jumper1 x Front Panel Audio header (AAFP)1 x M.2 slot (Key E)1 x SPI TPM header (14-1pin)1 x 20-3 pin System Panel header with Chassis intrude function1 x RTC Battery header1 x Thermal Sensor header Special Features : ASUS 5X PROTECTION III- DIGI+ VRM (- Digital power design with DrMOS)- Enhanced DRAM Overcurrent Protection- ESD Guards- LANGuard- Overvoltage Protection- SafeSlot- Stainless-Steel Back I/OASUS Q-Design- M.2 Q-Latch- Q-Connector- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink- VRM heatsink designASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- Box Headers- ProCool II- Pre-mounted I/O shieldAURA Sync- AURA RGB header(s)- Addressable Gen 2 header(s) Warranty : 1 Year ( As per Manufacturer Policy )
