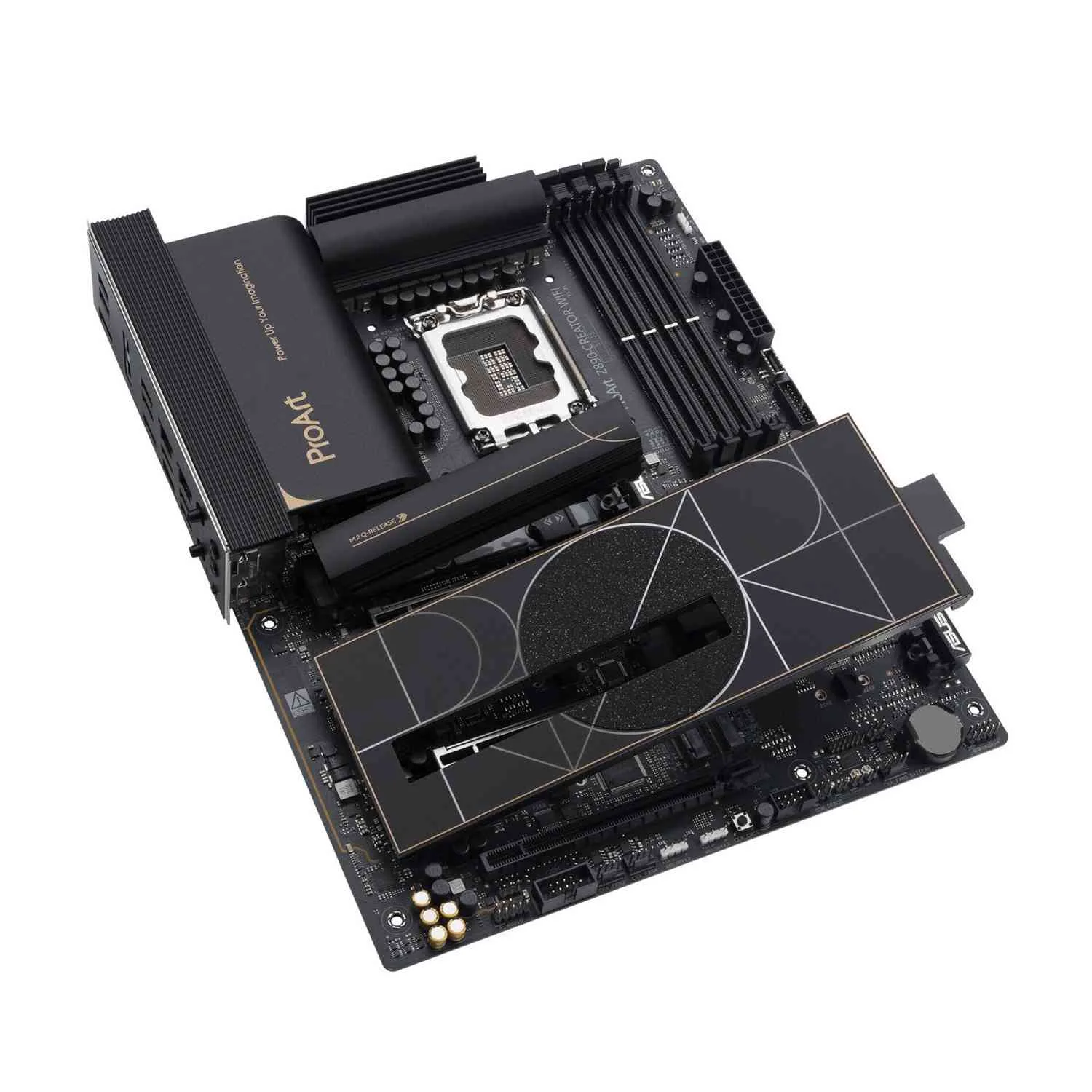

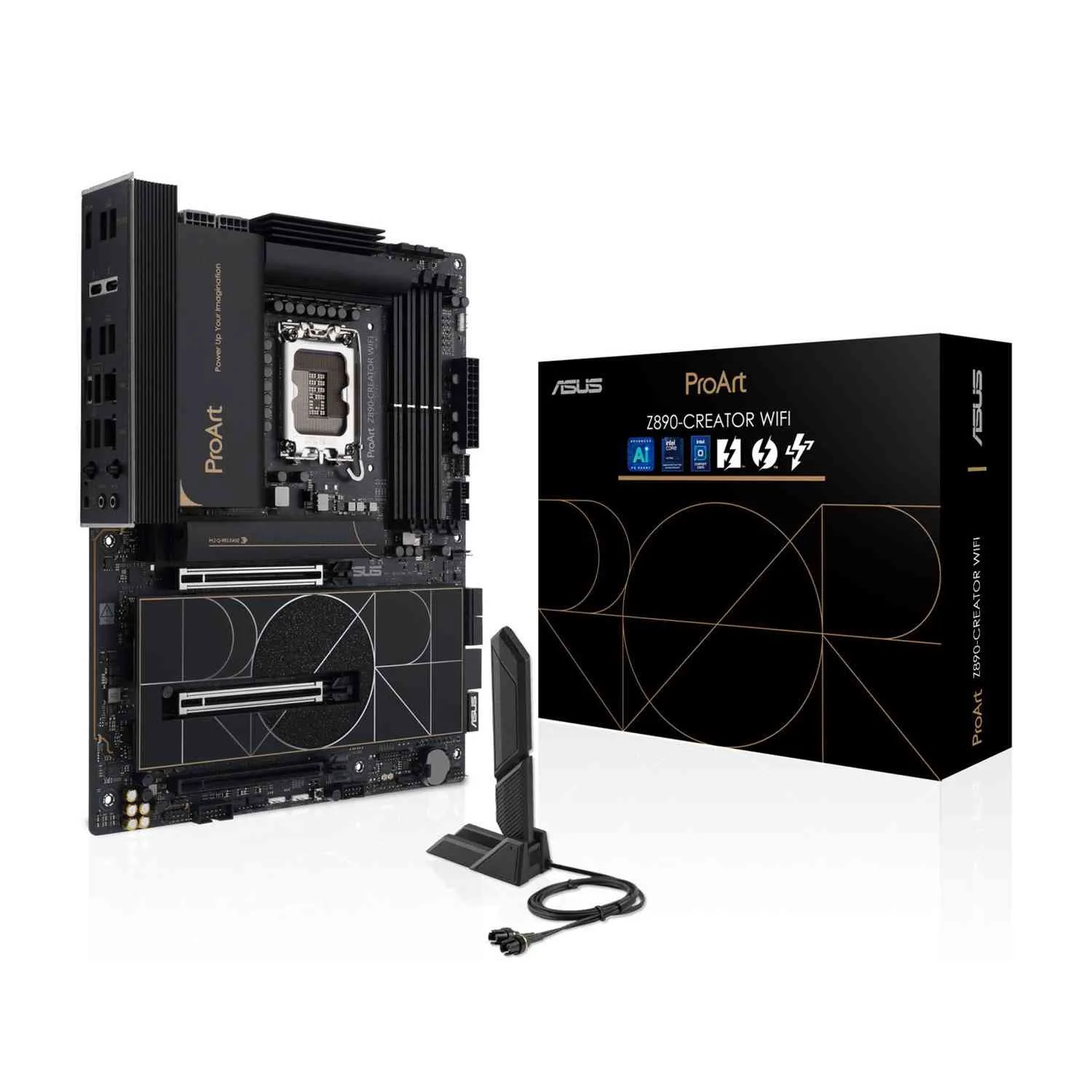

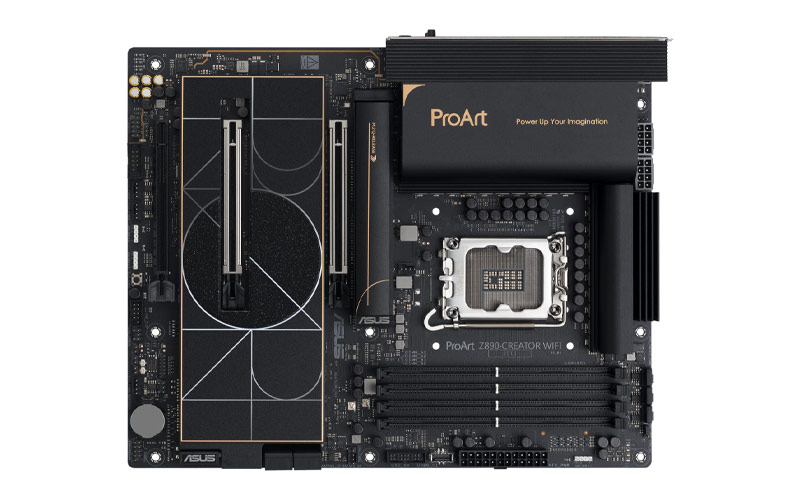

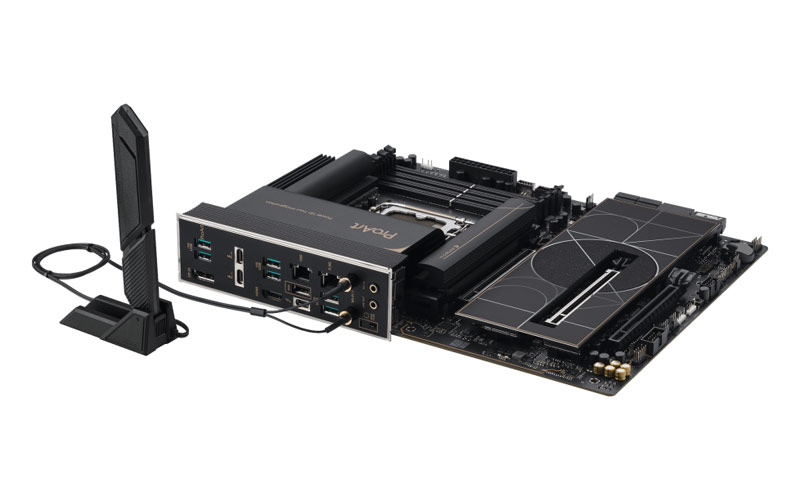

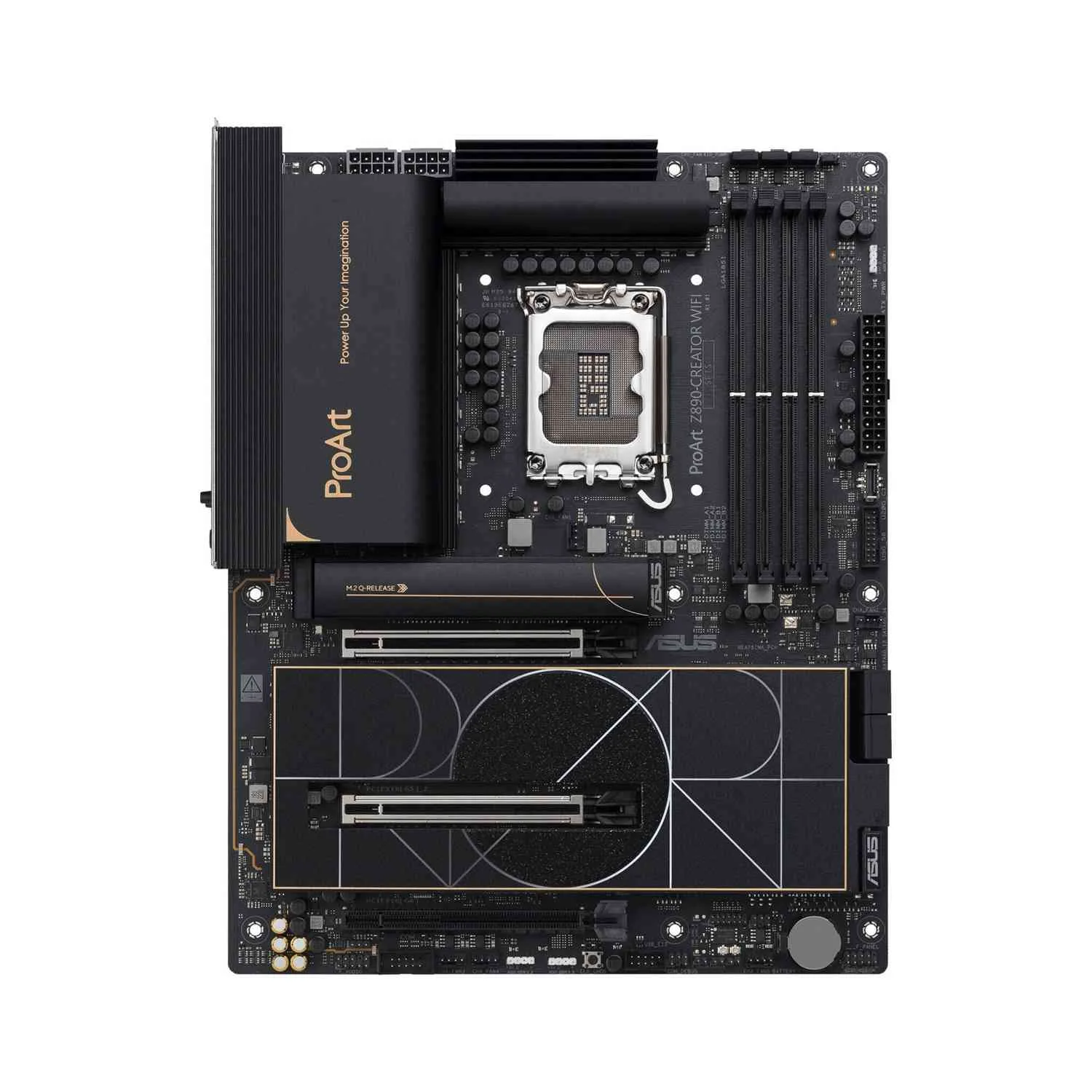

ASUS ProArt Z890-CREATOR WiFi LGA 1851 ATX Motherboard

Next Gen Connectivity

10 Gb & 2.5 Gb Ethernet
Dual Ethernet ports provide fast data transfers simultaneously for 2.5G internet streaming or uploading and 10G for local network-attached storage (NAS), allowing for improved data organization and security.

WiFi 7

The revolutionary WiFi 7 is up to 4.8X faster than standard WiFi 6, thanks to technology like 320 MHz channels on the 6 GHz band and 4K QAM*. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.

ASUS WiFi Q-Antenna

Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.

*WiFi 7 features require onboard WiFi chipset, WiFi AP, and WiFi 7-supported operating systems to support the corresponding features. 320 MHz channels in the 6 GHz band may be unavailable in some regions/countries due to regulatory restrictions.

PCIe 5.0 Support

The ProArt Z890-CREATOR WIFI offers PCIe 5.0 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.

Five Onboard M.2 Slots

ProArt Z890-CREATOR WIFI features one PCIe 5.0 M.2 slot and four PCIe 4.0 M.2 slots to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.

Bandwidth (Gbps)

• PCIe 5.0 x4 — 128

• PCIe 4.0 x4 — 64

• PCIe 3.0 x4 — 32

*Actual transmission speed will be lower than theoretical maximum speed.

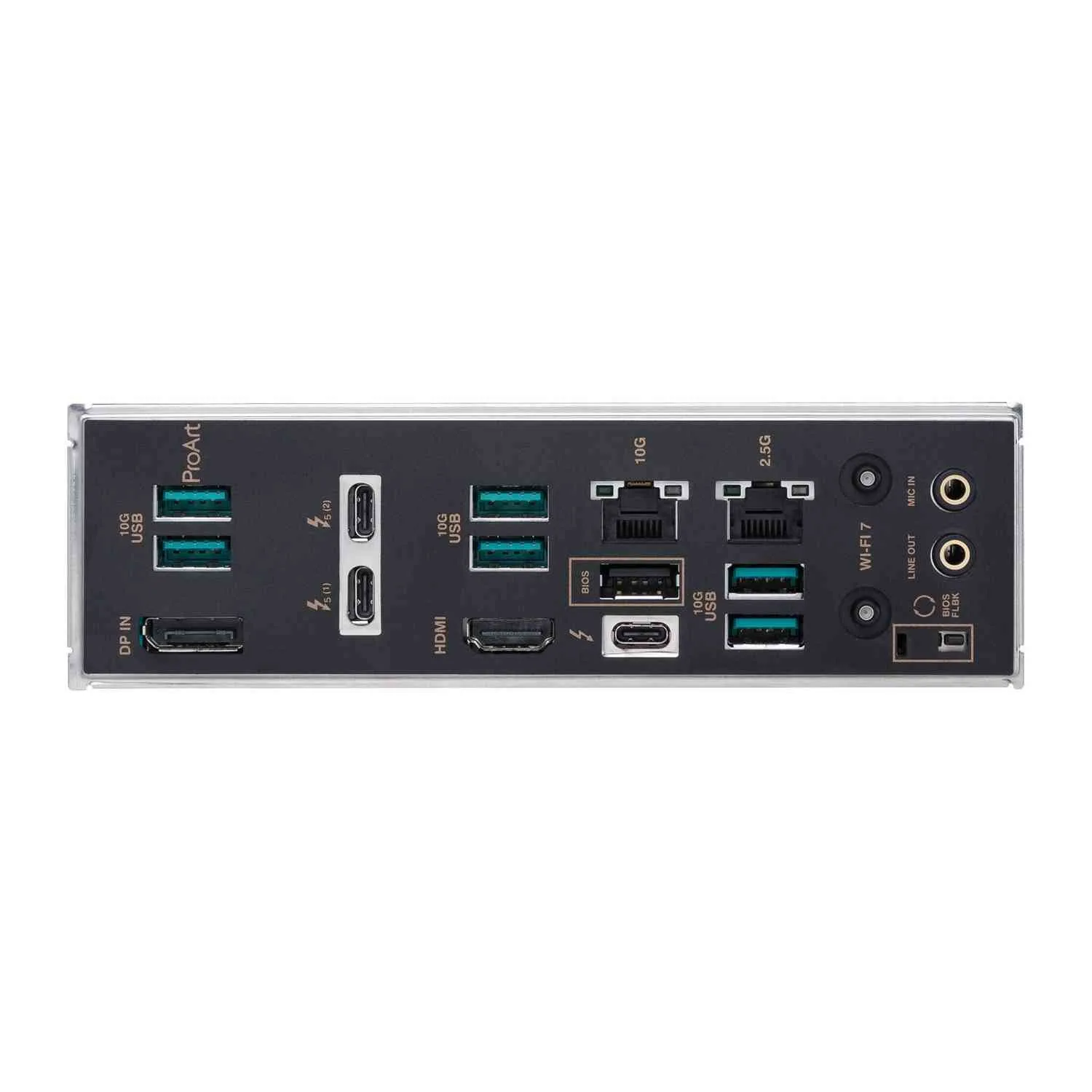

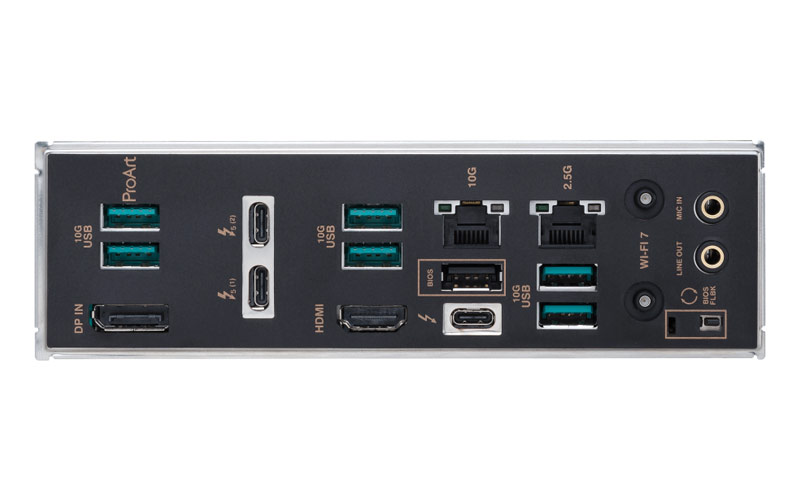

2 x USB 10Gbps ports
1 x DP IN port for Thunderbolt™ 5
2 x Thunderbolt™ 5 Type-C®
1 x HDMI® 2.1 (4K @ 60 Hz)
2 x USB 10Gbps ports
1 x USB2.0 port
10Gb ethernet
1 x Thunderbolt™ 4 Type-C®
2 x USB 10Gbps ports
2.5Gb Ethernet
WiFi 7
BIOS Flashback™
2 x Audio jacks

1 x USB 20Gbps Type-C® Port
1 x USB 5Gbps front-panel header
4 x SATA 6Gb/s ports
1 x USB 2.0 header
