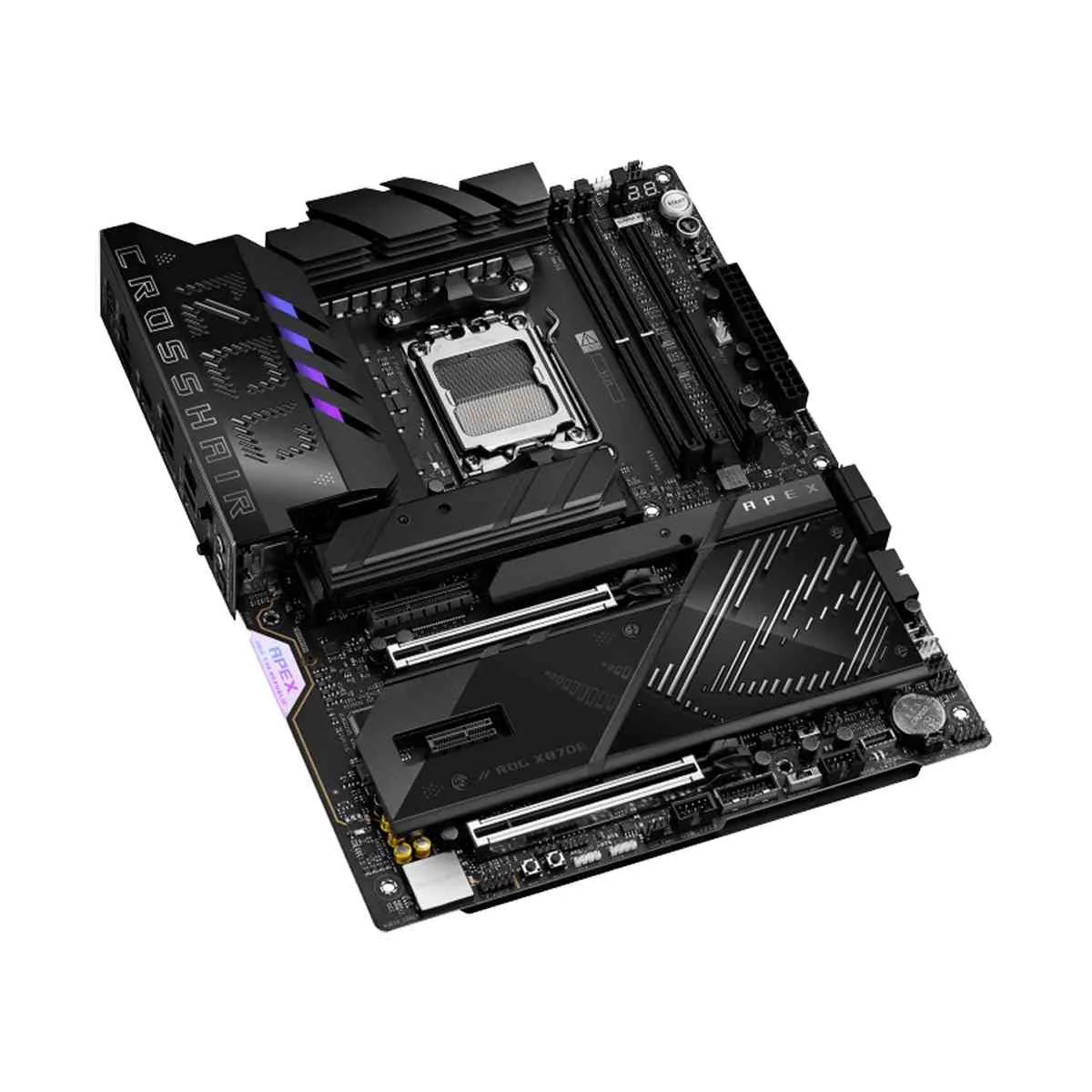

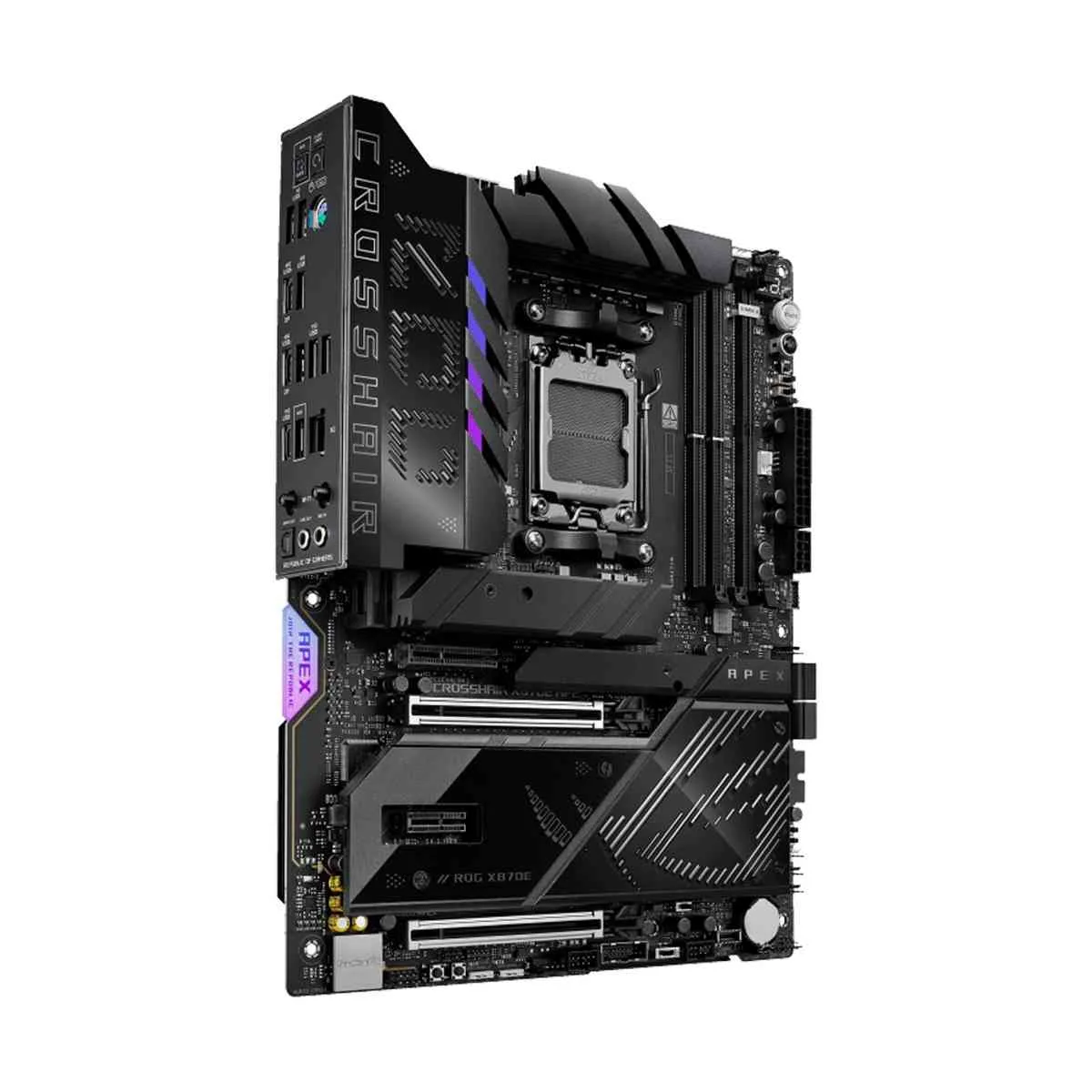

Asus Rog CrossHAir X870E Apex Wifi 7 Ai PC Ready PCIe 5.0 Ready DDR5 AMD Gaming MotherBoard

Model No : Asus Rog CrossHAir X870E Apex Wifi 7 Ai PC Ready PCIe 5.0 Ready DDR5 AMD Gaming MotherBoard Part No : 90MB1KR0-M0EAY0 Chipset : AMD X870E Form Factor : ATX Socket Compatibility : AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* Wireless & Bluetooth : Wi-Fi 7 (Qualcomm QCNCM865 or MediaTek MT7927)*2x2 Wi-Fi 7** (802.11be) Supports 2.4/5/6GHz frequency band***Supports Wi-Fi 7 320MHz bandwidthBluetooth® v5.4**** Lighting : None Memroy Type : 2 x DIMM slots, max. 128GB, DDR5 Supports up to8200+MT/s(OC) with Ryzen™ 9000 Series Processors,9600+MT/s(OC) with Ryzen™ 8000 Series Processors8000+MT/s(OC) with Ryzen™ 7000 Series Processors,ECC and Non-ECC, Un-buffered Memory*Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™)ASUS Enhanced Memory Profile (AEMP) Ethernet : 1 x Realtek 5Gb EthernetASUS LANGuard Storage Compatibility : Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*AMD Ryzen™ 9000 & 7000 Series Desktop Processors***M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)AMD Ryzen™ 8000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)M.2_3 slot (Key M), type 2242/2260/2280 (Not supports)AMD X870E ChipsetDIMM.2_1 slot (Key M), type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)DIMM.2_2 slot (Key M), type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports** When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16_2 will be disabled. ***When M.2_3 are enabled, PCIEX16_1 will run x8, and PCIEX16_2 will run x4, M.2_2 will be disabled.AMD RAIDXpert2 TechnologyRyzen™ 9000 Series Processors: RAID 0/1/5/10Ryzen™ 8000 Series Processors: RAID 0/1Ryzen™ 7000 Series Processors: RAID 0/1/10 Back Panel I/O Ports : 2 x USB4® (40Gbps) ports (2 x USB Type-C®)6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®) 2 x USB 5Gbps ports (2 x Type-A)1 x Wi-Fi module1 x Realtek 5Gb Ethernet port1 x PS/2 keyboard/mouse combo port 2 x Gold-plated audio jacks1 x Optical S/PDIF out port1 x BIOS FlashBack™ button 1 x Clear CMOS button USB Ports Front (Support ) : Rear USB (Total 10 ports)2 x USB4® (40Gbps) ports (2 x USB Type-C®)6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®) 2 x USB 5Gbps ports (2 x Type-A)Front USB (Total 10 ports)1 x USB 20Gbps (supports USB Type-C® with up to 60W PD/QC4+)*1 x USB 20Gbps connector (supports USB Type-C®)2 x USB 5Gbps headers support 4 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 portsUSB Type-C® power delivery output: max. 5V/3A*USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A Expansion Slots : AMD Ryzen™ 9000 & 7000 Series Desktop Processors*2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***)** When you use both PCIEX16_1 and PCIEX16_2, PCIEX16_1 and PCIEX16_2 will run x8. ***When M.2_3 are enabled, PCIEX16_1 will run x8, and PCIEX16_2 will run x4.**** When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16_2 will be disabled.AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors*2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x8, PCIEx16_2 will be disabled)AMD Ryzen™ 8500 & 8300 Series Desktop Processors*2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x4, PCIEx16_2 will be disabled)AMD X870E Chipset1 x PCIe 4.0 x4 slot1 x PCIe 3.0 x1 slot Audio : ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*- Impedance sense for front and rear headphone outputs- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input- Supports up to 32-Bit/384 kHz playback on front panel"Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Gold-plated audio jacks- Rear optical S/PDIF out port- Premium audio capacitors- Audio cover Internal I/O Connectors : Fan and Cooling Related 1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header2 x 4-pin Chassis Fan headers2 x 4-pin Full Speed Fan headers1 x W_PUMP+ header1 x Extra Flow Fan headerPower Related 1 x 24-pin Main Power connector2 x 8-pin +12V CPU Power connector1 x 8-pin PCIe Power connectorStorage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s portsUSB 2 x USB 20Gbps connectors (support USB Type-C® ) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous1 x 80 Light Bar jumper3 x Addressable Gen2 headers1 x Alteration PCIe mode switch2 x BCLK button1 x BIOS Switch button 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO)1 x LN2 Mode jumper 1 x Pause switch12 x ProbeIt Measurement Points1 x ReTry button2 x RSVD switches1 x RSVD_4 header1 x Safe Boot button1 x Slow Mode switch 1 x Start button1 x 10-1 pin System Panel header1 x Thermal Sensor header Special Features : Extreme OC Kit- FlexKey button- LN2 Mode- ProbeIt- ReTry button- Safe boot button- Start button- Slow ModeExtreme Engine Digi+- SMD Capacitor- MicroFine alloy choke ASUS Q-Design - M.2 Q-Latch- M.2 Q-Release- M.2 Q-Slide- Q-Release Slim (with PCIe SafeSlot)- Q-Antenna- Q-Code- Q-Connector- Q-Dashboard- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])ASUS Thermal Solution- M.2 heatsink backplate- M.2 heatsink- VRM heatsink design- Metal backplateASUS EZ DIY- Backplate- BIOS FlashBack™ button- Clear CMOS button- CPU Socket lever protector- ProCool II- Pre-mounted I/O shield- SafeSlot- SafeDIMMAura Sync- Addressable Gen2 header(s)Front Panel USB 20Gbps with Quick Charge 4+ Support- Support: up to 60W fast charging and USB Wattage Watcher*- Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A- Compatible with PD3.0 and PPS* To support 60W, please install the power cable to the 8-pin PCIe power connector or else only 27W will be supported. Package Content : ROG DIMM.2 with Heatsink1 x ROG DIMM.2 with heatsink1 x M.2 pad for ROG DIMM.22 x M.2 screw package for ROG DIMM.2Additional Cooling Kit1 x ROG Memory Fan KitMiscellaneous1 x ASUS WiFi Q-Antenna1 x Q-connector3 x M.2 Q-Slide package3 x M.2 rubber package1 x ROG stickers1 x ROG thank you card1 x ROG Bottle OpenerInstallation Media1 x USB drive with utilities and drivers Documentation1 x Quick start guide Product Size ( Dimension ) : 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) Warranty : 1 Year ( As per Manufacturer Policy )
