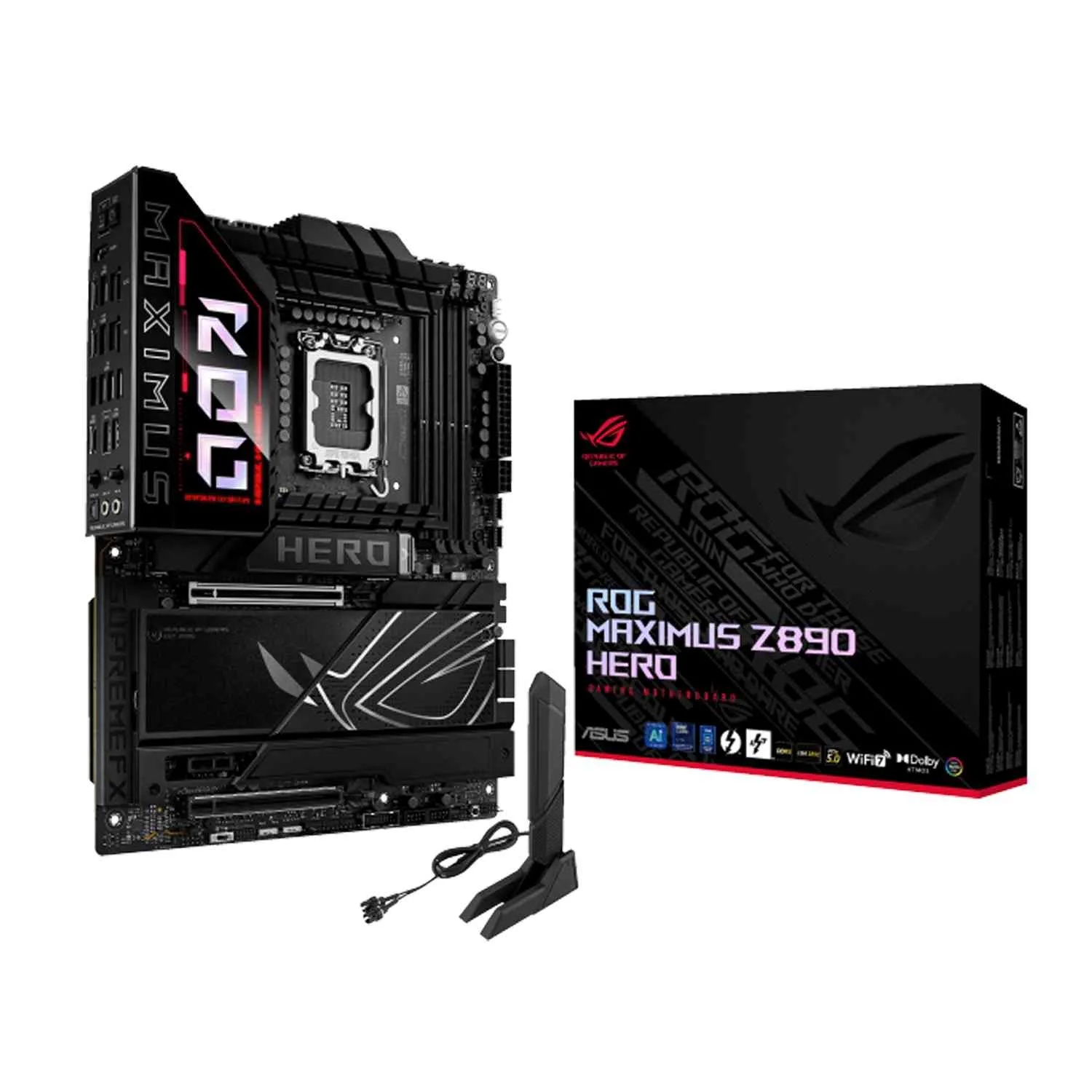

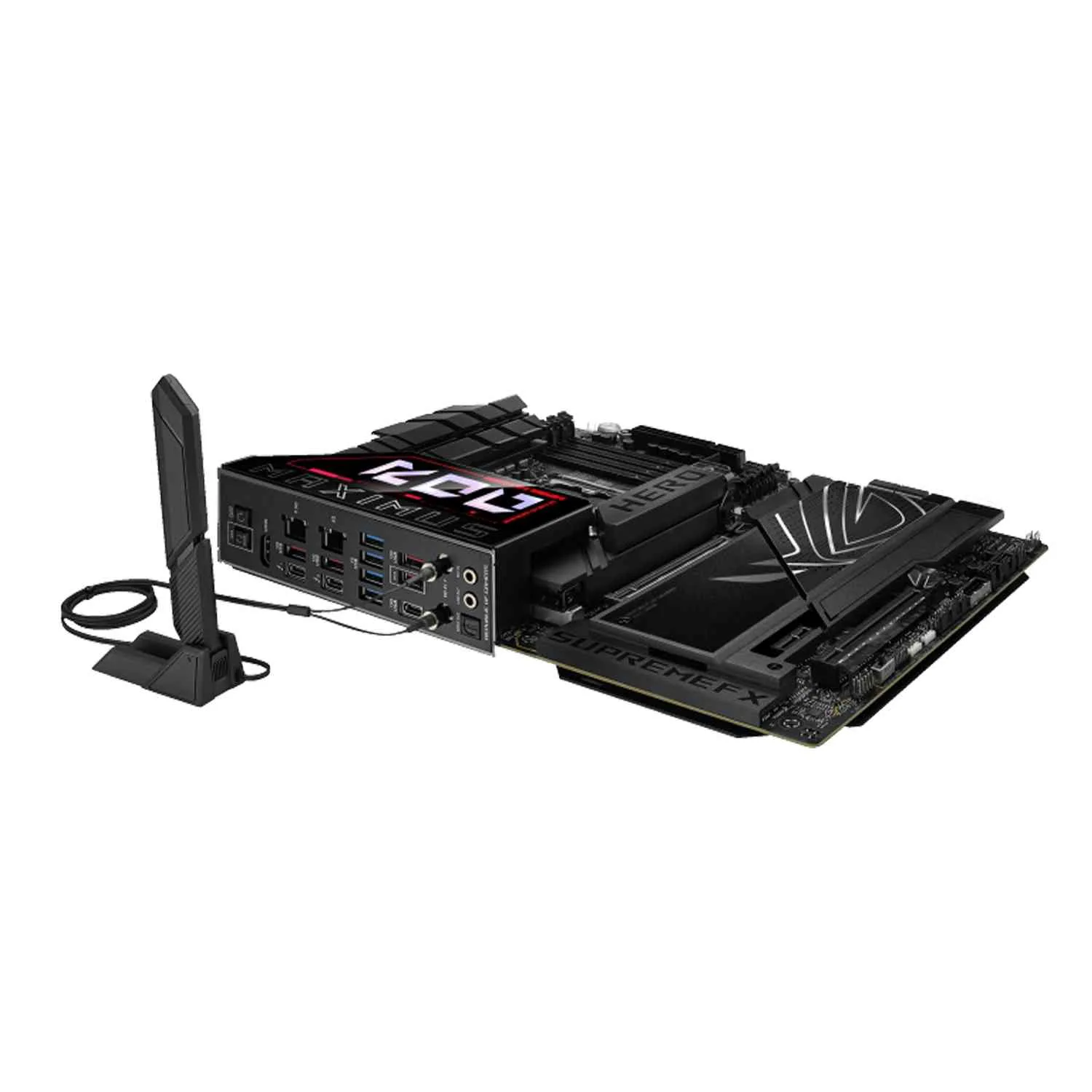

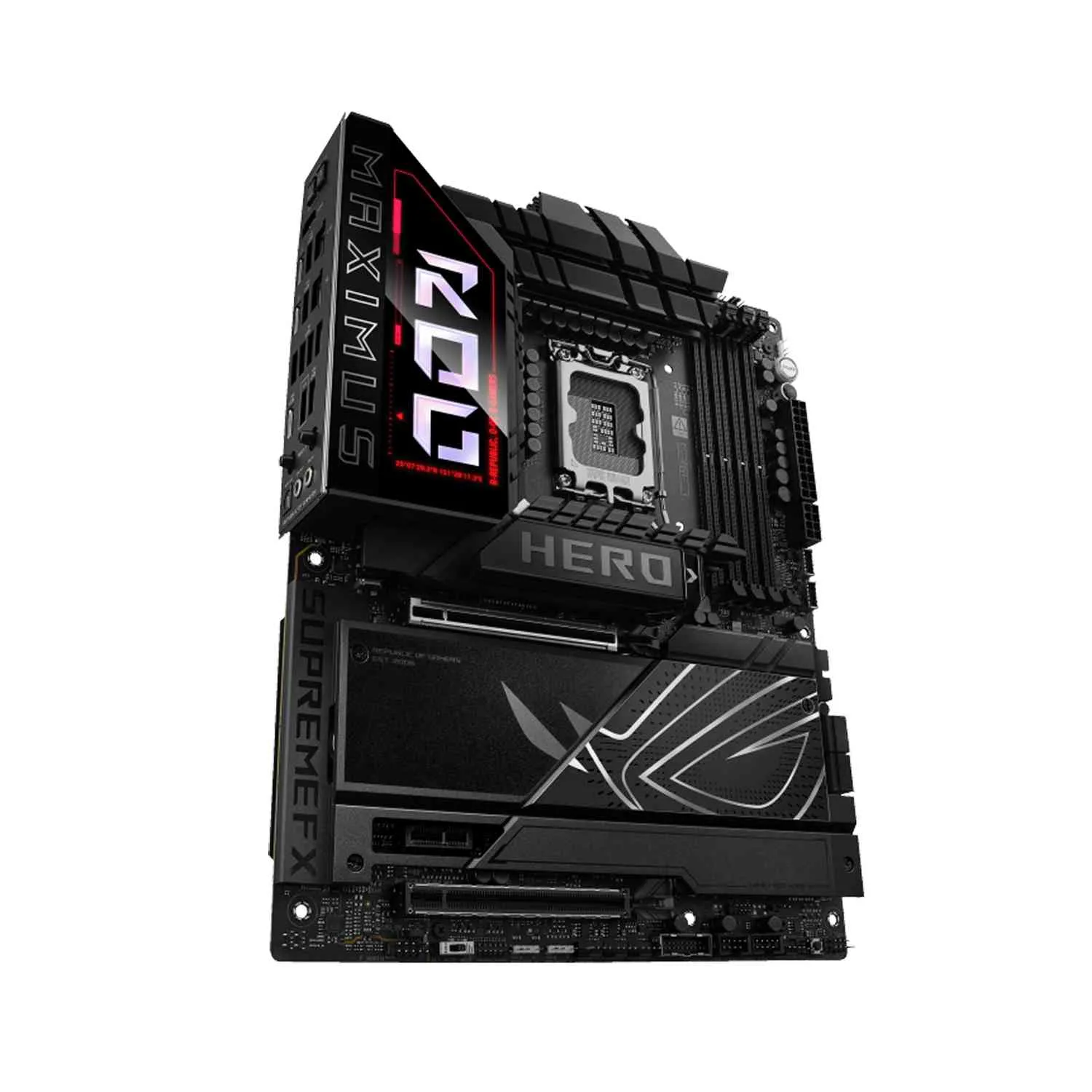

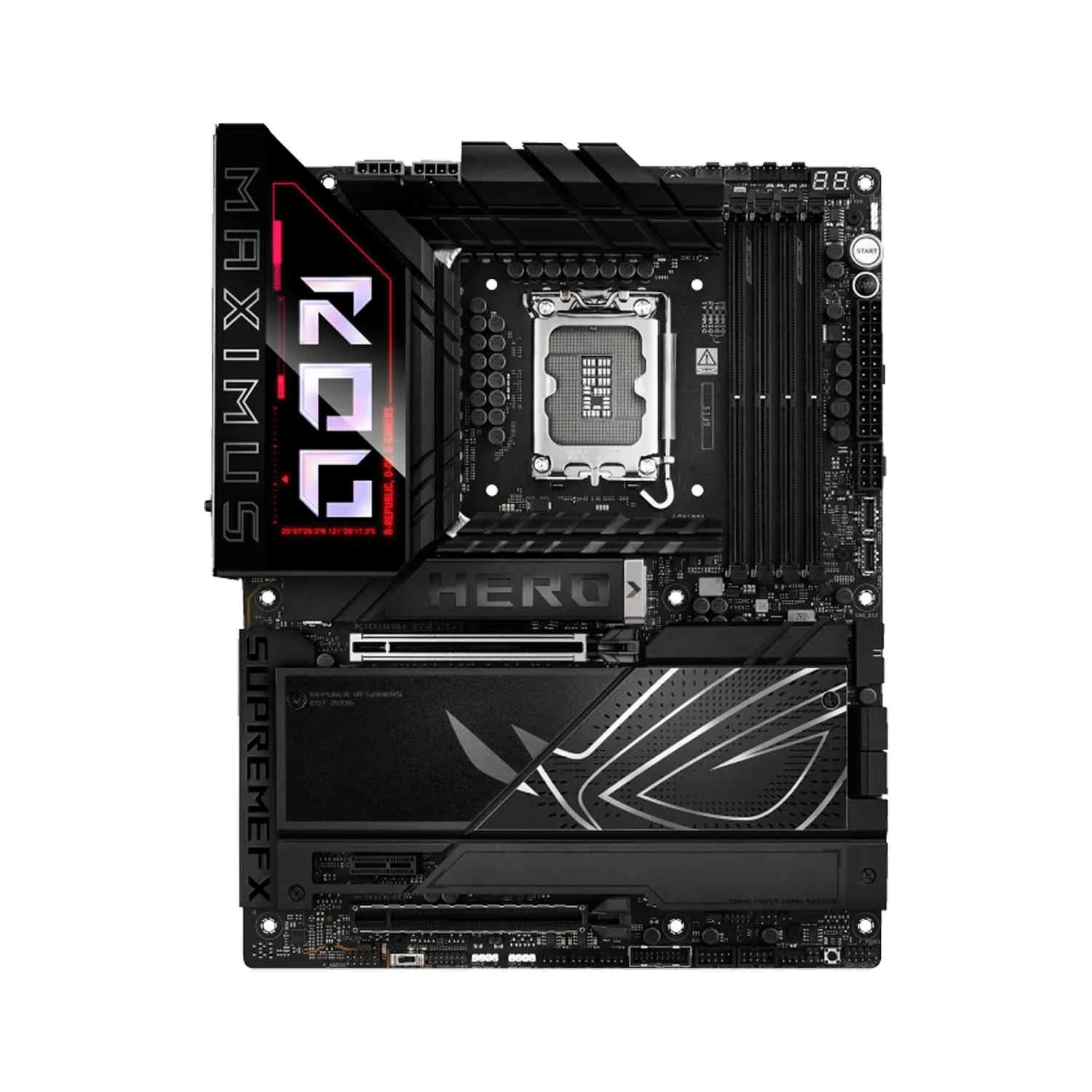

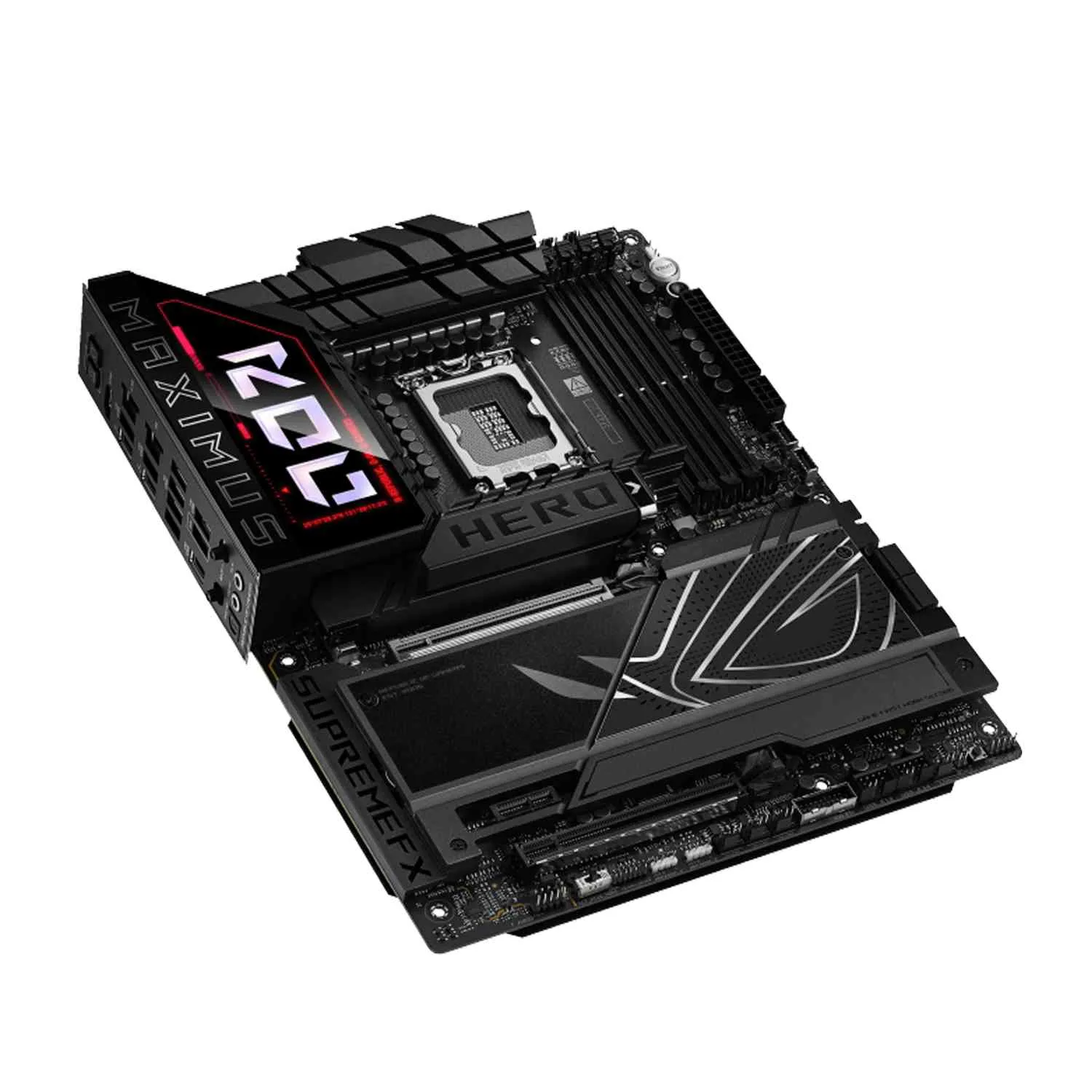

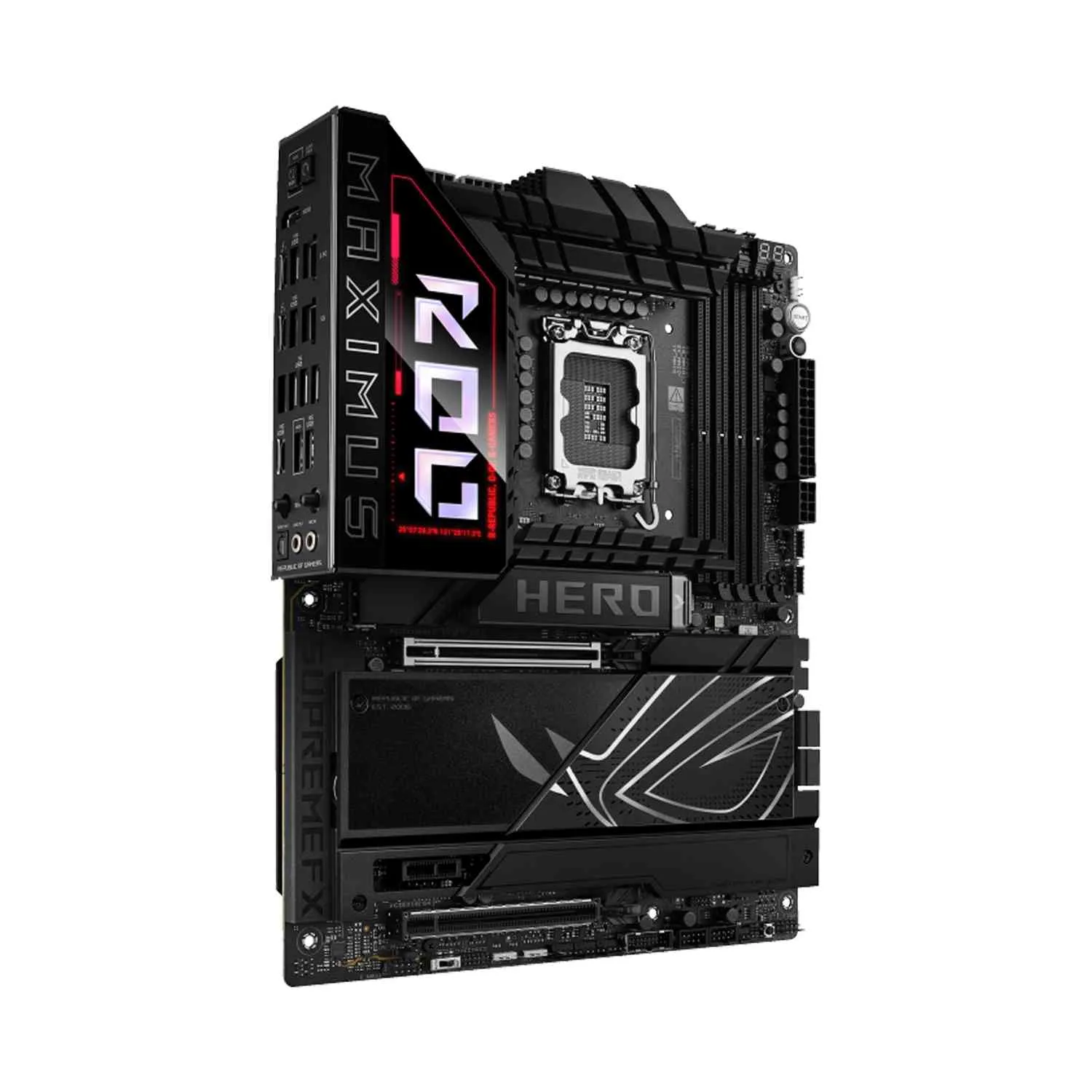

Asus ROG MAXIMUS Z890 Hero WIFI 7 Ai PC Ready PCIe 5.0 DDR5 Gaming Motherboard

Model No : Asus ROG MAXIMUS Z890 Hero Part No : 90MB1ID0-M0EAY0 Chipset : Intel® Z890 Chipset Form Factor : ATX Form Factor Socket Compatibility : Support Intel® Core™ Ultra Processors (Series 2) , LGA1851*Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*** Refer to https://www.asus.com/support/download-center/ for CPU support list.** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Wireless & Bluetooth : Wi-Fi 7*2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band**Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.Bluetooth® v5.4****Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported.** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. Ethernet : 1 x Intel® 2.5Gb Ethernet1 x Realtek 5Gb EthernetASUS LANGuard Memroy : 4 x DIMM slots, max. 256GB, DDR5Support up to 9200+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*Dual channel memory architectureSupports Intel® Extreme Memory Profile (XMP) memory moduleSupports DIMM FlexNitroPath DRAM TechnologyDIMM FITASUS Enhanced Memory Profile III (AEMP III) Graphics : Graphics1 x HDMI™ port** 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs**** Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates** Supports max. 8K@60Hz with DSC as specified in HDMI 2.1.*** In Thunderbolt™ 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.**** In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time.***** VGA resolution support depends on processors' or graphic cards' resolution.******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. Lighting : Aura Sync Storage Compatibility : Supports up to 6 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports*Intel® Core™ Ultra Processors (Series 2) *M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)Intel® Z890 ChipsetM.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_6 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports SlimSAS connector supports PCIe 4.0 x4 mode or up to 4 SATA devices via a transfer cable. The cable is purchased separately. * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5** When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only. Back Panel I/O Ports : 2 x Thunderbolt™ 4 USB Type-C® ports5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®)4 x USB 5Gbps ports (4 x Type-A)1 x HDMI™ port1 x Wi-Fi module1 x Intel® 2.5Gb Ethernet port1 x Realtek 5Gb Ethernet port2 x Gold-plated audio jacks1 x Optical S/PDIF out port1 x BIOS FlashBack™ button 1 x Clear CMOS button USB Ports Front (Support ) : Rear USB (Total 11 ports)2 x Thunderbolt™ 4 ports (2 x USB Type-C®)5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®)4 x USB 5Gbps ports (4 x Type-A)Front USB (Total 10 ports)1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)**1 x USB 10Gbps connector (supports USB Type-C®)2 x USB 5Gbps headers support 4 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 ports* USB Type-C® power delivery output: max. 5V/3A** USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A Expansion Slots : Intel® Core™ Ultra Processors (Series 2)*1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)**Intel® Z890 Chipset1 x PCIe 4.0 x16 slot (supports x4 mode)1 x PCIe 4.0 x1 slot* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).** When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Audio : ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*- Impedance sense for front and rear headphone outputs- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input- Supports up to 32-Bit/384 kHz playback on front panel"Audio Features - SupremeFX Shielding Technology- ESS® ES9219 QUAD DAC- Gold-plated audio jacks- Rear optical S/PDIF out port- Premium audio capacitors* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. Internal I/O Connectors : Fan and Cooling Related 1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header4 x 4-pin Chassis Fan headers1 x W_PUMP+ headersPower Related 1 x 24-pin Main Power connector2 x 8-pin +12V CPU Power connectors1 x 8-pin PCIe Power connectorStorage Related 6 x M.2 slots (Key M) 4 x SATA 6Gb/s ports1 x SlimSAS connector USB 1 x USB 20Gbps connector (supports USB Type-C® ) 1 x USB 10Gps connector (supports USB Type-C® ) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x Alteration PCIe mode switch1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO)1 x ReTry button1 x Start button1 x 10-1 pin System Panel header1 x Thermal Sensor header1 x Thunderbolt™ (USB4®) header** The Thunderbolt™ card can only be used when installed to the PCIEX16(G4) slot. Ensure to install your Thunderbolt™ card to the PCIEX16(G4) slot. Special Features : Extreme OC Kit- FlexKey button- ReTry button- Start buttonExtreme Engine Digi+- 10K Black metallic capacitors- MicroFine alloy choke ASUS Q-Design - M.2 Q-Latch- M.2 Q-Release- M.2 Q-Slide- Q-Release Slim (with PCIe SafeSlot)- Q-Antenna- Q-Code- Q-Connector- Q-Dashboard- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink backplate- M.2 heatsink- Metal backplate- VRM heatsink designASUS EZ DIY- Backplate- BIOS FlashBack™ button- Clear CMOS button- CPU Socket lever protector- ProCool II- Pre-mounted I/O shield- SafeSlot- SafeDIMMAura Sync- Addressable Gen 2 header(s)ROG M.2 PowerBoostFront Panel USB 20Gbps with Quick Charge 4+ Support- Support: up to 60W fast charging and USB Wattage Watcher*- Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A- Compatible with PD3.0 and PPS* To support 60W, please install the power cable to the 8-pin PCIe power connector or else only 27W will be supported. Package Content : Cables1 x ARGB RGB extension cable4 x SATA 6Gb/s cables Additional Cooling Kit1 x DDR5 fan holder1 x Thermal pad for M.2 22110Miscellaneous1 x ASUS WiFi Q-Antenna1 x Q-connector1 x M.2 Q-Latch package3 x M.2 Q-Slide packages1 x ROG stickers6 x M.2 rubber packages1 x ROG thank you card1 x ROG Bottle OpenerInstallation Media1 x USB drive with utilities and drivers Documentation1 x Quick start guide Product Size ( Dimension ) : 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) Warranty : 1 Year ( As per Manufacturer Policy )
