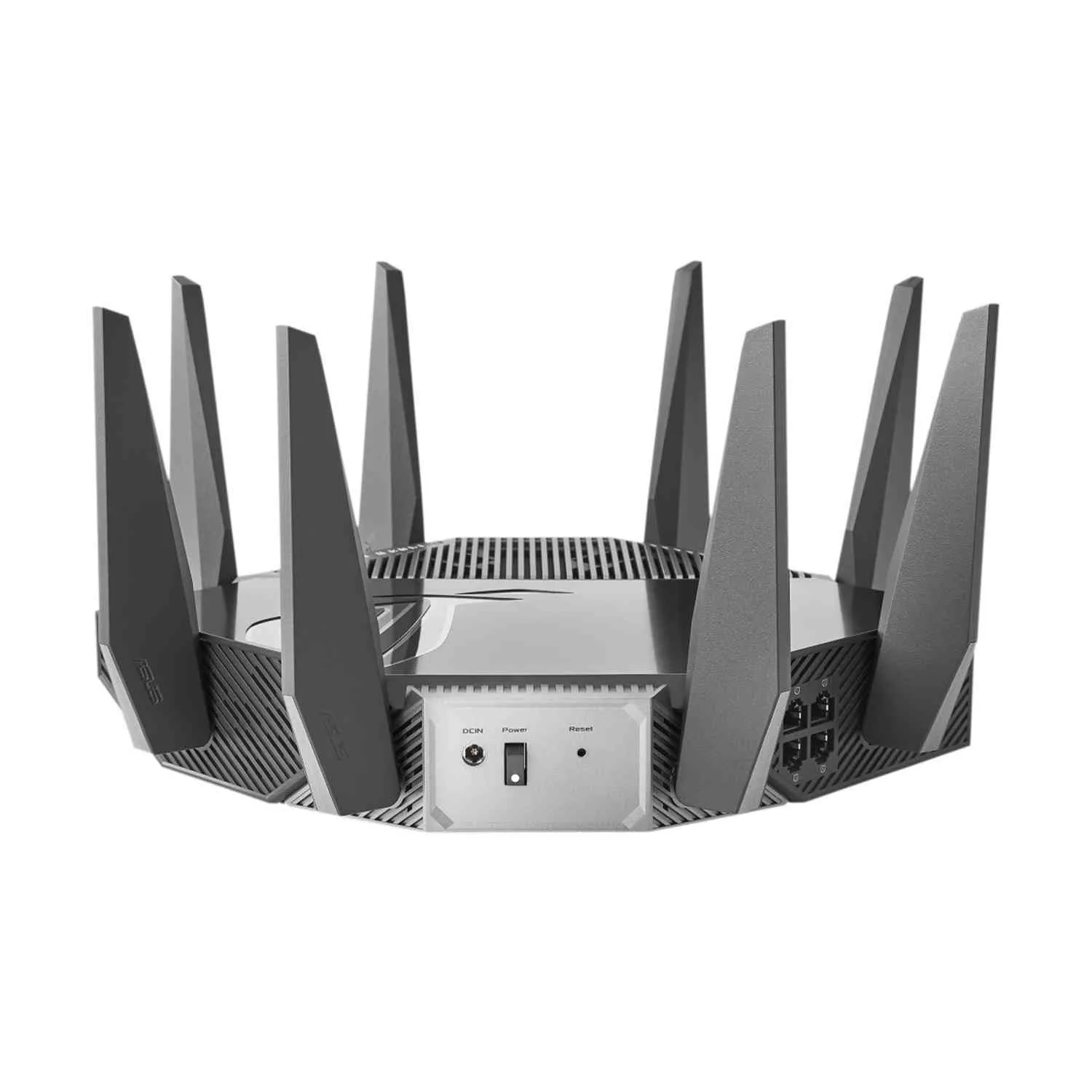

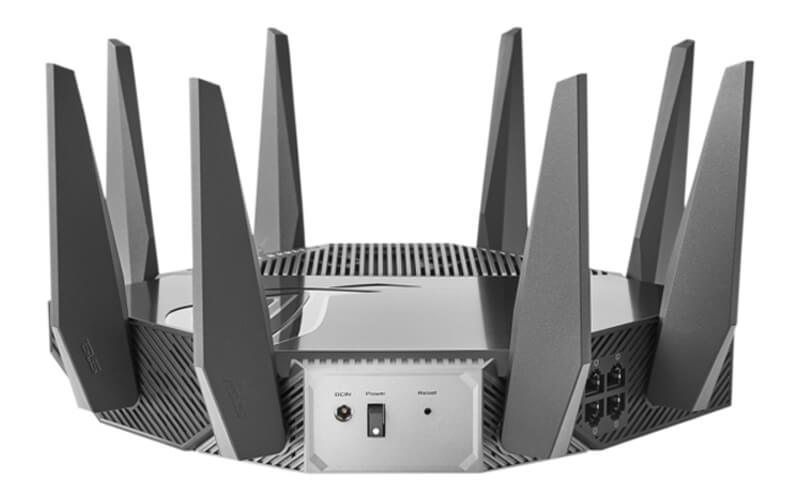

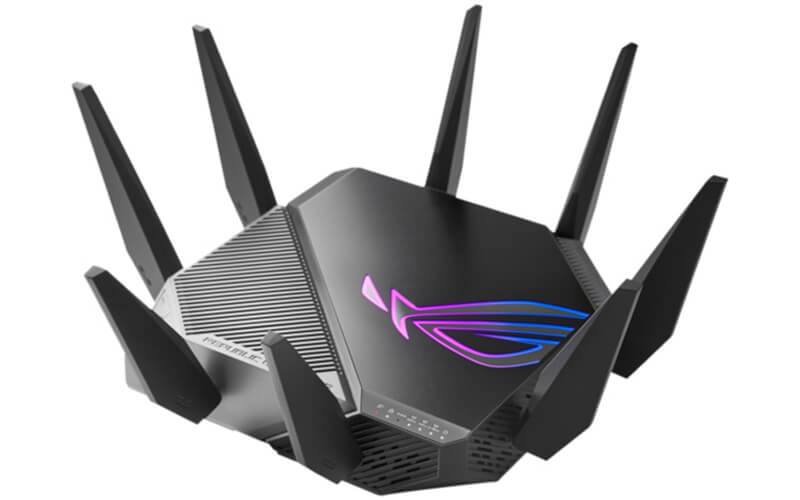

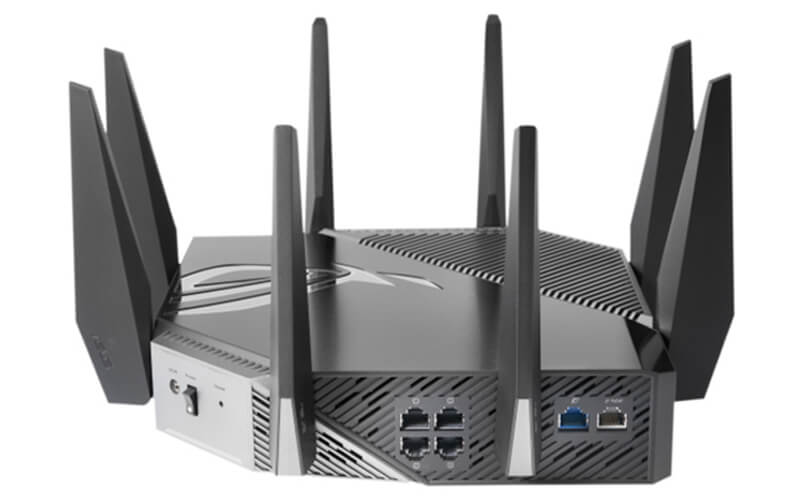

Asus ROG Rapture GT-AXE11000 Tri-band WiFi 6E, Gaming router, 6GHz band, 2.5G WAN/LAN port, PS5 Compatible

Model No : ROG Rapture GT-AXE11000 Tri-band WiFi 6E Gaming router Part No : 90IG06E0-MO1R00 Network Standard : Wi-Fi 6E (802.11ax)Wi-Fi 6 (802.11ax)Backwards compatible with 802.11a/b/g/n/ac Wi-Fi Product Segment : AXE11000 ultimate AX/AXE performance AX technology : Yes Data Rate : 2.4GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1148Mbps5GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps6GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps Antenna : External antenna x 8 Transmit/Receive : 2.4 GHz 4 x 45 GHz 4 x 46 GHz 4 x 4 Processor : 1.8GHz quad-core processor Memory : 256MB NAND flash and 1GB DDR3 SDRAM Boosts speed : OFDMA (Orthogonal Frequency Division Multiple Access)Beamforming: standard-based and universal1024-QAM high data rate20/40/80/160 MHz bandwidth* The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions. Operating Frequency : Tri-band Wi-Fi: 2.4 GHz / 5 GHz / 6GHz Ports : RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4, RJ45 for 2.5G BaseT for WAN/LAN x 1 Button : WPS Button, Reset Button, Power Switch, WiFi on/off Button, Boost Key Button LED Indicator : Power x 12.4G x 15G x 16G x 12.5GE Port x 1LAN x 1WAN x 1 Power Supply : AC Input : 110V~240V(50~60Hz)DC Output : 19 V with max. 3.42 A /19.5 V with max. 3.33 A AiMesh : AiMeshPrimary AiMesh routerAiMesh node Game : Game Boost/accelerationGame RadarOutfoxROG_FirstOpenNAT (Game Profile)Gaming port Alexa : Support Alexa skill AiProtection : AiProtection ProRouter Security AssessmentMalicious site blockingTwo-Way IPSInfected Device Prevention and Blocking Parental Control : Parental ControlParental Control Customized Internet scheduleMaximum Parental Control profile : 16Maximum Parental Control content filter rule : 16 Traffic Control : Adaptive QoSBandwidth MonitorBandwidth limiterMaximum Bandwidth limiter rule : 32Traditional QoSMaximum Traditional QoS rule : 32Traffic MonitorReal-time traffic monitorWired Traffic MonitorWireless Traffic MonitorTraffic AnalyzerTraffic analysis period : Daily, Weekly, MonthlyWebsite history Wireless : IPv6MU-MIMOWiFi Encryption : WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, WPS supportUTF-8 SSIDGuest NetworkMaximum Guest Network rule : 2.4 GHz x 3, 5 GHz x 3, 6 GHz x 3Guest Network Connection time limitGuest Network Encryption : Open system, WPA/WPA2-PersonalWPSWi-Fi MAC address filterMaximum MAC filters : 64Wireless schedulerWi-Fi RadarAirtime fairnessRADIUS ServerUniversal beamforming WAN : Explicit beamformingInternet connection Type : Automatic IP, Static IP, PPPoE (MPPE supported), PPTP, L2TPDual WANWAN Aggregation3G/4G LTE dongleAndroid tetheringPort forwardingMaximum port forwarding rule : 64Port triggeringMaximum port triggering rule : 32DMZDDNSNAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relayLet's EncryptSafe browsingDNS-over-TLS LAN : DHCP ServerIGMP snoopingIPTVLAN Link AggregationManually assign IP addressMaximum manually assign IP address rule : 64 VPN : VPN Client L2TPVPN Client OVPNVPN Client PPTPVPN Client WireGuardVPN Server IPSecVPN Server OVPNVPN Server PPTPVPN Server WireGuardVPN Fusion USB application : File System : HFS+, NTFS, vFAT, ext2, ext3, ext4HDD hibernationSafely Remove diskAiCloudDownload masterAiDiskMedia ServerTime MachineSamba ServerFTP ServerShared Folder privileges Administration : Operating mode : Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridgeOperating system : ASUSWRTFree OS upgradeFirewallMaximum Firewall keyword filter : 32Maximum Firewall network service filter : 32Maximum Firewall URL filter : 64Wake on LAN (WOL)SSHConfiguration backup and restoreDiagnosis toolsFeedback systemSystem logNew Device Connect NotificationLogin CaptchaConnection DiagnosisSecurity ScanAuto Firmware Update Special Features : Next-gen WiFi standard – World's first WiFi 6E tri-band router boosts speeds up to 11000Mbps.New 6GHz frequency band – Wider channels and higher capacity delivers higher performance, lower latency, and less interference.2.5G WAN/LAN Port – All network traffic through 2.5G port is given top priority, and 2.5G port unlocks the full potential of WiFi 6.Performance through engineering – Quad-core CPU, advanced cooling system and optimized antenna design for next-level computational capabilities.Triple-level game acceleration – Accelerate game traffic every step of the way, from device to game server. Weight : 1782g Package content : GT-AXE11000 WiFi Gaming RouterRJ-45 CablePower AdapterQuick Start GuideWarranty Card Warranty : 1 Year ( As per Manufacturer Policy )
