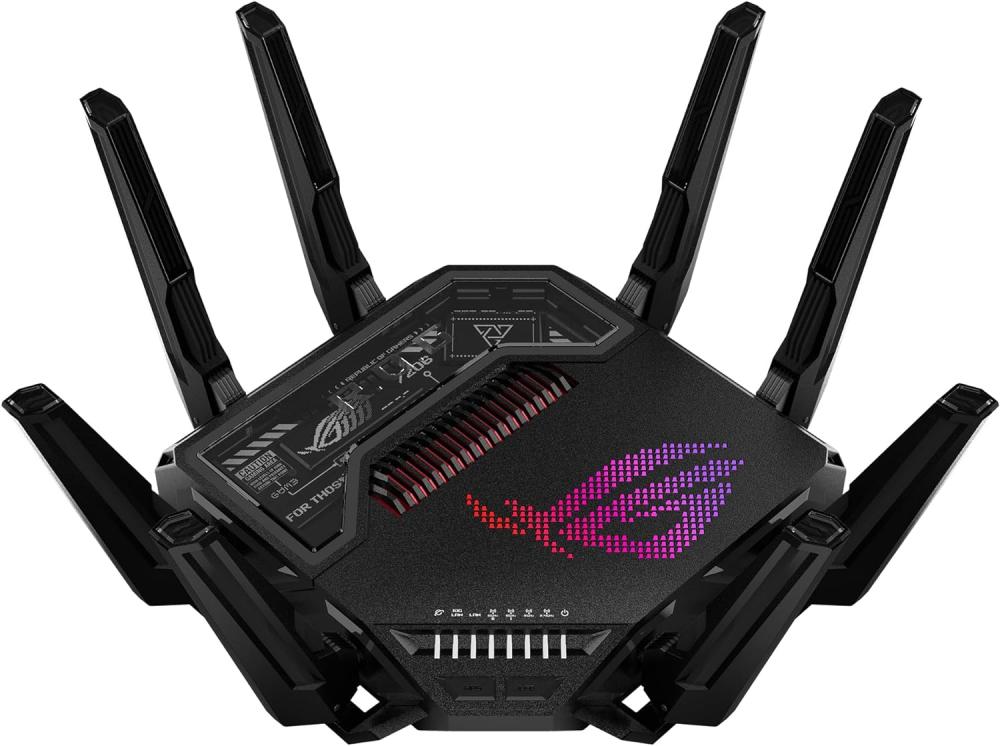

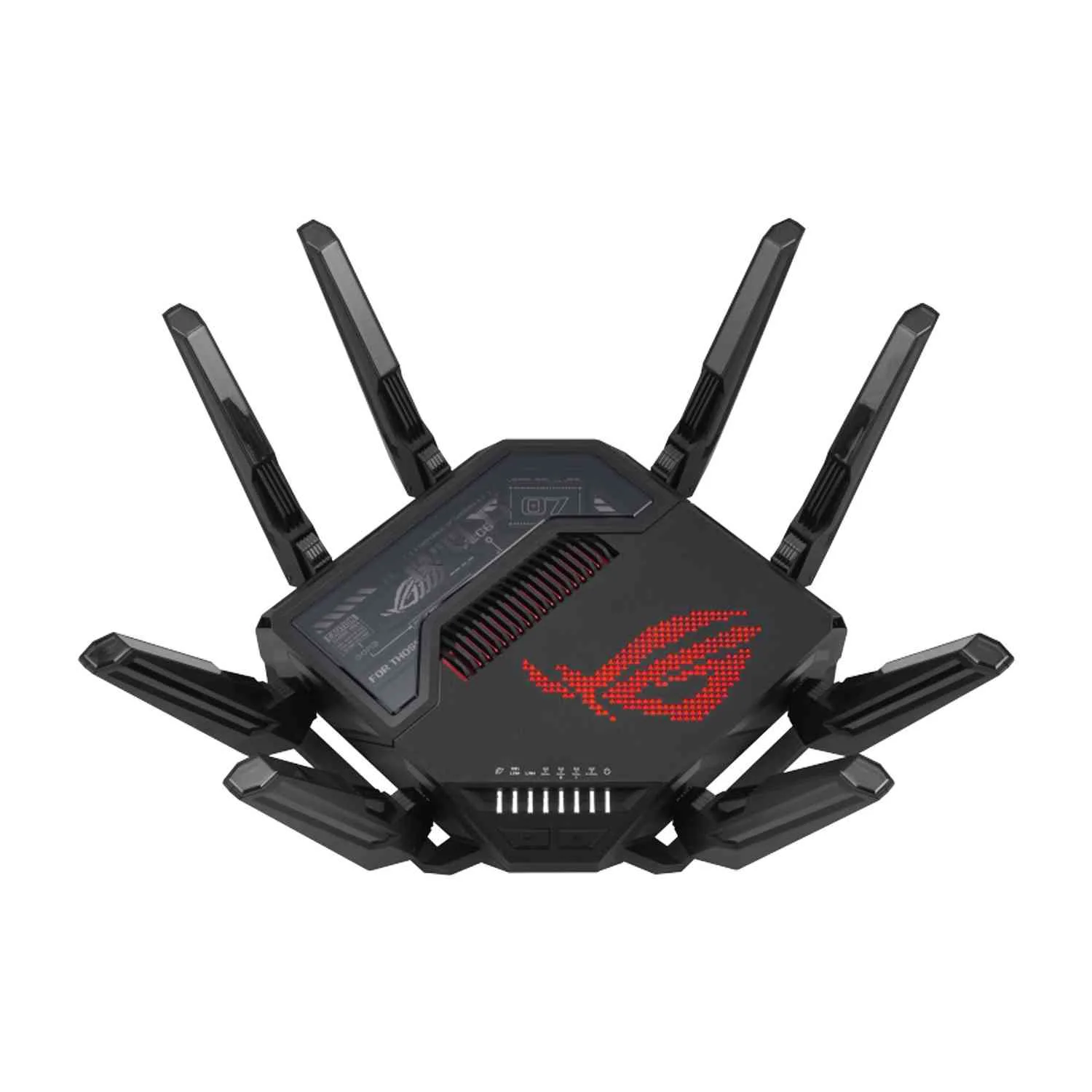

Asus ROG Rapture GT-BE98 BE25000 Quad-Band WiFi-7 (802.11be) RGB Gaming Router

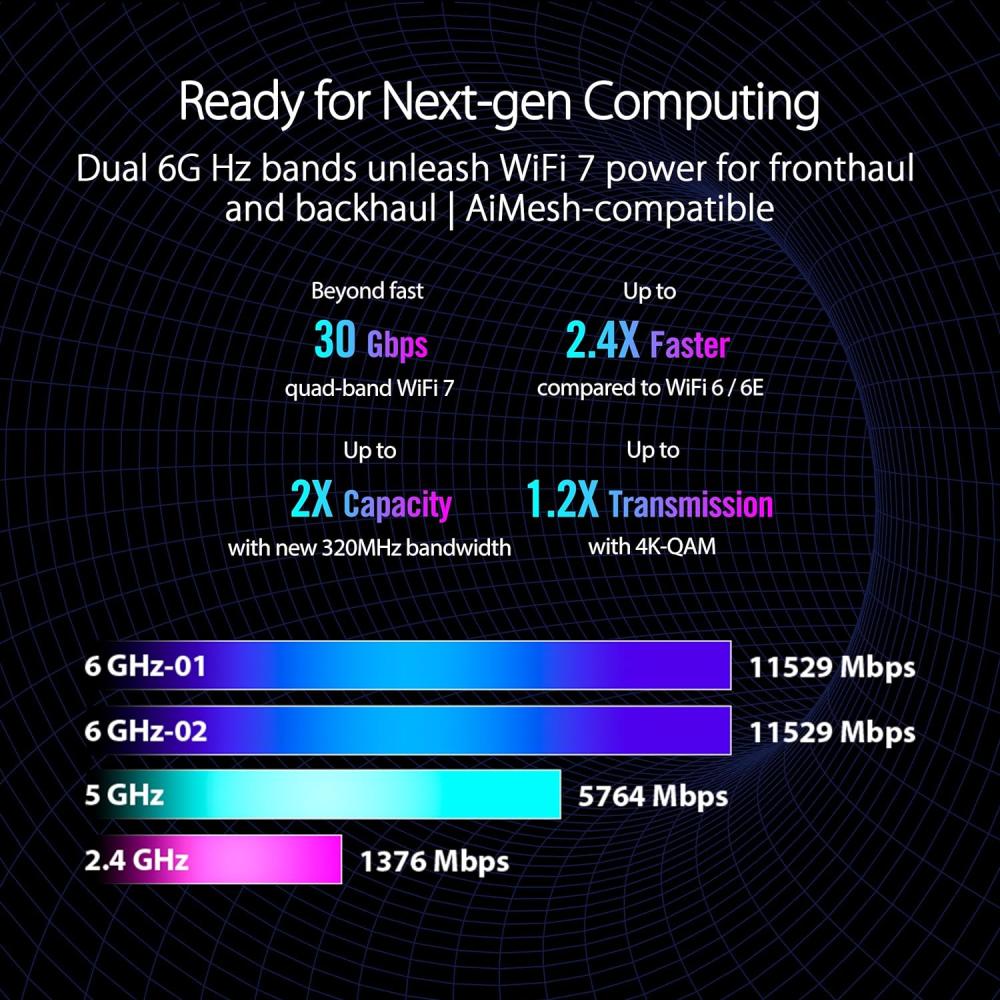

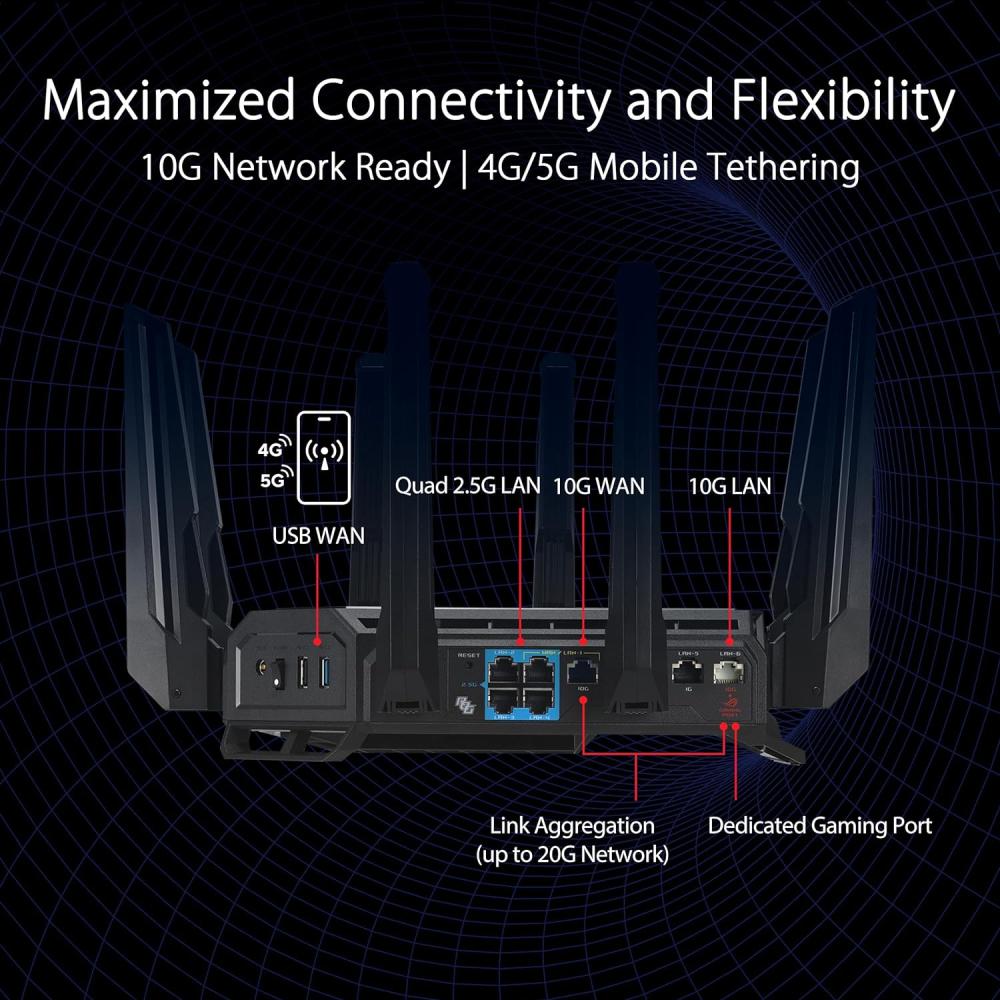

Model No : Asus ROG Rapture GT-BE98 BE25000 Quad-Band RGB Gaming Router Part No : 90IG08F0-MO9A0V Network Standard : WiFi 6 (802.11ax)WiFi 7 (802.11be)IEEE 802.11aIEEE 802.11bIEEE 802.11gIEEE 802.11nIEEE 802.11acIPv4IPv6 Product Segment : BE25000 ultimate BE performance : 1376+5764+5764+11529 Mbps Data Rate : 2.4GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40MHz, up to 1376Mbps5G-1Hz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbp5G-2Hz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbp6GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160/320MHz, up to 11529Mbp Antenna : External antenna x 8 Transmit/Receive : 2.4GHz 4x45GHz-1 4x45GHz-2 4x46GHz 4x4 Processor : 2.6GHz quad-core processor Memory : 256 MB Flash and 2 GB RAM Boosts speed : OFDMA (Orthogonal Frequency Division Multiple Access)Beamforming: standard-based and universal4096-QAM high data rate20/40/80/160/320 MHz bandwidth Operating Frequency : 2.4 GHz / 5 GHz / 6 GHz Operating Mode : Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge Ports : 1 x 10Gbps for WAN/LAN1 x 2.5Gbps for WAN/LAN1 x 10Gbps for LAN3 x 2.5Gbps for LAN1 x RJ45 10/100/1000Mbps for LAN1 x USB 3.2 Gen11 x USB 2.0 Button : WPS Button, Reset Button, Power Switch, LED control Button LED Indicator : WAN(Internet) x110G LAN x11G/2.5G LAN x16GHz x15GHz-1 x 15GHz-2 x 12.4GHz x1Power x1 Power Supply : AC Input : 110V~240V(50~60Hz)DC Output : 19.5 V with max. 3.33 A current AiMesh : AiMesh• Primary AiMesh Router• AiMesh Node Game : Game Boost / AccelerationWTFastROG_FirstOpenNAT (Game Profile)Gaming Port Guest Network : "The Guest Network provides Internet connection for guests but restricts access to your local network."• Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 5Guest Network Connection time limitGuest Network Encryption : Open system, WPA/WPA2/WPA3 Personal AiProtection : AiProtection Pro• Router Security Assessment• Malicious Site Blocking• Two-Way IPS• Infected Device Prevention and Blocking Parental Control : "Allow you to block access to unwanted websites and apps."Parental Control Customized Internet Schedule• Maximum Parental Control profile : 64• Maximum Parental Control content filter rule : 64 Traffic Control : Adaptive QoS• Bandwidth Monitor• Bandwidth Limiter-- Maximum Bandwidth Limiter Rule : 32Traditional QoSTraffic Monitor• Real-time Traffic Monitor• Wired Traffic Monitor• Wireless Traffic MonitorTraffic Analyzer• Traffic Analysis Period : Daily, Weekly, Monthly• Website History Wireless : MU-MIMOUTF-8 SSIDWiFi MAC Address Filter• Maximum MAC Filters : 64Wireless SchedulerAirtime FairnessRADIUS ClientUniversal BeamformingExplicit Beamforming WAN : Internet Connection Type : Automatic IP, Static IP, PPPoE, PPTP, L2TPDual WAN3G / 4G LTE Dongle4G / 5G Auto Mobile TetheringPort Forwarding• Maximum Port Forwarding Rule : 64Port Triggering• Maximum Port Triggering Rule : 32DMZDDNSNAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay LAN : DHCP ServerIPTVLAN Link AggregationManually Assign IP Address• Maximum Manually Assign IP Address Rule : 128Wake on LAN (WOL) VPN : Instant GuardVPN Client L2TPVPN Client Open VPNVPN Client PPTPVPN Client WireGuardVPN Server IPSecVPN Server Open VPNVPN Server PPTPVPN Server WireGuardVPN Fusion USB application : 4G / 5G Auto Mobile TetheringFile System : HFS+, NTFS, vFAT, ext2, ext3, ext4Safely Remove DiskAiCloudDownload MasterAiDiskMedia ServerTime MachineSamba ServerFTP ServerShared Folder Privileges Administration : Configuration Backup and RestoreDiagnosis ToolsFeedback SystemSystem LogNew Device Connect NotificationLogin CaptchaConnection DiagnosisAuto Firmware Update Special Features : GT-BE98 Quad-band WiFi 7 (802.11be) Gaming Router, support new 320MHz bandwidth & 4096-QAM, dual 10G ports, backup WAN, Triple-level Game Acceleration, Mobile Game Mode, AURA RGB, AiMesh support, subscription-free network security and comprehensive VPN featuresBeyond-fast WiFi 7 (802.11be) with new 320MHz channels in the 6 GHz band and 4096-QAM significantly increases network capacity and throughput, with speeds of up to 25 GbpsMulti-link Operation links to multiple bands at the same time to ensure stable internet connections and efficient data transfersCutting-edge external dual-feeding antennas boost coverage by providing high efficiency and significantly enhanced signal strengthMaximized wired connectivity and flexibility with dual 10G ports and quad 2.5G ports, paving the way for most bandwidth-intensive gamesSubscription-free network security with commercial-grade AiProtection Pro powered by Trend Micro™, plus a one-tap security scan and Safe BrowsingComprehensive VPN features including advanced site-to-site VPN and the Instant Guard mobile app for secure connection over public WiFiAiMesh extendable routers enable whole home seamless roaming with rich, advanced features Dimensions : 350.41 x 350.41 x 220.6 mm Weight : 2000 g Package content : GT-BE98 quad-band gaming routerRJ-45 cablePower adapterQuick Start GuideWarranty card Warranty : 1 Year ( As per Manufacturer Policy )
