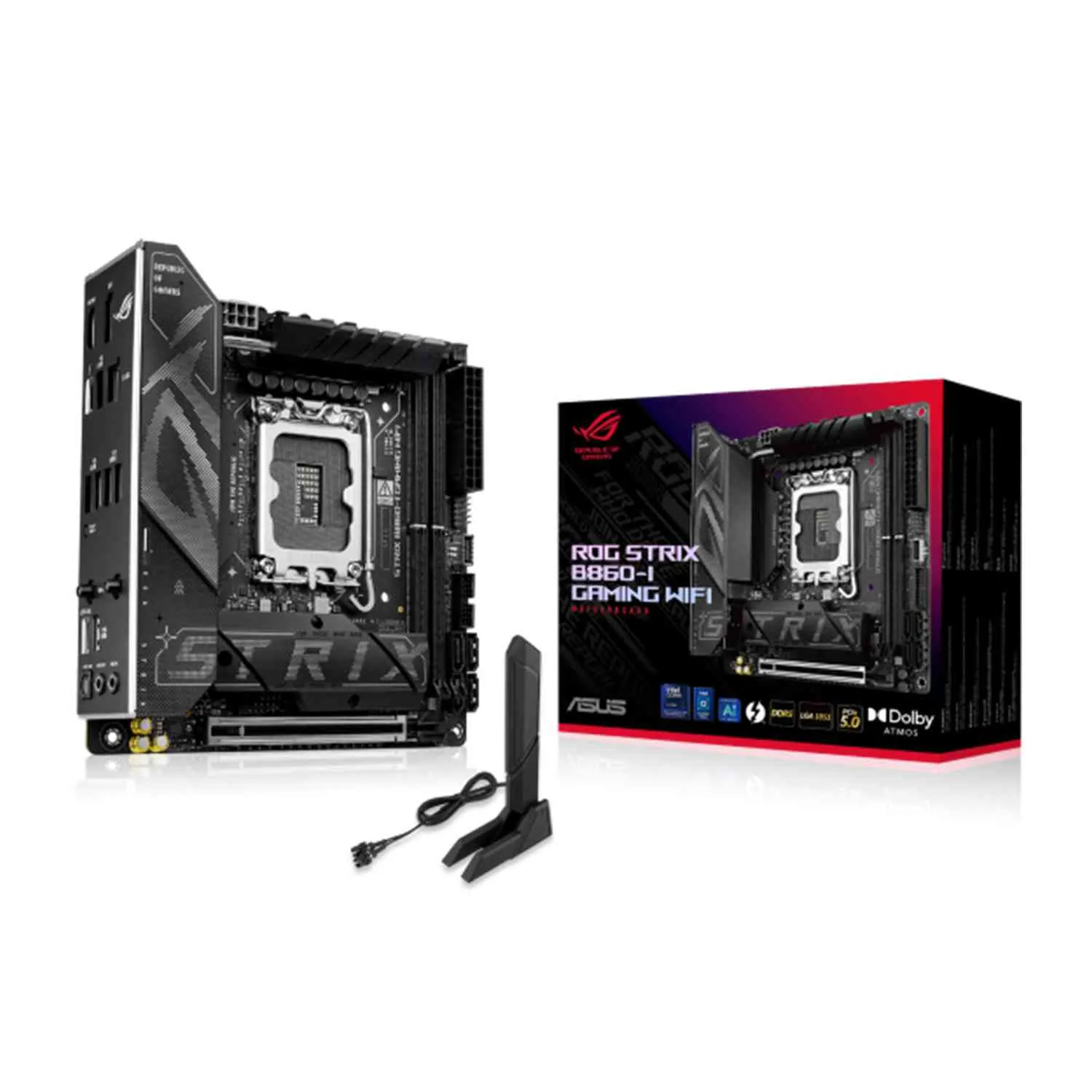

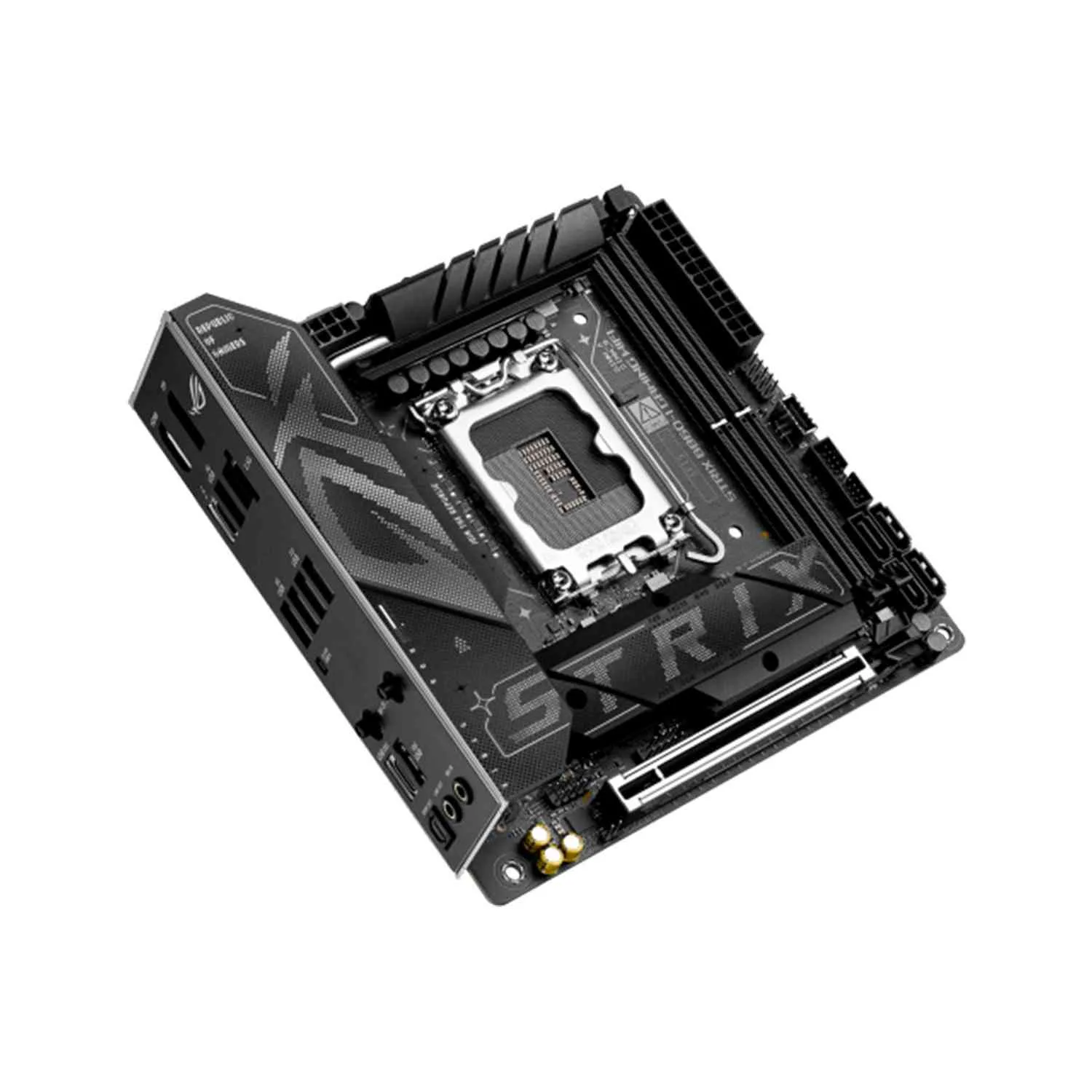

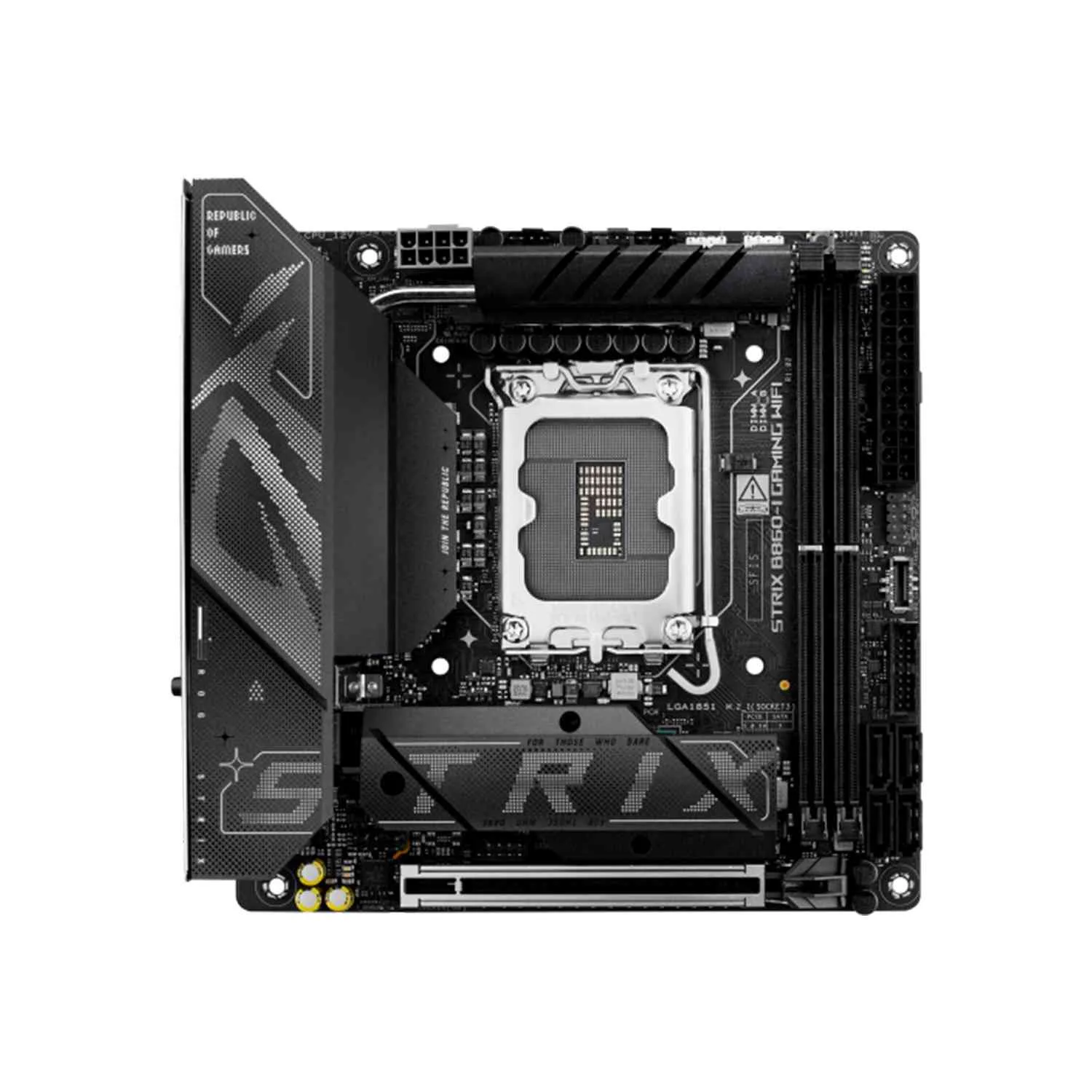

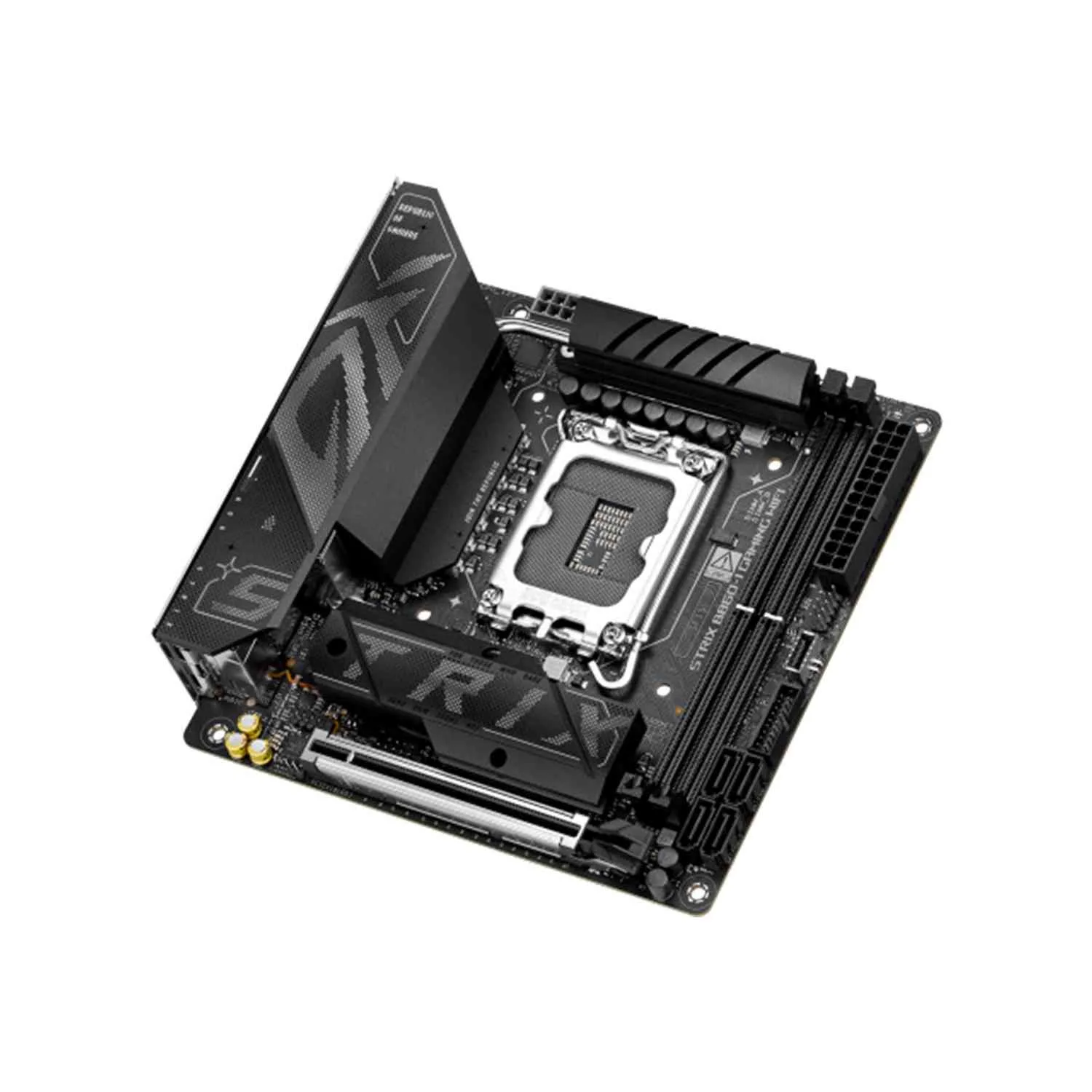

ASUS ROG STRIX B860-I Gaming WIFI DDR5 Mini-ITX Motherboard - Black

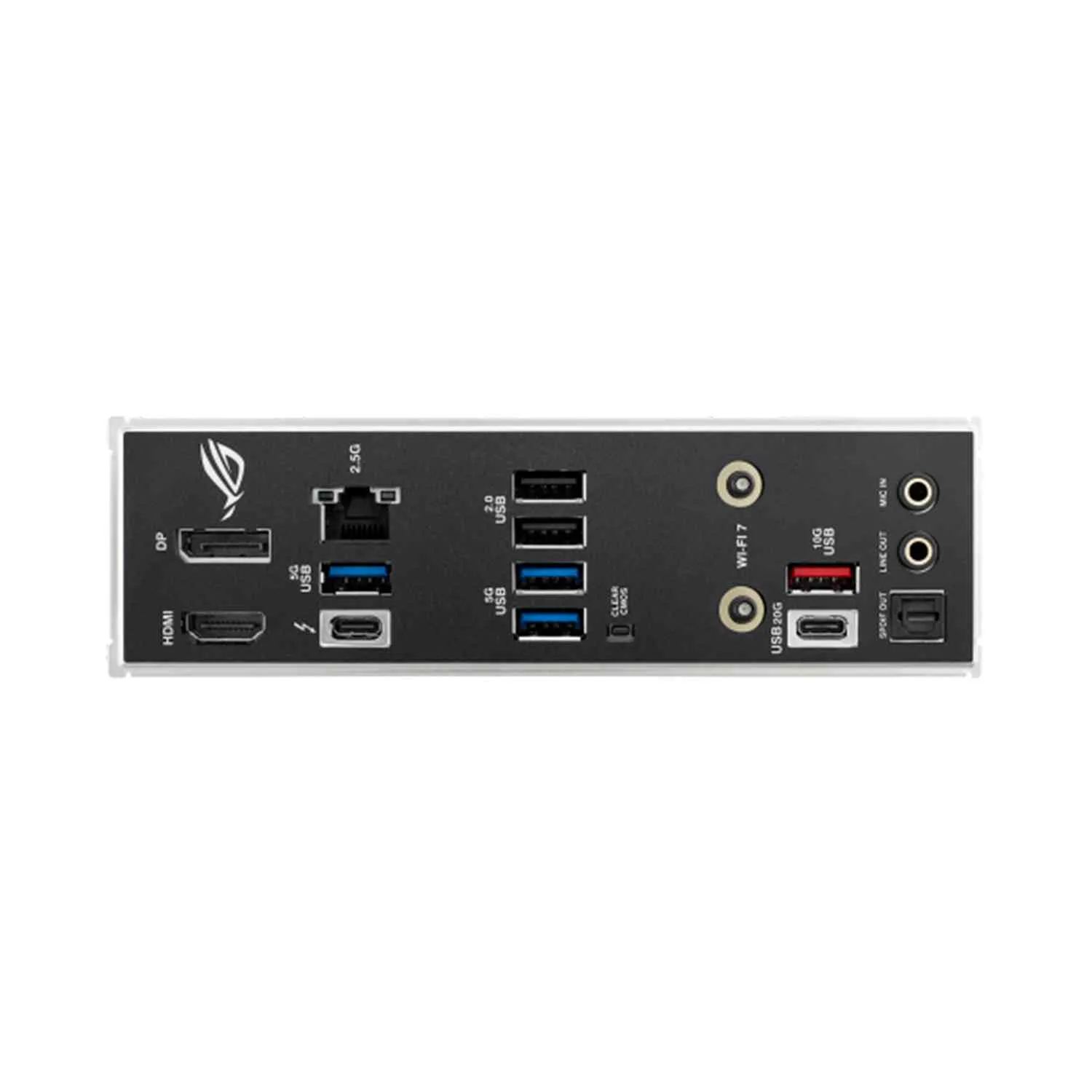

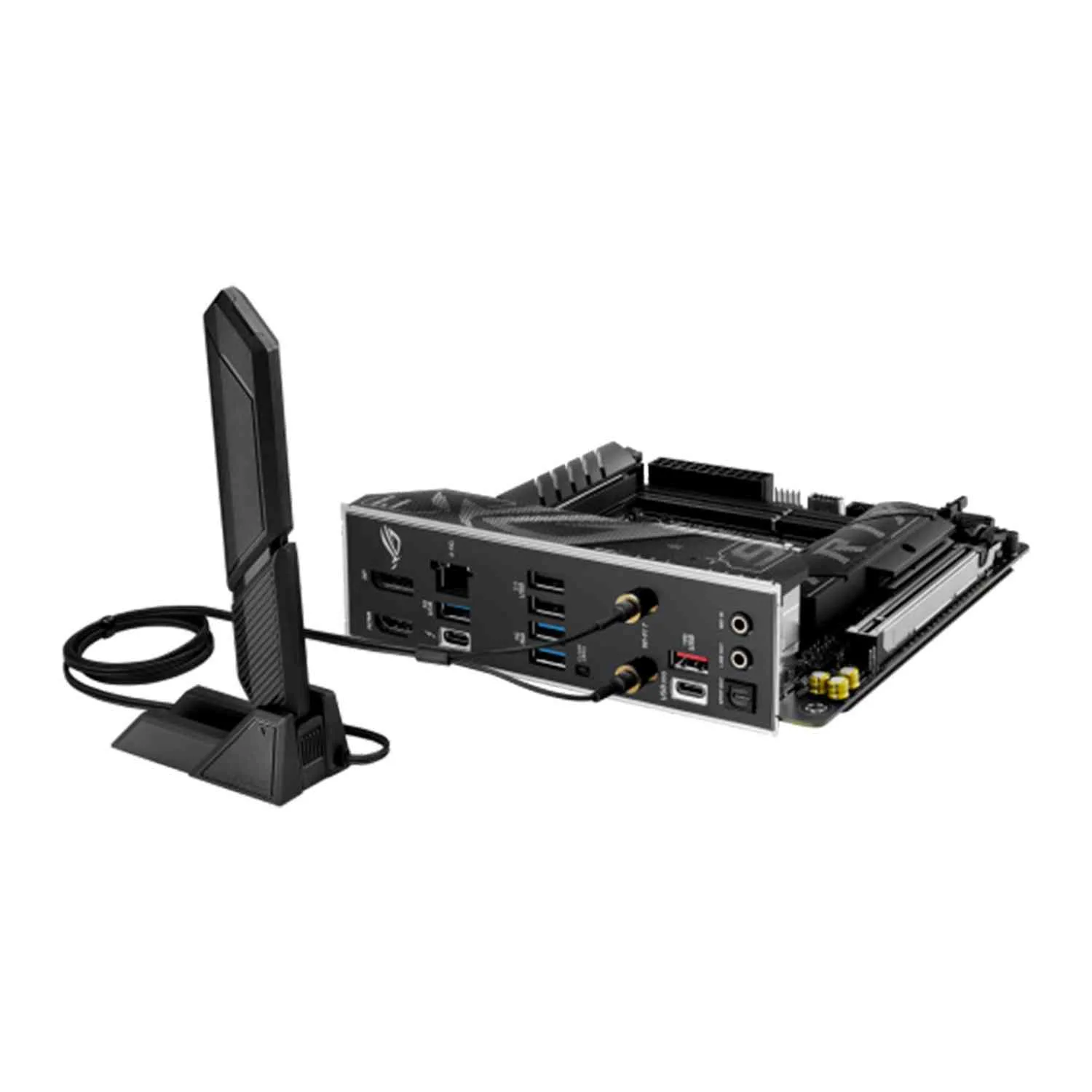

Model No : ASUS ROG STRIX B860-I Gaming WIFI DDR5 Mini-ITX Motherboard - Black Part No : 90MB1JB0-M0EAY0 Chipset : Intel® B860 Chipset Form Factor : Mini-ITX Form Factor6.7 inch x 6.7 inch ( 17 cm x 17 cm ) Socket Compatibility : Support Intel® Core™ Ultra Processors(Series 2)*Supports Intel® Turbo Boost Technology 2.0and Intel® Turbo Boost Max Technology 3.0**** Intel® Turbo Boost Max Technology 3.0support depends on the CPU types. Wireless & Bluetooth : Wi-Fi 7*2x2 Wi-Fi 7 (802.11be)Supports 2.4/5/6GHz frequency band**Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.Bluetooth® v5.4****Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. Ethernet : 1 x Intel® 2.5Gb EthernetASUS LANGuard Graphics : 1 x DisplayPort**1 x HDMI™ port*** 1 x Intel® Thunderbolt™ 4 supportsDisplayPort and Thunderbolt™ video outputs**** * Graphics specifications may vary betweenCPU types** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. ****Supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs.***** VGA resolution support depends on processors' or graphic cards' resolution. Memroy : 2 x DIMM slots, max. 128GB, DDR5 Supports up to 9066+MT/s (OC), Non-ECC Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*Dual channel memory architecture DIMM FitSupports Intel® Extreme Memory Profile (XMP) memory moduleASUS Enhanced Memory Profile III (AEMP III)*Adjustments will be made based on the specifications of mass-produced memory products available on the market.* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration* *Non-ECC, un-buffered DDR5 memorysupports On-Die ECC function. Storage Compatibility : Total supports 2 x M.2 slots and 4 x SATA6Gb/s ports*Intel® Core™ Ultra Processors (Series 2)M.2_1 slot (Key M), type 2260/2280(supports PCIe 5.0 x4 mode)Intel® B860 Chipset**M.2_2 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports* Intel® Rapid Storage Technology supportsSATA RAID 0/1/5/10. Back Panel I/O Ports : 1 x Thunderbolt™ 4 port (1 x USB Type-C®)1 x USB 20Gbps port (1 x USB Type-C®)1 x USB 10Gbps ports (1 x Type-A)3 x USB 5Gbps ports (3 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x DisplayPort1 x HDMI™ port1 x Wi-Fi module1 x Intel® 2.5Gb Ethernet port2 x Audio jacks 1 x Optical S/PDIF out port1 x Clear CMOS button USB Ports : Rear USB (Total 8 ports)1 x Thunderbolt™ 4 port (1 x USB Type-C®)1 x USB 20Gbps port (1 x USB Type-C®)1 x USB 10Gbps ports (1 x Type-A)3 x USB 5Gbps ports (3 x Type-A)2 x USB 2.0 ports (2 x Type-A)Front USB (Total 5 ports)1 x USB 10Gbps connector (supports USBType-C®)1 x USB 5Gbps header supports 2 additionalUSB 5Gbps ports1 x USB 2.0 header supports 2 additionalUSB 2.0 ports* USB Type-C® power delivery output: max.5V/3A Expansion Slots : Intel® Core™ Ultra Processors (Series 2)1 x PCIe 5.0 x16 slot- To ensure compatibility of the device Audio : Realtek ALC1220P 7.1 Surround Sound HighDefinition Audio CODEC*- Impedance sense for front and rearheadphone outputs- Internal audio Amplifier to enhance thehighest quality sound for headphone and speakers- Supports: Jack-detection,Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playbackoutput and 113 dB SNR recording input (Line-in)- Supports up to 32-Bit/192 kHzplayback*"Audio Features - SupremeFX Shielding Technology- Savitech SV3H712 AMP - Rear optical S/PDIF out port- Premium audio capacitors- Dedicated audio PCB layers* Due to limitations in HDA bandwidth,32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.** A chassis with an HD audio module in thefront panel is required to support 7.1 Surround Sound audio output. Internal I/O Connectors : Fan and Cooling Related 1 x 4-pin CPU Fan header1 x 4-pin AIO Pump header1 x 4-pin Chassis Fan headersPower Related 1 x 24-pin Main Power connector1 x 8-pin +12V CPU Power connectorStorage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s portsUSB 1 x USB 10Gbps connector (supports USBType-C®)1 x USB 5Gbps header supports 2 additionalUSB 5Gbps ports1 x USB 2.0 header supports 2 additionalUSB 2.0 portsMiscellaneous2 x Addressable Gen2 headers1 x Front Panel Audio header (F_AUDIO)1 x 10-1 pin Front System Panel header1 x Thermal Sensor header Special Features : Extreme Engine Digi+- 5K Black metallic capacitors ASUS Q-Design - PCIe Slot Q-Release Slim (with PCIeSafeSlot)- M.2 Q-Latch- Q-Antenna- Q-Dashboard- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA[white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink backplate- M.2 heatsink- VRM heatsink designASUS EZ DIY- Clear CMOS button- CPU Socket lever protector- ProCool- Pre-mounted I/O shield- SafeSlot- SafeDIMMAura Sync- Addressable Gen2 headers Package Content : Cables2 x SATA 6Gb/s cables1 x ROG USB2.0 splitter cable1 x Panel cable Miscellaneous1 x ASUS WiFi Q-Antenna1 x Cable ties package1 x M.2 Q-Latch package1 x Screw package for M.2 SSD1 x M.2 Bracket1 x ROG key chain1 x ROG Strix stickersDocumentation1 x Quick start guide BIOS : 256Mb Flash ROM, UEFI AMI BIOS Manageability : WOL by PME, UEFI PXE Warranty : 1 Year ( As per Manufacturer Policy )
