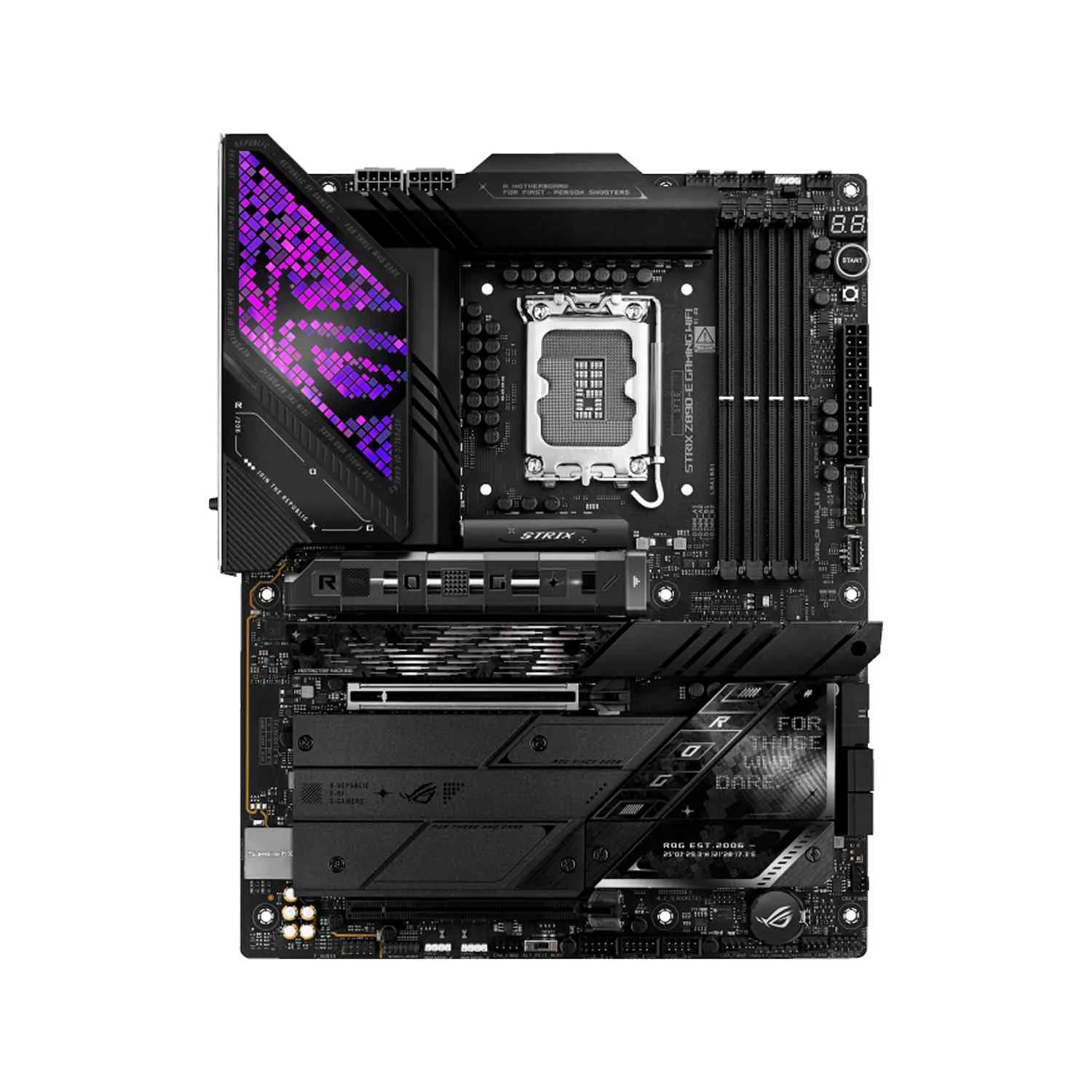

Asus Rog Strix Intel Core Ultra Z890-E WIFI DDR5 Gaming MotherBoard

Model No : ROG STRIX Z890-E GAMING WIFI Part No : 90MB1IM0-M0EAY0 Chipset : Intel® Z890 Chipset Form Factor : ATX Form Factor Socket Compatibility : Intel® Socket LGA1851 for Intel® Core™ Ultra Processors(Series 2)Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*** Refer to https://www.asus.com/support/download-center/ for CPU support list.** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Wireless & Bluetooth : Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. Bluetooth® v5.4*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. Ethernet : 1 x Realtek 5Gb EthernetASUS LANGuard Memroy : 4 x DIMM slots, max. 256GB, DDR5 Support up to 8800+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM)*Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) memory moduleSupports DIMM FlexNitroPath DRAM Technology DIMM FitASUS Enhanced Memory Profile III (AEMP III)*Adjustments will be made based on the specifications of mass-produced memory products available on the market.* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function Graphics : 1 x DisplayPort**1 x HDMI® port***2 x Intel® Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs***** Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.** Supports max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports max. 8K@60Hz as specified in HDMI 2.1. **** In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.***** In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time.****** VGA resolution support depends on processors' or graphic cards' resolution.*******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. Lighting : ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look. Storage Compatibility : Total supports 7 x M.2 slots and 4 x SATA 6Gb/s ports*Intel® Core™ Ultra Processors(Series 2)*M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**Intel® Z890 ChipsetM.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)M.2_6 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)M.2_7 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)4 x SATA 6Gb/s ports* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.** M.2_3 & M.2_4 slots share bandwidth with PCIEX16(G5). When M.2_3 & M.2_4 are occupied with SSD devices, PCIEX16(G5) will run x8 only. Back Panel I/O Ports : 2 x Thunderbolt™ 4 (2 x USB Type-C®) 9 x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C® + 1 x USB Type-C® with up to 30W PD Fast-charge)3 x USB 5Gbps ports (3 x Type-A)1 x DisplayPort1 x HDMI® port1 x Wi-Fi Module1 x Realtek 5Gb Ethernet2 x Gold-plated audio jacks 1 x Optical S/PDIF out port1 x BIOS FlashBack™ button1 x Clear CMOS button USB Ports Front (Support ) : Rear USB (Total 14 ports)2 x Thunderbolt™ 4 (2 x USB Type-C®)9 x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C®* + 1 x USB Type-C® with up to 30W PD Fast-charge)**3 x USB 5Gbps ports (3 x Type-A)Front USB (Total 11 ports)1 x USB 20Gbps connector (supports USB Type-C®)2 x USB 5Gbps headers support additional 4 USB 5Gbps ports3 x USB 2.0 headers support additional 6 USB 2.0 ports * USB Type-C® power delivery output: 5V/3A** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2A. Expansion Slots : Expansion SlotsIntel® Core™ Ultra Processors(Series 2)*1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)Intel® Z890 Chipset1 x PCIe 4.0 x16 slot (supports x4 mode)* Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Audio : ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playbackAudio Features- Audio Shielding- Savitech SV3H712 AMP - Gold-plated audio jacks- Rear optical S/PDIF out port - Premium audio capacitors- Audio cover* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. Internal I/O Connectors : Fan and Cooling related 1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header5 x 4-pin Chassis Fan headersPower related 1 x 24-pin Main Power connector2 x 8-pin +12V CPU Power connectorsStorage related 7 x M.2 slots (Key M) 4 x SATA 6Gb/s portsUSB 1 x USB 20Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports3 x USB 2.0 headers support additional 6 USB 2.0 ports Miscellaneous3 x Addressable Gen2 headers1 x Chassis Intrusion header1 x CPU Over Voltage jumper1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO)1 x Start button1 x 10-1 pin System Panel header1 x Thermal Sensor header1 x Thunderbolt™ (USB4®) header Special Features : Extreme Engine Digi+- 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch- M.2 Q-Release- M.2 Q-Slide- PCIe Slot Q-Release Slim (with PCIe SafeSlot)- Q-Antenna- Q-Code- Q-Dashboard- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsinks- M.2 heatsink backplate- VRM heatsink designASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- Clear CMOS button- ProCool II- Pre-mounted I/O shield- SafeSlot- SafeDIMMAura Sync- Addressable Gen2 headers Package Content : Cables2 x SATA 6Gb/s cables Additional Cooling Kit1 x Thermal pad for M.2 22110Miscellaneous1 x ASUS Wi-Fi Q-Antenna1 x Cable ties pack1 x M.2 Q-Latch package2 x M.2 Q-Slides1 x ROG key chain1 x ROG Strix stickers7 x M.2 RubbersDocumentation1 x Quick start guide Product Size ( Dimension ) : 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) Warranty : 1 Year ( As per Manufacturer Policy )
