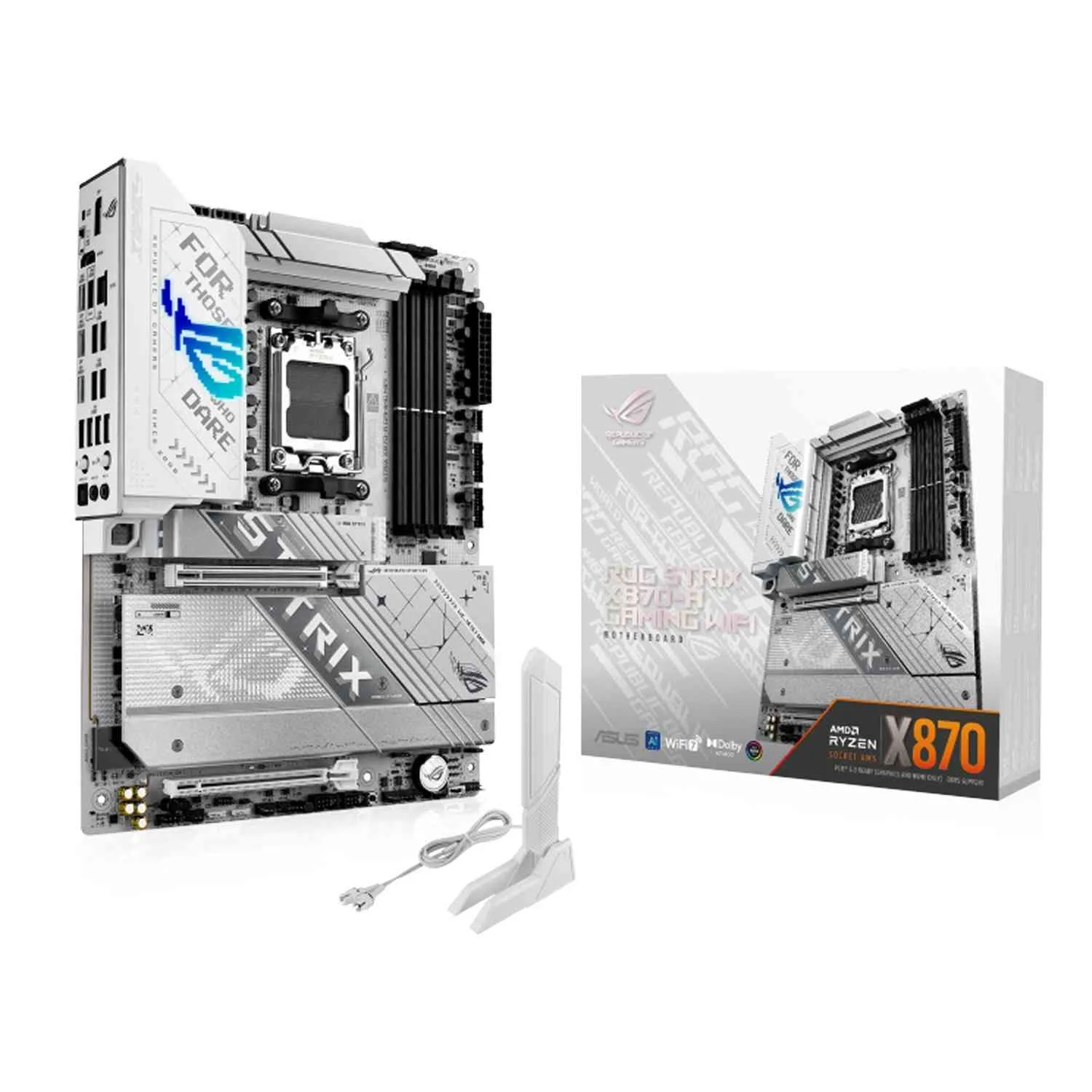

Asus Rog Strix X870-A AMD Ryzen Wi-Fi 7 Gaming Motherboard

Model No : Asus Rog Strix X870-A AMD Ryzen Wi-Fi 7 Gaming Motherboard Part No : 90MB1IF0-M0EAY0 Chipset : AMD X870 Form Factor : ATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) Socket Compatibility : AMD Socket AM5 for AMD Ryzen™ 9000 &8000 & 7000 Series Desktop Processors Wireless & Bluetooth : Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth® v5.4****Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. Ethernet : 1 x Intel® 2.5Gb EthernetASUS LANGuard Memroy : 4 x DIMM slots, max. 192GB, DDR5Supports up to 8000+MT/s(OC) with Ryzen™9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-bufferedMemory*"Dual channel memory architectureSupports AMD Extended Profiles forOverclocking (EXPO™)ASUS Enhanced Memory Profile (AEMP)* Supported memory types, data rate(speed), and number of DRAM modules vary depending on the CPU and memoryconfiguration, for more information please refer to CPU/Memory Support listunder the Support tab of product information site or visithttps://www.asus.com/support/.* Non-ECC, un-buffered DDR5 memory supportsOn-Die ECC function. Storage Compatibility : Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports*AMD Ryzen™ 9000 & 7000 Series Desktop Processors*M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**AMD Ryzen™ 8000 Series Desktop Processors**M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports)****AMD X870 ChipsetM.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)***M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)2 x SATA 6Gb/s ports* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU. ** M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occupied with SSD device, PCIEX16(G5) will run x8 only.*** M.2_3 shares bandwidth with PCIEX16(G4). When M.2_3 is occupied with SSD device, PCIEX16(G4) will be disabled.**** M.2_2 will be disabled when using AMD Ryzen™ 8000 Series Desktop Processors. Back Panel I/O Ports : 2 x USB4® (40Gbps) ports (2 x USB Type-C® with DP Alt mode)6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C® with up to 30W PD Fast-charge)**4 x USB 5Gbps ports (4 x Type-A)1 x DisplayPort1 x HDMI™ port1 x Wi-Fi module1 x Intel® 2.5Gb Ethernet2 x Audio jacks 1 x Optical S/PDIF out port1 x BIOS FlashBack™ button 1 x Clear CMOS button USB Ports Front (Support ) : Rear USB (Total 12 ports)2 x USB4® (40Gbps) ports(2 x USB Type-C® with DP Alt mode)*6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C® with up to 30W PD Fast-charge)**4 x USB 5Gbps ports (4 x Type-A)Front USB (Total 9 ports)1 x USB 20Gbps connector (supports USB Type-C®)2 x USB 5Gbps headers support 4 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 ports* USB Type-C® power delivery output: max. 5V/3A** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A Expansion Slots : AMD Ryzen™ 9000 & 7000 Series Desktop Processors*1 x PCIe 5.0 x16 slot (supports x16 mode)AMD Ryzen™ 8000 Series Desktop Processors*1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**AMD X870 Chipset1 x PCIe 4.0 x16 slot (supports x4 mode) Audio : ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*- Impedance sense for front and rear headphone outputs- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input- Supports up to 32-Bit/384 kHz playback on front panel"Audio Features - SupremeFX Shielding Technology- Savitech SV3H712 AMP - Rear optical S/PDIF out port- Premium audio capacitors- Audio cover* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. Internal I/O Connectors : Fan and Cooling Related 1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header5 x 4-pin Chassis Fan headersPower Related 1 x 24-pin Main Power connector2 x 8-pin +12V CPU Power connectorsStorage Related 4 x M.2 slots (Key M) 2 x SATA 6Gb/s portsUSB 1 x USB 20Gbps connector (supports USB Type-C®)2 x USB 5Gbps headers support 4 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x Alteration PCIe mode switch1 x Chassis Intrusion header1 x CPU Over voltage jumper1 x Front Panel Audio header (F_AUDIO)1 x Start button1 x 10-1 pin System Panel header1 x Thermal Sensor header Special Features : Extreme Engine Digi+- 5K Black metallic capacitors ASUS Q-Design - M.2 Q-Latch- M.2 Q-Release- M.2 Q-Slide- PCIe Slot Q-Release Slim (with PCIe SafeSlot)- Q-Antenna- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink backplate- M.2 heatsinkASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- Clear CMOS button- ProCool II- Pre-mounted I/O shield- SafeSlot- SafeDIMMAura Sync- Addressable Gen 2 headers Package Content : Cables2 x SATA 6Gb/s cables Additional Cooling Kit1 x Thermal pad for M.2 22110Miscellaneous1 x ASUS WiFi Q-Antenna1 x Cable ties package1 x M.2 Q-Latch package1 x M.2 Q-Slide package1 x ROG key chain1 x ROG Strix stickers4 x M.2 rubber packagesDocumentation1 x Quick start guide Warranty : 1 Year ( As per Manufacturer Policy )
