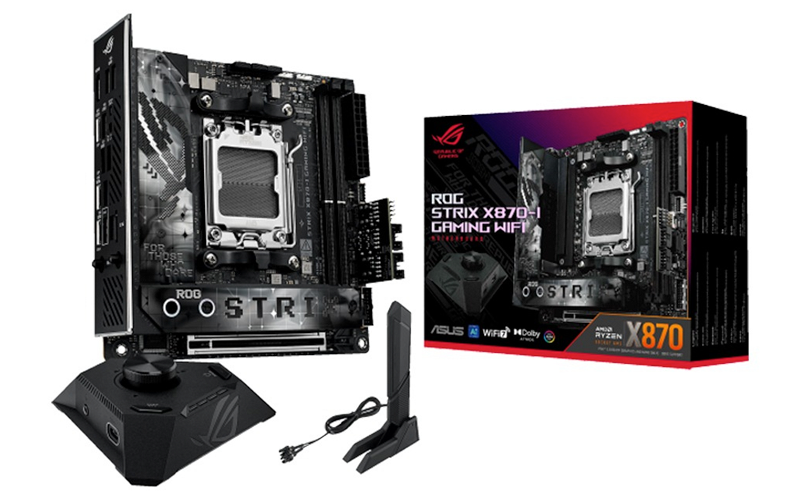

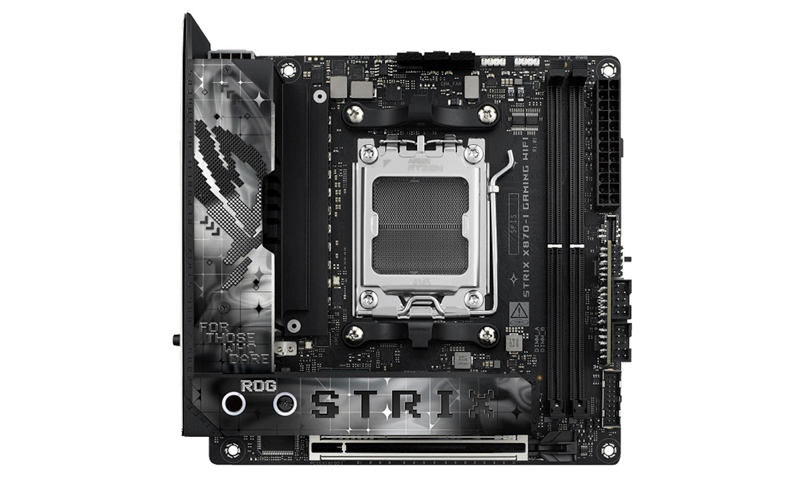

Asus Rog Strix X870-I Wifi 7 Ai Ready PCIe 5.0 DDR5 AM5 for AMD Ryzen Gaming MotherBoard

Model No : ROG STRIX X870-I GAMING WIFI Part No : 90MB1IW0-M0EAY0 Chipset : AMD X870 Form Factor : Mini-ITX Form Factor Socket Compatibility : AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors** Refer to https://www.asus.com/support/download-center/ for CPU support list. Wireless & Bluetooth : Wi-Fi 7*2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band**Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.Bluetooth® v5.4*** LAN : 1 x Intel® 2.5Gb EthernetASUS LANGuard Memroy Type : 2 x DIMM slots, max. 128GB, DDR5Supports up to 8400+MT/s(OC) with Ryzen™ 9000 Series Processors,8600+MT/s(OC) with Ryzen™ 8000 Series Processors,8000+MT/s(OC) with Ryzen™ 7000 Series Processors,ECC and Non-ECC Un-buffered DIMM*"Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™)ASUS Enhanced Memory Profile (AEMP)* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memoryconfiguration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Onboard Graphics : 1 x HDMI™ port**2 x USB4® (40Gbps) ports support USB Type-C® display outputs**** Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.** Supports 4K@60Hz as specified in HDMI 2.1.*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a**** VGA resolution support depends on processors' or graphic cards' resolution. Storage Compatibility : Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports*AMD Ryzen™ 9000 & 7000 Series Desktop Processors*M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode)AMD Ryzen™ 8000 Series Desktop Processors*M.2_1 slot (Key M), type 2280(supports PCIe 4.0 x4 mode)AMD X870 ChipsetM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)2 x SATA 6Gb/s ports**** AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1*** Install ROG FPS Card to support 2 x SATA 6Gb/s ports. Back Panel I/O Ports : 2 x USB4® (40Gbps)(2 x USB Type-C®) 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®, 1 port supports ROG STRIX HIVE II)3 x USB 2.0 port(s) (2 x Type-A) 1 x HDMI™ port1 x Wi-Fi module1 x Intel® 2.5Gb Ethernet port1 x BIOS FlashBack™ button 1 x Clear CMOS button USB Ports Front (Support ) : Rear USB (Total 10 ports)2 x USB4® (40Gbps) port(s)(2 x USB Type-C®) 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®)3 x USB 2.0 port(s) (3 x Type-A)Front USB (Total 3 ports)1 x USB 10Gbps connector (supports USB Type-C®)1 x USB 5Gbps header supports 2 additional USB 5Gbps ports* USB Type-C® power delivery output: max. 5V/3AROG STRIX HIVE II(Total 2 ports)2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C®) ROG FPS Card (Total 3 ports)2 x USB 2.0 headers additional 3 USB 2.0 ports Expansion Slots : AMD Ryzen™ 9000 & 7000 Series Desktop Processors1 x PCIe 5.0 x16 slotAMD Ryzen™ 8000 Series Desktop Processors1 x PCIe 4.0 x16 slot (supports x8/x4 mode)* Audio : ROG Strix Hive II Audio Features- ROG Hyper-Grounding Technology- ESS® SABRE9260Q DAC - Silver-plated audio jacks- Dedicated audio PCB layers Internal I/O Connectors : Fan and Cooling Related 1 x 4-pin CPU Fan header(s)1 x 4-pin AIO Pump header(s)1 x 4-pin Chassis Fan header(s)Power Related 1 x 24-pin Main Power connector1 x 8-pin +12V CPU Power connectorStorage Related 2 x M.2 slots (Key M) USB 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header support(s) 2additional USB 5Gbps portsMiscellaneous2 x Addressable Gen 2 headers1 x 2-pin Power Button header1 x Thermal Sensor header2 x USB Type-C® connectors to install ROG FPS cardROG FPS card 2 x SATA 6Gb/s ports1 x CPU Over Voltage jumper1 x Front Panel header1 x Alteration PCIe Mode switch2 x USB 2.0 headers support 3additional USB 2.0 ports Special Features : ASUS Q-Design - M.2 Q-Latch- PCIe Slot Q-Release Slim (with PCIe SafeSlot)- Q-Antenna- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink- Aluminum backplateASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- Clear CMOS button- ProCool II- Pre-mounted I/O shield- SafeSlot- SafeDIMMAura Sync- Addressable Gen 2 header(s)ROG STRIX HIVE II1 x USB Type-C® connects to motherboard2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C®) 1 x Headphone jack with mic in1 x Power button 1 x FlexKey button 1 x Volume control knob with mute button Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) Product Size ( Dimension ) : 6.7 inch x 6.7 inch (17 cm x 17 cm) Warranty : 1 Year ( As per Manufacturer Policy )
