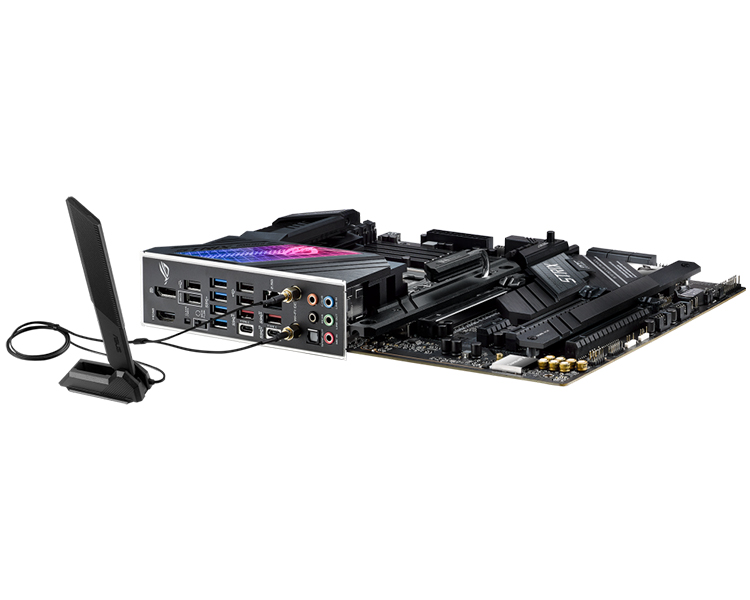

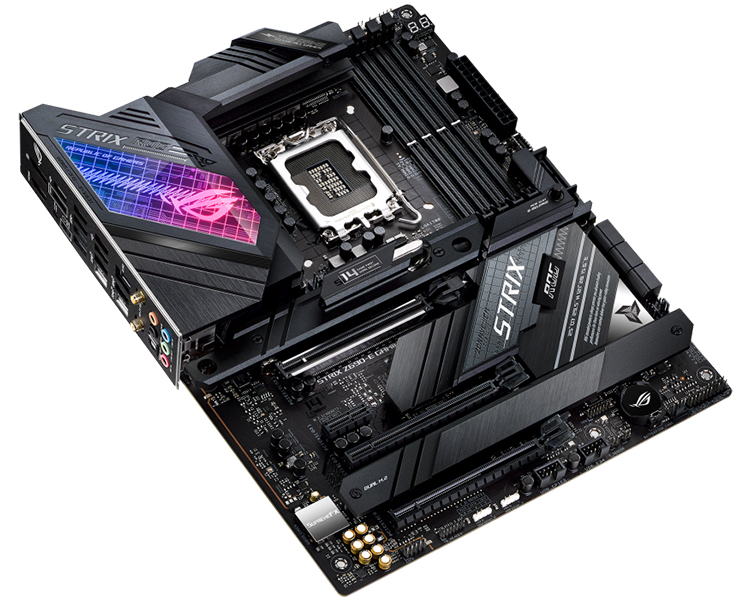

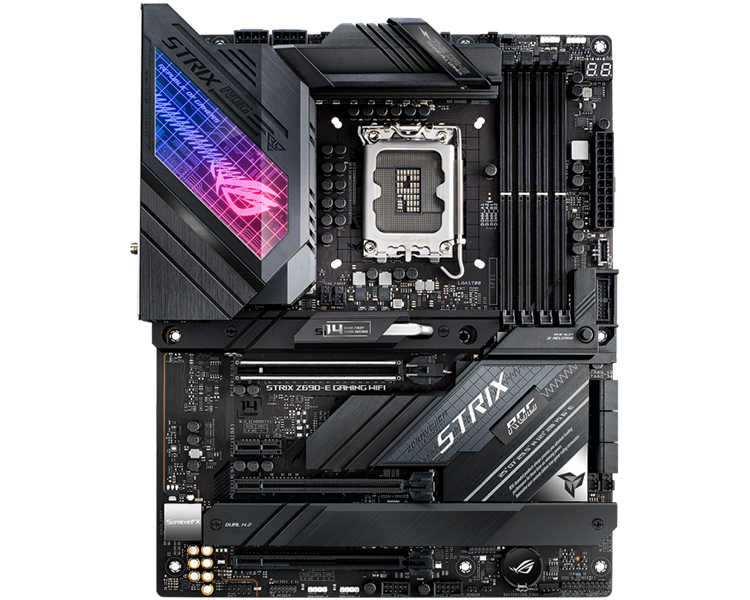

Asus ROG STRIX Z690-E GAMING WIFI-6E MotherBoard

Model No. : ROG STRIX Z690-E GAMING WIFI-6E Part No. : 90MB18J0-M0EAY0 CPU : Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors : Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** : ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset : Z690 Memory : 4 x DIMM, Max. 128GB, DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory* : Dual Channel Memory Architecture : Supports Intel® Extreme Memory Profile (XMP) : OptiMem II : * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. Graphics : 1 x DisplayPort** : 1 x HDMI®*** : * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. : ** Support 8K@60Hz as specified in DisplayPort 1.4. : *** Support 4K@60Hz as specified in HDMI 2.1. Expansion Slots : Intel® 12th Gen Processors* : 1 x PCIe 5.0 x16 slot** : Intel® Z690 Chipset*** : 1 x PCIe 4.0 x16 slot (supports x4 mode or x4/x4 mode for ROG HYPER M.2 CARD) : 1 x PCIe 3.0 x16 slot (supports x4 mode) : 1 x PCIe 3.0 x1 slot : * Please check PCIe bifurcation table in Chapter 1 of user guide. : ** When M.2_1 is occupied with SSD device, PCIEX16(G5)_1 will run x8 only. : *** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot. Storage : Supports 3 x M.2 slots and 6 x SATA 6Gb/s ports : Intel®12th Gen Processors : M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) : - Intel® 12th Gen processors support PCIe 5.0 x4 mode. : M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) : - Intel® 12th Gen processors support PCIe 4.0 x4 mode. : Hyper M.2_1 slot (Key M) via Hyper M.2 card, type 2242/2260/2280/22110*** : - Intel® 12th Gen processors support PCIe 4.0 x4 mode : Intel® Z690 Chipset** : M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode & SATA modes) : Hyper M.2_1 slot (Key M) via Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)**** : Hyper M.2_2 slot (Key M) via Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)**** : 6 x SATA 6Gb/s ports***** : * Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. : ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. : *** When ROG Hyper M.2 card is installed on PCIEX16(G5), only Hyper M.2_1 slot can support PCIe 4.0 x4 mode. When ROG Hyper M.2 card is installed on PCIEX16(G3), only Hyper M.2_1 slot can support PCIe 3.0 x4 mode. When ROG Hyper M.2 card is installed on PCIEX16(G4), Hyper M.2_1 and Hyper M.2_2 slots can support PCIe 4.0 x4 mode. : **** When ROG Hyper M.2 card is installed on PCIEX16(G5) or PCIEX16(G3), Hyper M.2_2 slot will be disabled. When ROG Hyper M.2 card is installed on PCIEX16(G4), Hyper M.2_1 and Hyper M.2_2 slots can support PCIe 4.0 x4 mode. : ***** RAID configuration and boot drives are not supported on the SATA6G_E1-2 ports. Ethernet : ASUS LANGuard Wireless & Bluetooth : Intel® Wi-Fi 6E : "Wi-Fi 6E : 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) : Supports 2.4/5/6GHz frequency band* : Bluetooth v5.2 hardware ready** : * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. : ** Bluetooth v5.2 function will be ready in Windows 11 or later. " USB : Rear USB:Total 12 ports : 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) : 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®) : 4 x USB 3.2 Gen 1 ports (4 x Type-A) : 4 x USB 2.0 ports (4 x Type-A) : Front USB:Total 7 ports : Front USB (Total 7 ports) : 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) : 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports : 2 x USB 2.0 headers support additional 4 USB 2.0 ports Audio : "ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 : - Impedance sense for front and rear headphone outputs : - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking : - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input : - Supports up to 32-Bit/384 kHz playback" : Audio Features : - SupremeFX Shielding Technology : - ALC4080 + Savitech SV3H712 AMP : - Gold-plated audio jacks : - Rear optical S/PDIF out port : - Premium audio capacitors : - Audio cover Internal I/O Connectors : Fan and Cooling related : 1 x 4-pin CPU Fan header : 1 x 4-pin CPU OPT Fan header : 1 x 4-pin AIO Pump header : 5 x 4-pin Chassis Fan headers : Power related : 1 x 24-pin Main Power connector : 2 x 8-pin +12V Power connector : Storage related : 3 x M.2 slots (Key M) : 6 x SATA 6Gb/s ports : USB : 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) : 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports : 2 x USB 2.0 headers support additional 4 USB 2.0 ports : Miscellaneous : 3 x Addressable Gen 2 headers : 1 x AURA RGB header : 1 x CPU Over Voltage jumper : 1 x Front Panel Audio header (AAFP) : 1 x SPI TPM header (14-1pin) : 1 x 20-3 pin System Panel header with Chassis intrude function : 1 x Thermal Sensor header : 1 x Thunderbolt header Special Features : Extreme Engine Digi+ : - 5K Black Metallic Capacitors : ASUS Q-Design : - M.2 Q-Latch : - PCIe Slot Q-Release : - Q-DIMM : - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) : - Q-Slot : ASUS Thermal Solution : - M.2 heatsink backplate : - M.2 heatsink : ASUS EZ DIY : - BIOS FlashBack™ button : - BIOS FlashBack™ LED : - Clear CMOS button : - CPU Socket lever protector : - ProCool II : - Pre-mounted I/O shield : - SafeSlot : - SafeDIMM : AURA Sync : - AURA RGB header : - Addressable Gen 2 RGB headers : ASUS HYDRANODE : - 1 x Chassis fan support* (CHA_FAN1P) : * Visit ASUS Website for the latest compatibility list. : TPM header Software Features : ROG Exclusive Software : - ROG CPU-Z : - GameFirst VI : - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion : - Sonic Radar III : - DTS® Sound Unbound : - Anti-virus software : ASUS Exclusive Software : Armoury Crate : - AIDA64 Extreme (60 days free trial) : - AURA Creator : - AURA Sync : - Fan Xpert 4 : - Two-Way AI Noise Cancelation : AI Suite 3 : - 5-Way Optimization with AI Overclocking : TPU : EPU : DIGI+ VRM : Turbo app : MyAsus : WinRAR : UEFI BIOS : AI Overclocking Guide : ASUS EZ DIY : - ASUS CrashFree BIOS 3 : - ASUS EZ Flash 3 : - ASUS UEFI BIOS EZ Mode : FlexKey : MemTest86 BIOS : 256 Mb Flash ROM, UEFI AMI BIOS Manageability : WOL by PME, PXE Accessories : Cables : 4 x SATA 6Gb/s cables : ROG HYPER M.2 CARD : 1 x ROG HYPER M.2 CARD : Miscellaneous : 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas : 1 x M.2 Q-Latch package : 1 x M.2 Q-Latch package for M.2 backplate : 1 x M.2 Rubber Packages : 2 x M.2 Screw Packages : 1 x ROG Graphics card holder : 1 x ROG key chain : 1 x cable tie : 1 x ROG STRIX stickers : 1 x ROG STRIX thank you card : Installation Media : 1 x Support DVD : Documentation : 1 x User manual Operating System : Windows® 11 64-bit, Windows® 10 64-bit Form Factor : ATX : 30.5cm x 24.4cm
