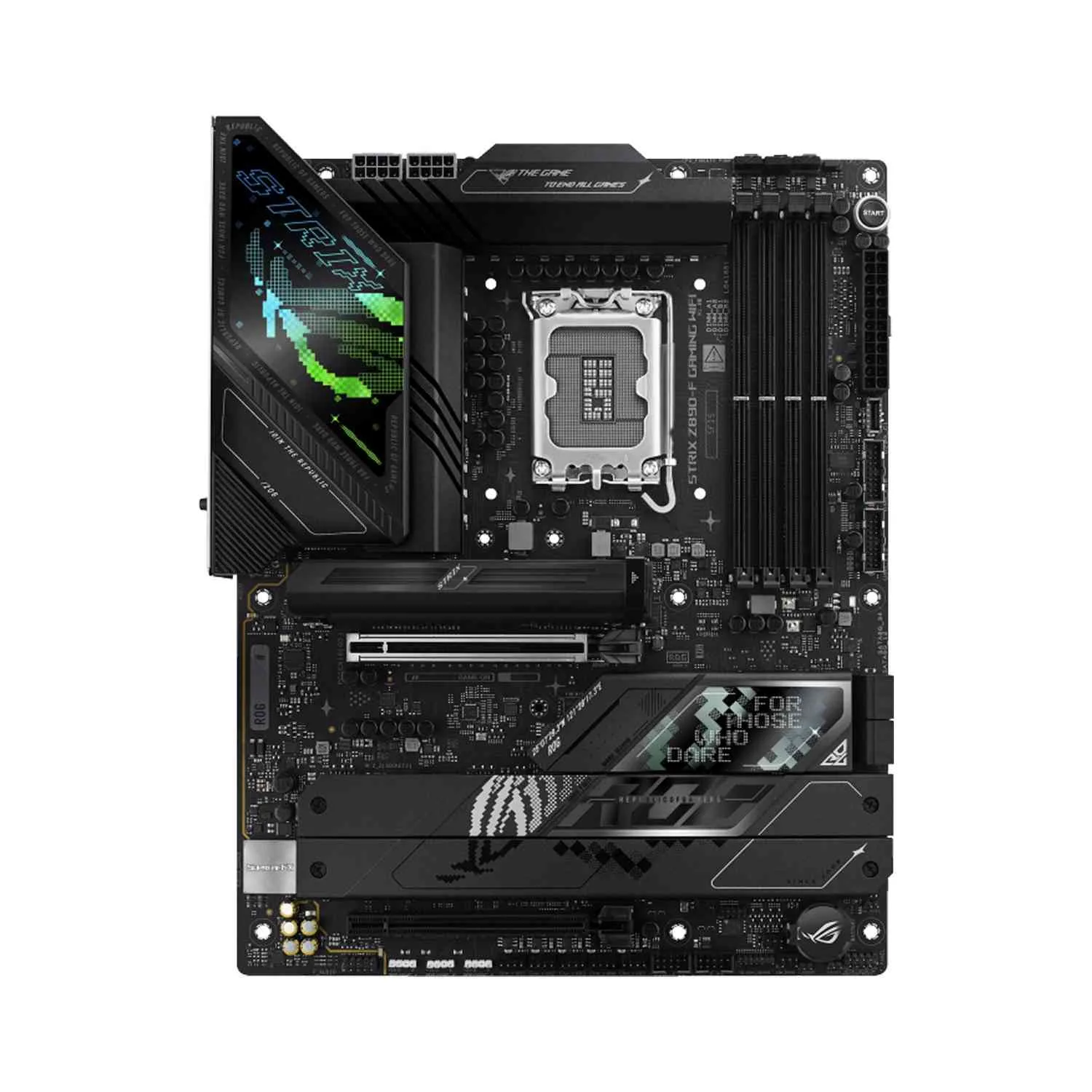

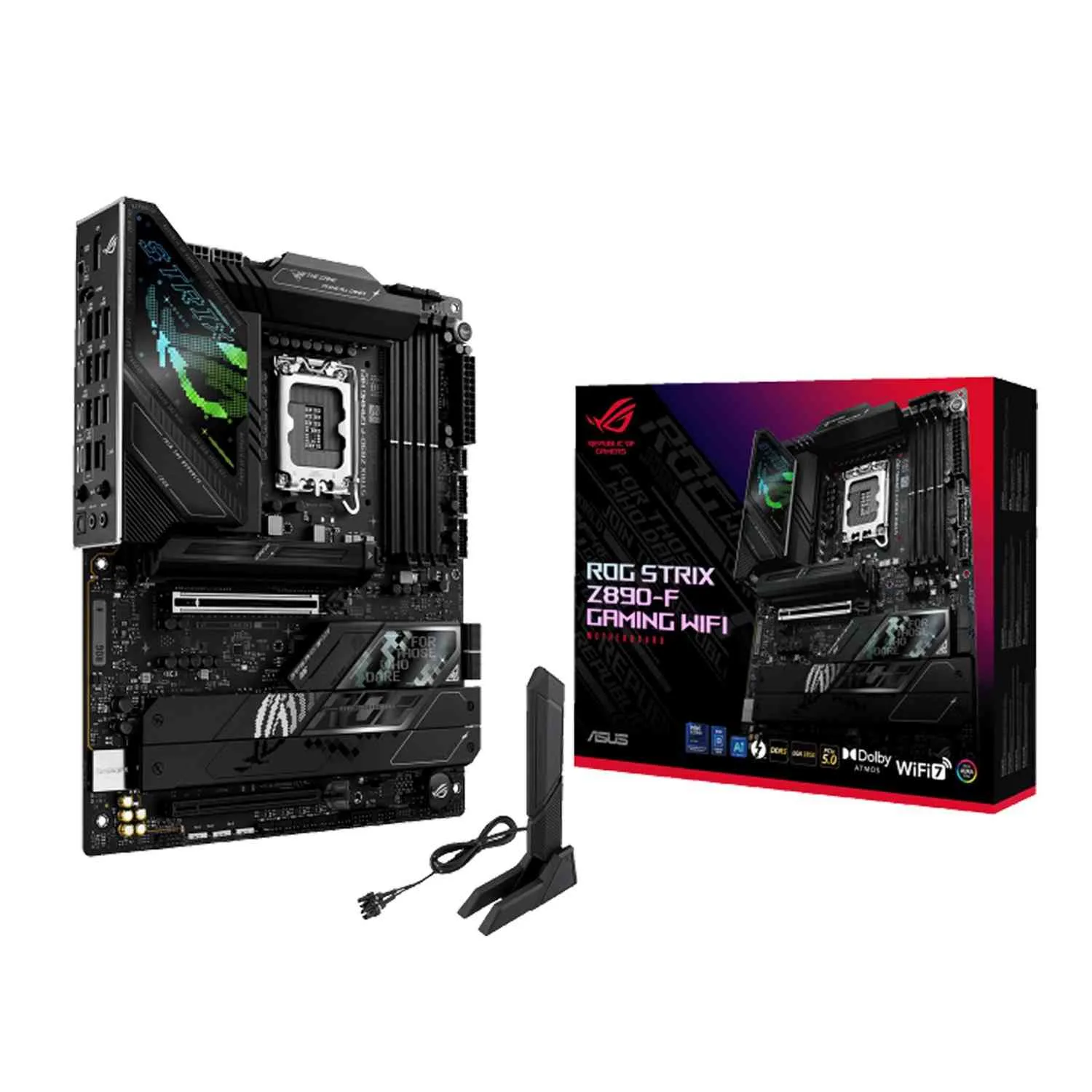

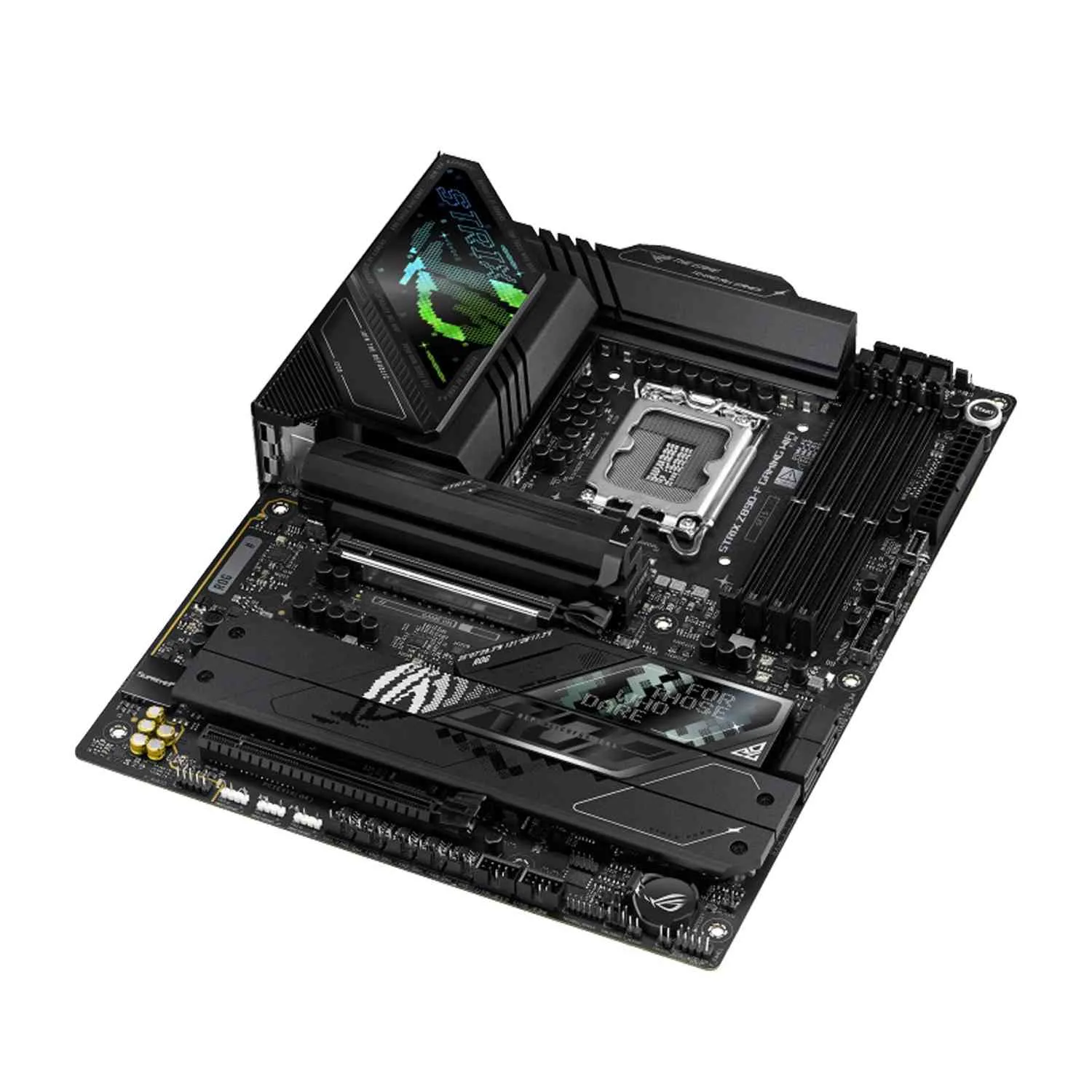

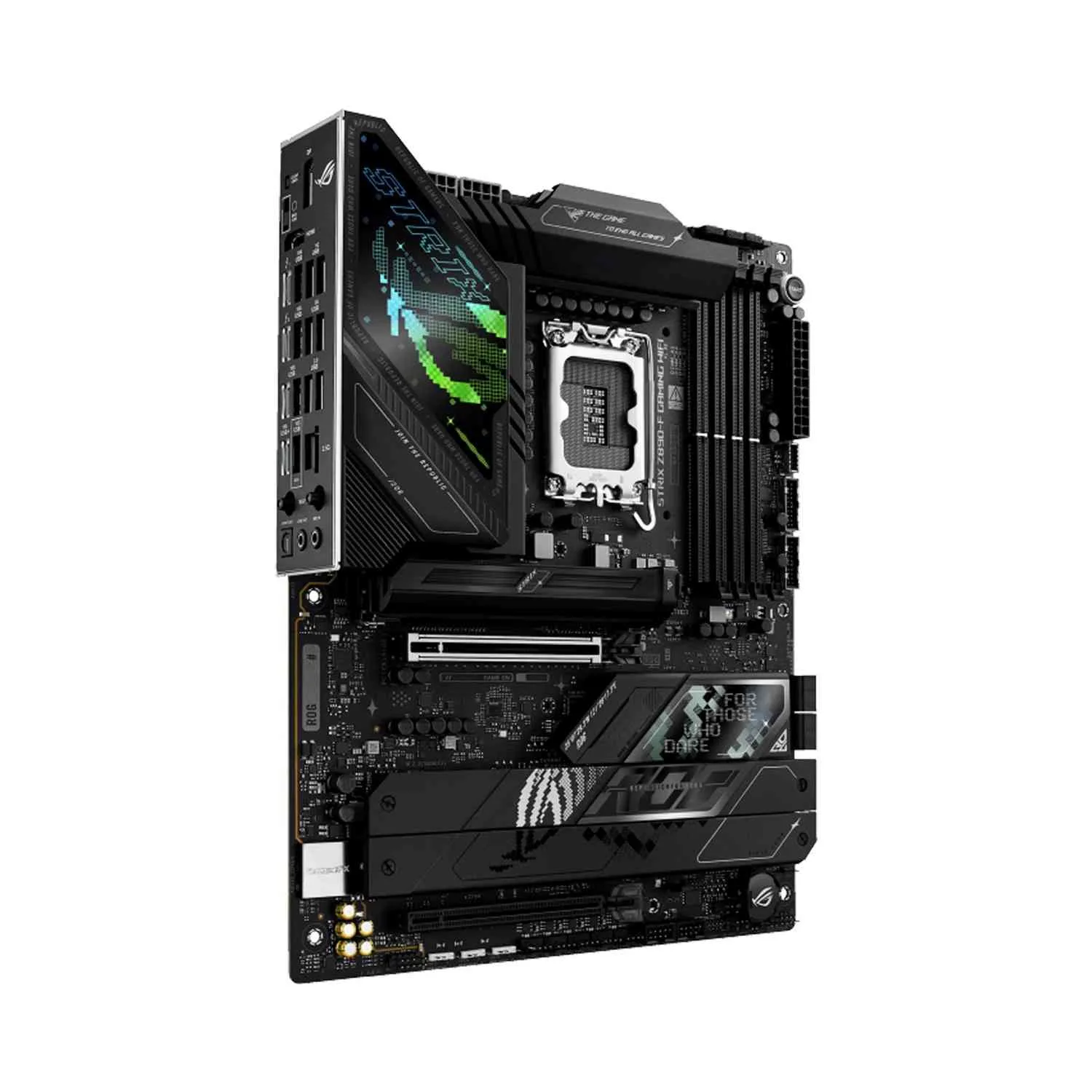

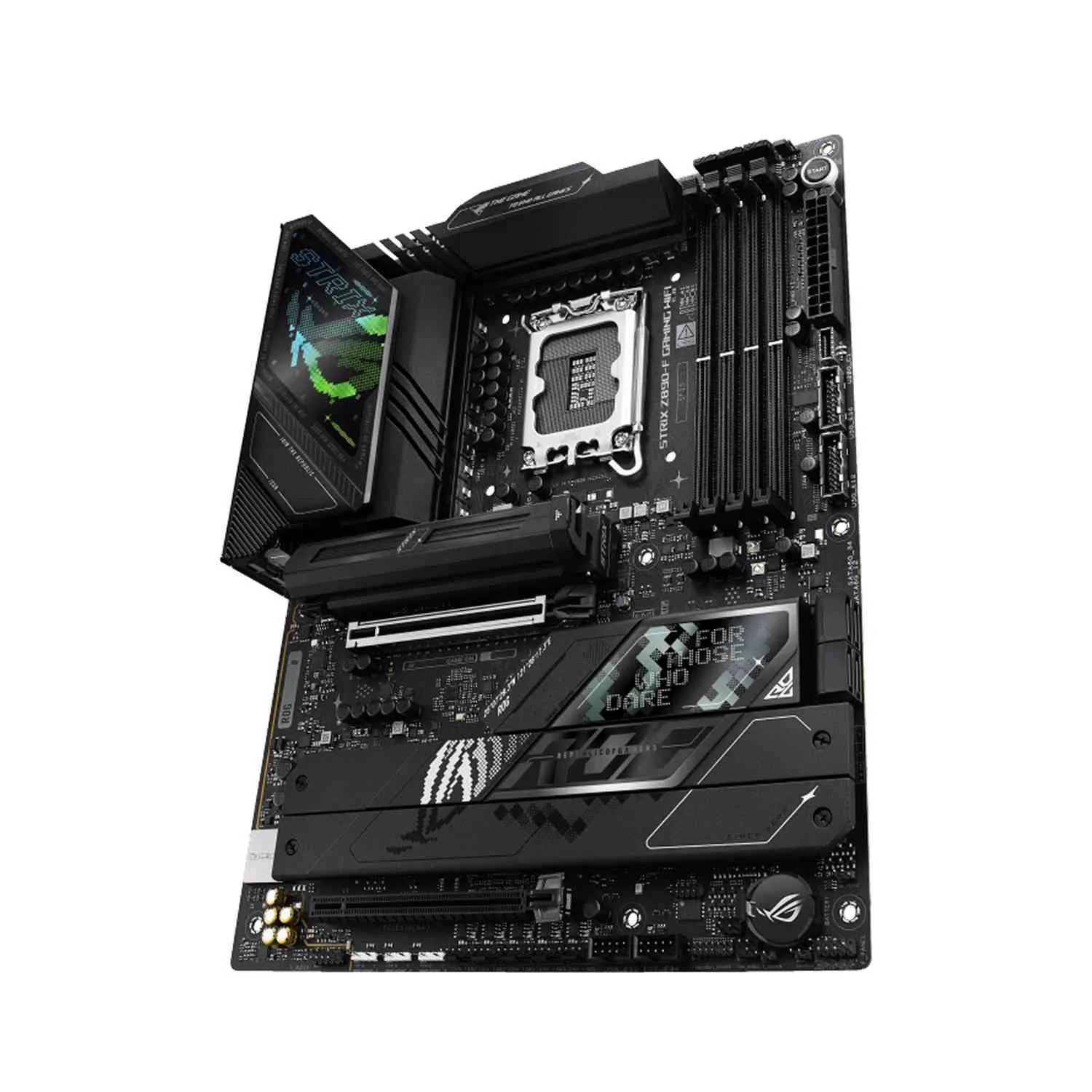

ASUS ROG STRIX Z890-F Gaming WIFI 7, Ai PC Ready, PCIe 5.0, DDR5 Motherboard

Model No : ASUS ROG STRIX Z890-F Gaming WIFI 7, Ai PC Ready, PCIe 5.0, DDR5 Motherboard Part No : 90MB1I40-M0EAY0 Chipset : Intel® Z890 Chipset Form Factor : ATX Socket Compatibility : Intel® Socket LGA1851 for Intel® Core™ Ultra Processors(Series 2)Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** Wireless & Bluetooth : Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. Bluetooth® v5.4*** Lighting : None Memroy : 4 x DIMM slots, max. 256GB, DDR5 Support up to 9066+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM)*Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) memory moduleSupports DIMM FlexDIMM FitASUS Enhanced Memory Profile III (AEMP III) Ethernet : 1 x Intel® 2.5Gb EthernetASUS LANGuard Storage Compatibility : Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*Intel® Core™ Ultra Processors(Series 2)*M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)Intel® Z890 ChipsetM.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)4 x SATA 6Gb/s ports* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5. Back Panel I/O Ports : 2 x Thunderbolt™ 4 (2 x USB Type-C®) 6 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C® + 1 x USB Type-C® with up to 30W PD Fast-charge)**4 x USB 5Gbps ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x DisplayPort1 x HDMI™ port1 x Wi-Fi module1 x Intel® 2.5Gb Ethernet port2 x Gold-plated audio jacks1 x Optical S/PDIF out port1 x BIOS FlashBack™ button 1 x Clear CMOS button USB Ports Front (Support ) : Rear USB (Total 14 ports)2 x Thunderbolt™ 4 (2 x USB Type-C®)6 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®* + 1 x USB Type-C® with up to 30W PD Fast-charge)**4 x USB 5Gbps ports (4 x Type-A)2 x USB 2.0 portsFront USB (Total 9 ports)1 x USB 20Gbps connector (1 x USB Type-C®)2 x USB 5Gbps headers support 4 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C® power delivery output: 5V/3A** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2A. Expansion Slots : Intel® Core™ Ultra Processors(Series 2)*1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)Intel® Z890 Chipset1 x PCIe 4.0 x16 slot (supports x4 mode) Audio : ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panelAudio Features- SupremeFX Shielding Technology- Savitech SV3H712 AMP - Gold-plated audio jacks- Rear optical S/PDIF out port - Premium audio capacitors- Audio cover Internal I/O Connectors : Fan and Cooling related 1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header5 x 4-pin Chassis Fan headersPower related 1 x 24-pin Main Power connector2 x 8-pin +12V CPU Power connectorsStorage related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s portsUSB 1 x USB 20Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous3 x Addressable Gen2 headers1 x Chassis Intrusion header1 x CPU Over voltage jumper1 x Front Panel Audio header (F_AUDIO)1 x Start button1 x 10-1 pin Front System Panel header1 x Thermal Sensor header1 x Thunderbolt™ (USB4®) header Special Features : Extreme Engine Digi+- 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch- M.2 Q-Release- M.2 Q-Slide- PCIe Slot Q-Release Slim (with PCIe SafeSlot)- Q-Antenna- Q-Dashboard- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsinks- M.2 heatsink backplate- VRM heatsink designASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- Clear CMOS button- ProCool II- Pre-mounted I/O shield- SafeSlot- SafeDIMMAura Sync- Addressable Gen2 headers Package Content : Cables2 x SATA 6Gb/s cables Additional Cooling Kit1 x Thermal pad for M.2 22110Miscellaneous1 x ASUS Wi-Fi Q-Antenna1 x Cable ties pack1 x M.2 Q-Latch package1 x ROG key chain1 x ROG Strix stickers3 x M.2 rubber packagesDocumentation1 x Quick start guide Product Size ( Dimension ) : 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) Warranty : 1 Year ( As per Manufacturer Policy )
