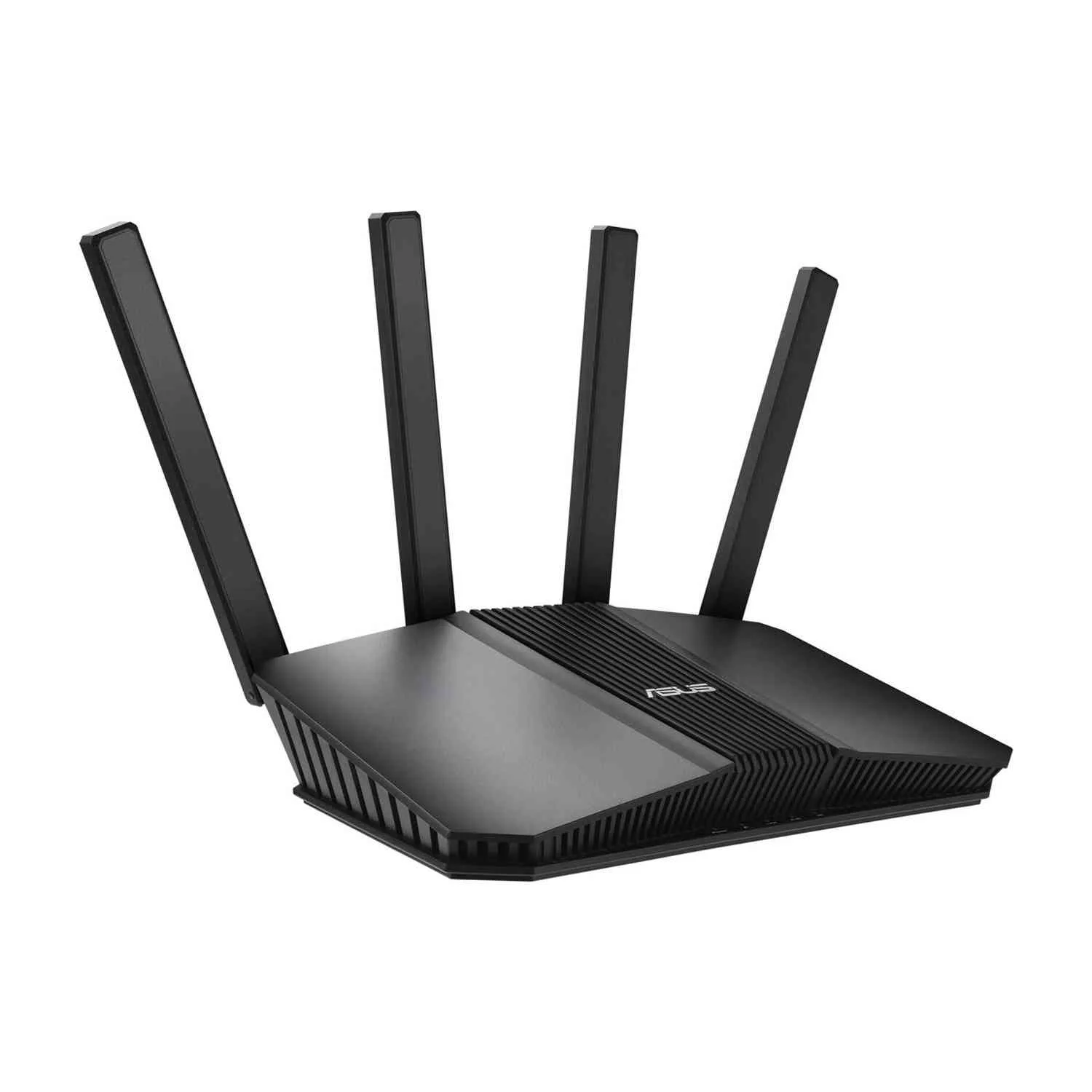

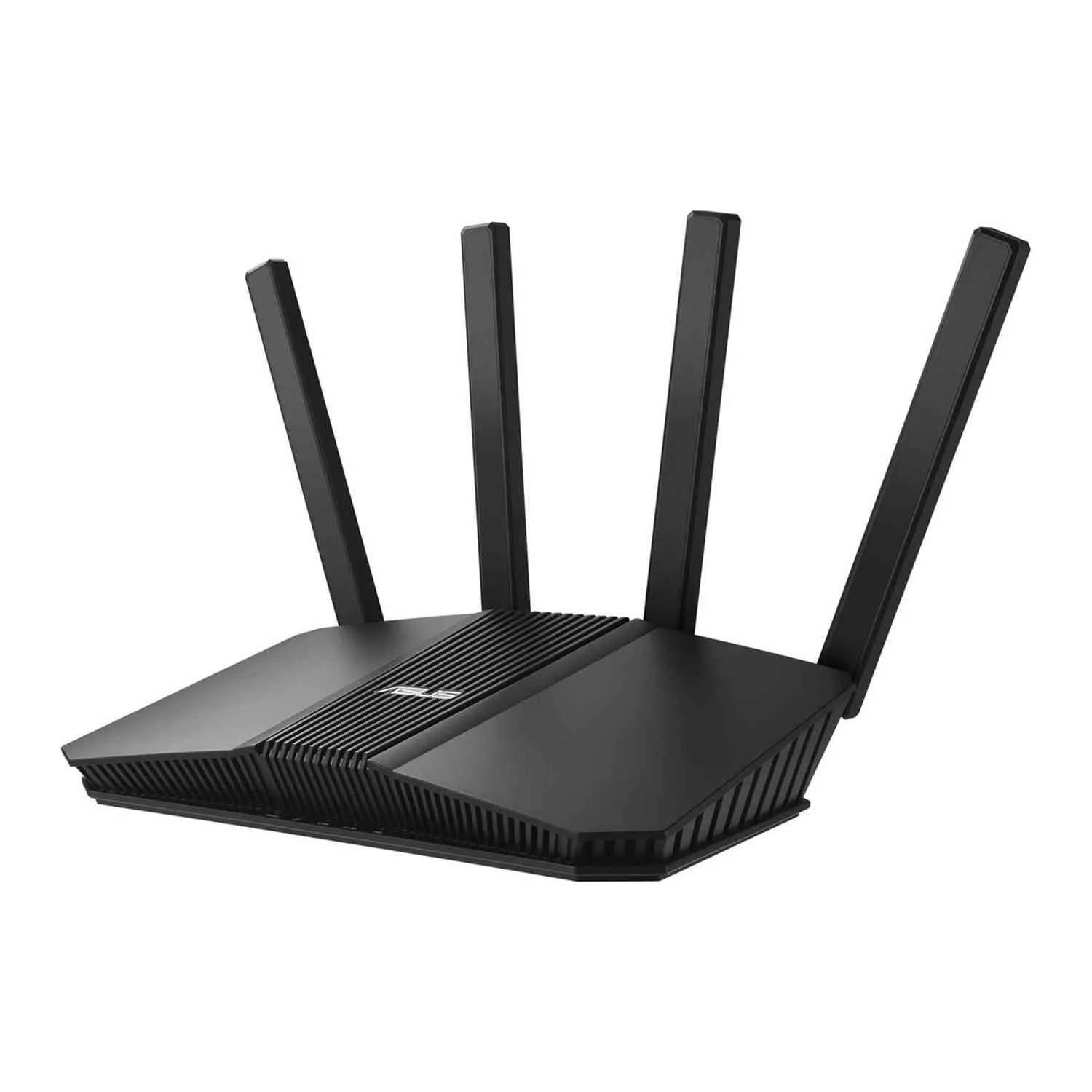

ASUS (RT-BE58U) - Dual Band BE3600 WiFi 7 Router

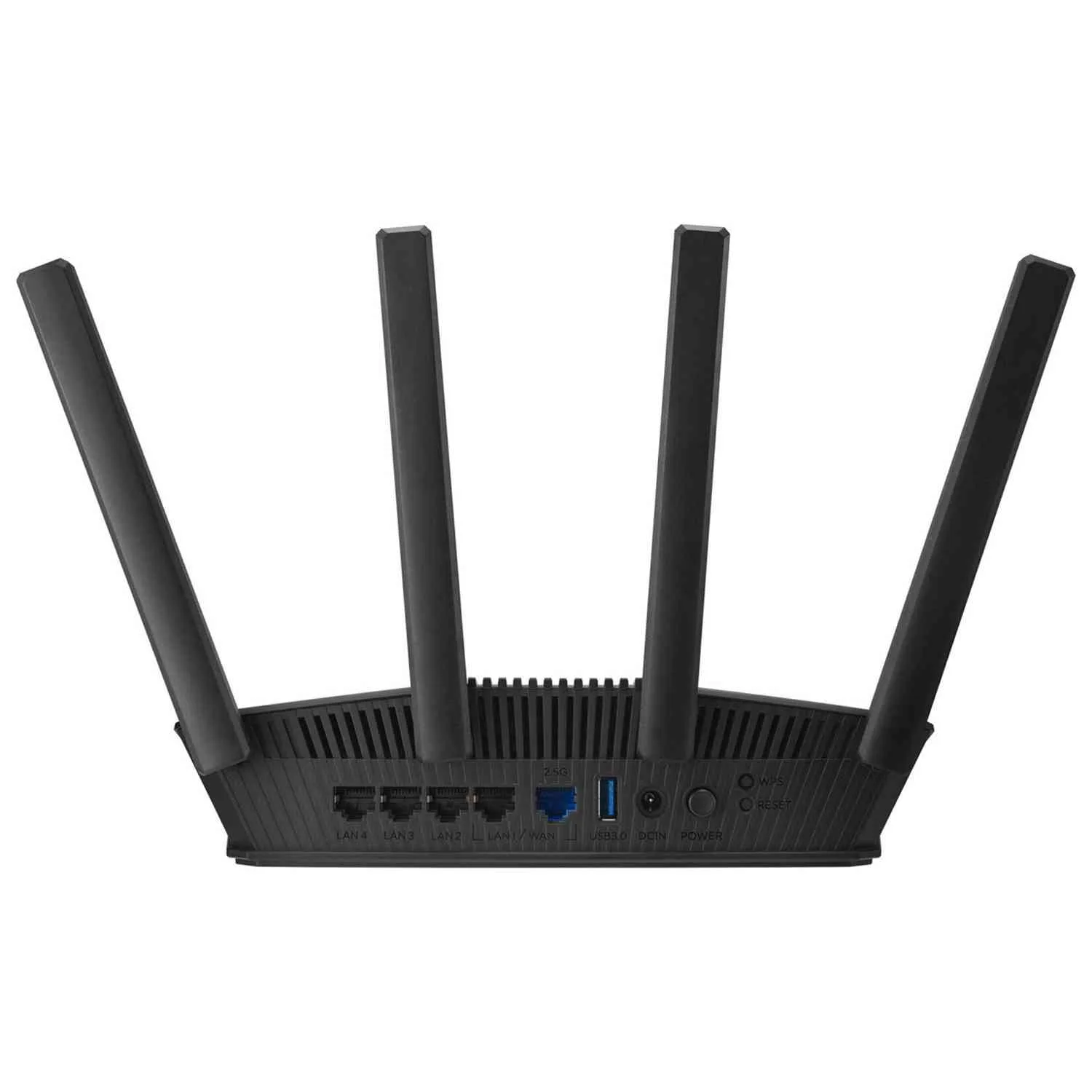

Model No : ASUS (RT-BE58U) - Dual Band BE3600 WiFi 7 Router Part No : 90IG0910-MO3C00 Network Standard : IEEE 802.11aIEEE 802.11bIEEE 802.11gWiFi 4 (802.11n)WiFi 5 (802.11ac)WiFi 6 (802.11ax)WiFi 7 (802.11be)IPv4IPv6 Segment : BE3600 ultimate BE performance : 688+2882 Mbps Data Rate : 802.11a : up to 54 Mbps802.11b : up to 11 Mbps802.11g : up to 54 MbpsWiFi 7 (802.11be) (2.4GHz): up to 688 MbpsWiFi 7 (802.11be) (5GHz): up to 2882 Mbps Antenna : External antenna x 4 Transmit/Receive : 2.4GHz 2x25GHz 2x2 Processor : 2.0 GHz quad-core processor Memory : 256 MB Flash & 1 GB RAM Boosts speed : OFDMA (Orthogonal Frequency Division Multiple Access)Beamforming: standard-based and universal4096-QAM high data rate20/40/80/160 MHz bandwidth Operating Frequency : 2.4GHz / 5GHz Operating Mode : Wireless router modeAccess point modeMedia bridge mode Ports : 1x 2.5G for WAN/LAN,1x 1G for WAN/LAN,3 x 1G LAN,USB 3.2 Gen 1 x 1 Button : WPS Button, Reset Button, Power Button LED Indicator : Power x 1WAN x 1LAN x 12.4GHz WiFi x 15GHz WiFi x 1 Power Supply : AC Input : 100V~240V (50~60Hz)DC Output : 12 V with max. 2 A current AiMesh : AiMesh• Primary AiMesh Router• AiMesh Node Parental Control : "Allow you to block access to unwanted websites and apps."Web & Apps FiltersTime SchedulingSafe BrowsingCustomized Internet Schedule Guest Network : "The Guest Network provides Internet connection for guests but restricts access to your local network."Support Guest Network• Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3Guest Network Connection Time Limit AiProtection : AiProtection Pro• Router Security Assessment• Malicious Site Blocking• Two-Way IPS• Infected Device Prevention and Blocking Security : AiProtectionVPNWPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-EnterpriseWPSLet's EncryptDNS-over-TLSSSHSecurity ScanFirewall• Maximum Firewall Keyword Filter : 64• Maximum Firewall Network Service Filter : 32• Maximum Firewall URL Filter : 64 Wireless : MU-MIMOUTF-8 SSIDWiFi MAC Address Filter• Maximum MAC Filters : 64Wireless SchedulerAirtime FairnessRADIUS ClientUniversal BeamformingExplicit Beamforming WAN : Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IPDual WAN3G / 4G LTE dongle4G / 5G Auto Mobile TetheringPort forwarding• Maximum Port Forwarding Rule : 64Port triggering• Maximum Port Triggering Rule : 32DMZDDNSNAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay LAN : DHCP ServerIGMP SnoopingIPTVManually Assign IP Address• Maximum Manually Assign IP Address Rule : 64Wake on LAN (WOL) VPN : Instant GuardVPN Client L2TPVPN Client Open VPNVPN Client PPTPVPN Client WireGuardVPN Server IPSecVPN Server Open VPNVPN Server PPTPVPN Server WireGuard Wireless : MU-MIMOUTF-8 SSIDWiFi MAC Address Filter• Maximum MAC Filters : 64Wireless SchedulerAirtime FairnessRADIUS ClientUniversal BeamformingExplicit Beamforming USB application : 4G / 5G Auto Mobile TetheringFile System : HFS+, NTFS, vFAT, ext2, ext3, ext4Safely Remove DiskAiCloudDownload MasterAiDiskMedia ServerTime MachineSamba ServerFTP ServerShared Folder Privileges Administration : Configuration Backup and RestoreDiagnosis toolsFeedback SystemSystem LogNew Device Connect NotificationLogin CaptchaConnection DiagnosisAuto Firmware Update Dimension : 238 x 193 x 59 mm Weight : 461g Package content : RT-BE58URJ-45 cablePower adapterQuick Start GuideWarranty card Warranty : 1 Year ( As per Manufacturer Policy )
