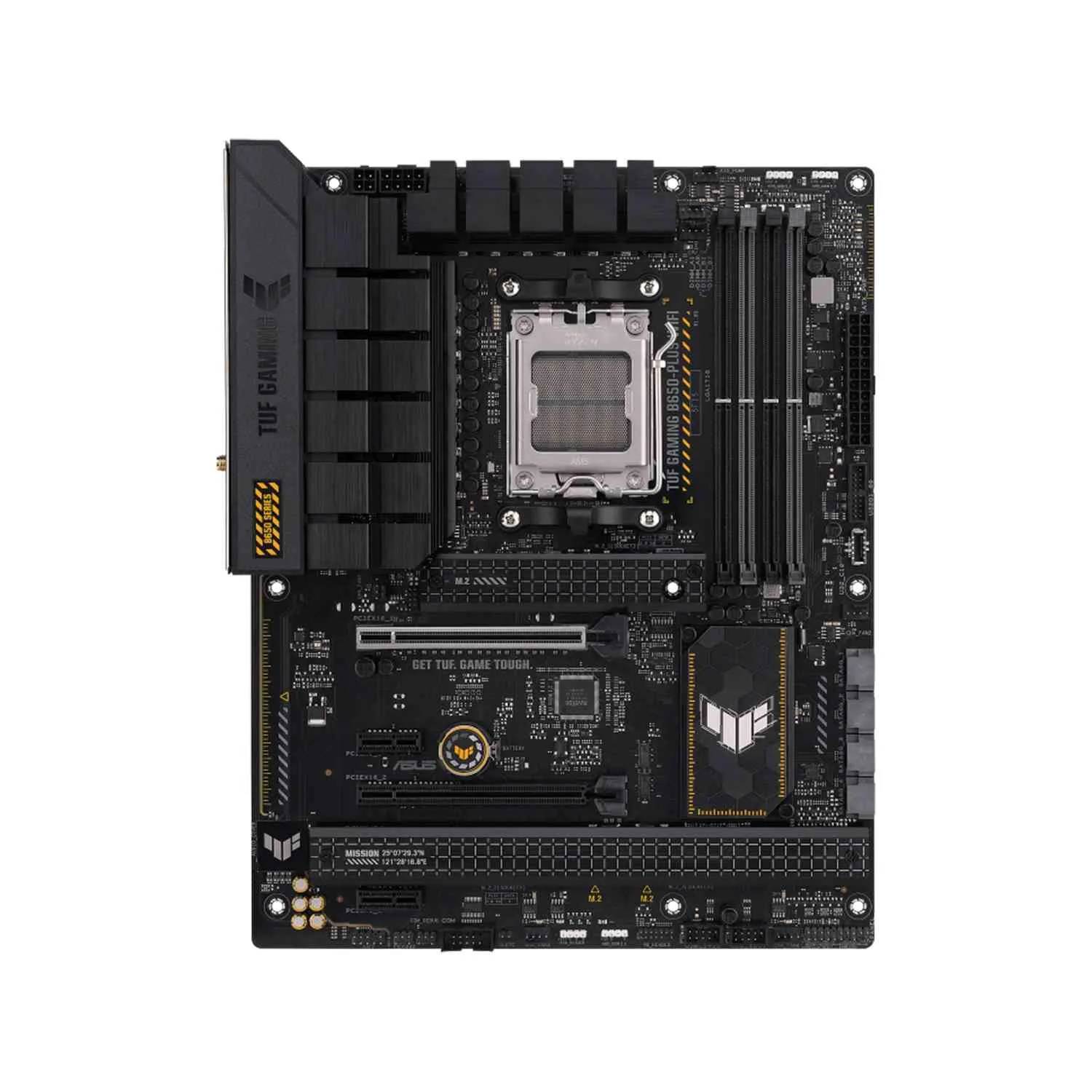

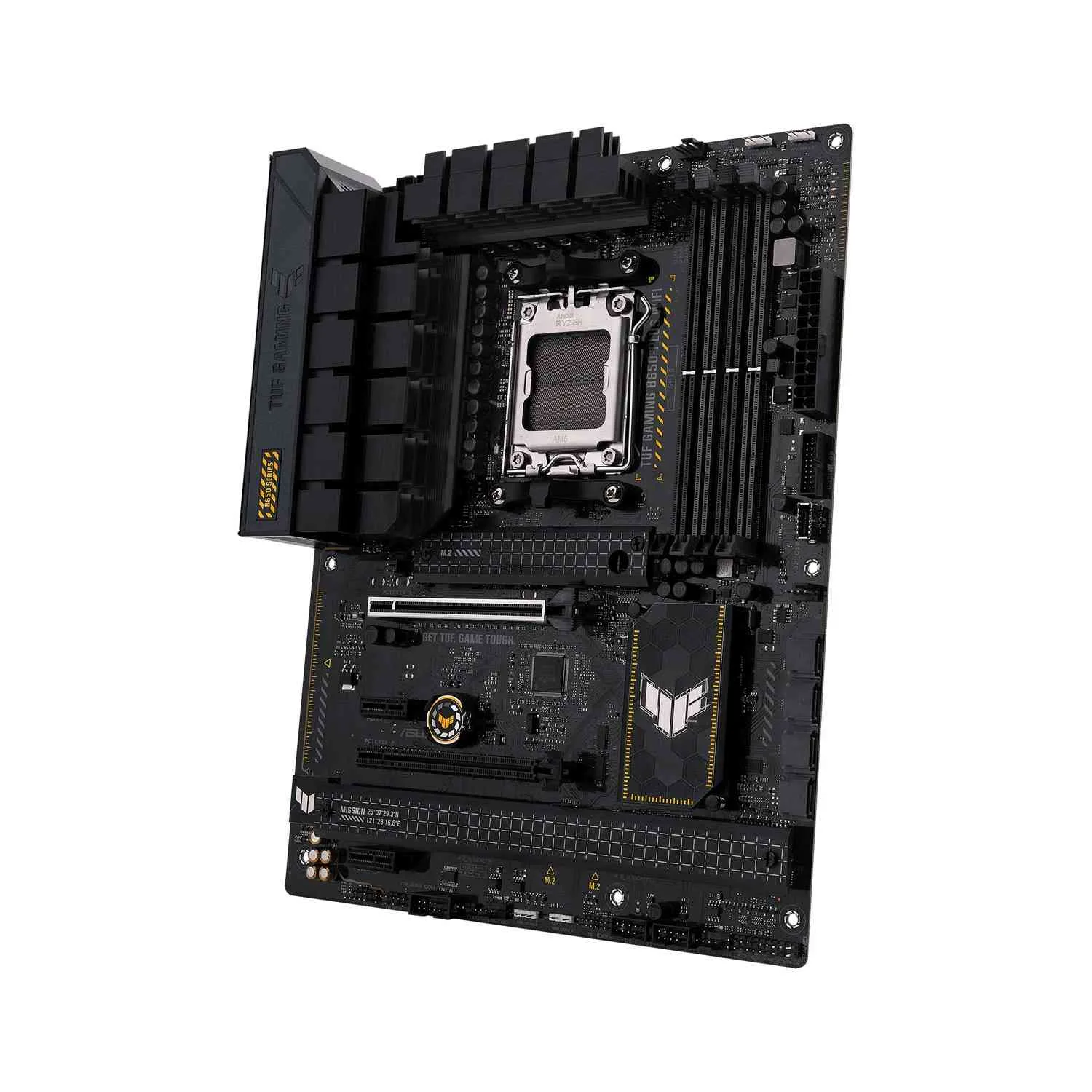

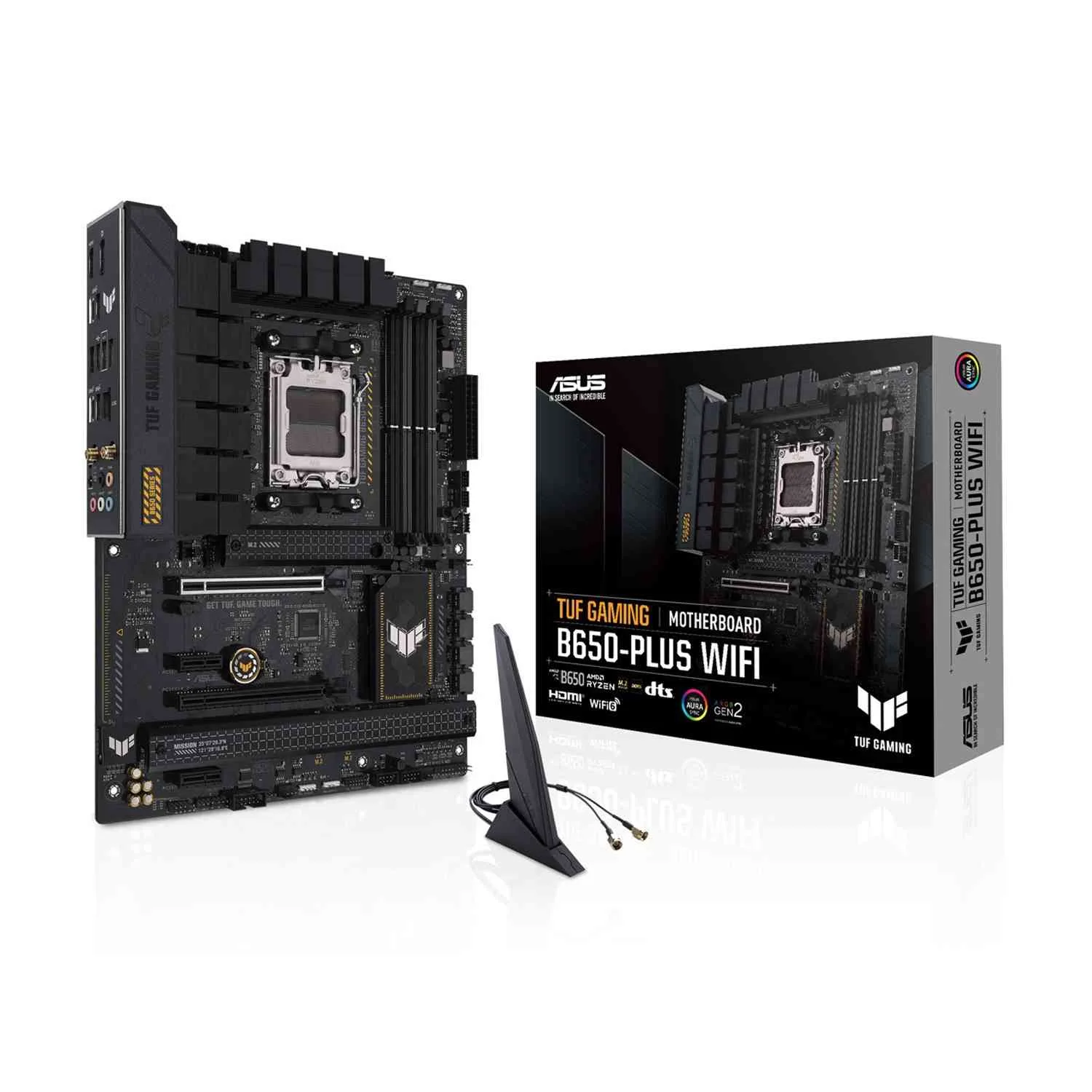

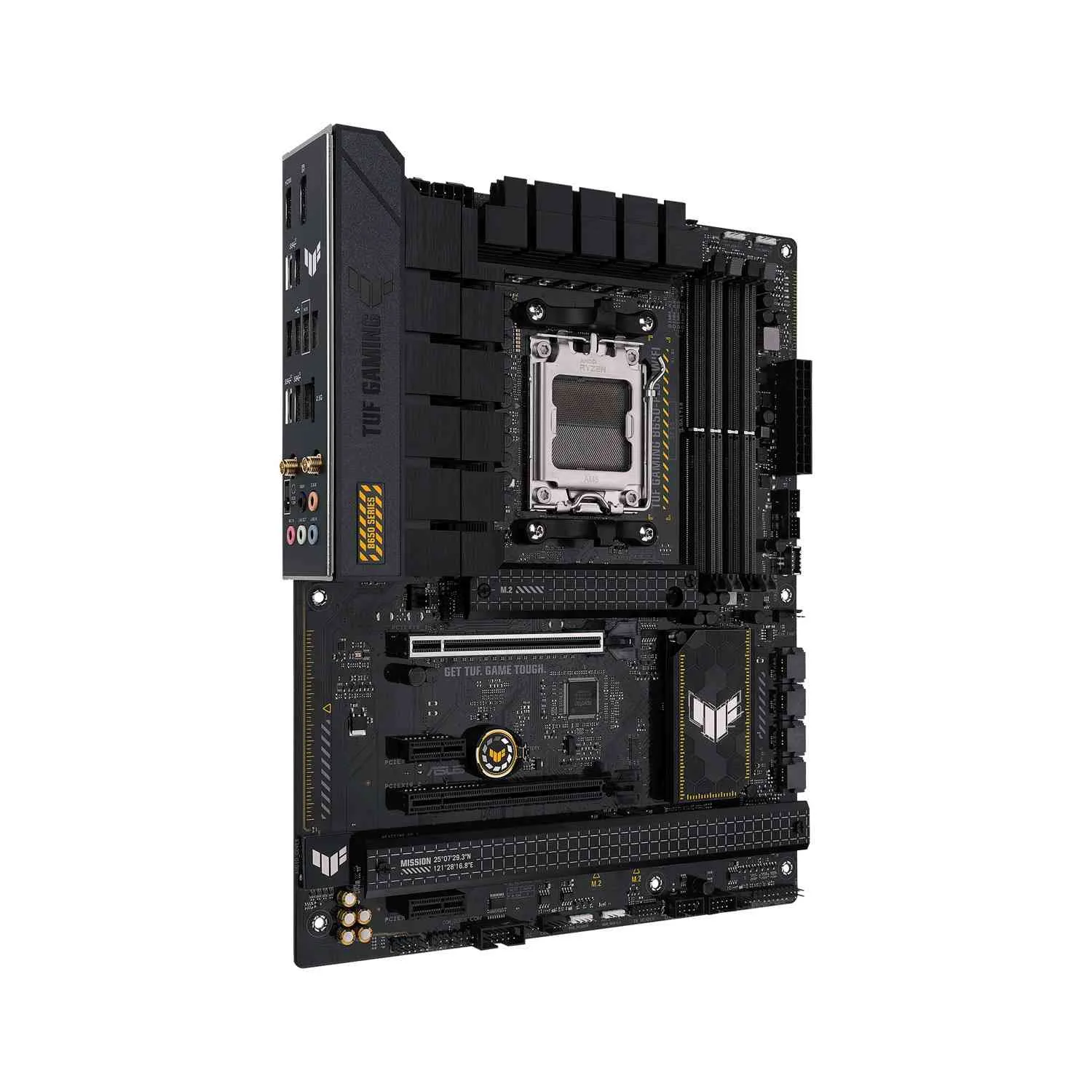

Asus Tuf Gaming B650-Plus AMD Ryzen WIFI DDR5 Gaming MotherBoard

Model No : Asus TUF Gaming B650-Plus AMD WIFI DDR5 Gaming MotherBoard Part No : 90MB1BZ0-M0EAY0 Chipset : AMD B650 Chipset Form Factor : ATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) Socket Compatibility : AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* Ethernet : 1 x Realtek 2.5Gb Ethernet Wireless : Wi-Fi 62x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)Supports 2.4/5GHz frequency bandBluetooth v5.2 Ethernet : 1 x Realtek 2.5Gb EthernetTUF LANGuard Graphics : 1 x DisplayPort*1 x HDMI® port*** Supports max. 8K@60Hz as specified in DisplayPort 1.4.** Supports 4K@60Hz as specified in HDMI 2.1. *** VGA resolution support depends on processors' or graphic cards' resolution. Memroy : 4 x DIMM, Max. 128GB, DDR57600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports AMD EXTended Profiles for Overclocking (EXPO™)OptiMem II* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration Storage Compatibility : Total supports 3 x M.2 slots and 4 x SATA 6Gb/s portsAMD Ryzen™ 9000 & 7000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)AMD Ryzen™ 8000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)**AMD B650 ChipsetM.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)***4 x SATA 6Gb/s ports*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.** Specifications vary by CPU types.*** M.2_3 shares bandwidth with PCIEX16_2. PCIEX16_2 will be suspended once M.2_3is populated. Expansion Slot : AMD Ryzen™ 9000 & 7000 Series Desktop Processors*1 x PCIe 4.0/3.0 x16 slot(s)AMD Ryzen™ 8000 Series Desktop Processors*1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**AMD B650 Chipset1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)2 x PCIe 4.0/3.0 x1 slots Back Panel I/O Ports : 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®)4 x USB 2.0 port(s) (4 x Type-A)1 x DisplayPort1 x HDMI® port1 x Wi-Fi Module1 x Realtek 2.5Gb Ethernet port5 x Audio jacks1 x BIOS FlashBack™ button Audio : Realtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Power pre-regulator reduces power input noise to ensure consistent performance- Premium audio capacitors- Dedicated audio PCB layers- Audio cover- Unique de-pop circuit* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Internal I/O Connectors : Fan and Cooling related1 x 4-pin CPU Fan header(s)1 x 4-pin CPU OPT Fan header(s)1 x 4-pin AIO Pump header(s)4 x 4-pin Chassis Fan header(s)Power related1 x 24-pin Main Power connector1 x 8-pin +12V Power connector1 x 4-pin +12V Power connectorStorage related3 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 connector (support(s) USB Type-C® )1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 portsMiscellaneous3 x Addressable Gen 2 header(s)1 x Aura RGB header(s)1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)20-3 pin System Panel header with Chassis intrude function1 x Thunderbolt™ (USB4®) header USB : Rear USB (Total 8 ports)1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®)4 x USB 2.0 port(s) (4 x Type-A)Front USB (Total 7 ports)1 x USB 3.2Gen 1 connector (supports USB Type-C®)1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports BIOS : 256 Mb Flash ROM, UEFI AMI BIOS Special Features : ASUS TUF PROTECTION- DIGI+ VRM (- Digital power design with DrMOS)- Enhanced DRAM Overcurrent Protection- ESD Guards- TUF LANGuard- Overvoltage Protection- SafeSlot Core+- Stainless-Steel Back I/OASUS Q-Design- M.2 Q-Latch- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink- VRM heatsink designASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- ProCool- Pre-mounted I/O shield- SafeDIMMAura Sync- Aura RGB header(s)- Addressable Gen 2 header(s) Warranty : 1 Year ( As per Manufacturer Policy )
