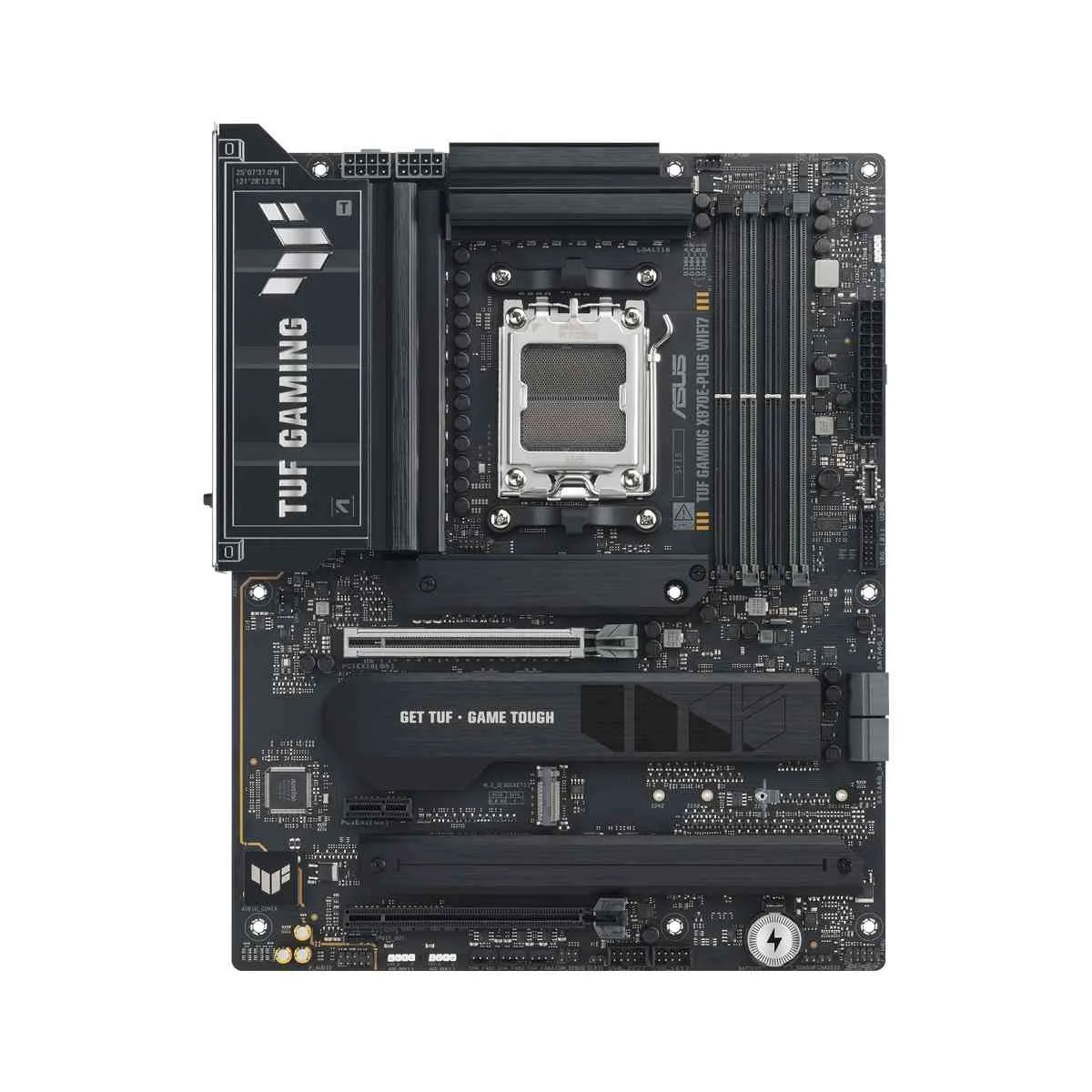

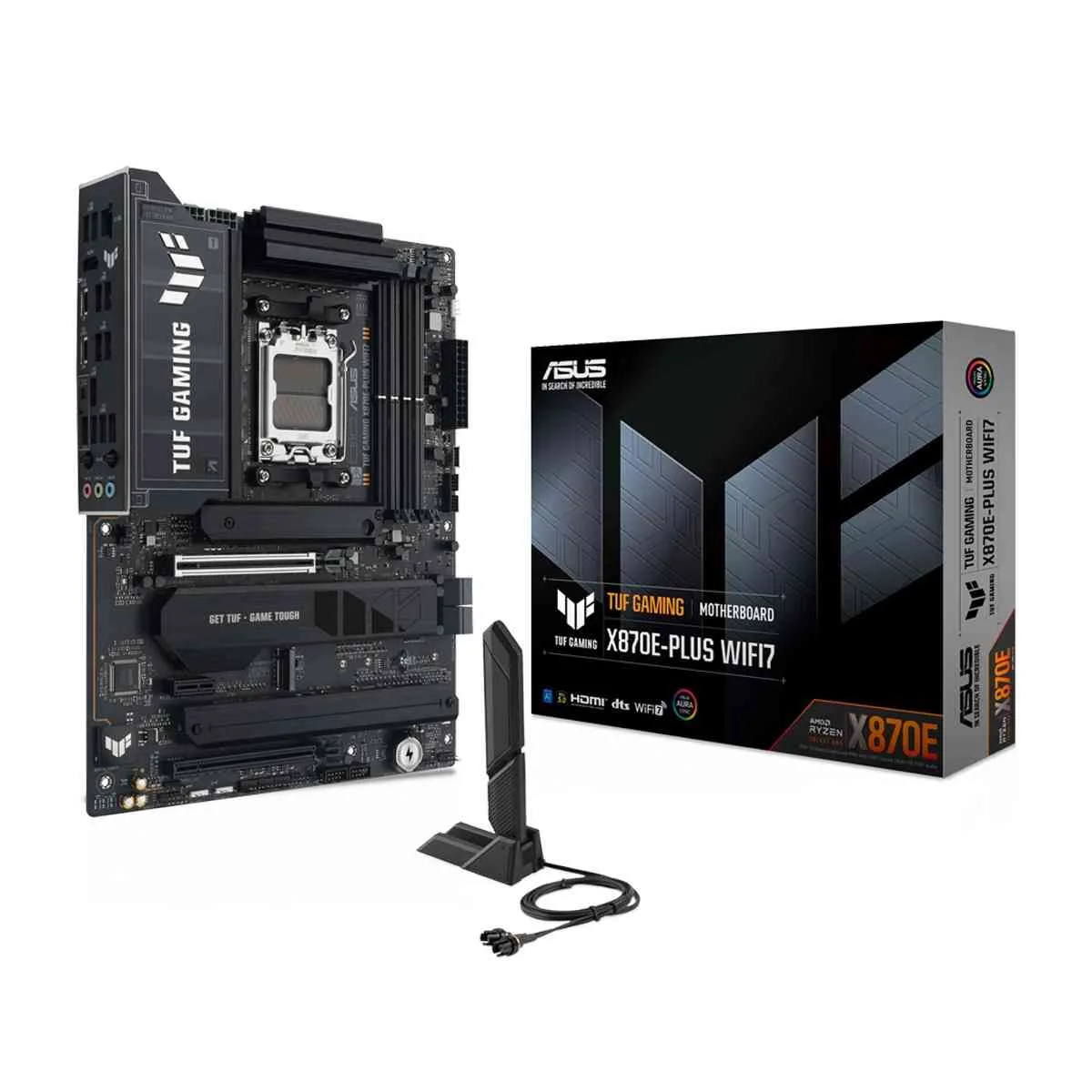

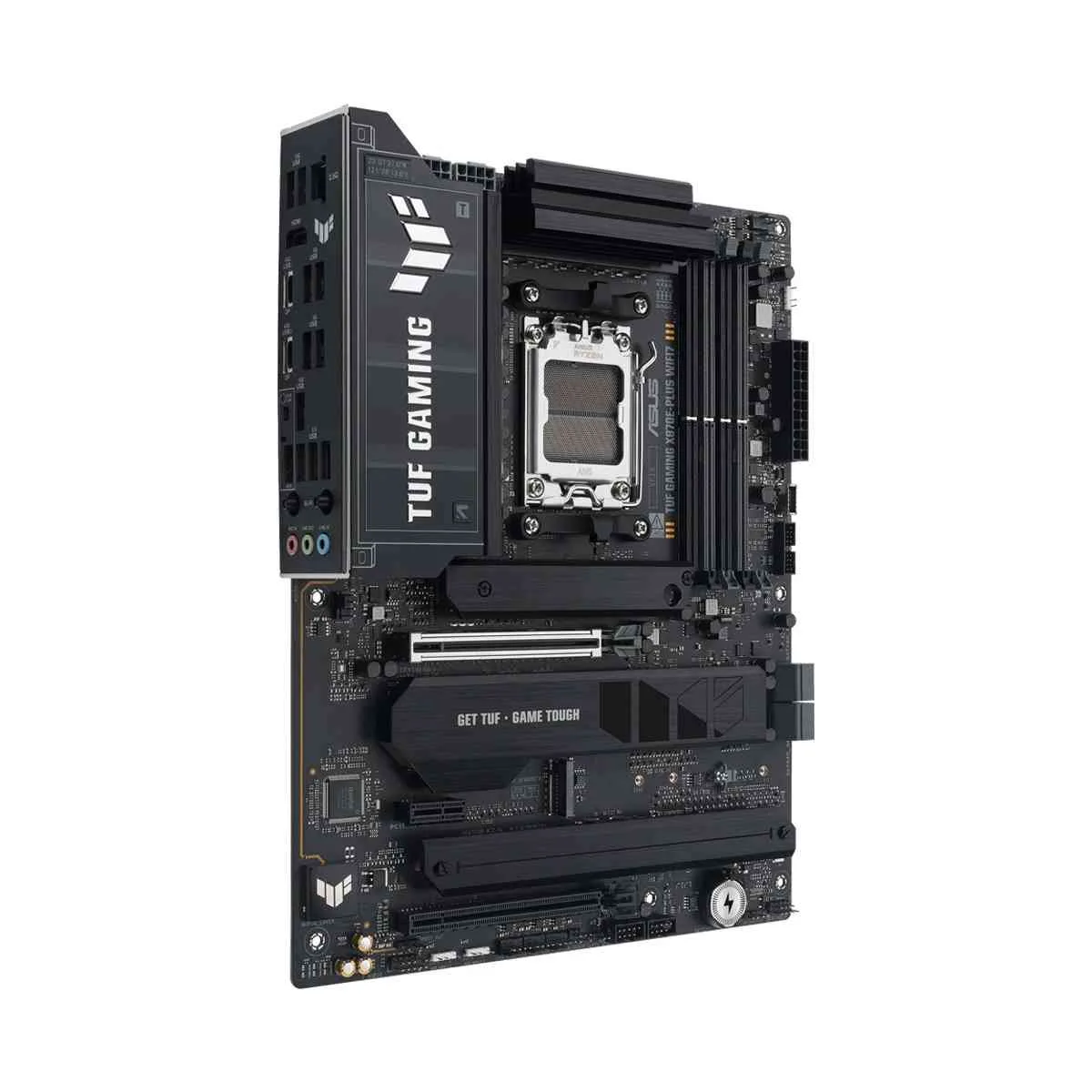

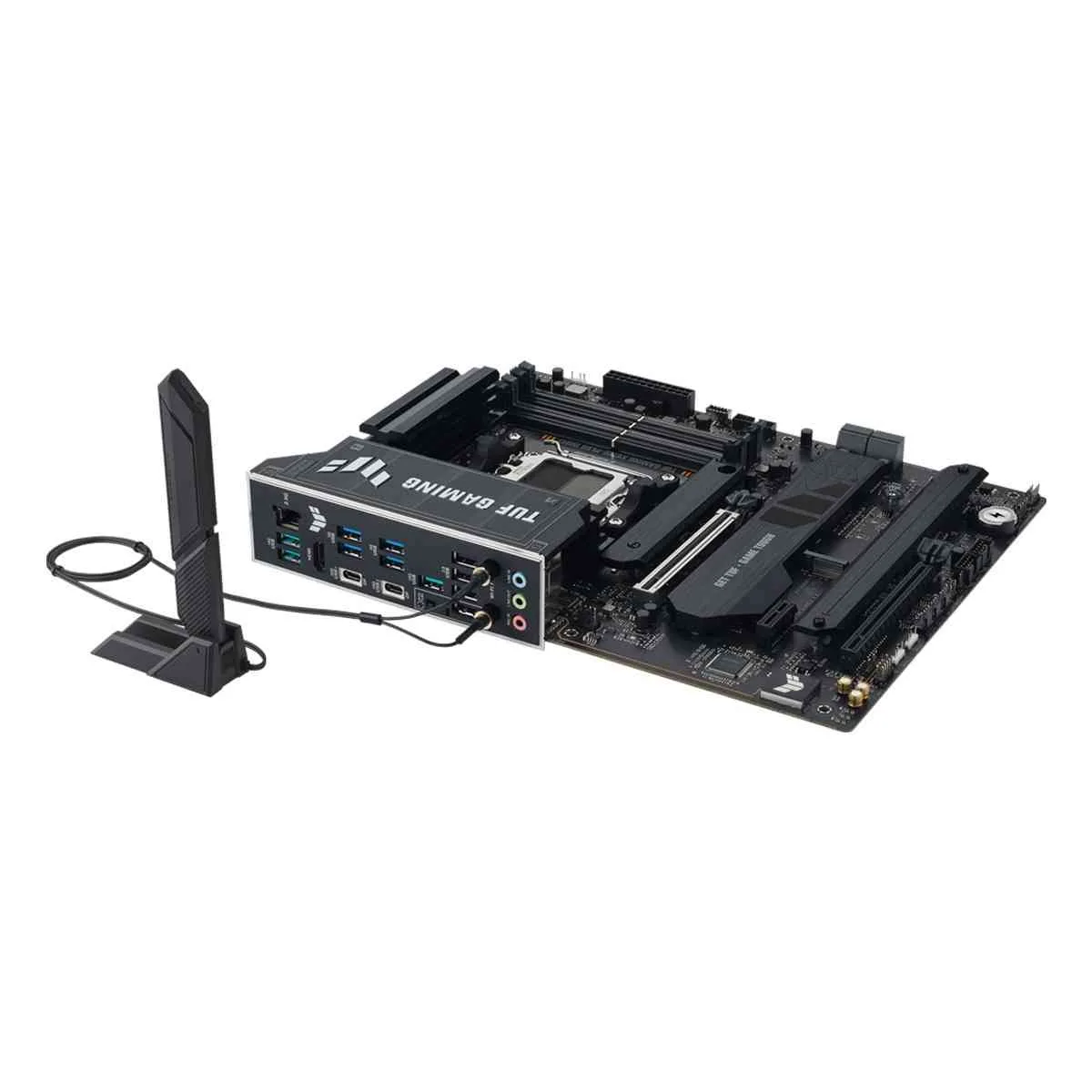

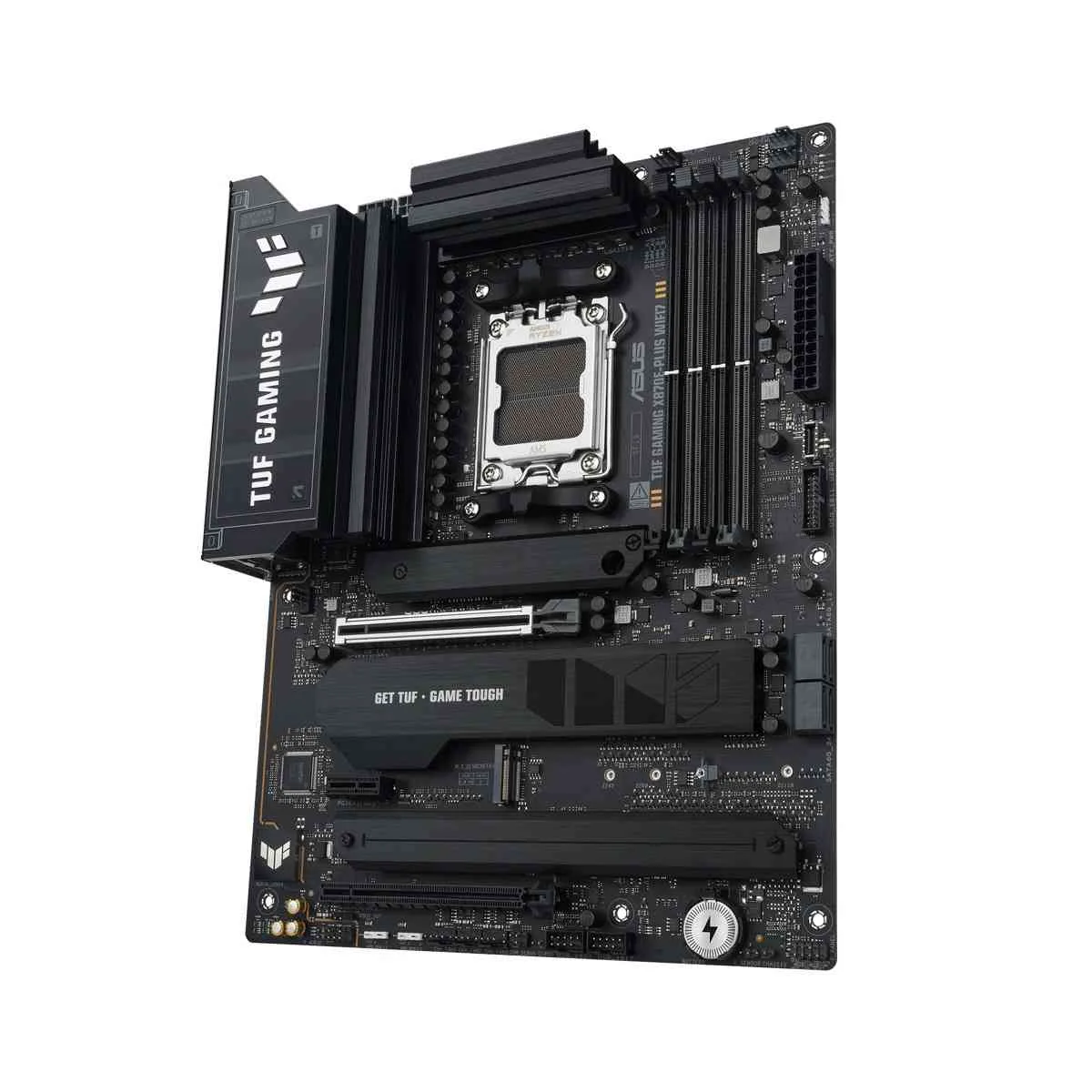

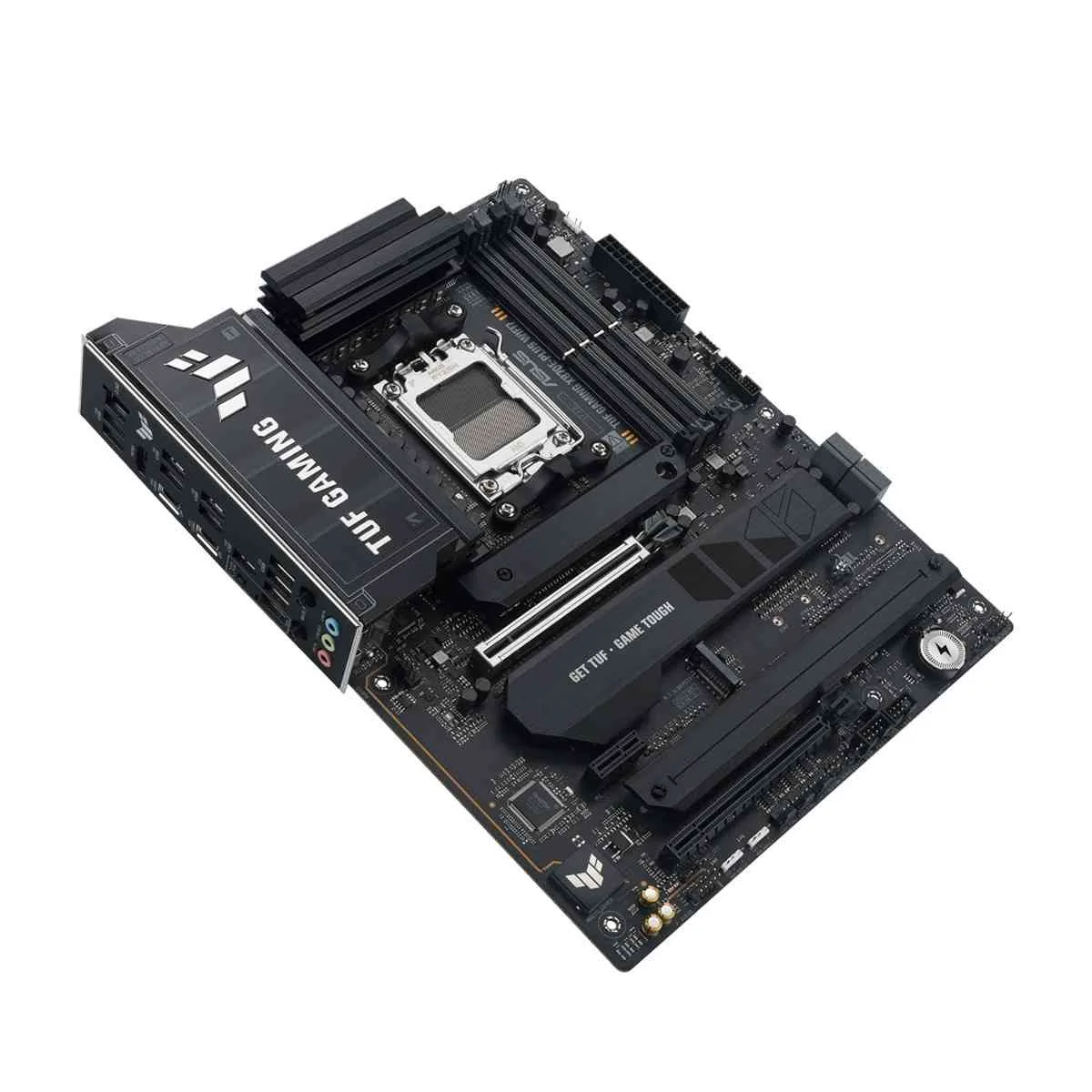

Asus Tuf Gaming X870E-Plus Wifi7 PCIe 5.0 Ai PC Ready AMD Gaming MotherBoard

Model No : Asus Tuf Gaming X870E-Plus Wifi7 PCIe 5.0 Ai PC Ready AMD Gaming MotherBoard Part No : 90MB1M70-M0EAY0 Chipset : AMD X870E Chipset Form Factor : ATX Socket Compatibility : AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors Wireless & Bluetooth : Wi-Fi 7*2x2 Wi-Fi 7 (802.11be)Supports 2.4/5/6GHz frequency band**Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rateBluetooth® v5.4**** Wi-Fi features may vary depending on the operating system.For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. Lighting : None Memroy Type : 4 x DIMM slots, max. 256GB, DDR5Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*"Dual channel memory architectureSupports AMD Extended Profiles for Overclocking (EXPO™)ASUS Enhanced Memory Profile (AEMP) Ethernet : 1 x Realtek 2.5Gb EthernetTUF LANGuard Storage Compatibility : Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s portsAMD Ryzen™ 9000 & 7000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)*M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**AMD Ryzen™ 8000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)M.2_2 slot is not supportedAMD X870 ChipsetM.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s portsAMD RAIDXpert2 TechnologyRyzen™ 9000 Series Processors: RAID 0/1/5/10Ryzen™ 8000 Series Processors: RAID 0/1Ryzen™ 7000 Series Processors: RAID 0/1/10 Back Panel I/O Ports : 2 x USB4® (40Gbps) ports (2 x USB Type-C®)3 x USB 10Gbps ports (3 x Type-A)4 x USB 5Gbps ports (4 x Type-A)4 x USB 2.0 ports (4 x Type-A)1 x HDMI™ port1 x Wi-Fi module1 x Realtek 2.5Gb Ethernet port3 x Audio jacks1 x BIOS FlashBack™ button USB Ports Front (Support ) : Rear USB (Total 13 ports)2 x USB4® (40Gbps) ports (2 x USB Type-C®)*3 x USB 10Gbps ports (3 x Type-A)4 x USB 5Gbps ports (4 x Type-A)4 x USB 2.0 ports (4 x Type-A)Front USB (Total 7 ports)1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)**1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 ports* USB Type-C® power delivery output: max. 5V/3A** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A. Expansion Slots : AMD Ryzen™ 9000 & 7000 Series Desktop Processors*1 x PCIe 5.0 x16 slot**AMD Ryzen™ 8000 Series Desktop Processors1 x PCIe 4.0 x16 slot (supports x8/x4 mode)AMD X870E Chipset1 x PCIe 4.0 x16 slot (supports x4 mode)1 x PCIe 3.0 x1 Slot Audio : Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC- Impedance sense for front and rear headphone outputs- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)- Supports up to 32-Bit/192 kHz playback*"Audio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers- Audio cover- Unique de-pop circuit* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio Internal I/O Connectors : Fan and Cooling Related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header4 x 4-pin Chassis Fan headersPower Related1 x 24-pin Main Power connector2 x 8-pin +12V CPU Power connectorsStorage Related4 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x Clear CMOS header1 x Chassis Intrusion header1 x Front Panel Audio header (F_AUDIO)1 x 10-1 pin Front System Panel header1 x Thermal Sensor header Special Features : ASUS TUF PROTECTION- DIGI+ VRM (- Digital power design with SPS)- ESD Guards- TUF LANGuard- Overvoltage protection- SafeSlot- Stainless-steel back I/OASUS Q-Design- M.2 Q-Latch- Q-Release Slim (with PCIe SafeSlot)- Q-Antenna- Q-Dashboard- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsinks- VRM heatsink designASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- ProCool- Pre-mounted I/O shield- SafeDIMMAura Sync- Addressable Gen 2 headersFront Panel USB 20Gbps with PD Fast Charge Support- Support: up to 30W fast charging and USB Wattage Watcher- Output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A- Compatible with PD3.0 Package Content : Cables2 x SATA 6Gb/s cablesMiscellaneous1 x ASUS WiFi Q-Antenna2 x M.2 rubber packages1 x Screw package for M.2 SSD1 x TUF GAMING stickerDocumentation1 x Quick start guide Product Size ( Dimension ) : 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) Warranty : 1 Year ( As per Manufacturer Policy )
