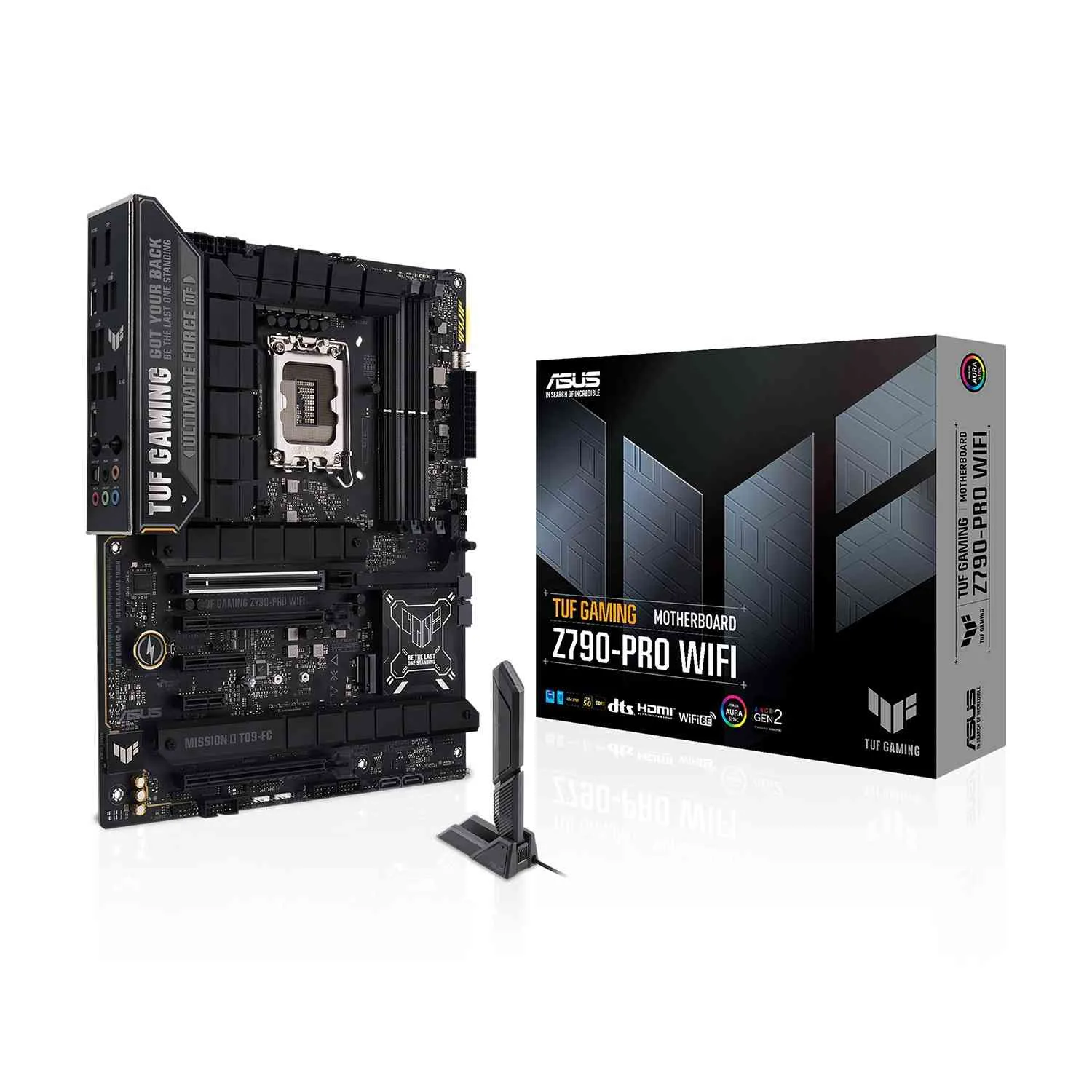

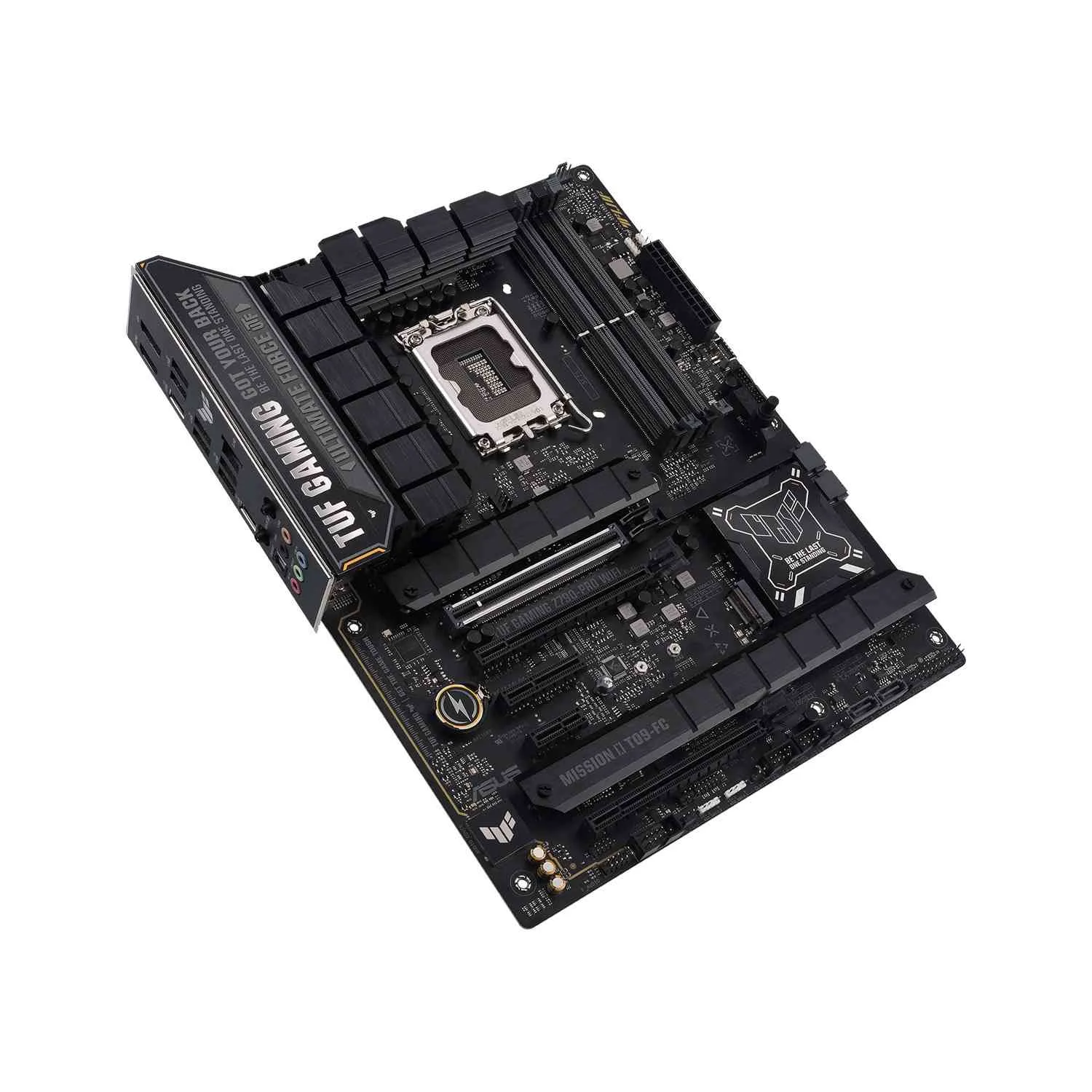

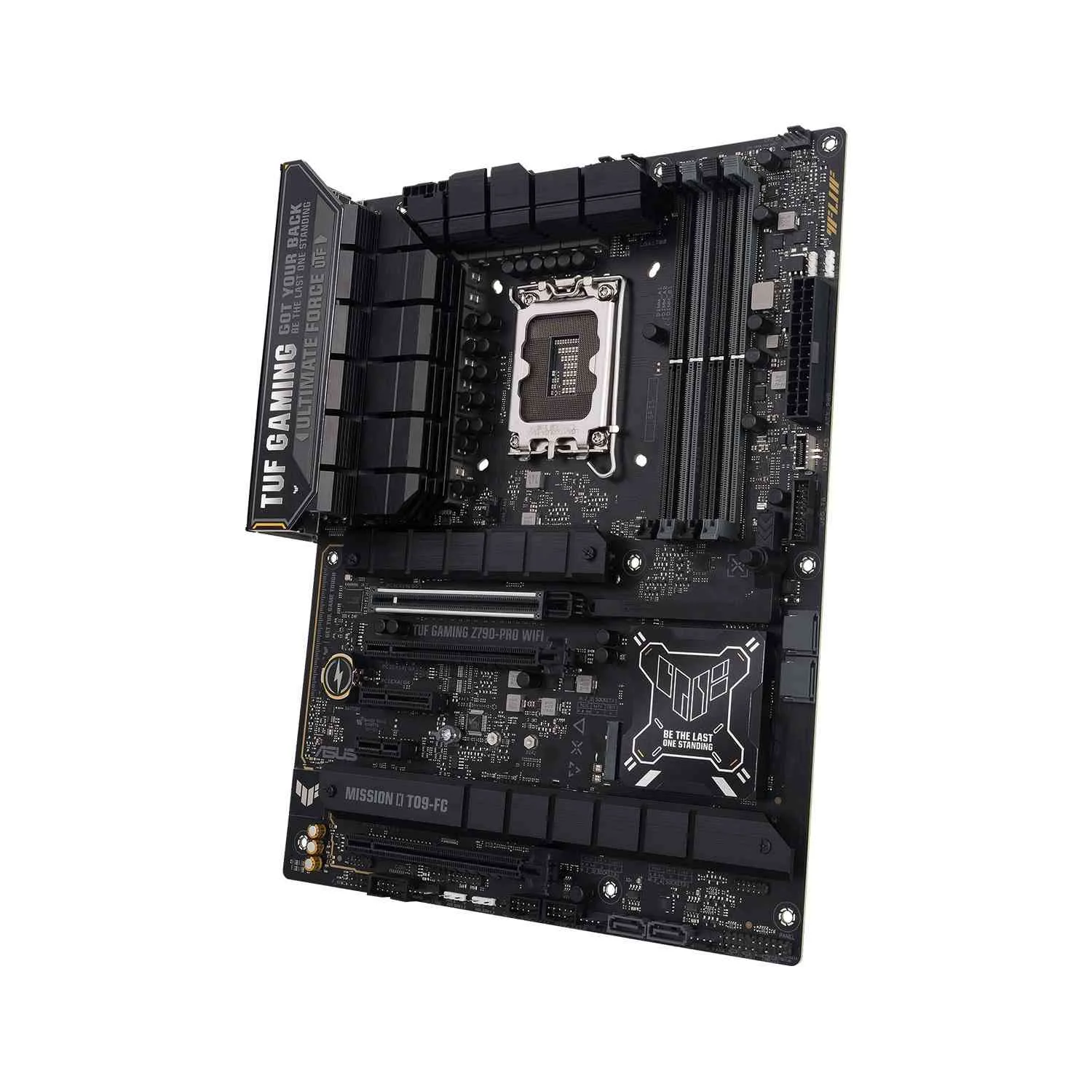

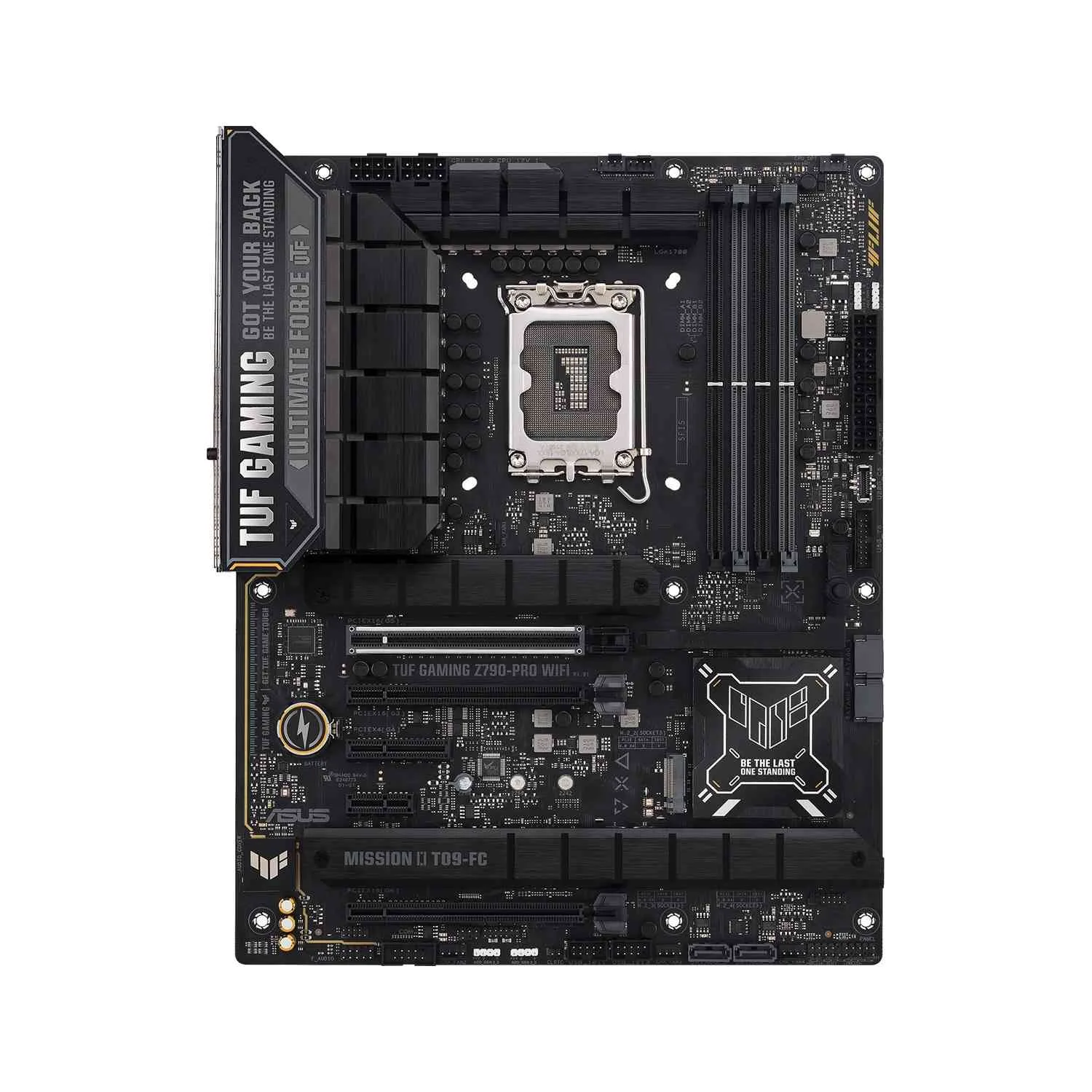

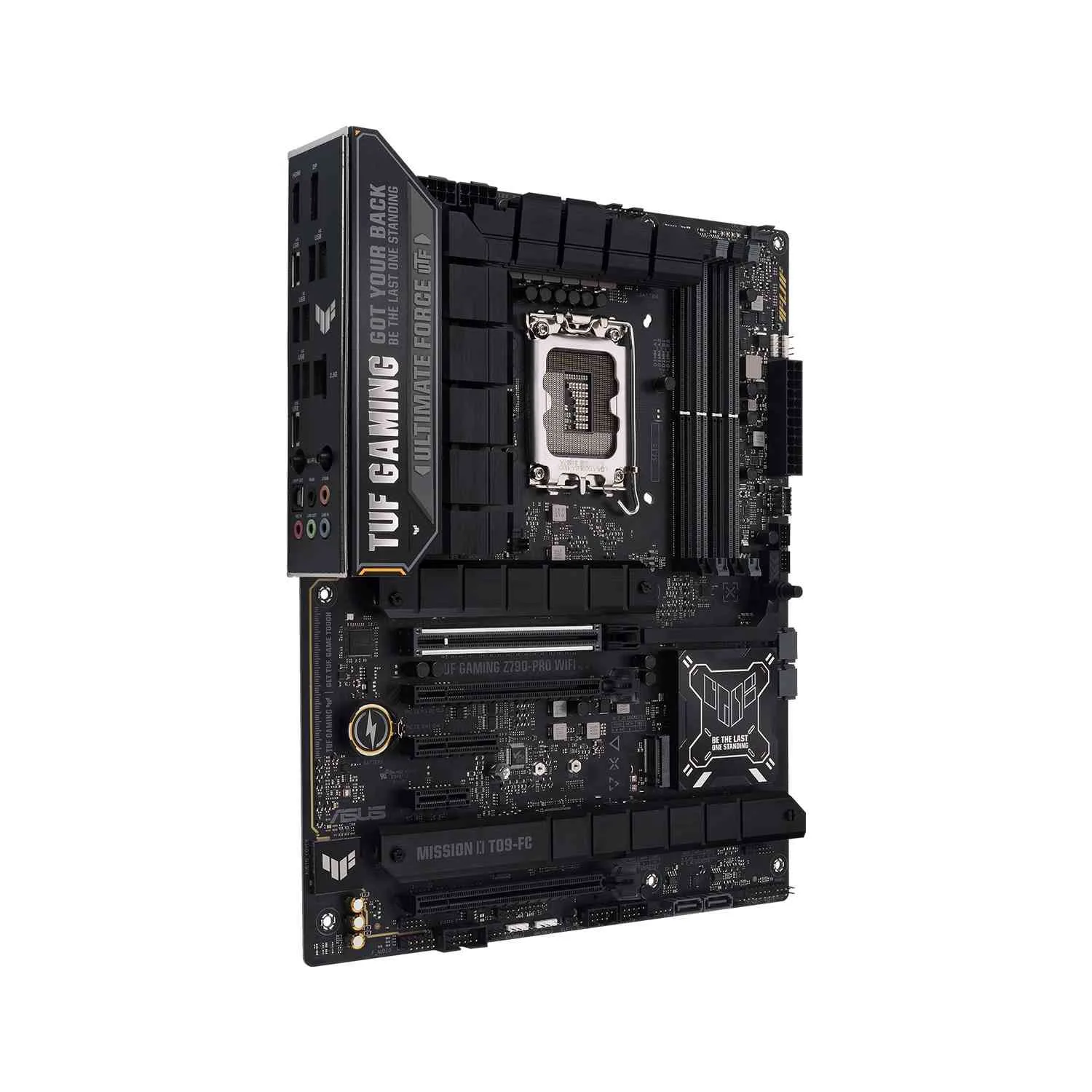

Asus TUF GAMING Z790-PRO WIFI ATX Gaming Motherboard

Key Specifications

• Model NoAsus TUF GAMING Z790-PRO WIFI ATX Gaming Motherboard
• Part No90MB1FJ0-M0EAY0ChipsetIntel® Z790 ChipsetForm FactorATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )Socket
• CompatibilityIntel® LGA 1700 socket: Ready for Intel® Core™ 14th & 13th Gen Intel® Core™ processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron®
• ProcessorsSupports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.Wireless & BluetoothWi-Fi 6E2x2 Wi-Fi 6E (802.11ax)Supports 2.4/5/6GHz frequency band*Bluetooth® v5.3*** Wi-Fi 6GHz frequency band regulatory may vary between countries.** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.Ethernet1 x Intel® 2.5Gb EthernetTUF LANGuardMemroy4 x DIMM slots, max. 192GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered
• Memory*Dual channel memory architectureSupports Intel® Extreme
• Memory Profile (XMP) memory moduleASUS Enhanced
• Memory Profile II (AEMP II)* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration.* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
• Graphics1 x DisplayPort**1 x HDMI™ port****
• Graphics specifications may vary between CPU types.** Supports max. 4K@60Hz as specified in DisplayPort 1.4.*** Supports 4K@60Hz as specified in HDMI 2.1.
• CompatibilitySupports 4 x M.2 slots and 4 x SATA 6Gb/s ports*Intel® Core™
• Processors(14th & 13th & 12th )*M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)Intel® Z790 ChipsetM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)4 x SATA 6Gb/s ports* Intel® Rapid

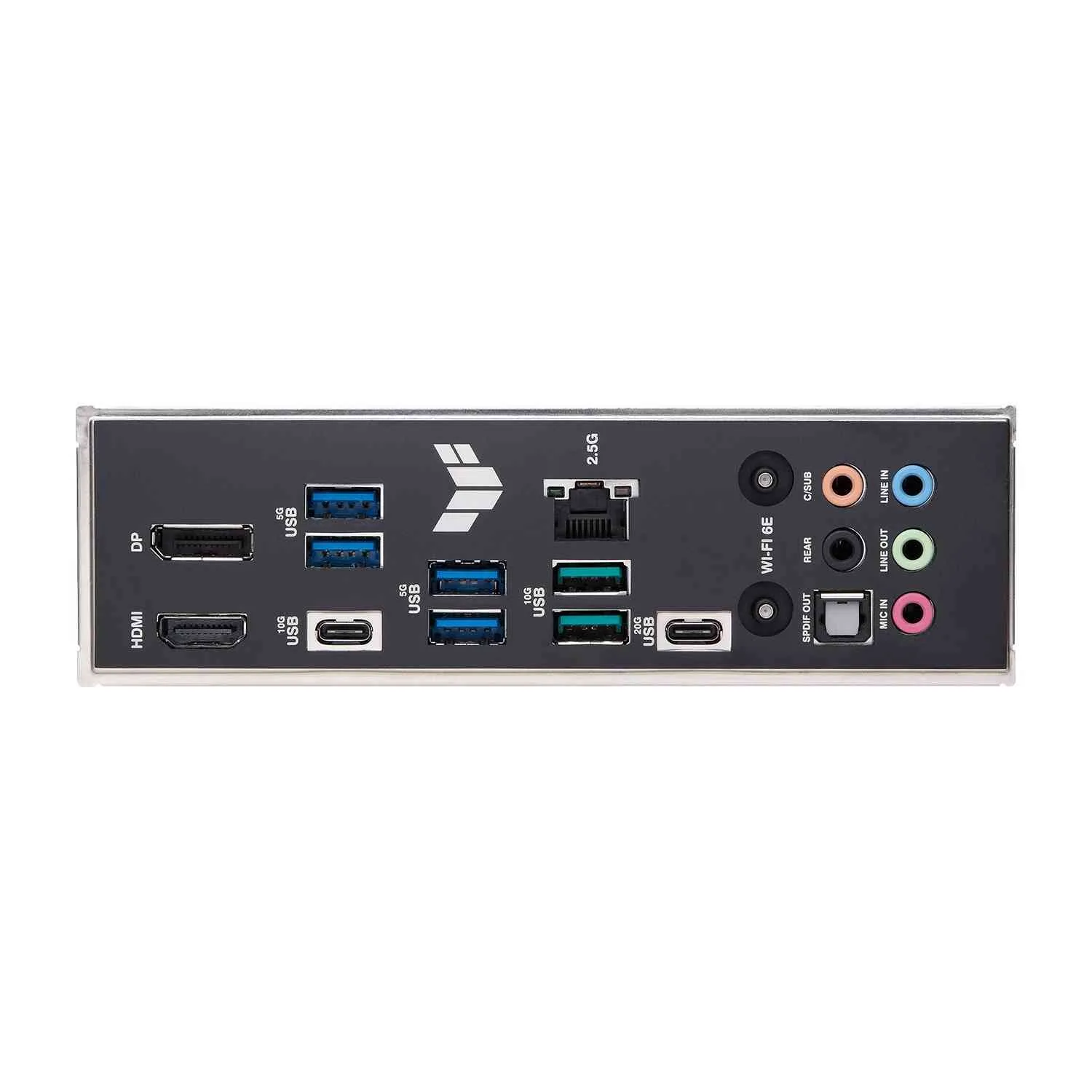

• Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.Back Panel I/O Ports1 x USB 20Gbps port (1 x USB Type-C®)3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)4 x USB 5Gbps ports (4 x Type-A)1 x DisplayPort1 x HDMI™ port1 x Wi-Fi module1 x Intel® 2.5Gb Ethernet port5 x Audio jacks1 x Optical S/PDIF out portUSB PortsRear USB (Total 8 ports)1 x USB 20Gbps port (1 x USB Type-C®)3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)4 x USB 5Gbps ports (4 x Type-A)Front USB (Total 7 ports)1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support additional 4 USB 2.0 portsExpansion SlotsIntel® Core™
• Processors(14th & 13th & 12th )*1 x PCIe 5.0 x16 slotIntel® Z790 Chipset1 x PCIe 4.0 x16 slot (supports x4 mode)1 x PCIe 4.0 x4 slot1 x PCIe 3.0 x16 slot (supports x1 mode)1 x PCIe 3.0 x1 slotAudioRealtek S1220A 7.1 Surround Sound High Definition Audio CODEC*-
• Impedance sense for front and rear headphone outputs- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)- Supports up to 32-Bit/192 kHz playback*"Audio Features- Audio Shielding- Rear optical S/PDIF out port- Premium audio capacitors- Dedicated audio PCB layers- Audio Cover- Unique de-pop circuit* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.Internal I/O ConnectorsFan and
