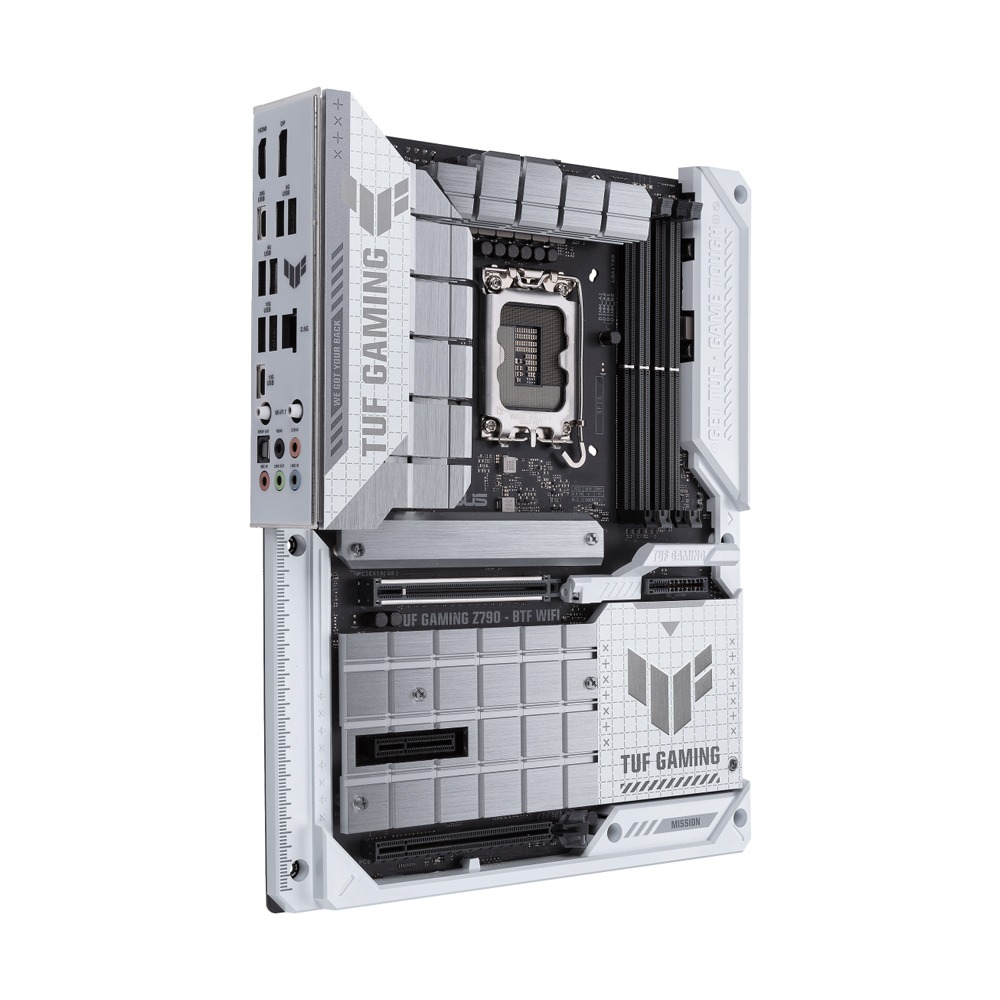

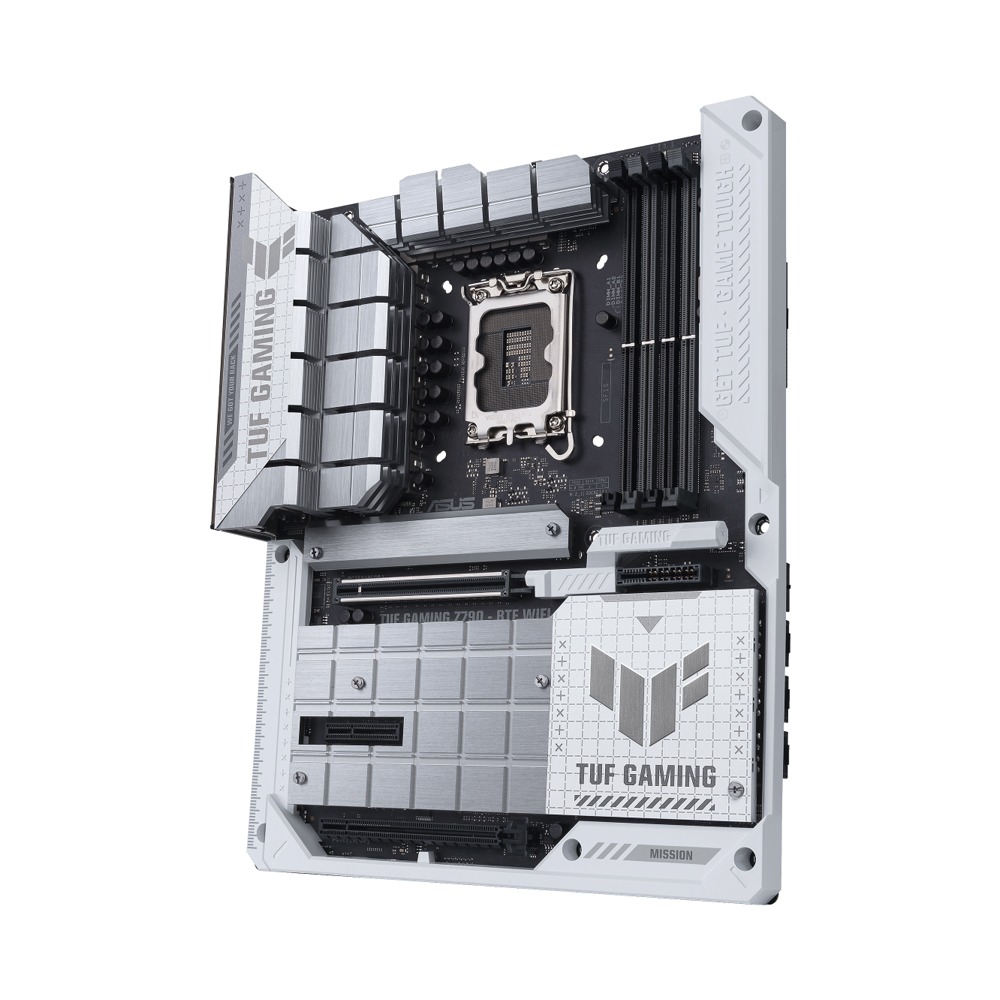

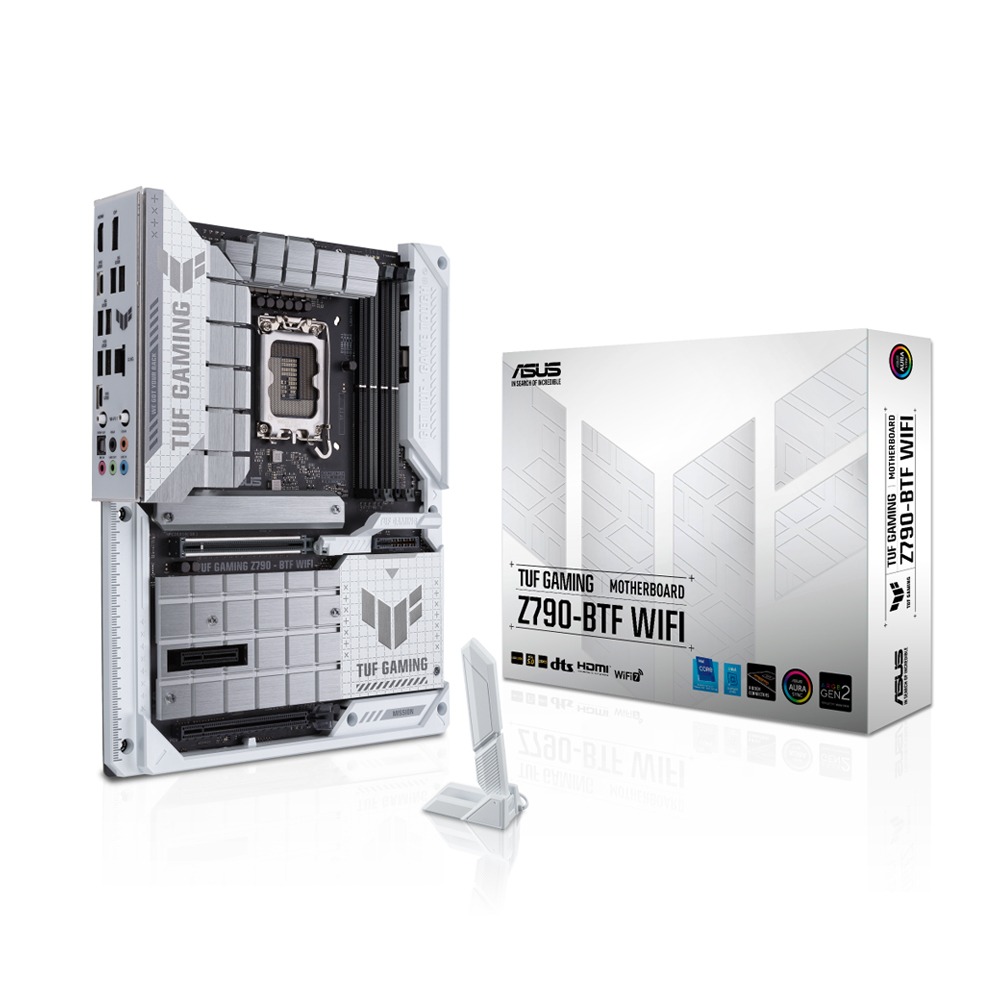

Asus TUF Z790-BTF Gaming WIFI 7 Motherboard DDR5 Sockel Intel LGA1700

Model No : Asus TUF Z790-BTF Gaming WIFI 7 Motherboard DDR5 Sockel Intel LGA1700 Part No : 90MB1GU0-M0EAY0 Chipset : Intel® Z790 Chipset Form Factor : ATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) Socket Compatibility : Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** Wireless & Bluetooth : Intel® Wi-Fi 7*2x2 Wi-Fi 7 (802.11be)**Supports 2.4/5/6GHz frequency band***Support Wi-Fi 7 160MHz bandwidth, up to 2.4Gbps transfer rate.Bluetooth® v5.4***** Compatible with Windows 11 or later.** Wi-Fi 7 MLO(Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later.*** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.**** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. Memroy Type : DDR5 Memory Compatibility : 4 x DIMM slots, Max. 192GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP) memory moduleASUS Enhanced Memory Profile II (AEMP II) Ethernet : 1 x Intel® 2.5Gb EthernetTUF LANGuard Storage Compatibility : Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*Intel® Core™ Processors (14th & 13th & 12th Gen)*M.2_1 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)Intel® Z790 ChipsetM.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)4 x SATA 6Gb/s ports* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. Back Panel I/O Ports : 1 x USB 20Gbps port (1 x USB Type-C®)3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)4 x USB 5Gbps ports (4 x Type-A)1 x DisplayPort1 x HDMI™ port1 x Wi-Fi module1 x Intel® 2.5Gb Ethernet port5 x Audio jacks1 x Optical S/PDIF out port USB Ports Front (Support ) : Rear USB (Total 8 ports)1 x USB 20Gbps port (1 x USB Type-C®)3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)4 x USB 5Gbps ports (4 x Type-A)Front USB (Total 7 ports)1 x USB 10Gbps connector (supports USB Type-C®)1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 ports Expansion Slots : Intel® Core™ Processors (14th & 13th & 12th Gen)*1 x PCIe 5.0 x16 slotIntel® Z790 Chipset1 x PCIe 4.0 x16 slot (supports x4 mode)1 x PCIe 4.0 x4 slot* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Audio : Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*- Impedance sense for front and rear headphone outputs- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)- Supports up to 32-Bit/192 kHz playback*Audio Features- Audio Shielding- Rear optical S/PDIF out port- Dedicated audio PCB layers- Audio Cover- Unique de-pop circuit* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. Internal I/O Connectors : Fan and Cooling Related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header4 x 4-pin Chassis Fan headersPower Related1 x 24-pin Main Power connector2 x 8-pin +12V Power connectors1 x Graphics Card High-Power slot1 x 12V-2X6 Auxiliary Power connector3 x 8-pin PCIe Power connectorsStorage Related4 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 10Gbps connector (supports USB Type-C®)1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x Aura RGB header1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (F_AUDIO)1 x 20-3 pin System Panel header with chassis intrusion function1 x Thunderbolt™ (USB4®) header Special Features : ASUS TUF PROTECTION- DIGI+ VRM (- Digital power design with DrMOS)- ESD Guards- TUF LANGuard- Overvoltage protection- SafeSlot- Stainless-steel back I/OASUS Q-Design- M.2 Q-Latch- PCIe Slot Q-Release- Q-Antenna- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink- VRM heatsink designASUS EZ DIY- CPU Socket lever protector- ProCool- Pre-mounted I/O shield- SafeDIMMAURA Sync- Aura RGB header- Addressable Gen 2 headers Package Content : Cables2 x SATA 6Gb/s cablesMiscellaneous1 x ASUS WiFi Q-Antenna1 x TUF GAMING sticker2 x M.2 rubber packages1 x Screw package for M.2 SSDDocumentation1 x TUF certification card1 x Quick start guide Product Size ( Dimension ) : 24.4 x 4.9 x 30.5 cm Product Weight : 2 kg Warranty : 1 Year ( As per Manufacturer Policy )
